It aslo has the function of leakage current monitoring, pisitive and negative sequence voltage/current monitoring, etc.
WIFI Energy Monitor IOT Based Bidirectional Smart Energy Meter 3 Phase Power Quality Analyzer
$445.00
99 in stock
SKU: 3256807875124397
Category: Power Quality Analyzer
Product Description
WIFI Energy Monitor IOT Based Bidirectional Smart Energy Meter 3 Phase Power Quality Analyzer
Application

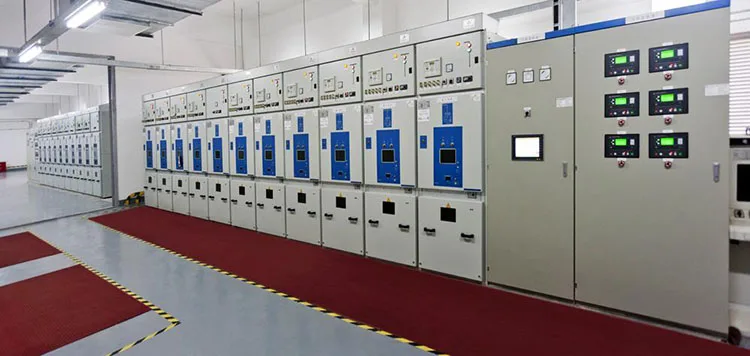

1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
Details Images

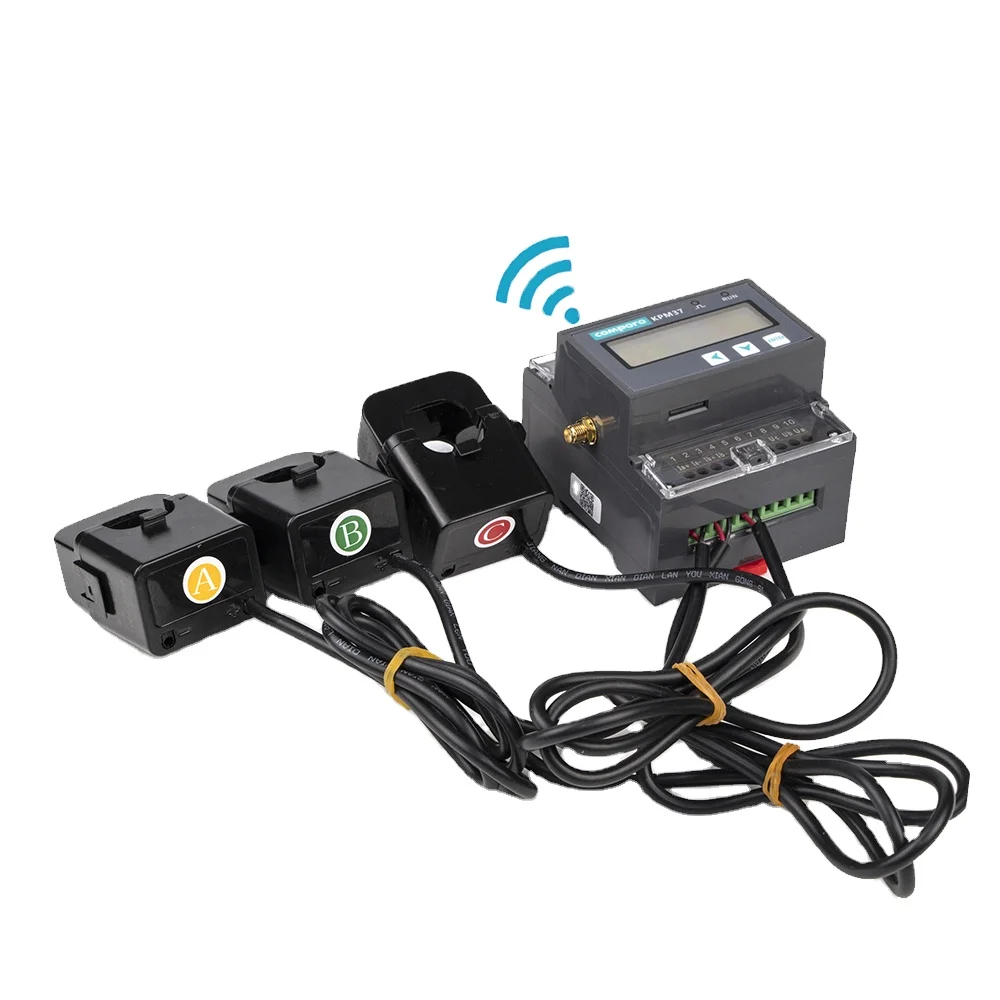

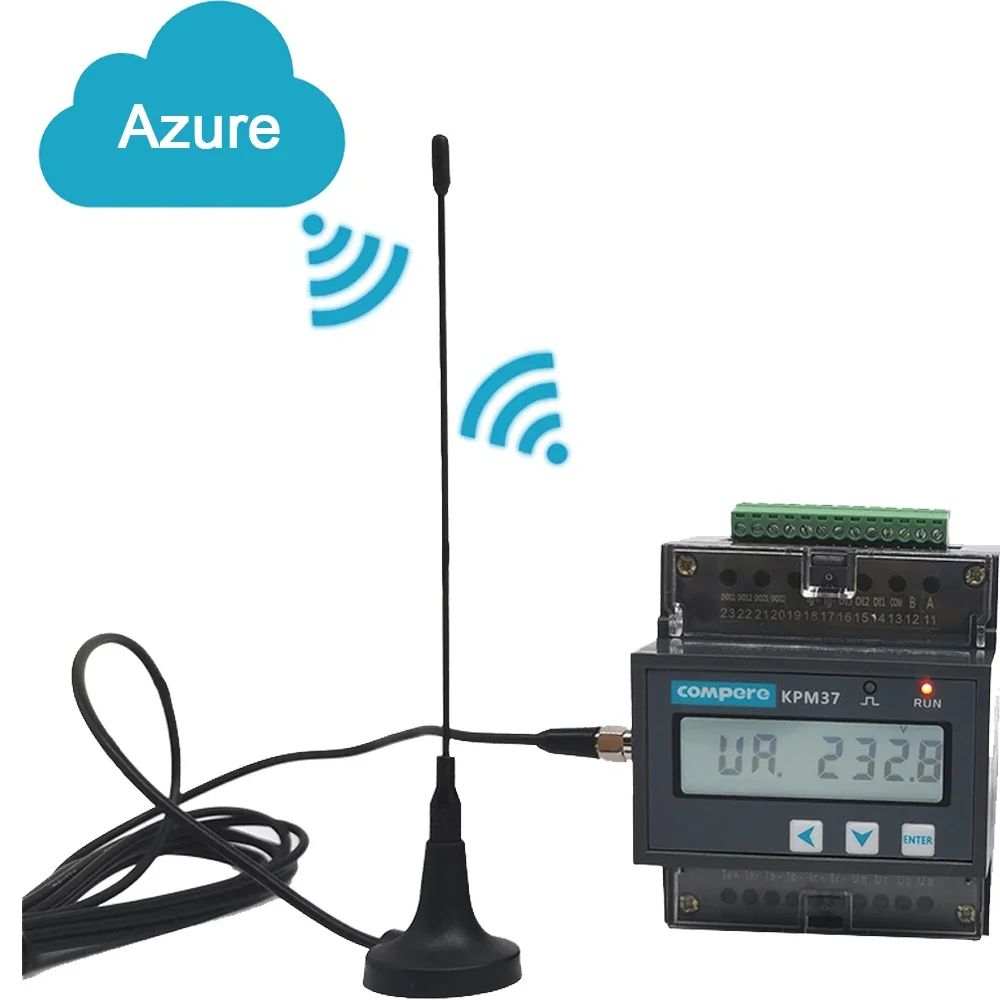

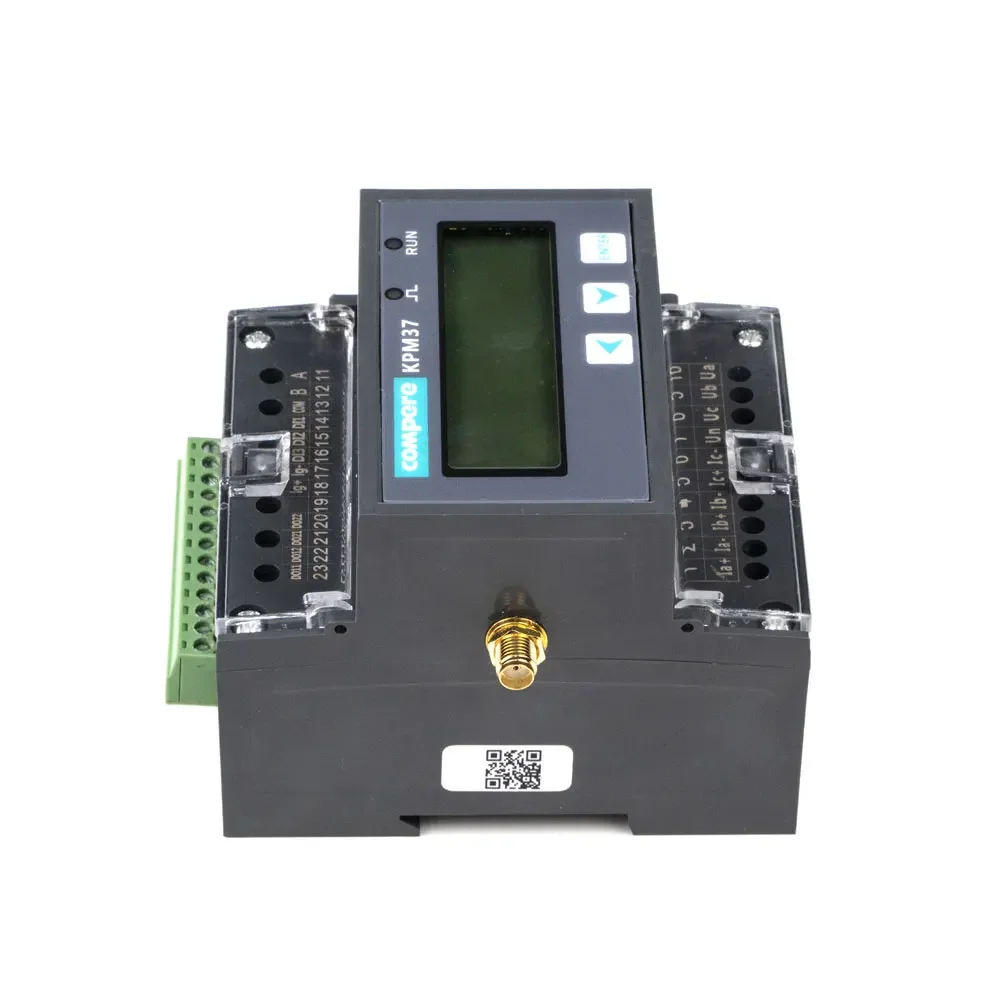

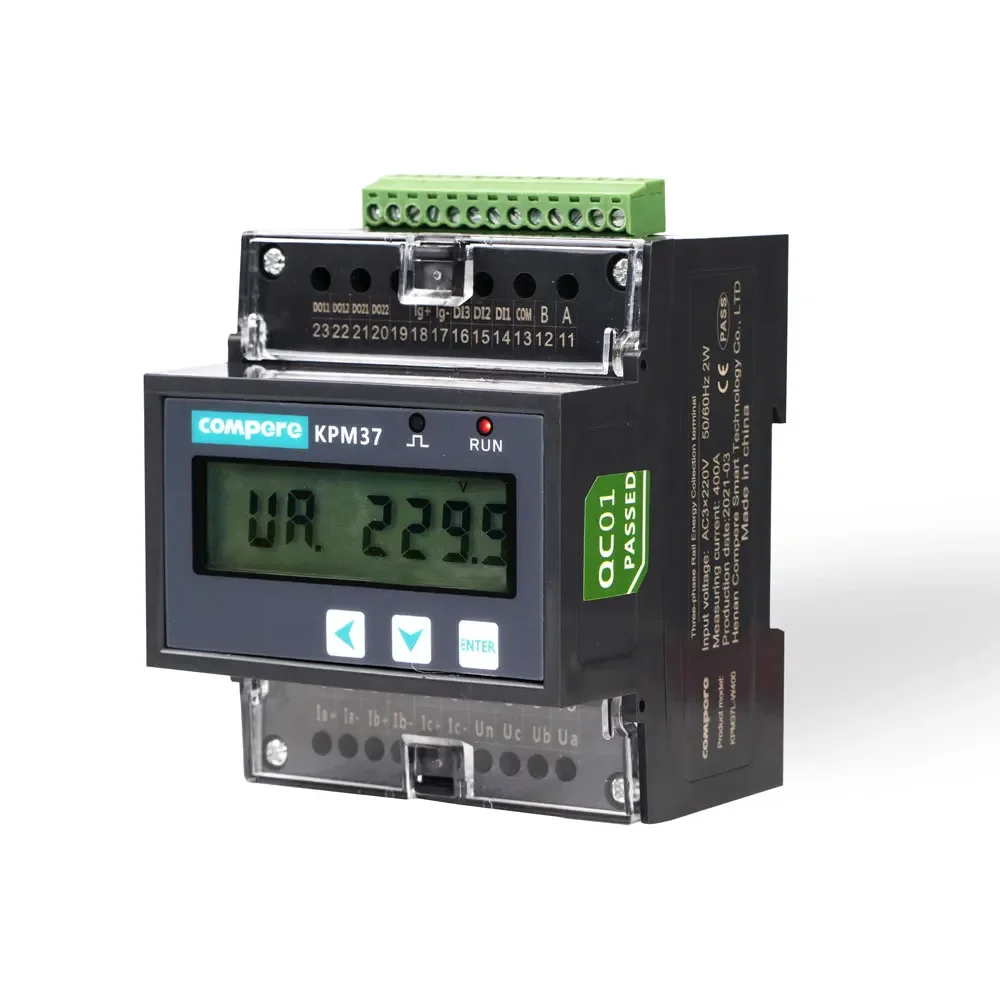

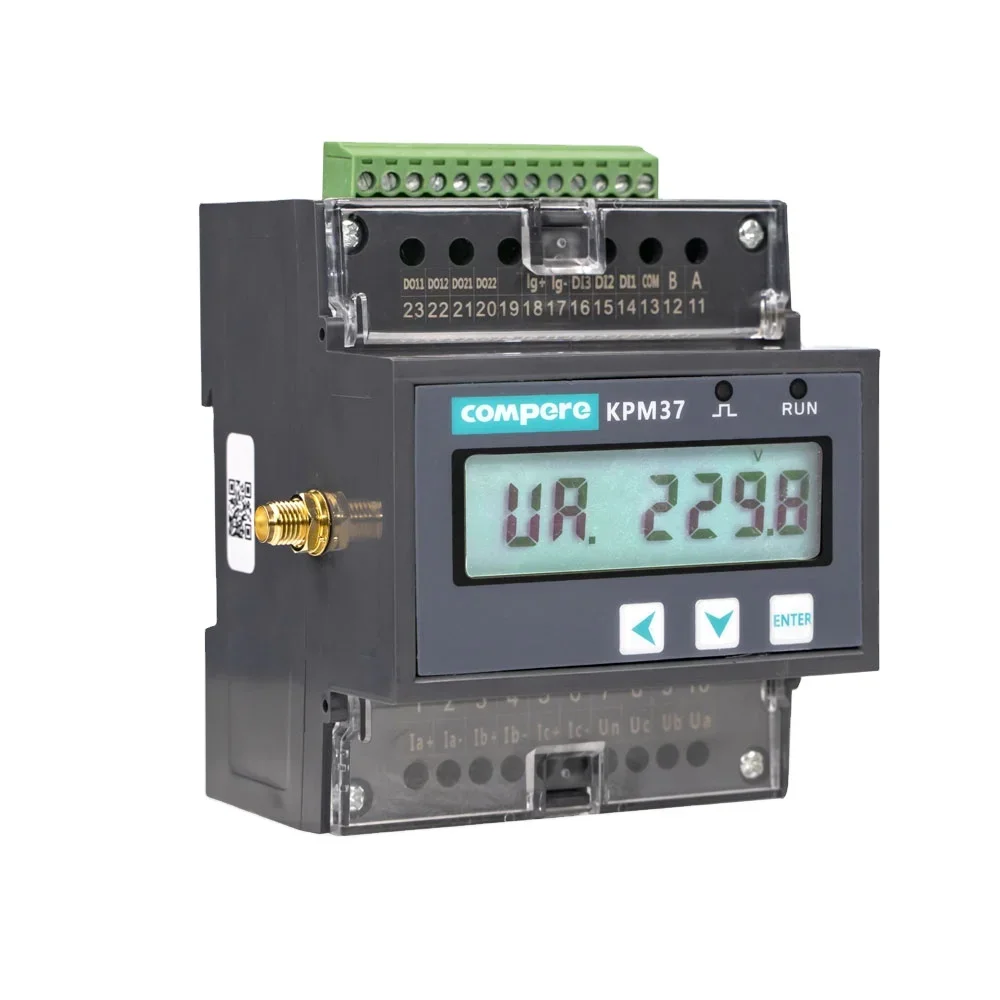

KPM37 WIFI Energy Monitor IOT Based Bidirectional Smart Energy Meter 3 Phase Power Quality Analyzer adopts DIN 35MM rail type installation structure and LCD display. It integrates three-phase electric parameter measurement, 2~31st harmonic analysis and time statistics.
KPM37 WIFI Energy Monitor IOT Based Bidirectional Smart Energy Meter 3 Phase Power Quality Analyzer default communication is Modbus-RTU by RS485 interface. WiFi, 4G, Lora communication are optional. The meter can also expand 2-way digital input and 2-way relay output, 4-way temperature measurement and 1 way residual current measurement.

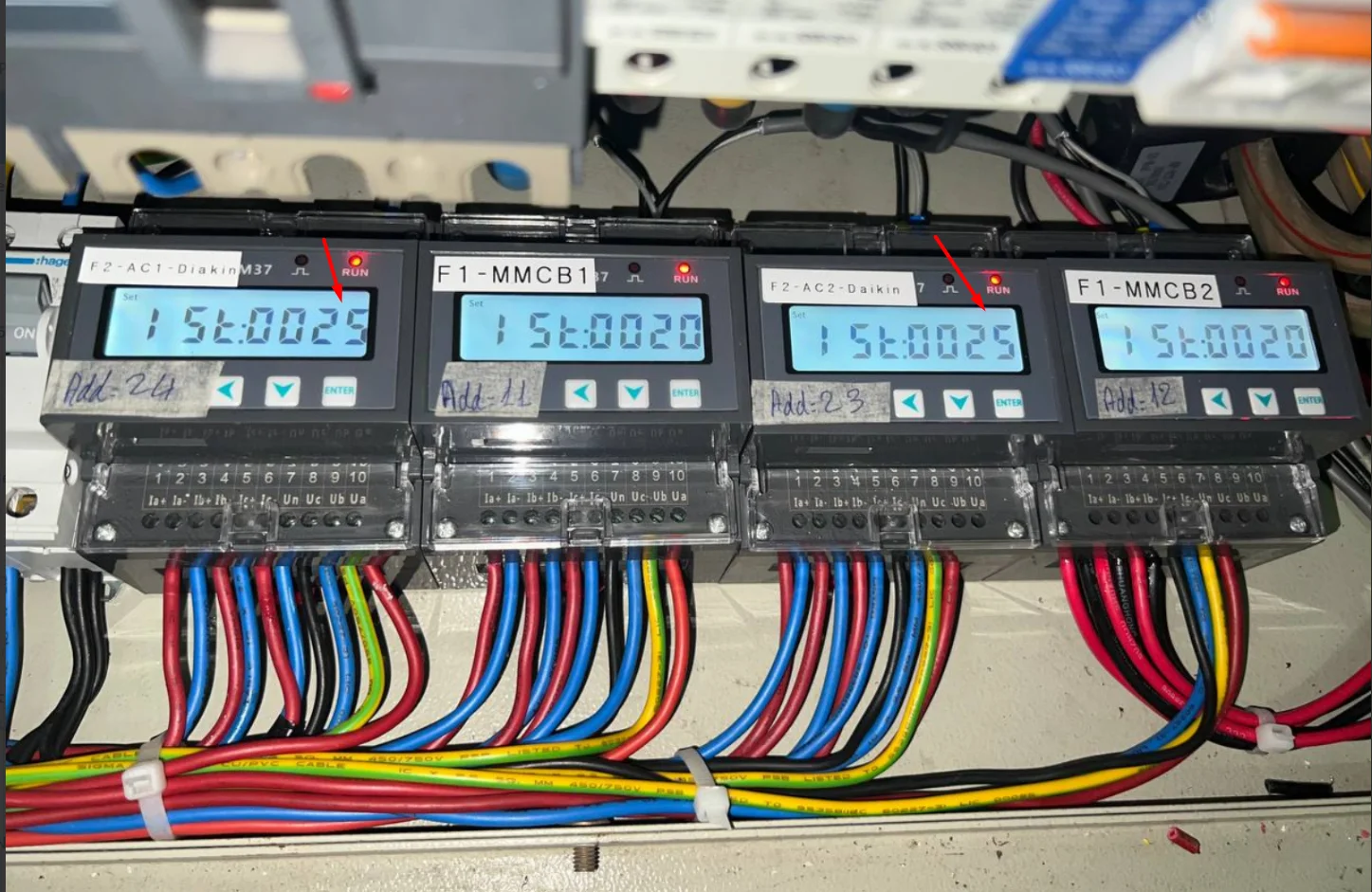

KPM37 has the advantages of small size, high accuracy, high reliability, easy installation, etc. It is mostly used for projects for system integration, wire line modification and in limited or inconvenient installation space, etc.
KPM37 has the advantages of small size, high accuracy, high reliability, easy installation, etc. It is mostly used for projects for system integration, wire line modification and in limited or inconvenient installation space, etc.

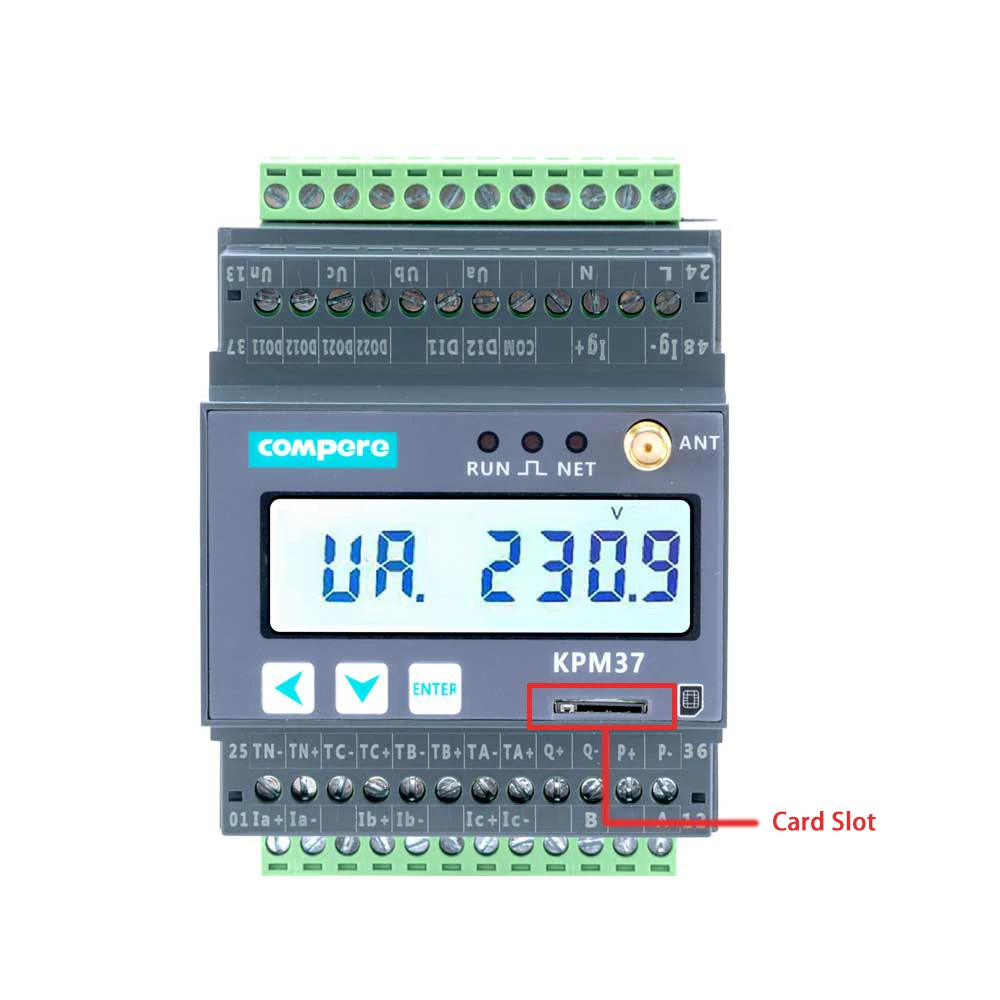

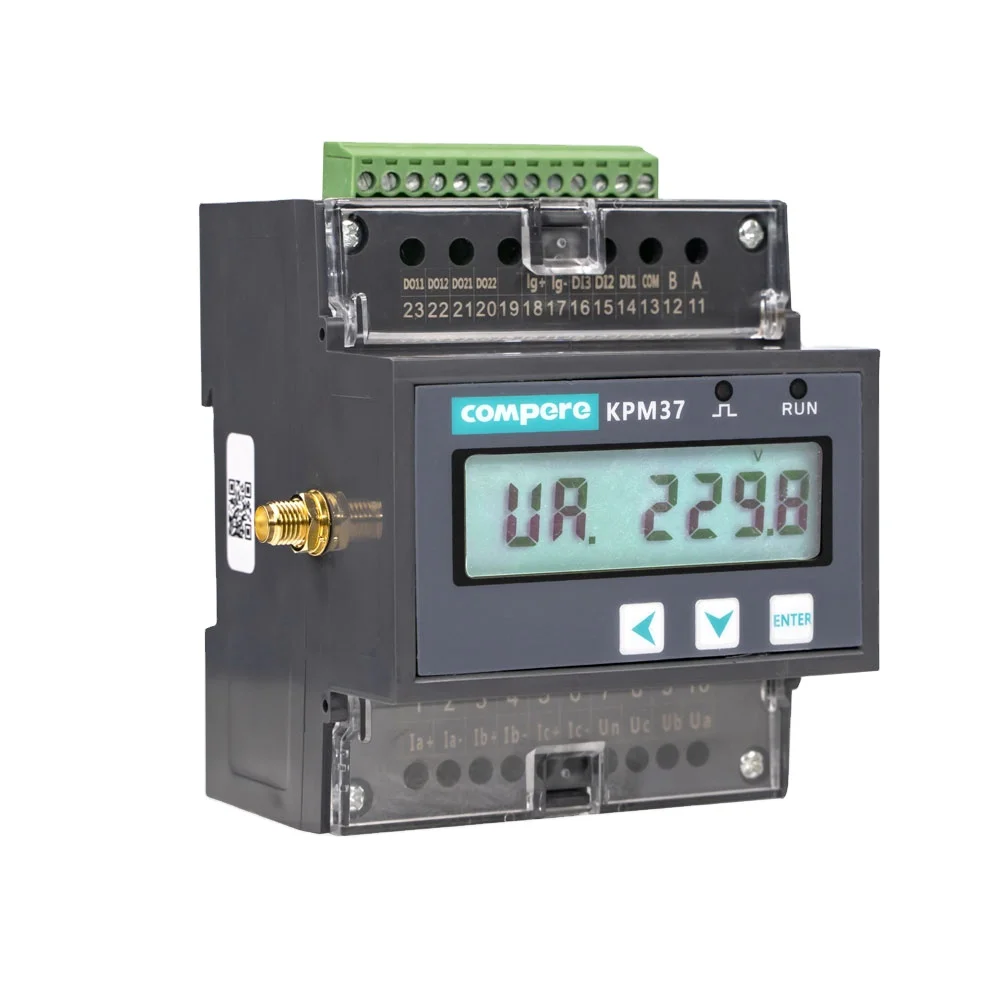

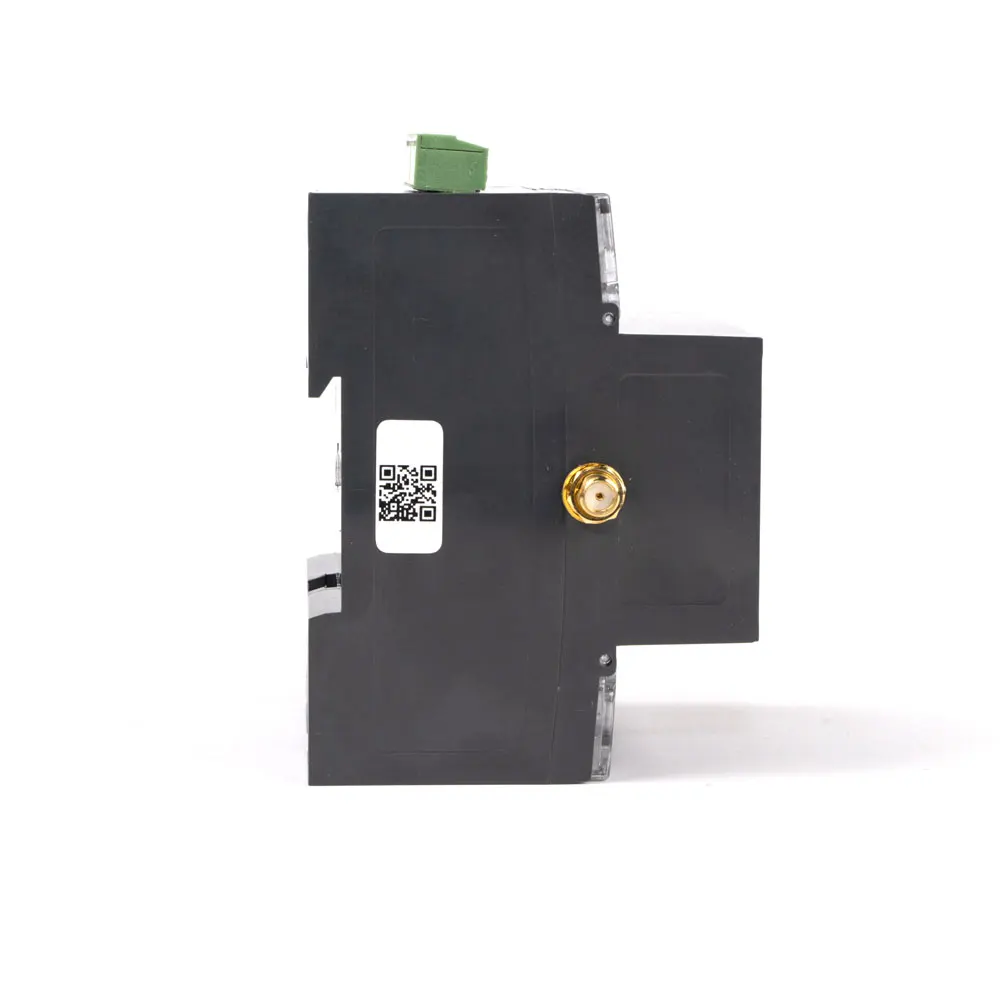

Apperance
Function features
Basic function: three phase voltage, current, power, power factor, frequency, etc. measurement.
Power quality measurement: Voltage deviation, demand and max&min value, Voltage/Current imbalance, phase angle measurement, 2-31st harmonics content and THD.
Power quality measurement: Voltage deviation, demand and max&min value, Voltage/Current imbalance, phase angle measurement, 2-31st harmonics content and THD.
Alarm function: Over limit alarm, 8 sets of alarm records. 100 Fault alarm record Meter running status and Electricity meter fault status monitoring.
Multi rate: 4 rates for 24 time segment power consumption measurement, 12month multi rate power consumption measurement; daily power consumption measurement.
Record function: 8 sets of alarm records, 100 Fault alarm record,100 digital inputs and outputs SOE event record, 12month multi rate power consumption record.

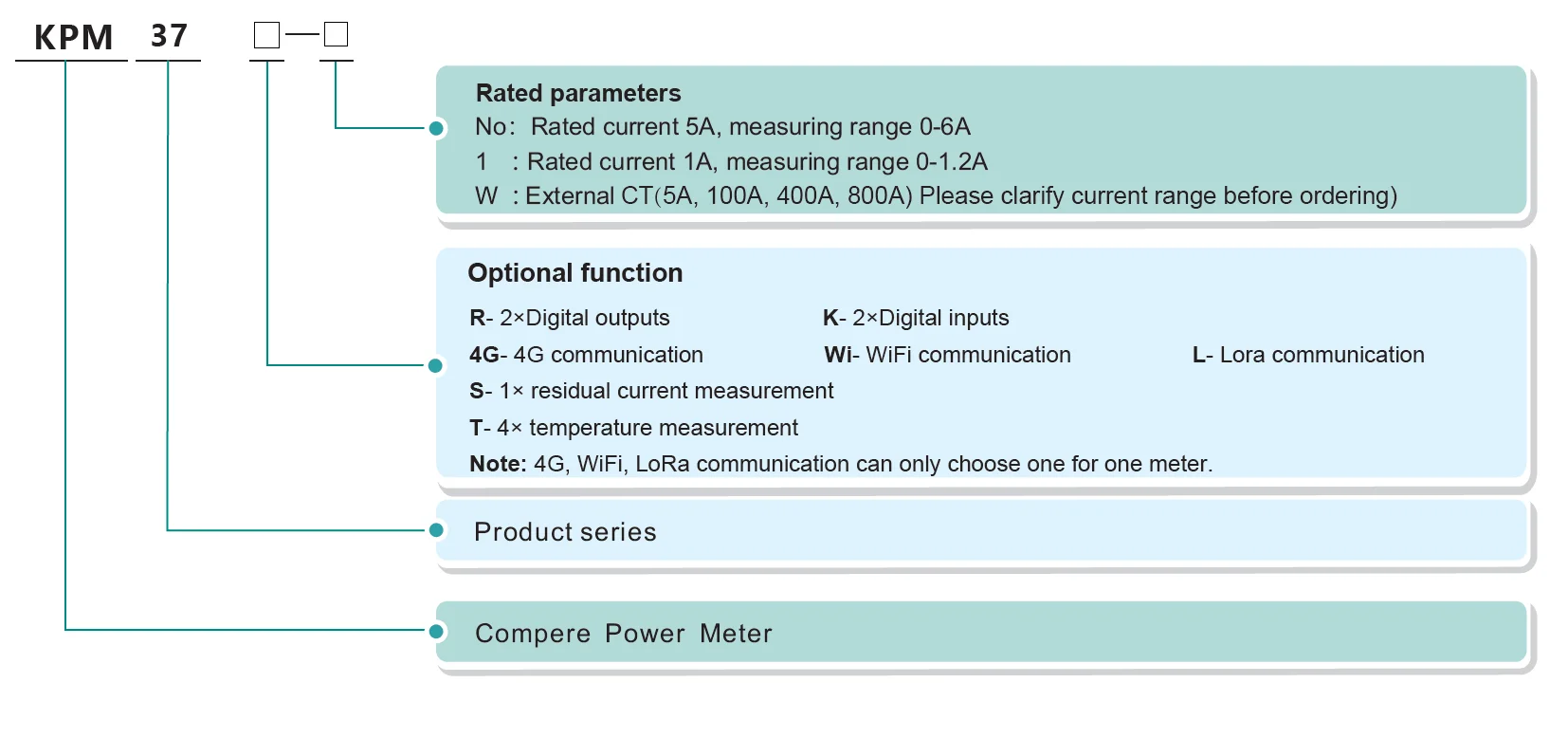

Function model selection

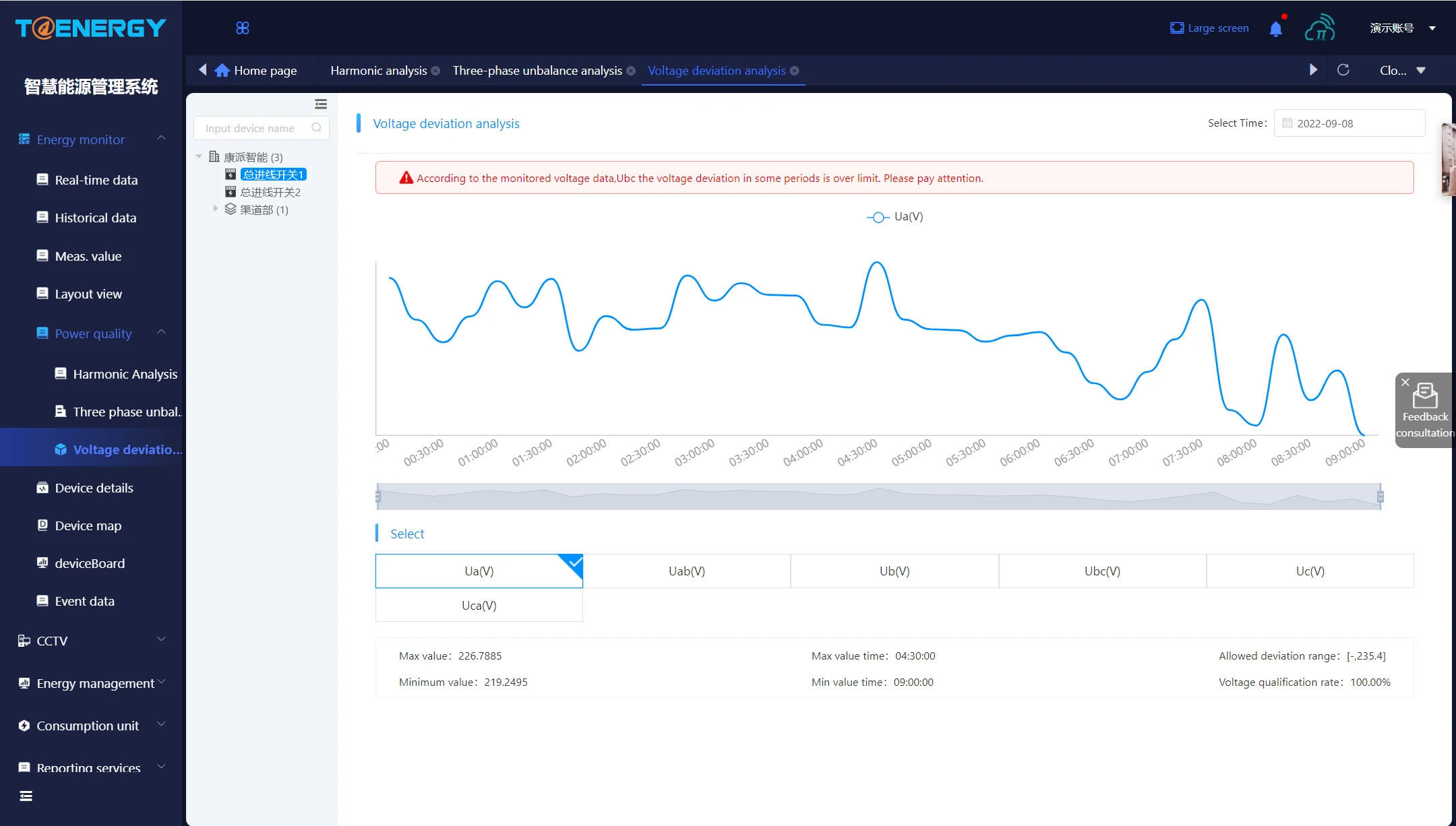

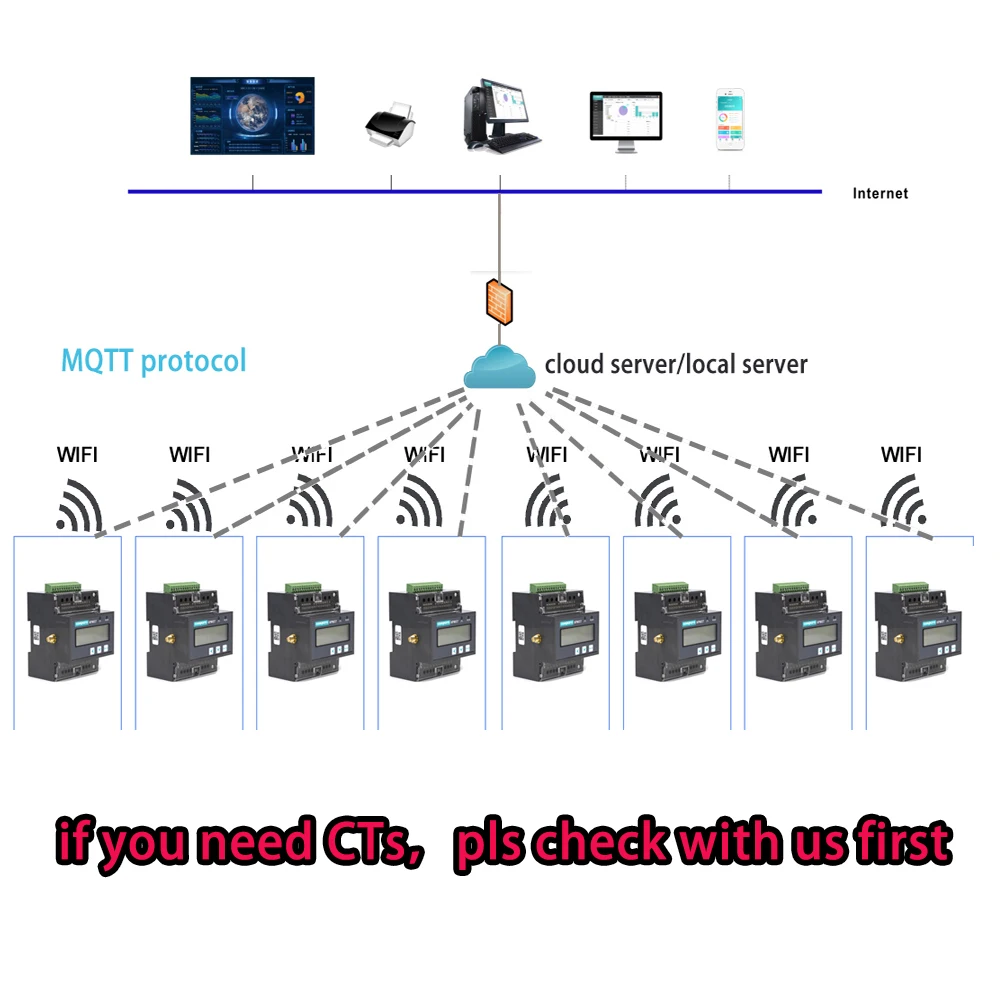

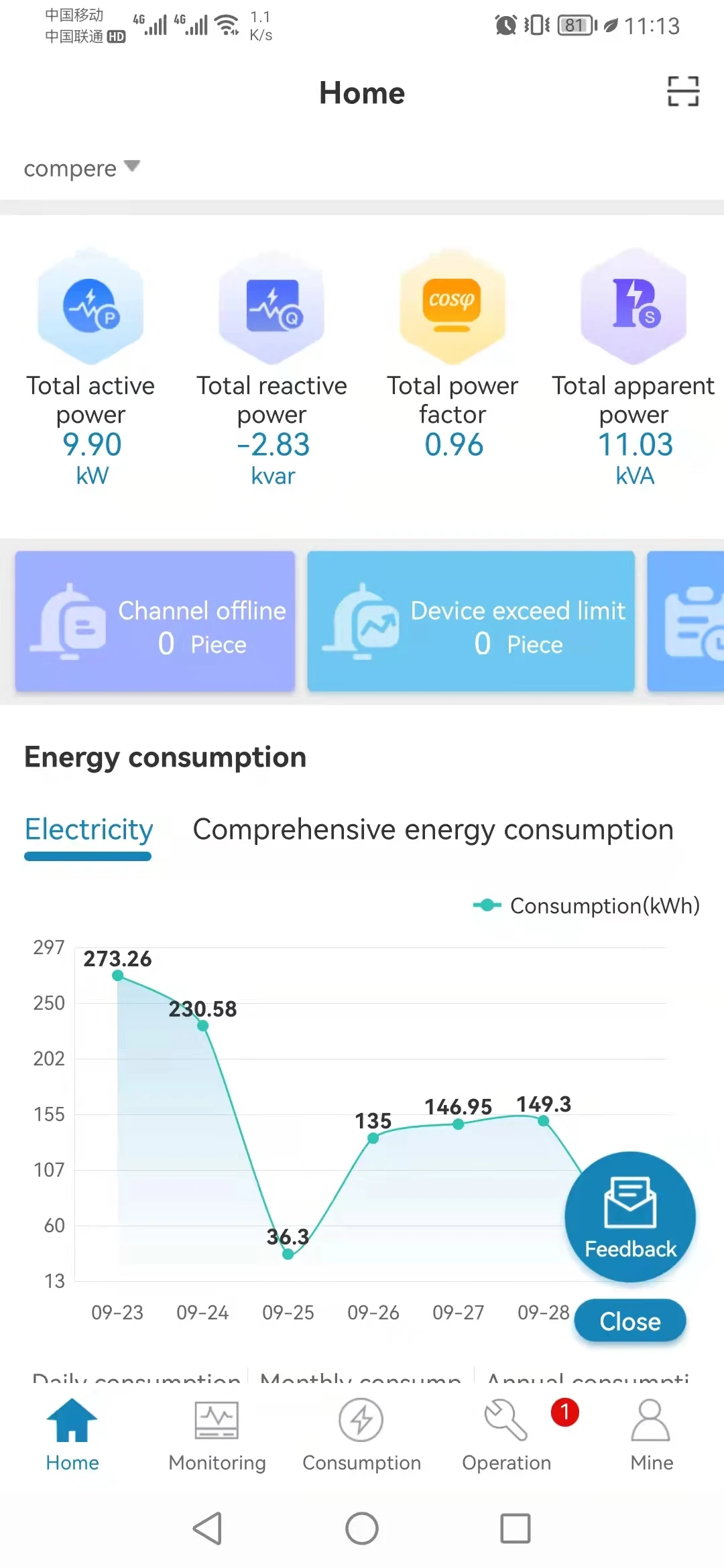

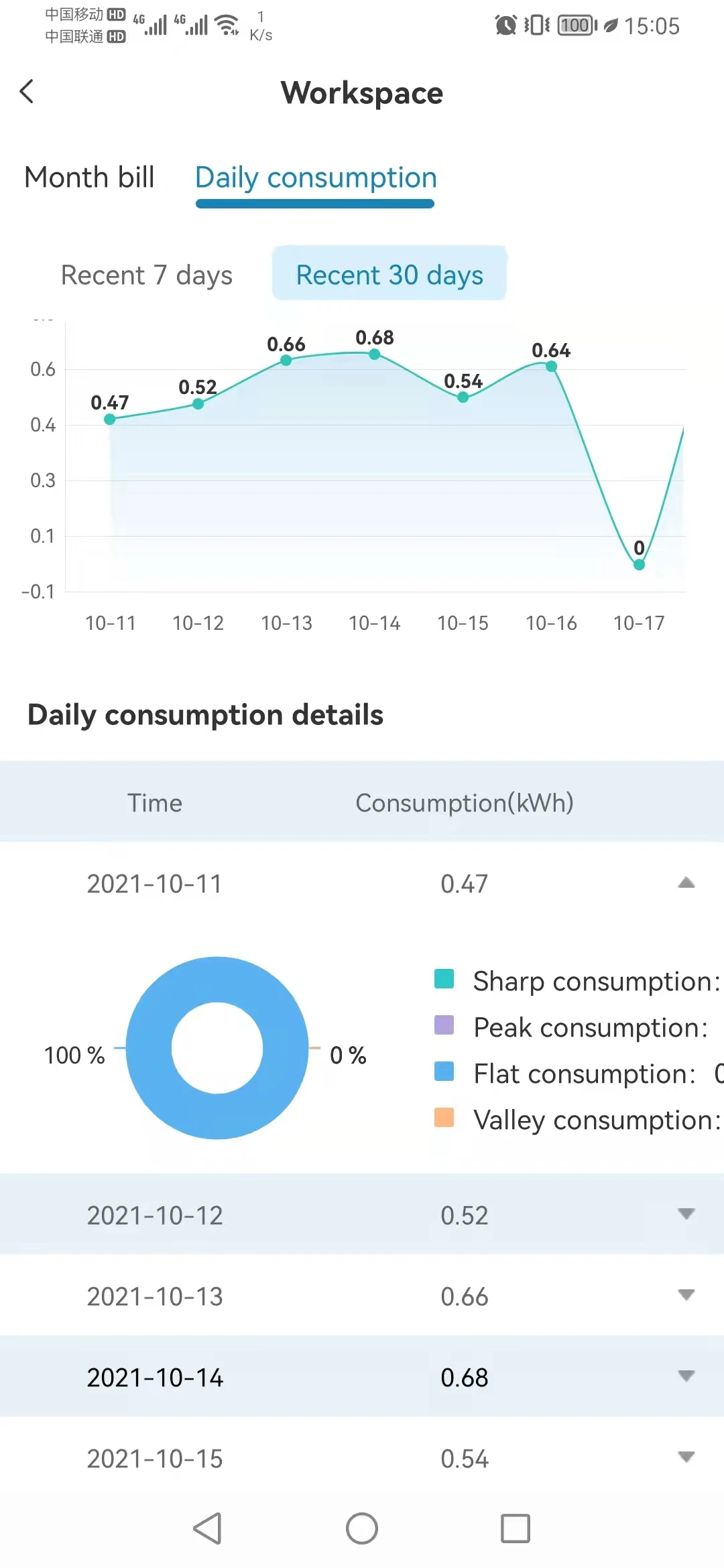

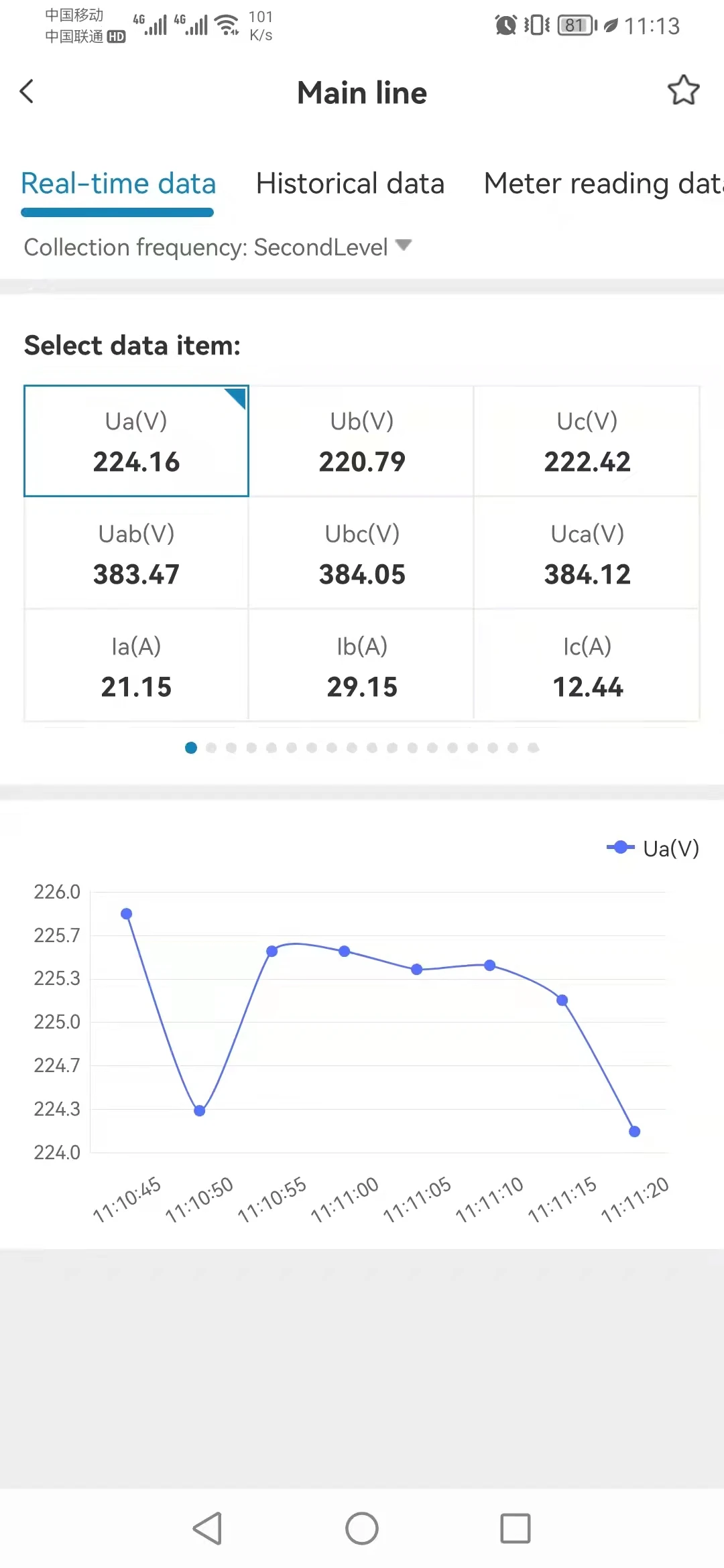

KPM37 WIFI Energy Monitor IOT Based Bidirectional Smart Energy Meter 3 Phase Power Quality Analyzer work with our T@ENERGY EMS
KPM37 WIFI Energy Monitor IOT Based Bidirectional Smart Energy Meter 3 Phase Power Quality Analyzer can work with our T@ENERGY EMS to monitor the power quality like harmonics, voltage deviation, three phase unbalance, etc.
Product Parameters
|
Technical Parameters – WIFI Energy Monitor IOT Based Bidirectional Smart Energy Meter 3 Phase Power Quality Analyzer
|
|
|
|
|
||||
|
accuracy class
|
Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5
|
|
|
|
||||
|
|
Active Power: 0.5S; Reactive Power: 2.0
|
|
|
|
||||
|
|
Active Energy: 0.5S; Reactive Energy: 2.0
|
|
|
|
||||
|
Input
|
Rated Value
|
Voltage: 57.7/100V, 220/380V,380/660V
|
|
|
||||
|
|
|
Current: 5A (0~6A)
|
|
|
||||
|
|
Overload
|
Voltage: Sustained Overload: 1.2 times of the rated value
|
|
|
||||
|
|
|
Momentary Overload: 2 times of the rated value, allows 1s
|
|
|
||||
|
|
|
Current: Sustained Overload: 1.2 times of the rated value
|
|
|
||||
|
|
|
Momentary Overload: 20 times of the rated value, allows 1s
|
|
|
||||
|
|
Frequency
|
45-60Hz
|
|
|
||||
|
Functional Module
|
Pulse Output
|
1
|
|
|
||||
|
|
Interface
|
RS485 / WIFI / 4G/ LORA Modbus-RTU,DL/T645-2007, MQTT, 1200~38400bps
|
|
|
||||
|
Power Supply
|
Working Range
|
AC: 85-265V; DC: 80-300V
|
|
|
||||
|
|
Consumption
|
< 0.5VA per phase
|
|
|
||||
|
Working Condition
|
Temperature
|
Operating: -25°C~+70°C. Storage: -30°C~ +75°C
|
|
|
||||
|
|
Humidity
|
5%~95% No condensation
|
|
|
||||
|
|
Altitude
|
<3000m
|
|
|
||||
|
Dimensions
|
|
75*88*74mm
|
|
|
||||

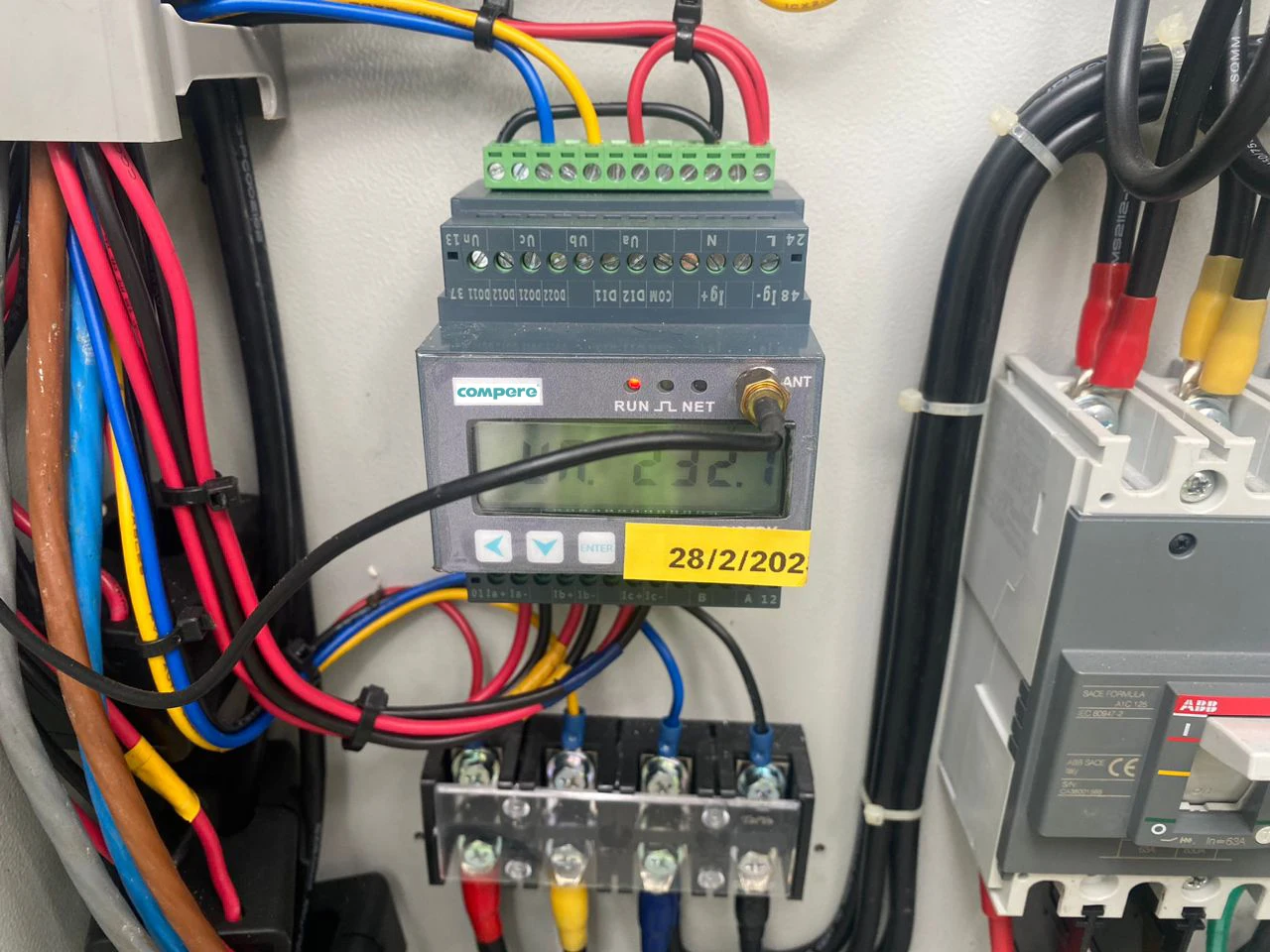

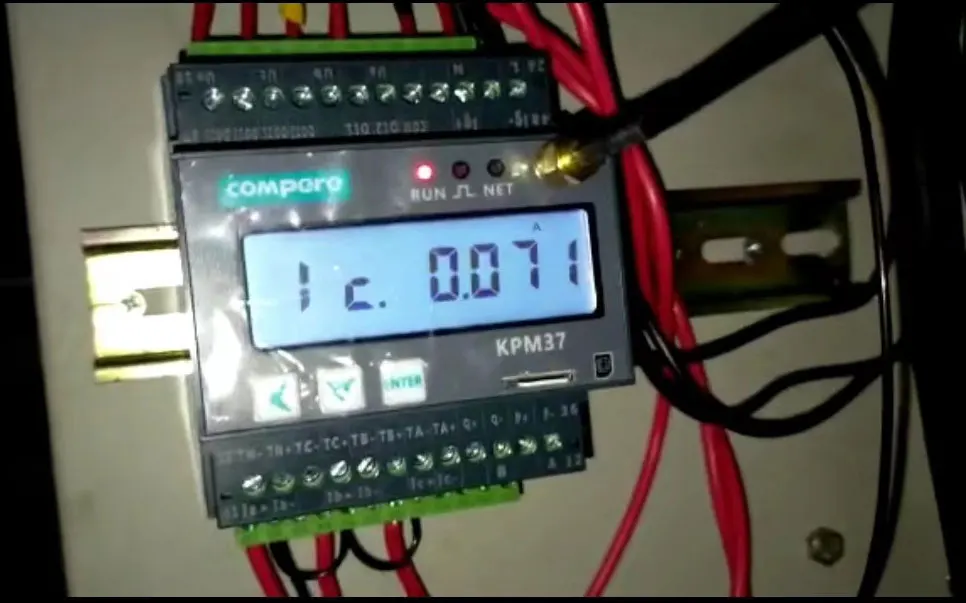

Installation Instructions
Certifications
R&D Dept
More than 40 R&D engineer, including software team, hardware team.
Production shop
Lean production management， guarantee product delivery and quality.
