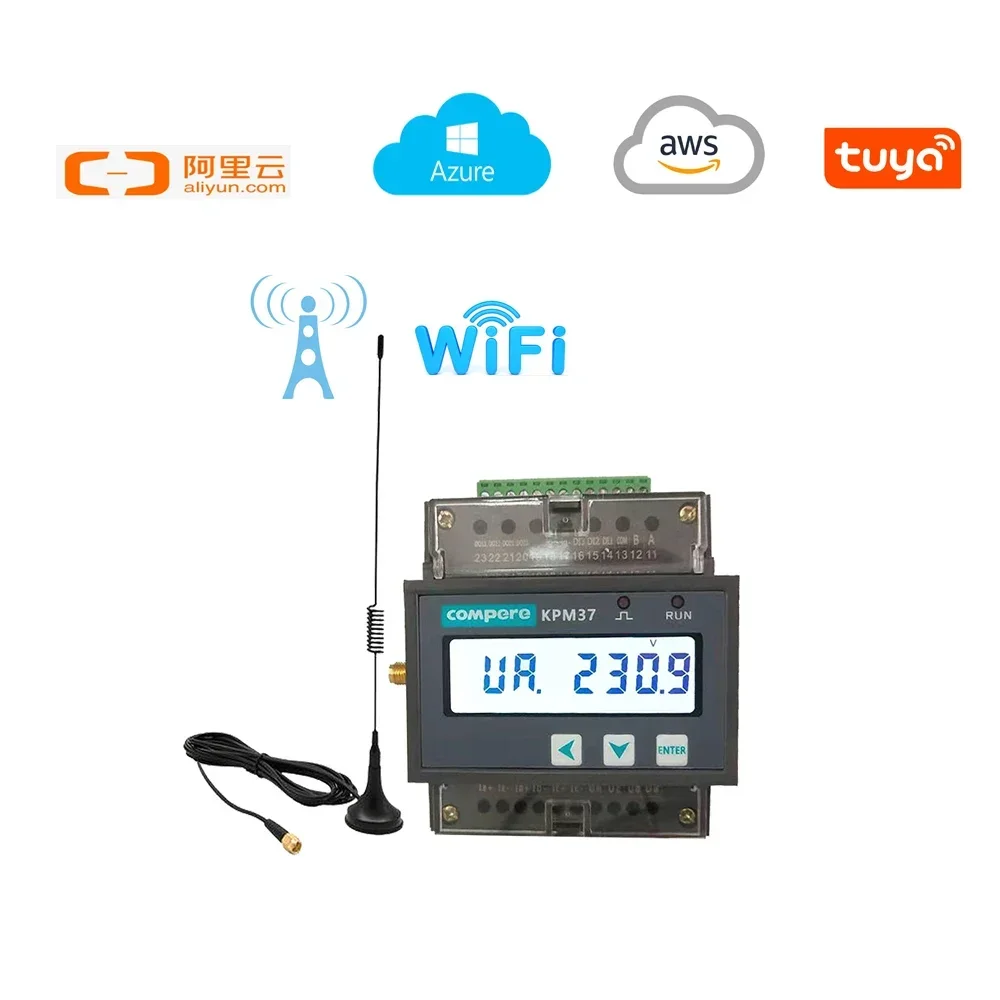

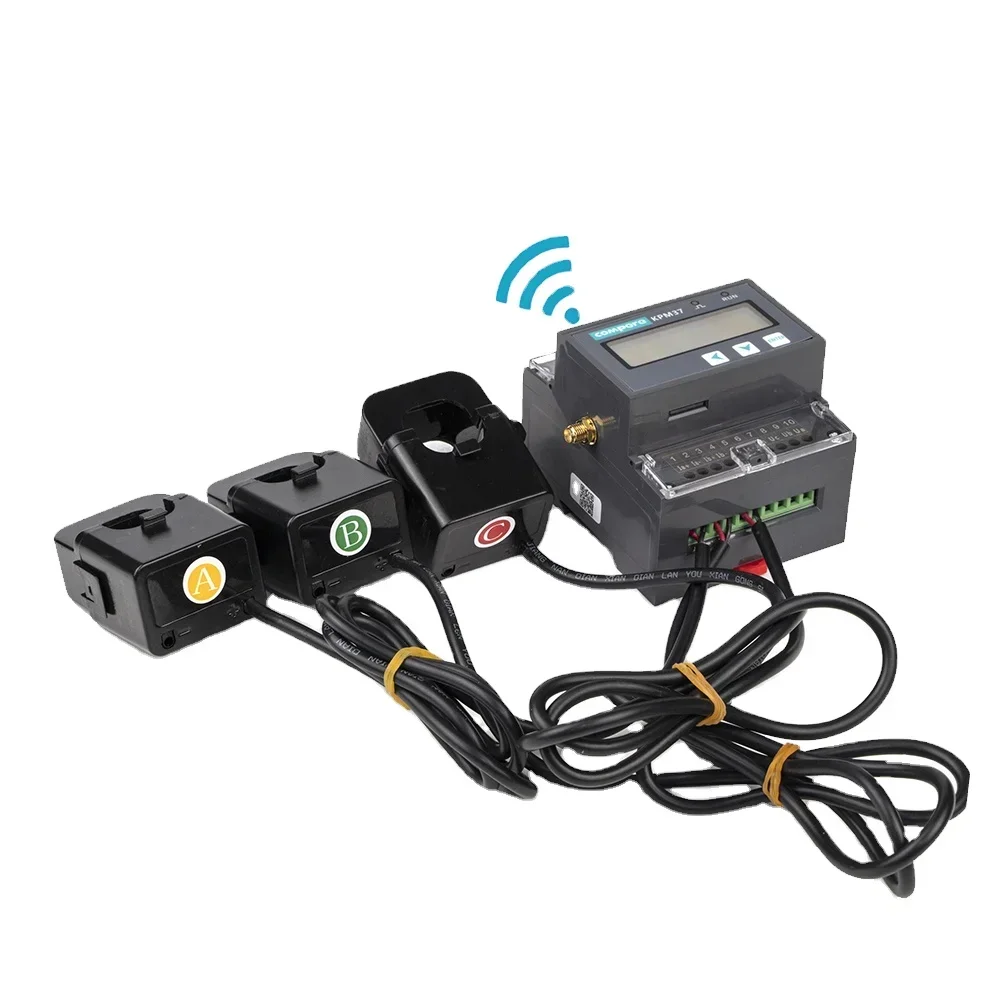

Wifi/4G MQTT to Platform Directly DIN Rail Energy Meter 3 Phase Power Quality Analyzer WIFI Power Meter
$376.00
1000 in stock
SKU: 3256807793239209
Category: Power Quality Analyzer
Product Description
Product Overview

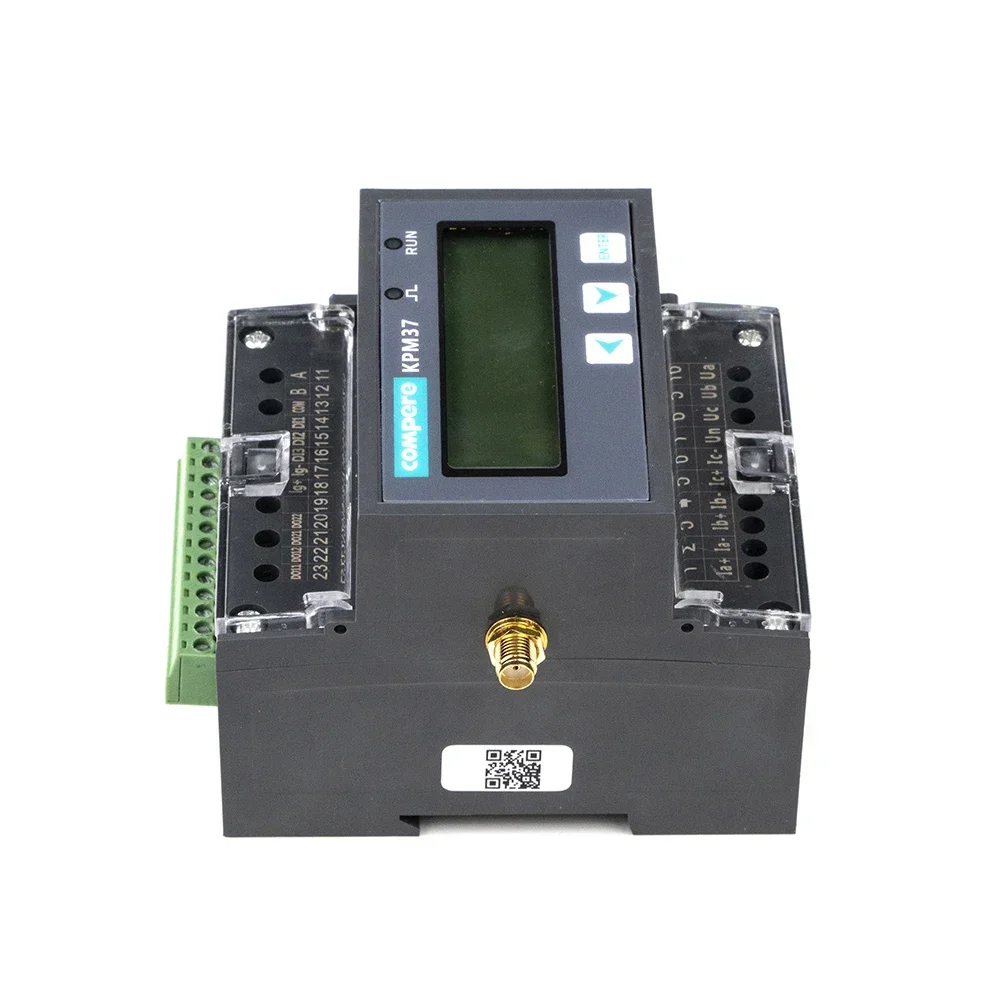

LORA DIN RAIL 3 PHASE WIRELESS SMART ENERGY METER
KPM37 three phase smart energy meter wifi power meter is used for three-phase electric parameter measurement, 2~31st harmonic analysis and time statistics. The default communication is Modbus-RTU by RS485 interface. Optional WiFi, 4G, Lora communication.
FEATURES AT A GLANCE
Application
1.Smart distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
1.Smart distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system

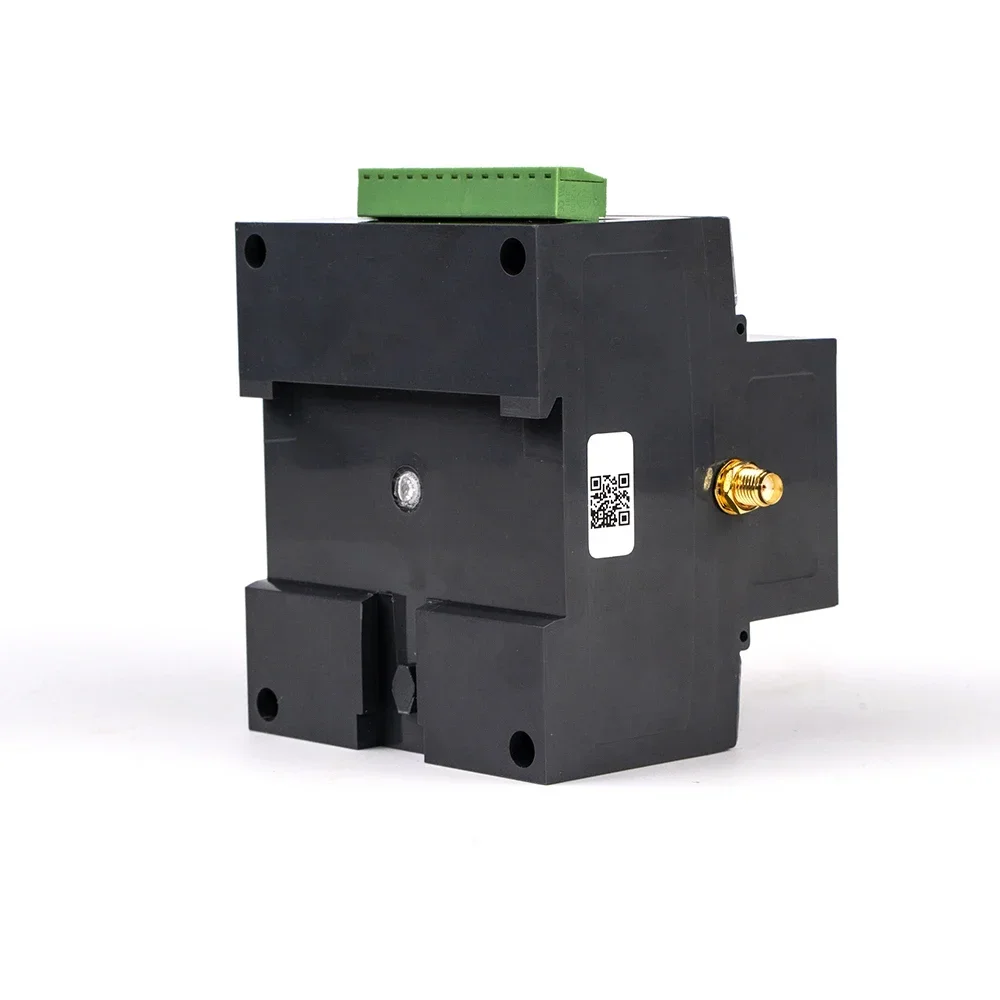

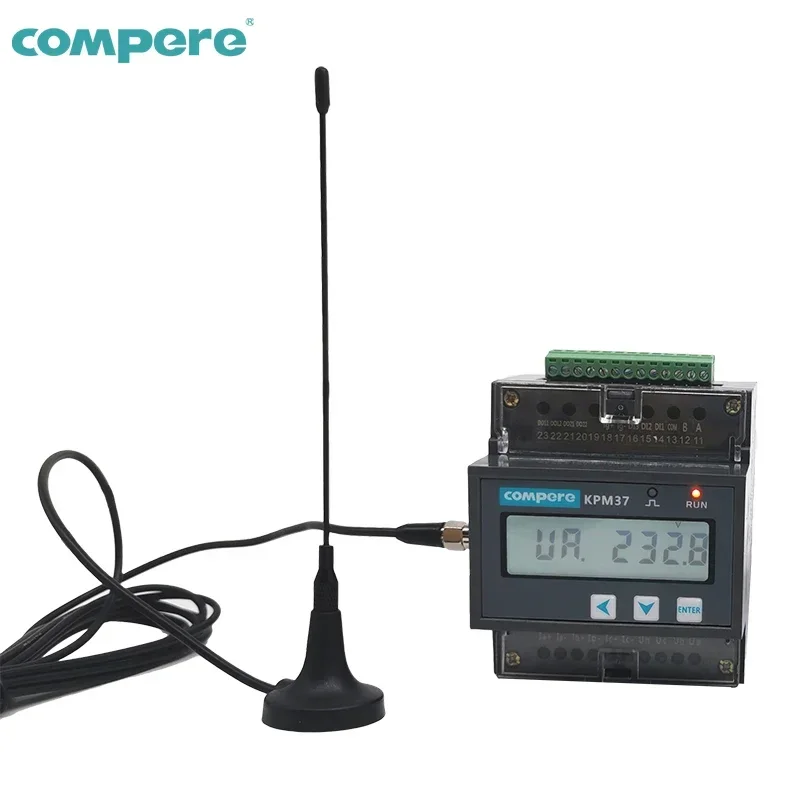

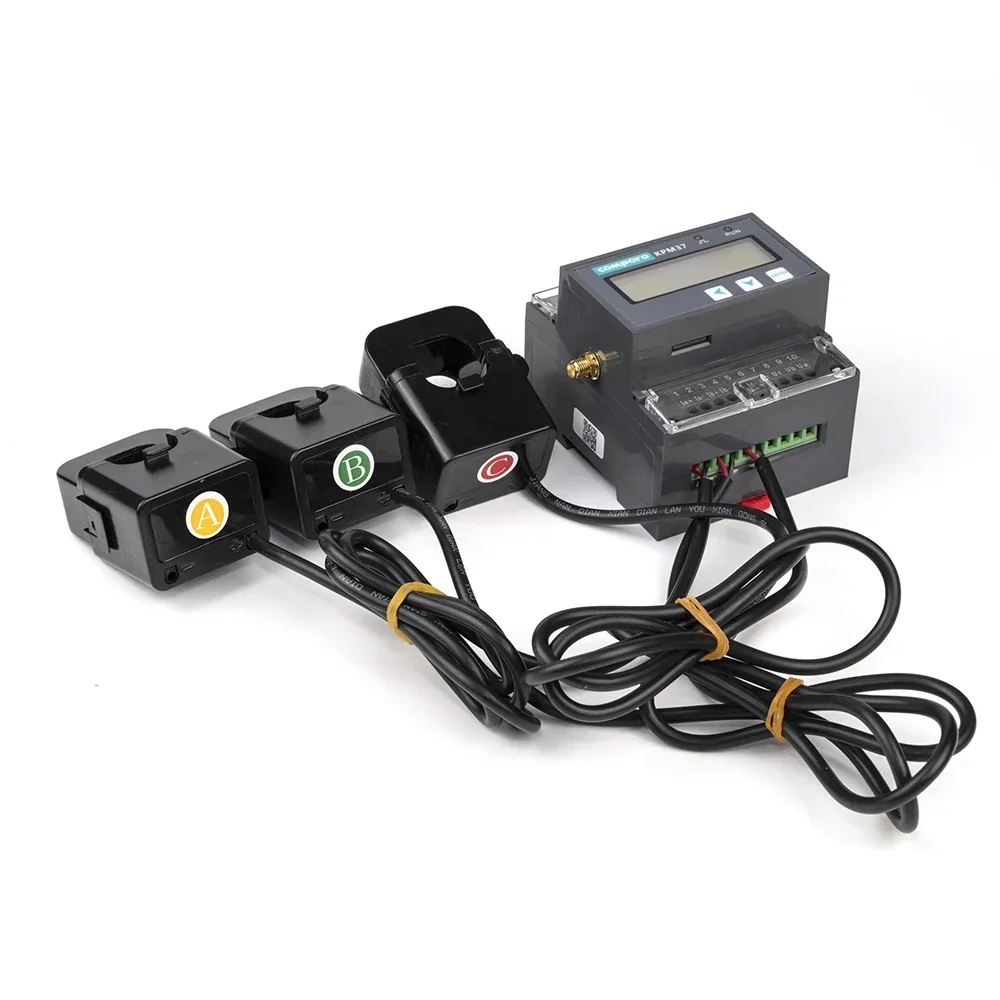

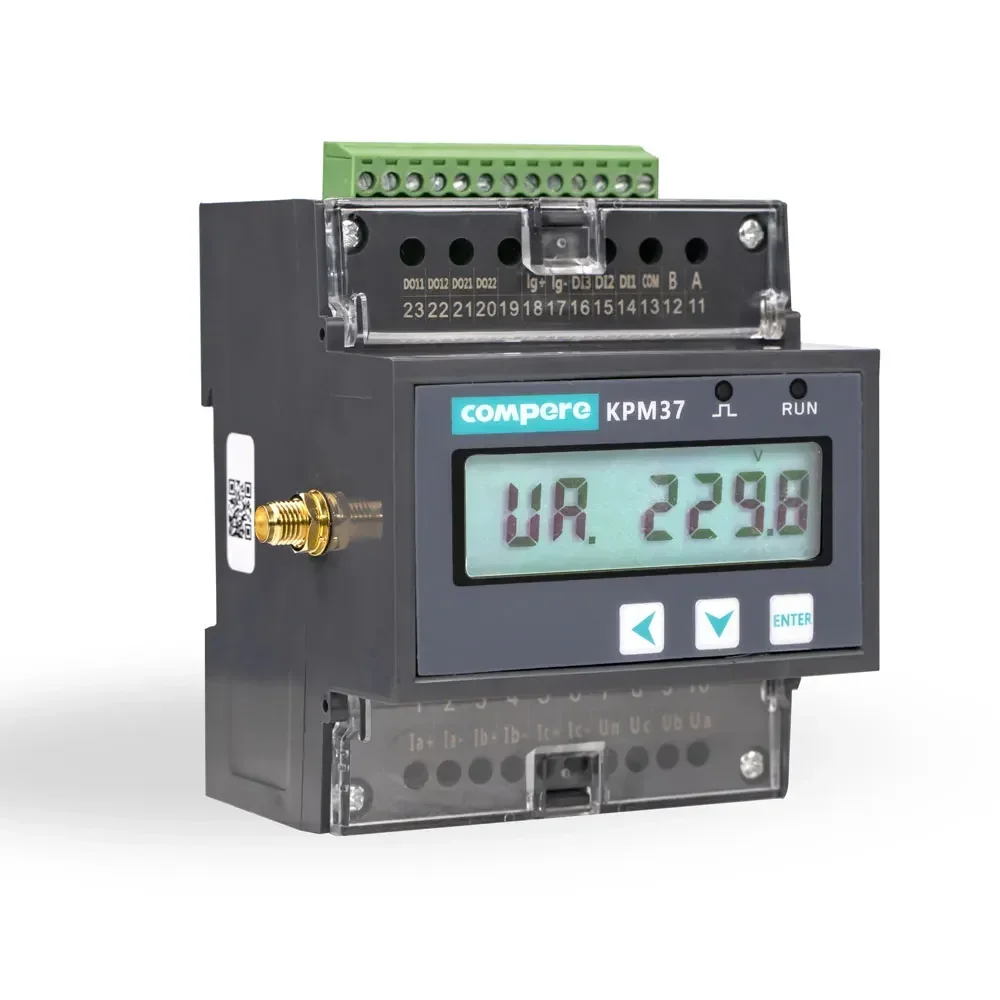

Details Images
Product Paramenters
|
Technical Parameters – KPM 37 DIN rail three phase wireless energy meter
|
Item
|
Data
|
||
|
accuracy class
|
Voltage: 0.2; Current: 0.2;
Frequency: 0.02; Power Factor: 0.5
|
37.5KW
|
||
|
2
|
Active Power: 0.5S;
Reactive Power: 2.0
|
2.8 M3
|
||
|
3
|
Active Energy: 0.5S;
Reactive Energy: 2.0
|
125Ton
|
||
|
Input |
Rated
Value
|
Voltage: 57.7/100V, 220/380V,380/660V
|
||
|
5
|
Max. breakout force
|
Current: 5A (0~6A)
|
||
|
6
|
Overload
|
Voltage: Sustained Overload: 1.2 times of the rated value
|
||
|
7
|
Engine displacement
|
Momentary Overload: 2 times of the rated value, allows 1s
|
||
|
8
|
Max. torque
|
Current: Sustained Overload: 1.2 times of the rated value
|
||
|
|
|
Momentary Overload: 20 times of the rated value, allows 1s
|
||
|
|
Frequency
|
45-60Hz
|
||
|
Functional Module |
Pulse
Output
|
1
|
||
|
|
Interface
|
RS485 / WIFI / 4G/ Lora
Modbus-RTU,DL/T645-2007, MQTT, 1200~38400bps
|
||
|
Power Supply |
Working
Range
|
AC: 85-265V; DC: 80-300V
|
||
|
|
Consumption
|
< 0.5VA per phase
|
||
|
Working Condition |
Temperature
|
Operating: -25°C~+70°C. Storage: -30°C~ +75°C
|
||
|
|
Humidity
|
5%~95% No condensation
|
||
|
|
Altitude
|
<3000m
|
||
|
Dimensions:
|
|
75*88*74mm
|
||
Application
