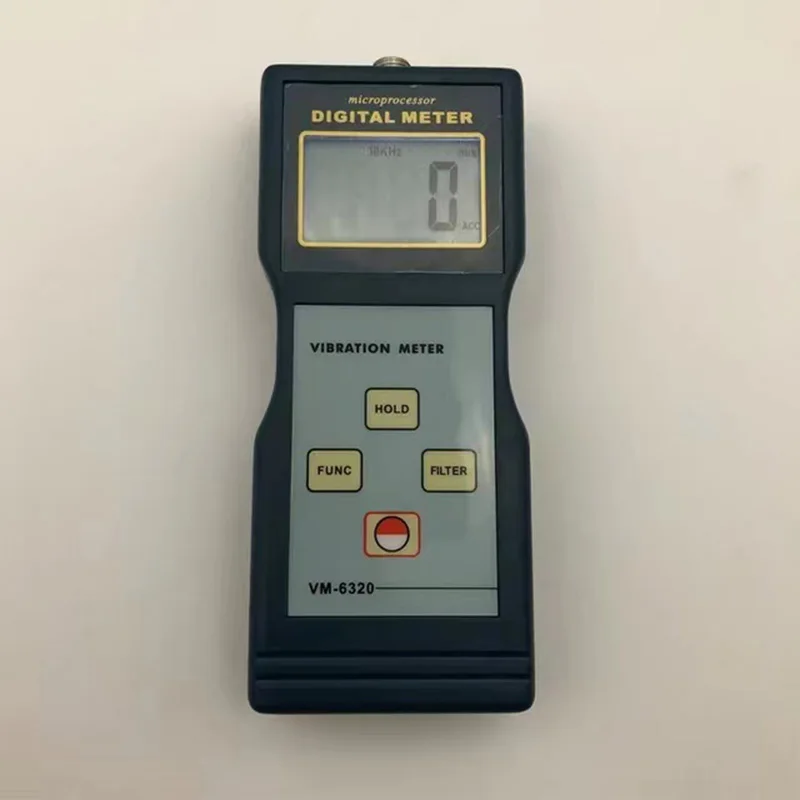

VM-6320 Vibration Meter VM6320

Name: VM-6320 Vibration Meter VM6320
SKU: 3256805607881943
Availability: InStock

$645.00

95 in stock

SKU: 3256805607881943 Category: Vibration Meter

Product Description

VM-6320 Vibration Meter VM6320

Applications:

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. * VM-6360 has wide frequency range (10Hz~10kHz) in acceleration mode * VM-6320 / VM-6310 are simple and easy to use.

Features:

* 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications:

Sensor	Piezoelectric Transducer
Measuring Range	Acceleration	0.1~199.9m/s²Equivalent Peak
	Velocity	0.01~199.9mm/s True RMS
	Displacement	0.001~1.999mm Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature	0~50ºC
	Humidity	<90%RH

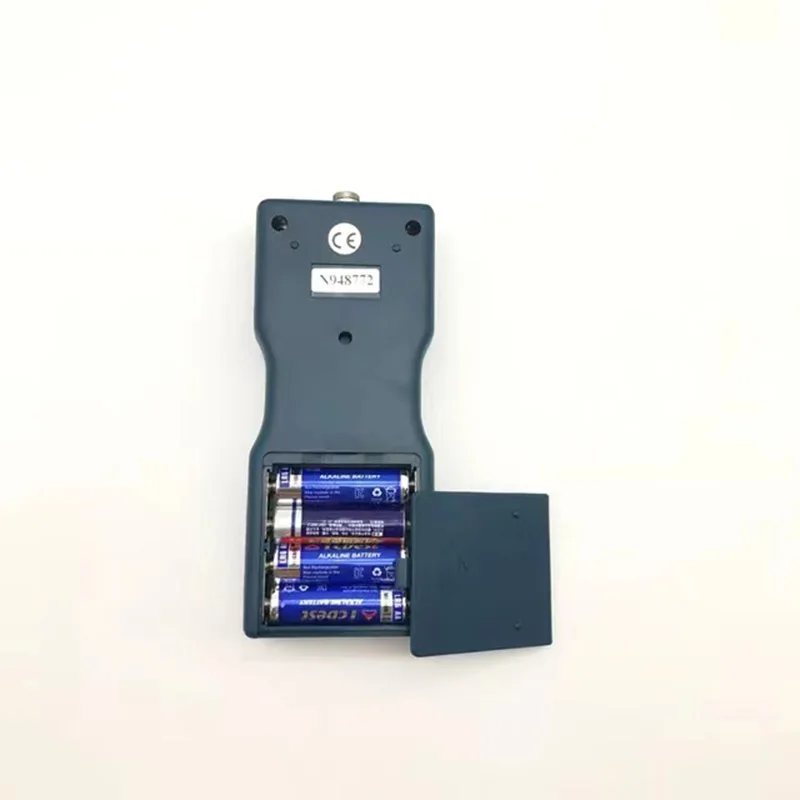

Power Supply	4×1.5V AA(UM-3)Battery
Dimensions	160x68x32mm
Weight	181g(Not Including Batteries)

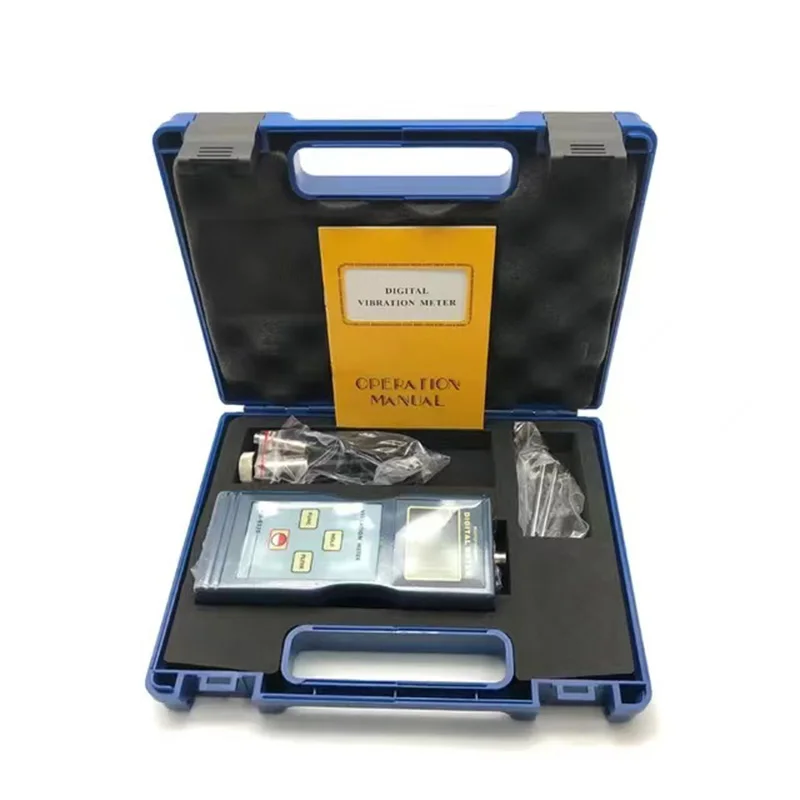

Standard Accessories	Main Unit
	Piezoelectric Transducer
	Powerful Rare Earth Magnet
	Probe(Cone)&Probe(Spherical)
	Carrying Case(B04)
	Manual Book
Optional Accessories	Headset
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software

Vibration Standard:

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank	Rev(rpm)	H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Quality Rank	Rev(rpm)	80<H<132	132<H<225	225<H<400
Normal	600~3600	1.8	2.8	4.5
Good(R)	600~1800	0.71	1.12	1.8
Good(R)	1800~3600	1.12	1.8	2.8
Excellent(S)	600~1800	0.45	0.71	1.12
Excellent(S)	1800~3600	0.71	1.12	1.8
