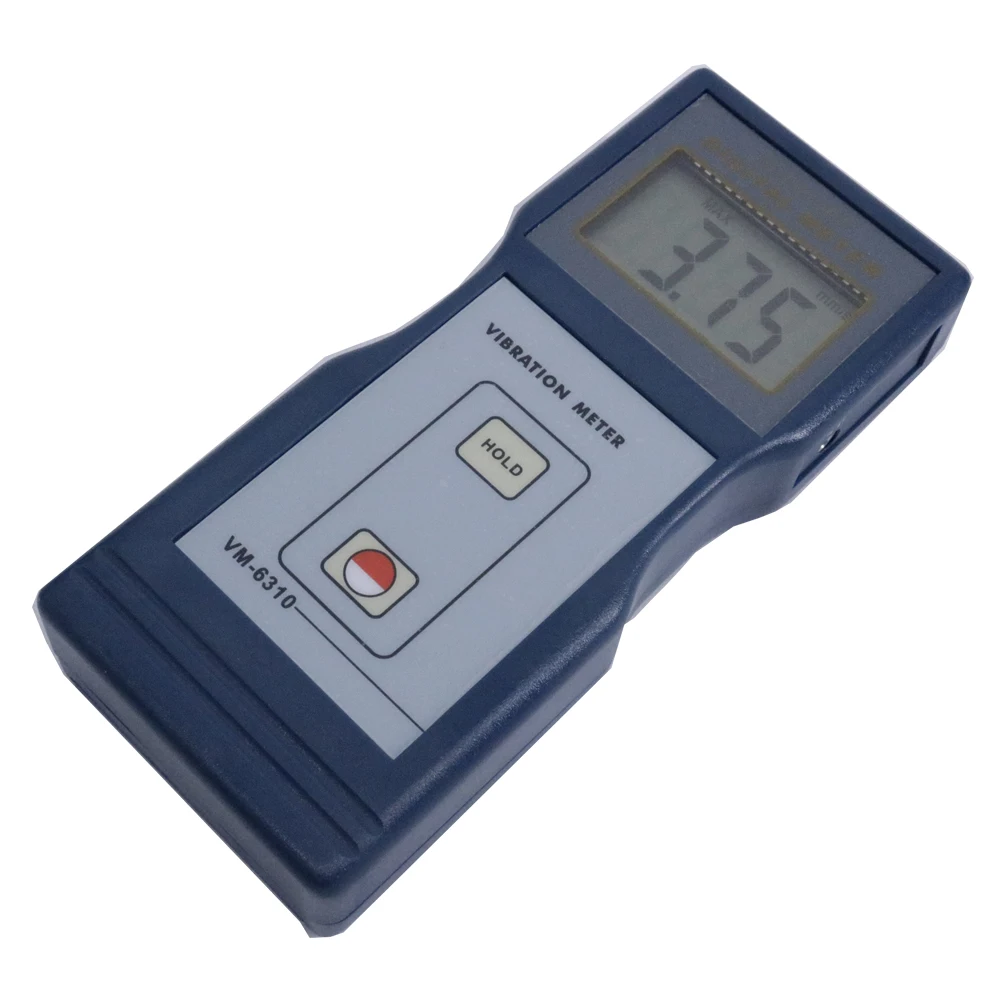

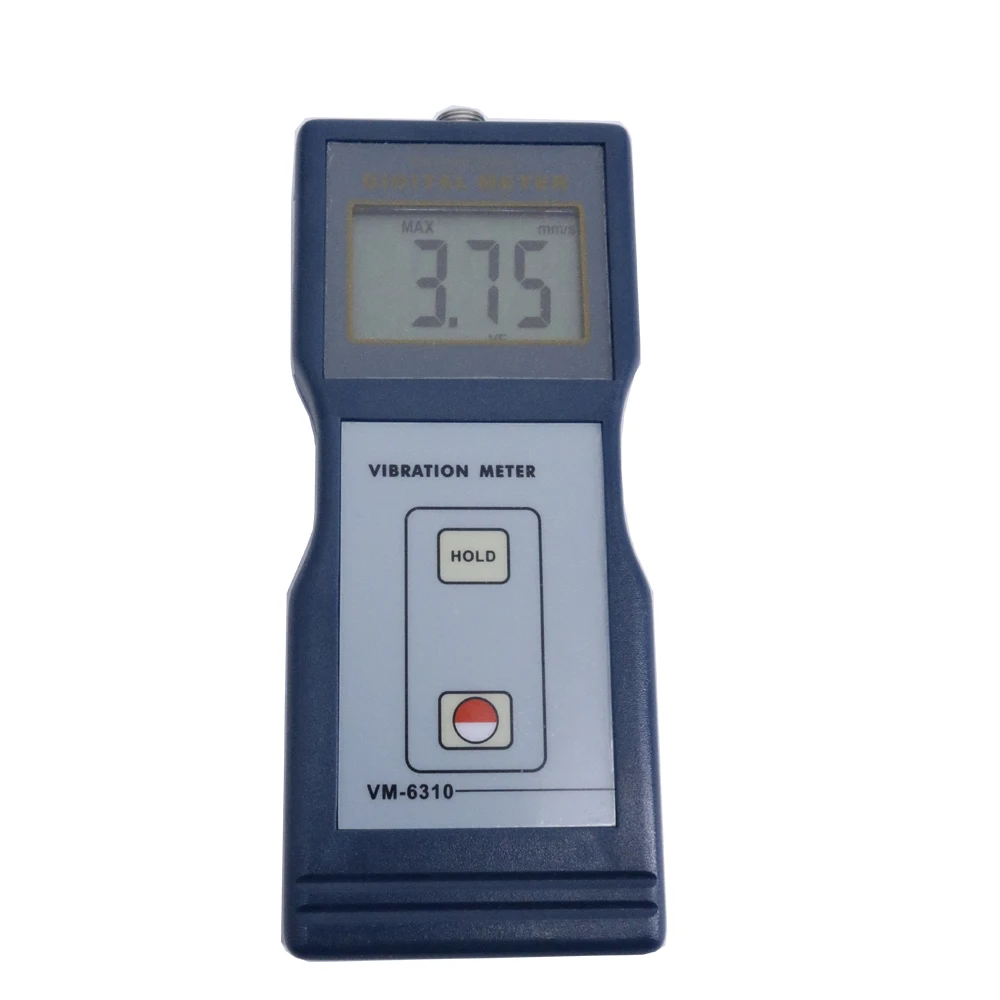

VM-6310 Digital Vibration Meter VM6310 Moving Machinery Velocity Tester 0.01mm/s~199.9mm/s
$645.00
SKU: 3256804496131749
Category: Vibration Meter
Product Description
VM-6310 Digital Vibration Meter Moving Machinery Velocity Tester 0.01mm/s~199.9mm/s
|
Spec： |
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. |
Features
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Vibration Standard
|
ISO/IS2373 Motor Quality Standard According As Vibration Velocity |
||||
|
Quality Rank |
Rev(rpm) |
H:high of shaft(mm) |
||
|
80<H<132 |
132<H<225 |
225<H<400 |
||
|
Normal |
600~3600 |
1.8 |
2.8 |
4.5 |
|
Good(R) |
600~1800 |
0.71 |
1.12 |
1.8 |
|
1800~3600 |
1.12 |
1.8 |
2.8 |
|
|
Excellent(S) |
600~1800 |
0.45 |
0.71 |
1.12 |
|
1800~3600 |
0.71 |
1.12 |
1.8 |
|
Specifications
|
Sensor
|
Piezoelectric Transducer
|
|
|
Measuring Range
|
Acceleration
|
——–
|
|
Velocity
|
0.01mm/s~199.9mm/s True RMS
|
|
|
Displacement
|
——–
|
|
|
Frequency Range
|
Acceleration
|
——–
|
|
Velocity
|
10Hz~1kHz
|
|
|
Displacement
|
——–
|
|
|
Accuracy
|
5% of Reading+2 digits
|
|
|
Operating Conditions
|
Temperature
|
0ºC~50ºC
|
|
Humidity
|
<90%RH
|
|
|
Power Supply
|

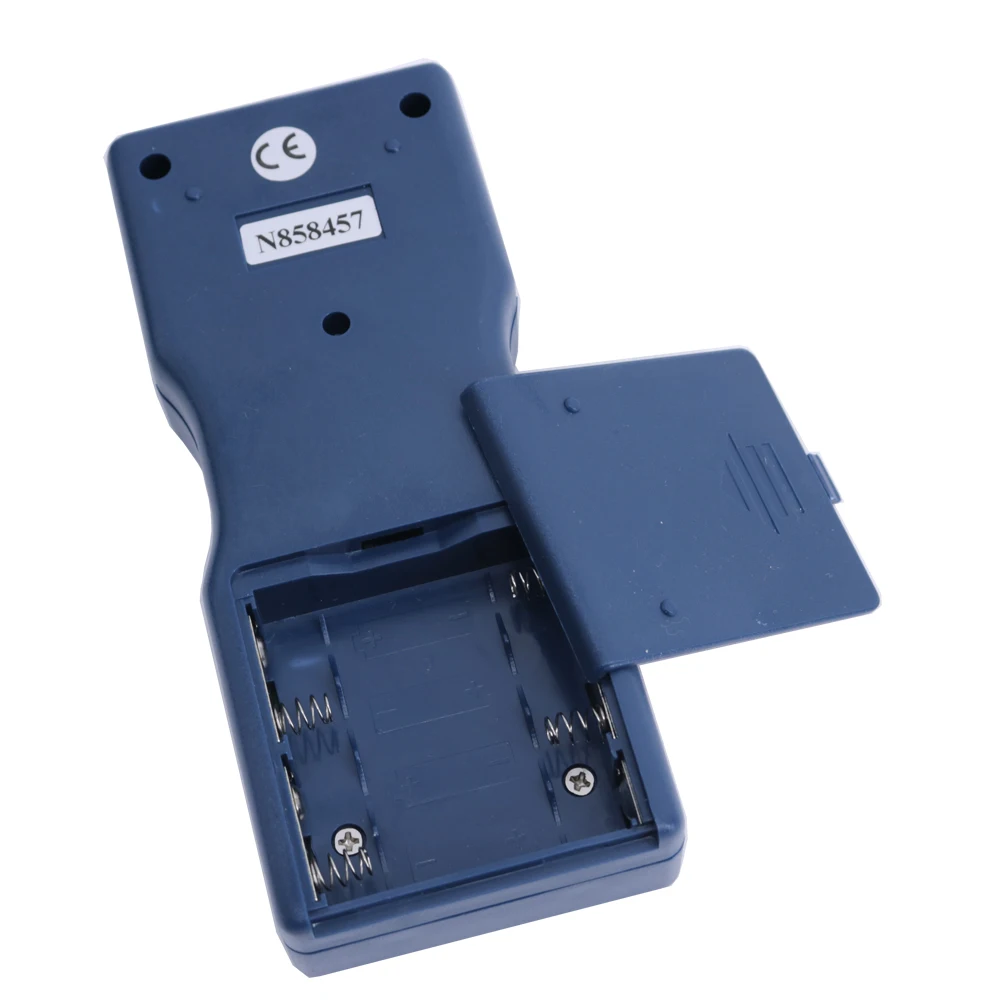

4×1.5V AA(UM-3)Battery
|
|
|
Dimensions
|
160mmx68mmx32mm
|
|
|
Weight
|
181g(Not Including Batteries)
|
|
|

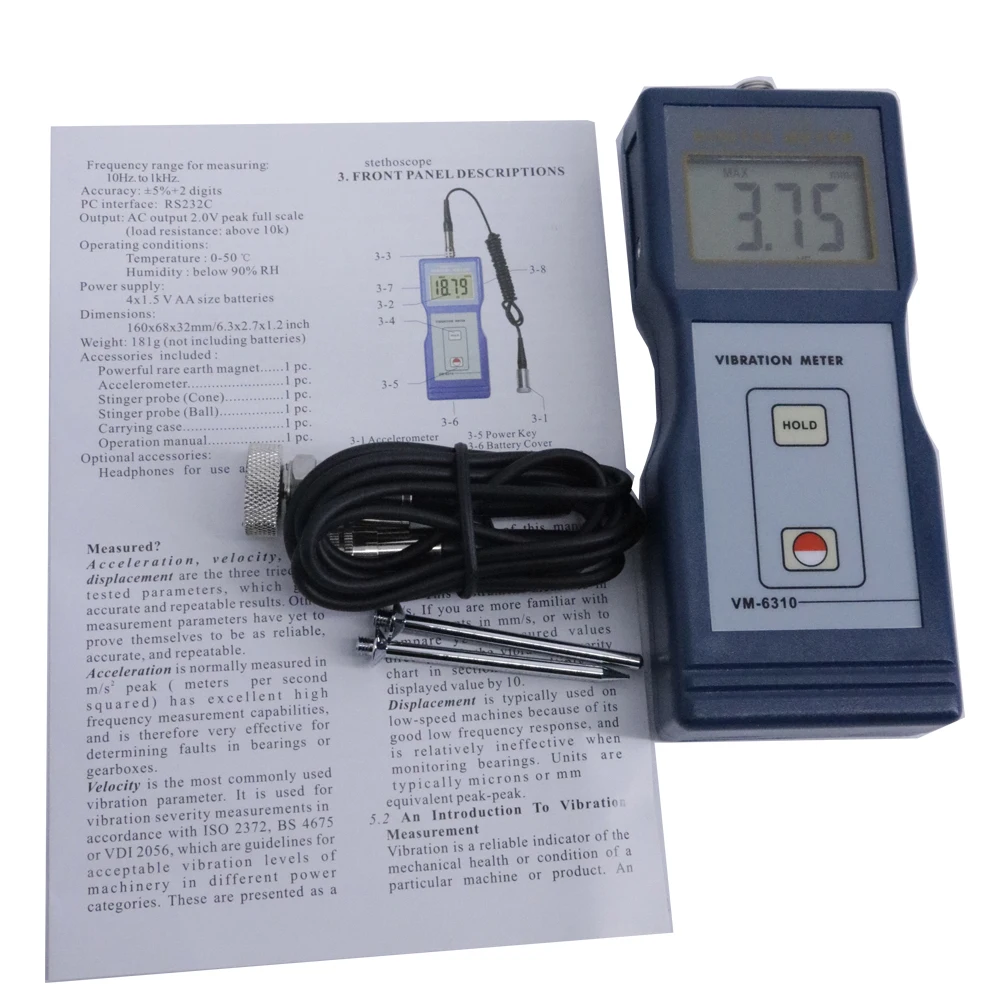

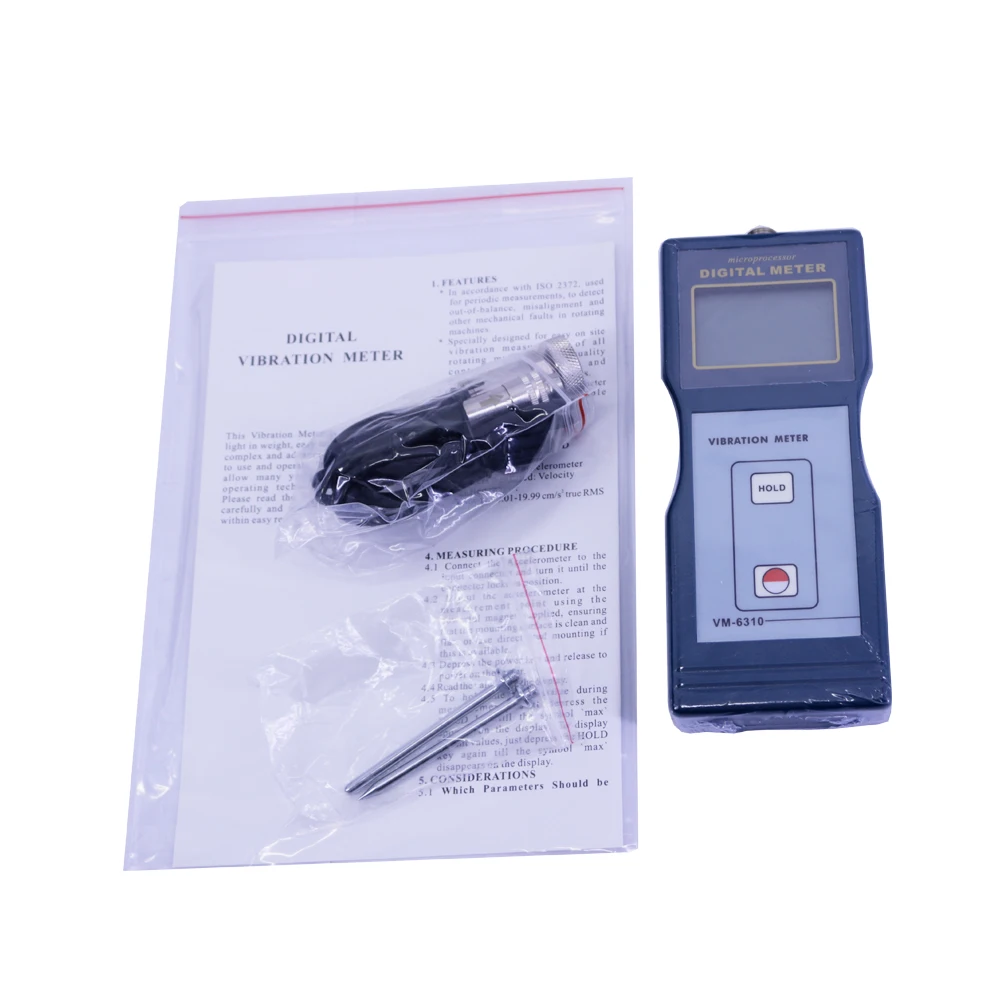

Standard Accessories
|
Main Unit
|
|
|

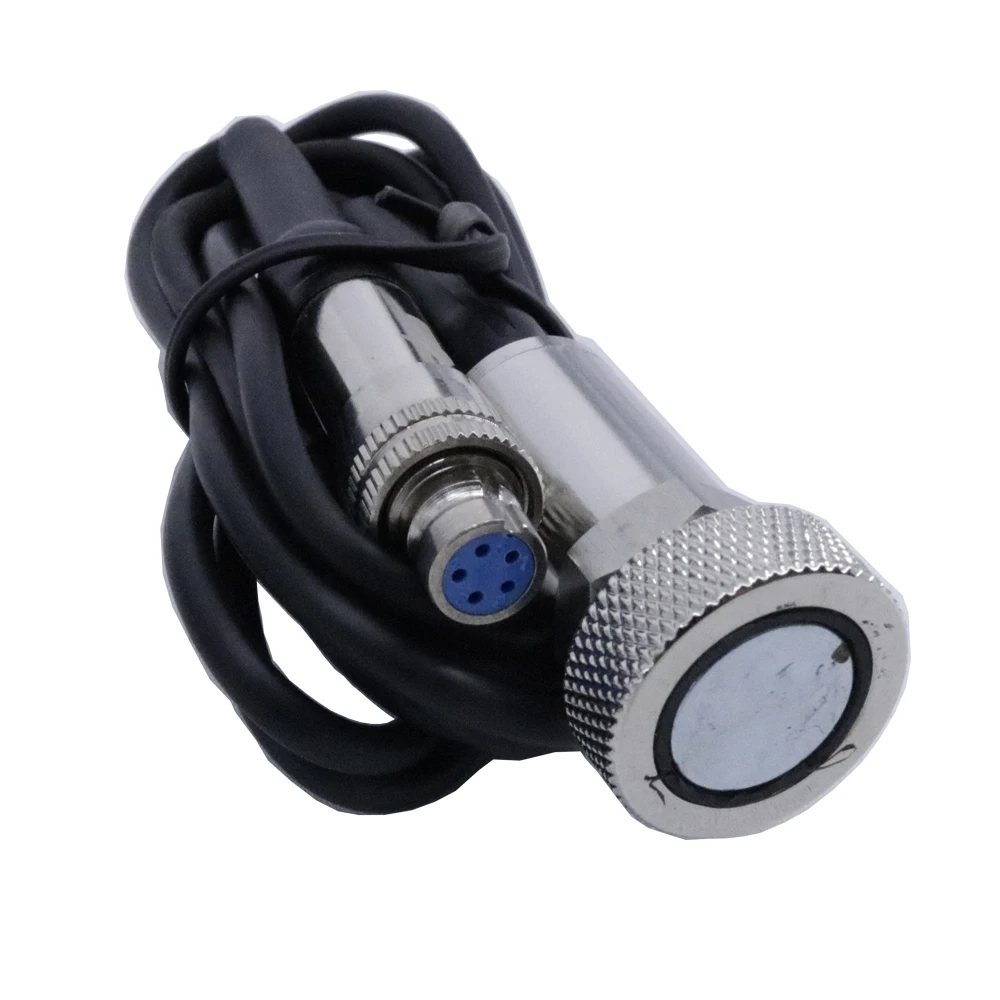

Piezoelectric Transducer
|
||
|
Powerful Rare Earth Magnet
|
||
|

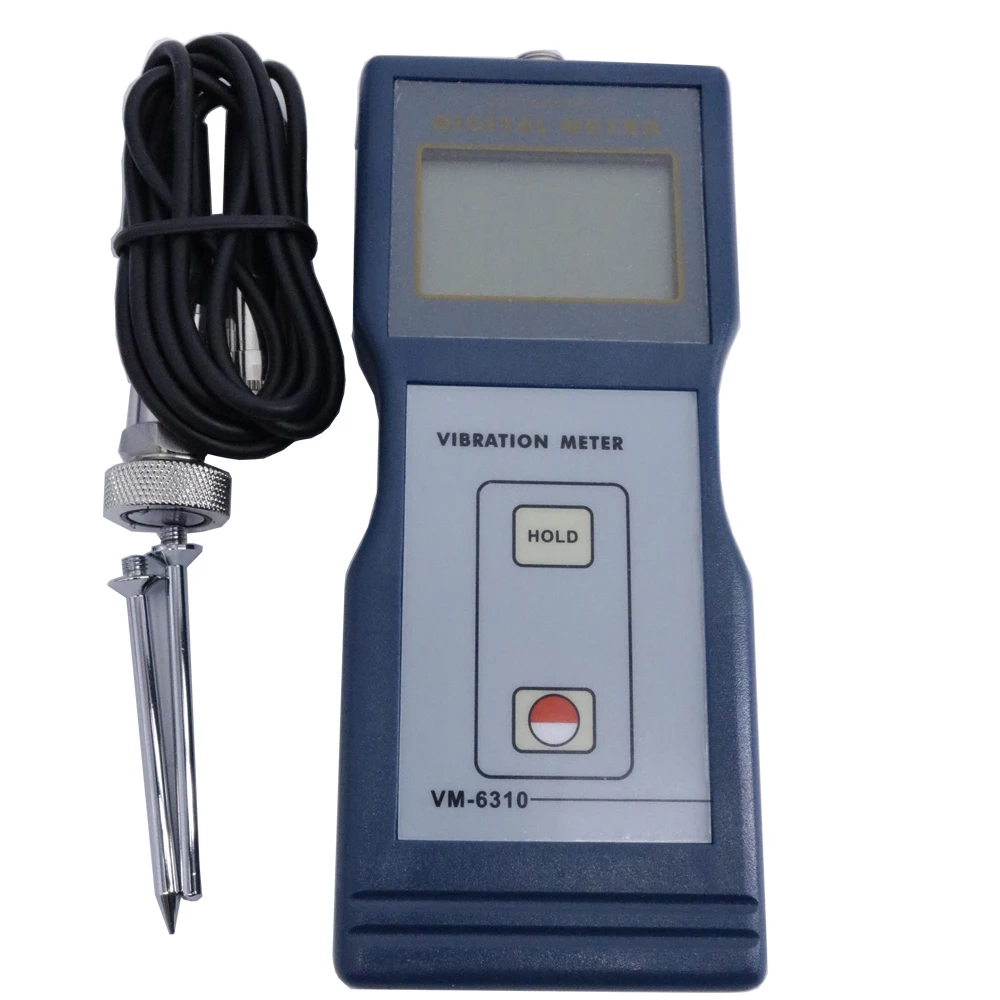

Probe(Cone)&Probe(Spherical)
|
||
|

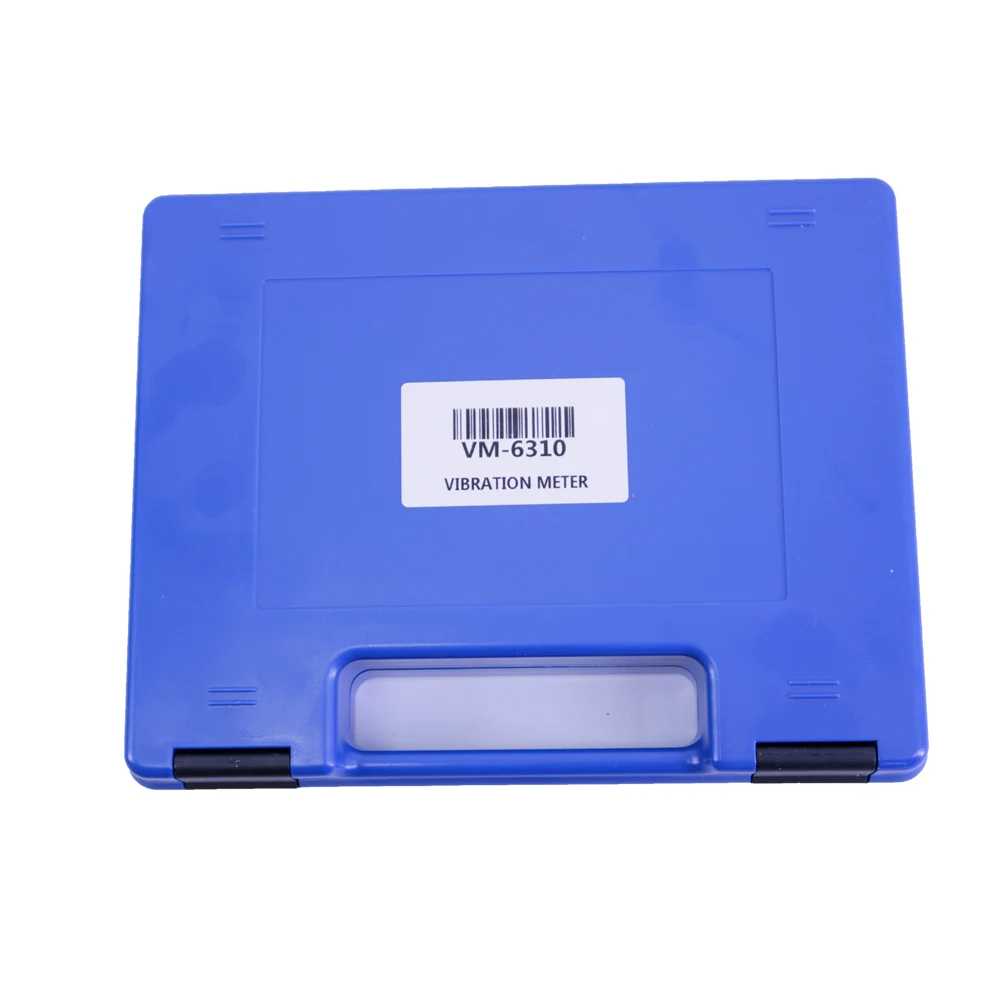

Carrying Case(B04)
|
||
|
Manual Book
|
||
|
Optional Accessories
|
Headset
|
|
|
RS-232C Data Cable with Software
|
||
|
Bluetooth Data Adapter with Software
|
||
