“Precision Vibration Analyzer Meter: Accurate Measurement for Industrial Applications”

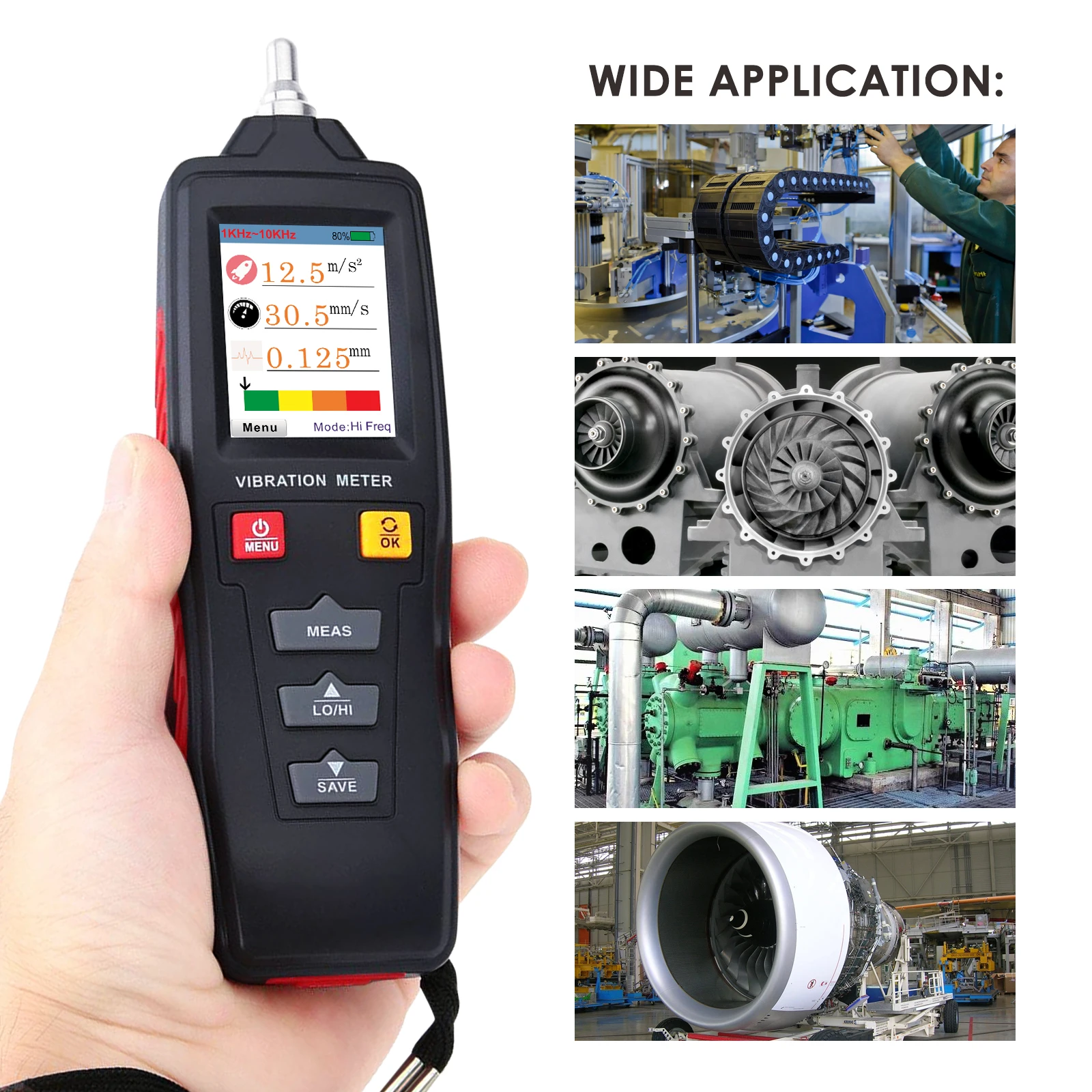

Our precision vibration analyzer meter offers advanced features for accurate measurement and analysis of vibrations in industrial machinery and equipment. Improve maintenance efficiency and prevent costly downtime with our reliable vibration monitoring solution.

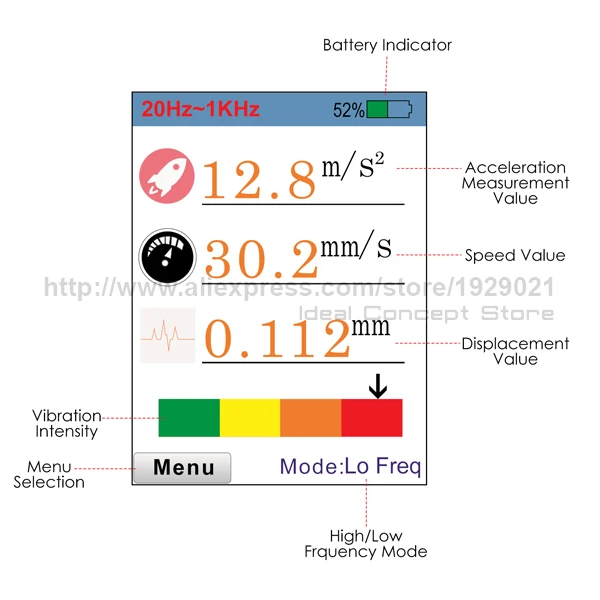

• Measure acceleration, velocity, and displacement.

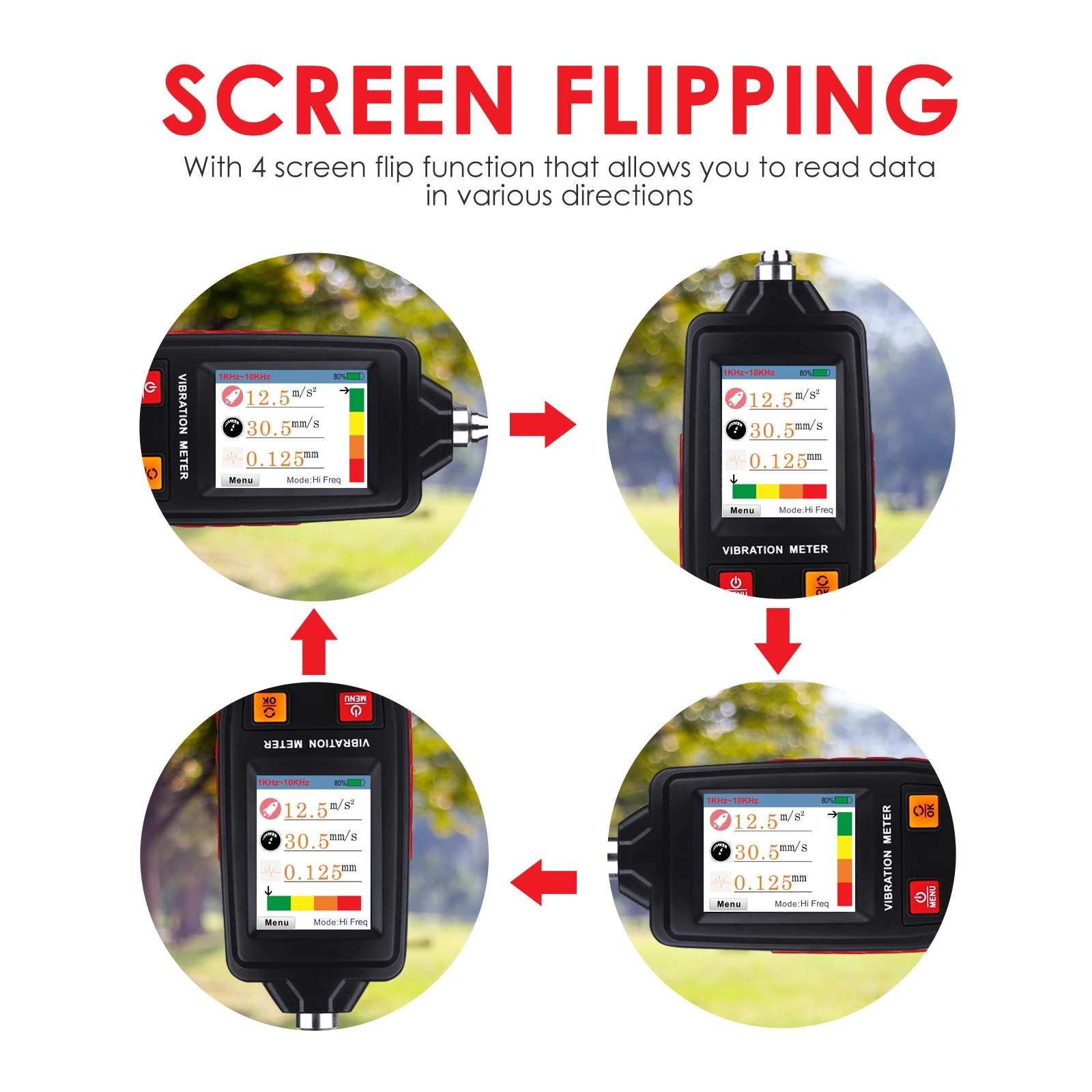

• Screen flipping function in 4 directions.

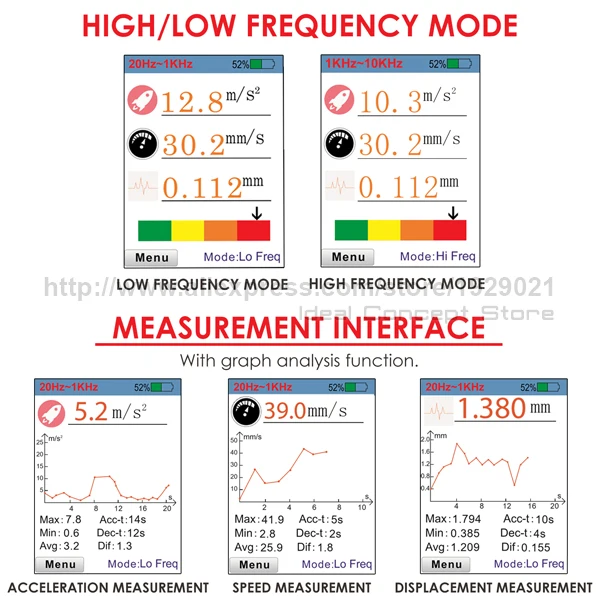

• Curve display.

• Graph analysis function.

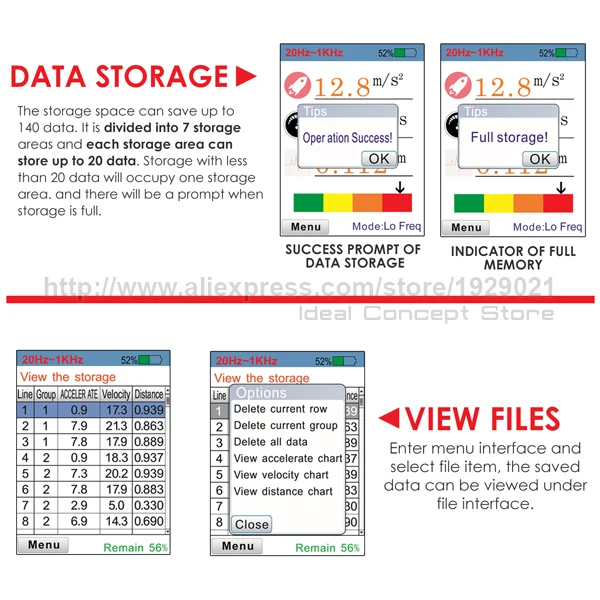

• Store and view files.

• Battery strength indicator

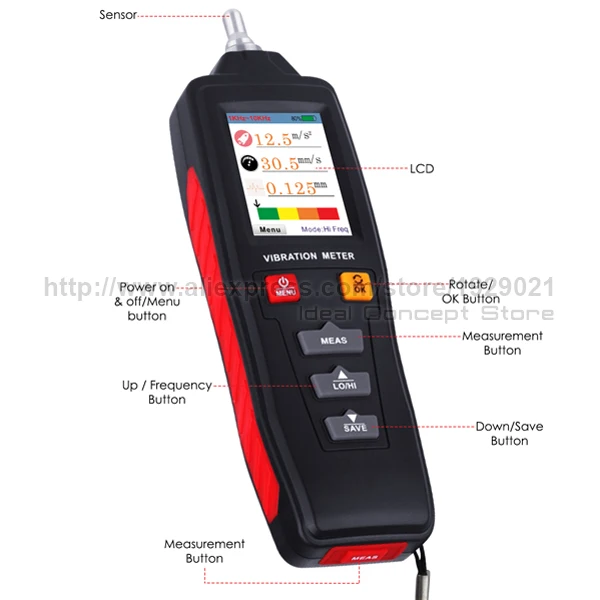

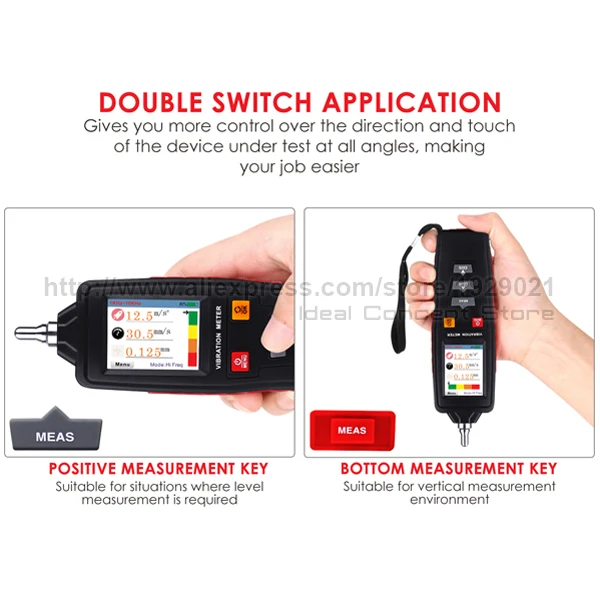

• Double measurement button

• Flashlight

• Data storage with full storage notification

• Screen brightness.

• Select Chinese/English

• Shutdown time setting

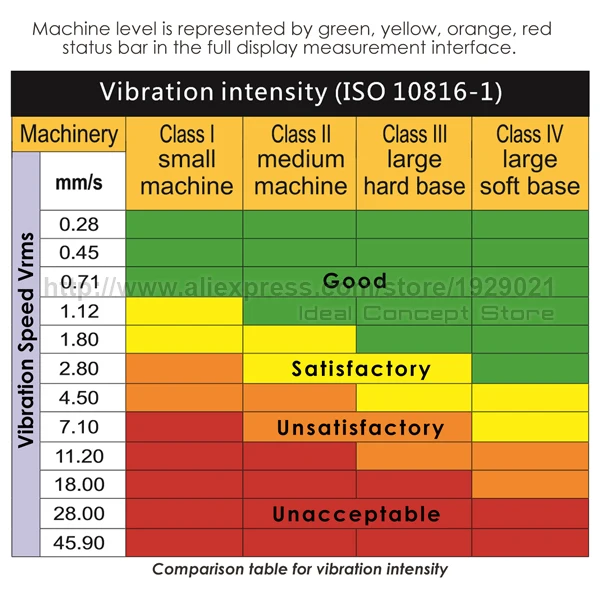

• Machinery grade

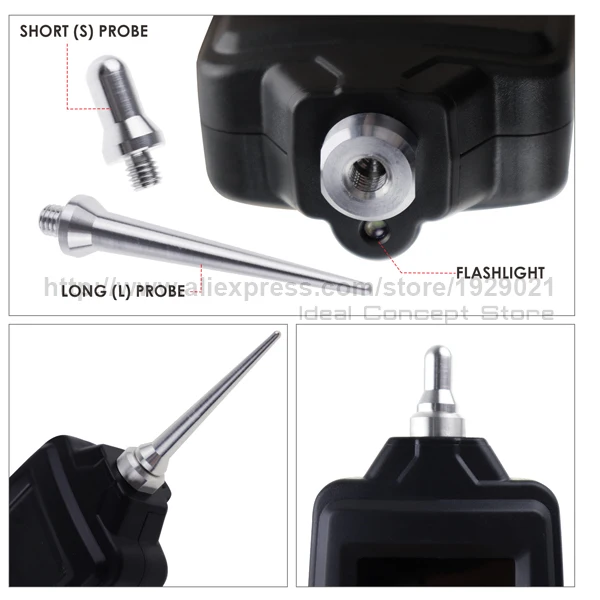

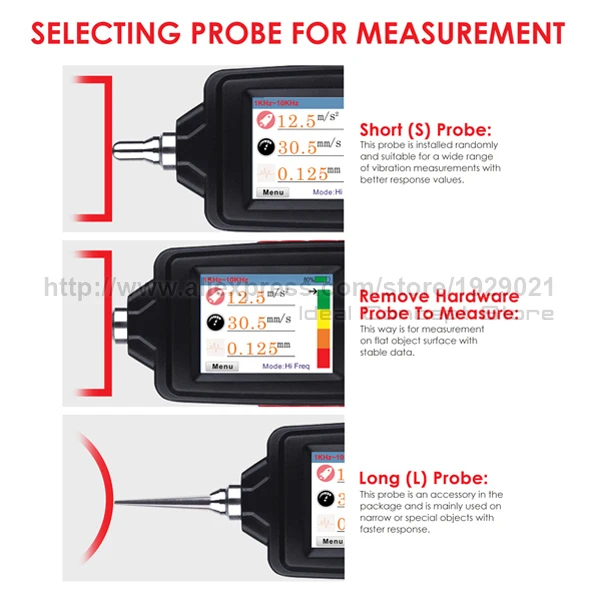

• Equipped with two probes (short and long)

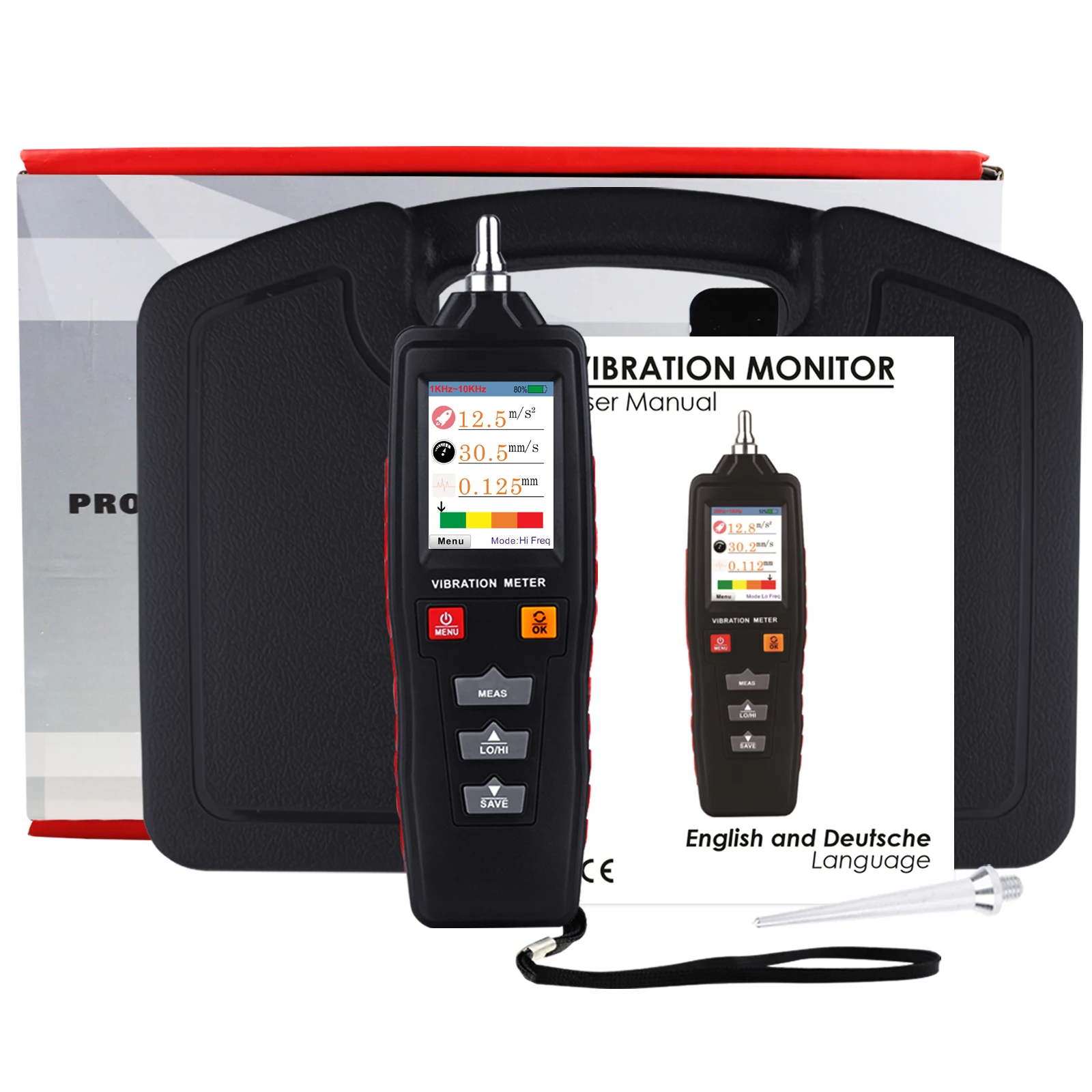

Complete Set Includes:

• 1 x Vibration Meter with short probe

• 1 x Extra Long Probe

• English Instruction Manual

• Carrying Case

• Standard Factory Packaging

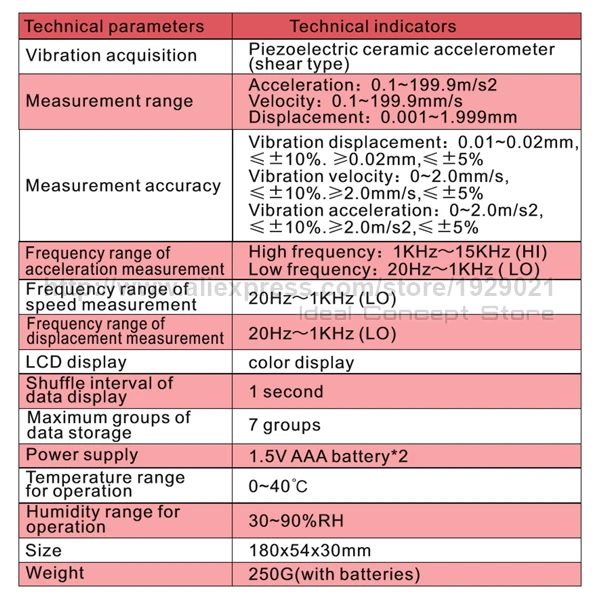

• Vibration acquisition: Piezoelectric ceramic accelerometer (shear type)

• Measurement range:

Acceleration：0.1~199.9m/s2

Velocity：0.1~199.9mm/s

Displacement：0.001~1.999mm

• Measurement accuracy

Vibration displacement：0.01~0.02mm, ≤±10%. ≥0.02mm, ≤±5%

Vibration velocity：0~2.0mm/s, ≤±10%.≥2.0mm/s, ≤±5%

Vibration acceleration：：0~2.0m/s2, ≤±10%.≥2.0m/s2, ≤±5%

• Frequency range of acceleration measurement

High frequency: 1KHz～15KHz (HI)

Low frequency: 20Hz～1KHz (LO)

• Frequency range of speed measurement: 20Hz～1KHz (LO)

• Frequency range of displacement measurement: 20Hz～1KHz (LO)

• LCD display: Colored display

• Shuffle interval of data display: 1 second

• Maximum groups of data storage: 7 groups

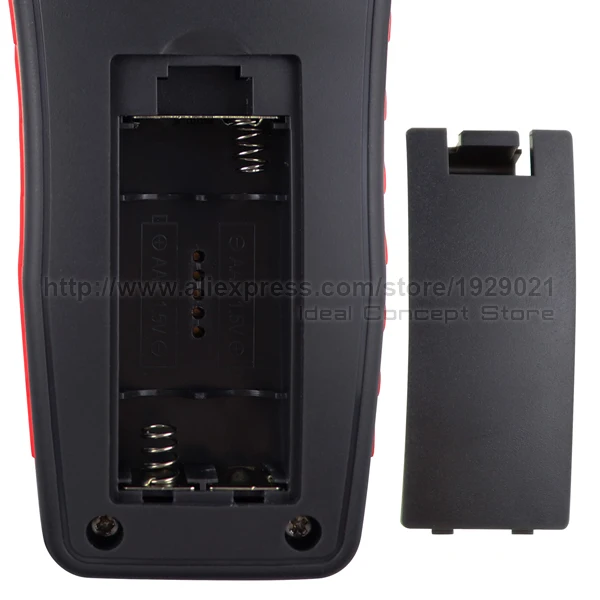

• Power supply: 2 x 1.5V AAA battery

• Operating Environment:

Temperature: 0~40℃ (32~104°F)

Humidity: 30~90%RH

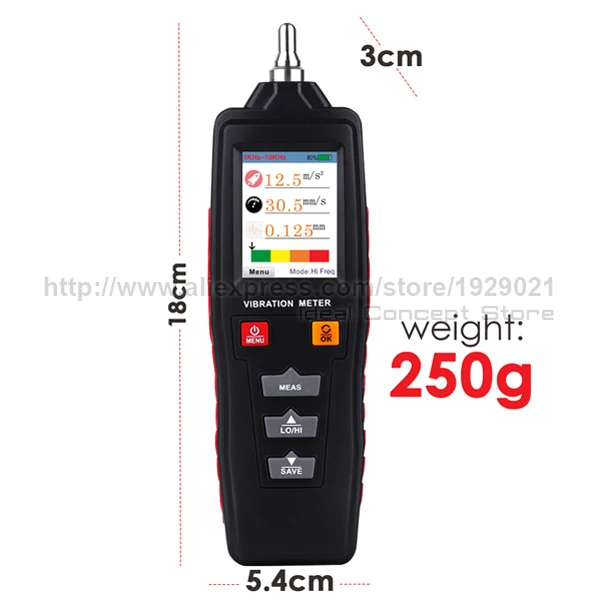

• Size: approx. 180 x 54 x 30mm

• Weight: approx. 250gms (with batteries)
