TUF-2000M TS-2 TM-1 TL-1 Ultrasonic Flowmeter DN15-6000mm Water Flow Meters with RS485 Interface Modbus
$365.00 – $465.00
SKU: 3256807114486449
Category: Ultrasonic Flow Meter
Product Description
TUF-2000M Introductions:
The meter has the advantages of small size, complete functions and low cost. Using guide rail installation, it is suitable to be installed in instrument box or distribution pane. Optional types of transducers, measuring range from DN15-DN6000mm. No need to stop water.
Specifications:
|
TUF-2000M Product Parameter |
|
|
Accuracy |
≤1% |
|
Velocity range |
0~±10m/s, Bi-directional measurement |
|
Pipe size |
DN15~DN6000mm(optional) When DN15~20mm,the measurement accuracy will be reduced. |
|
Temperature |
-30~90℃ / -30~160℃ |
|
Type of liquid |
Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc. |
|
Pipe material |
Steel, stainless steel, cast iron, copper, PVC, aluminum, glass steel, etc. Liner is allowed. |
|
Signal output |
1 way 4-20mA output 1 way Relay output |
|
Signal input |
3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
|
Interface |
RS485, support MODBUS |
|
Power supply |
DC8~36V or AC85~264V |
|
Protection Level |
Main Unit: IP65 Transducer: IP68 |
|
Humidity |
≤85%RH |
|
Temperature |
Main Unit: -20~60℃ Transducer: -30~90℃ / -30~160℃ |

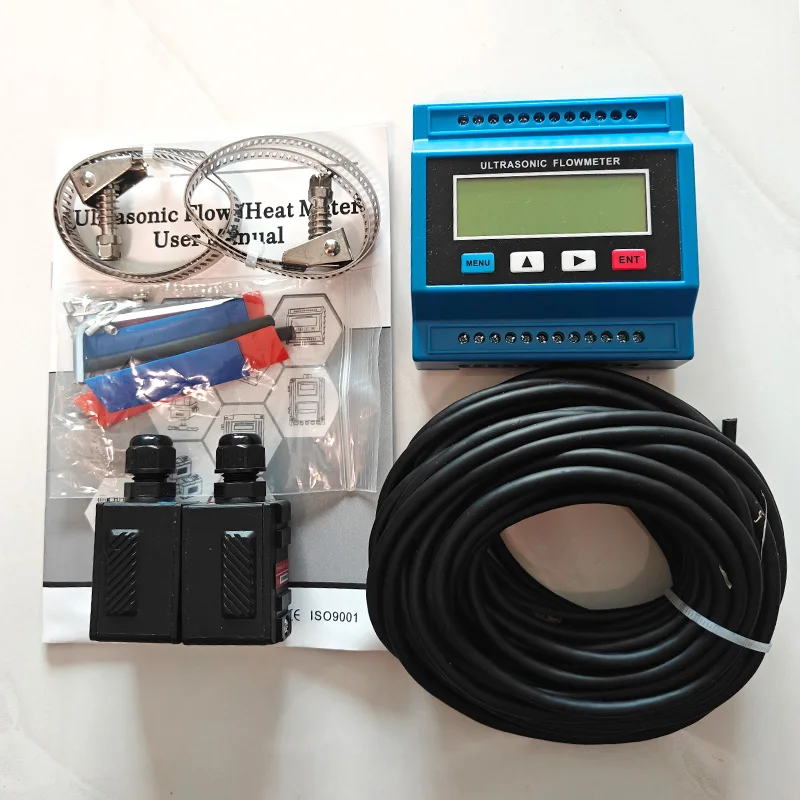

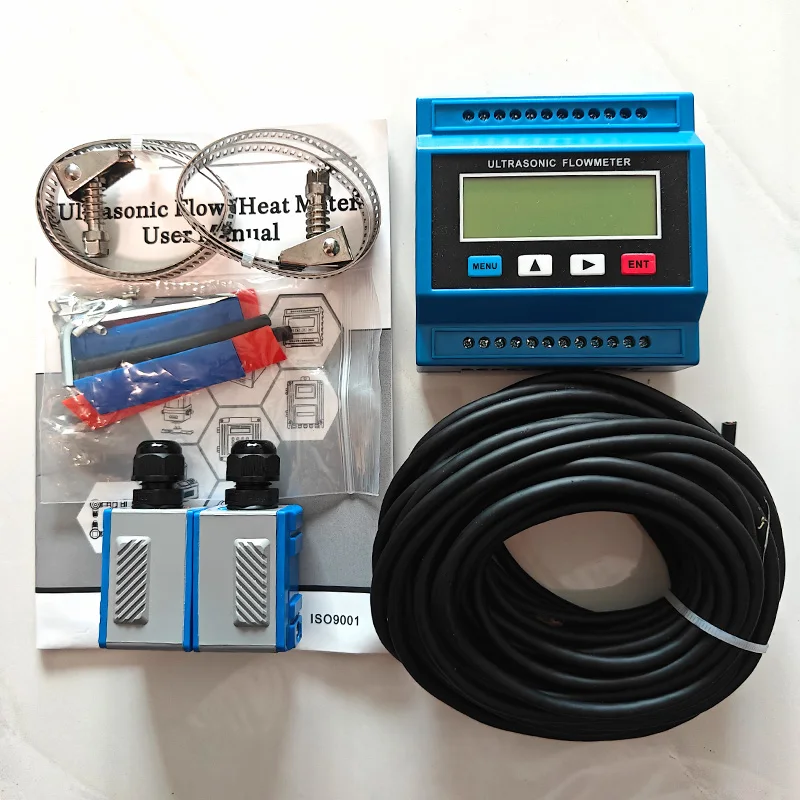

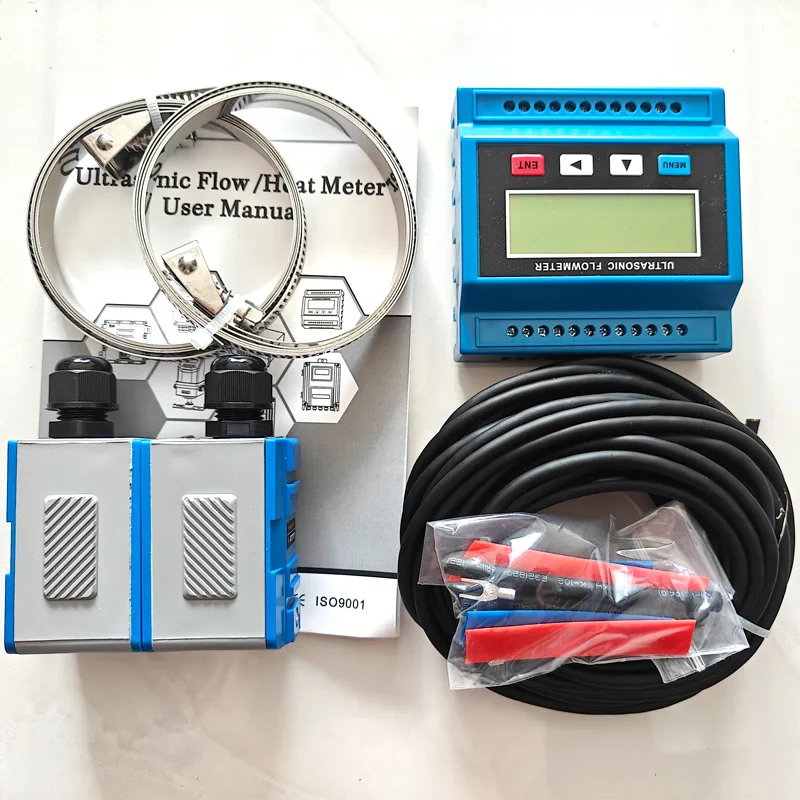

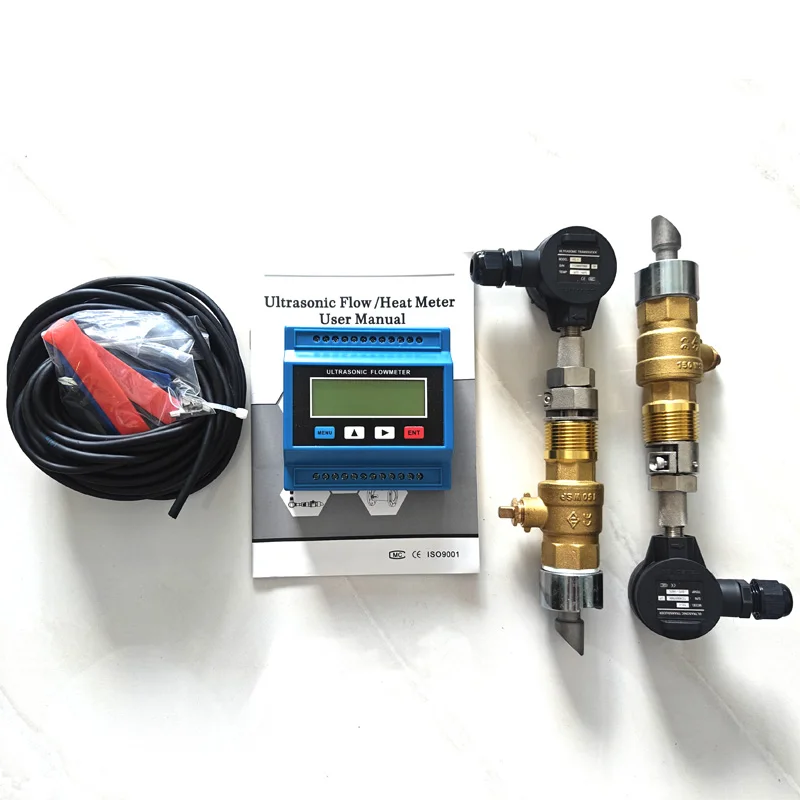

Standard Packing:
TUF-2000M Host
Steel Belt
10 meters Flow Signal Cable
Connection terminal
User manual

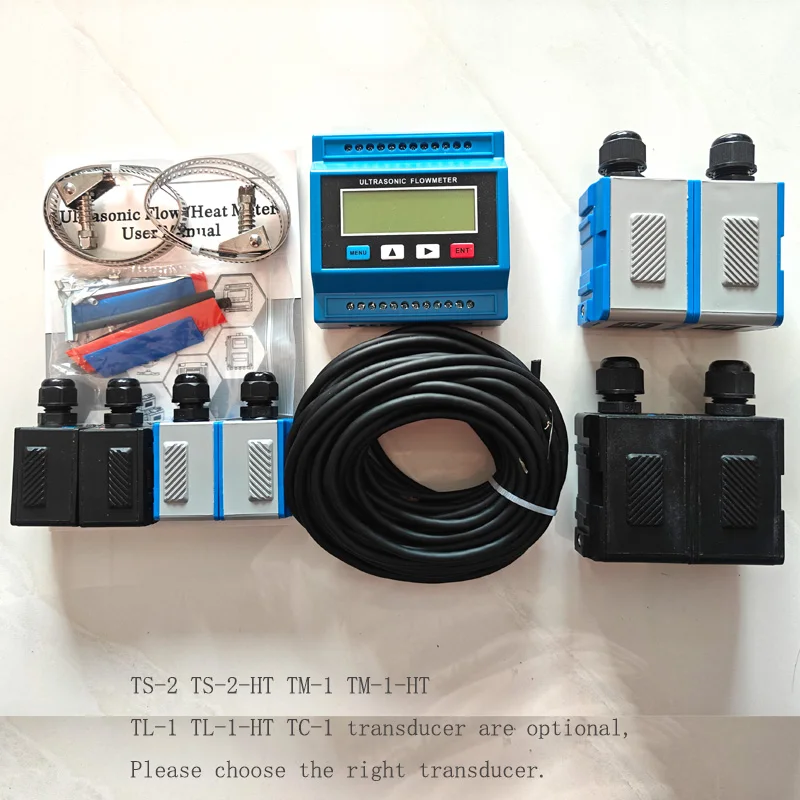

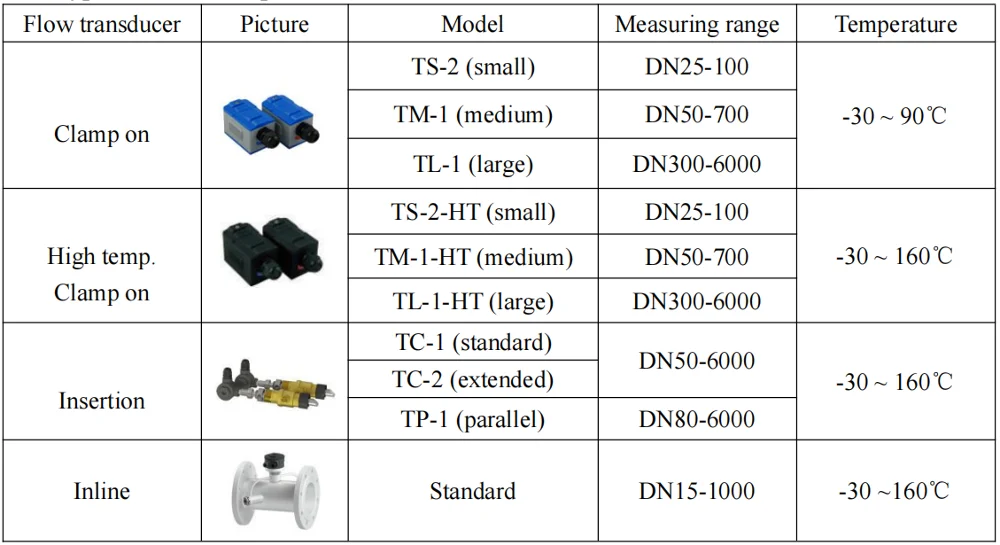

Optional Transducer:
Display:

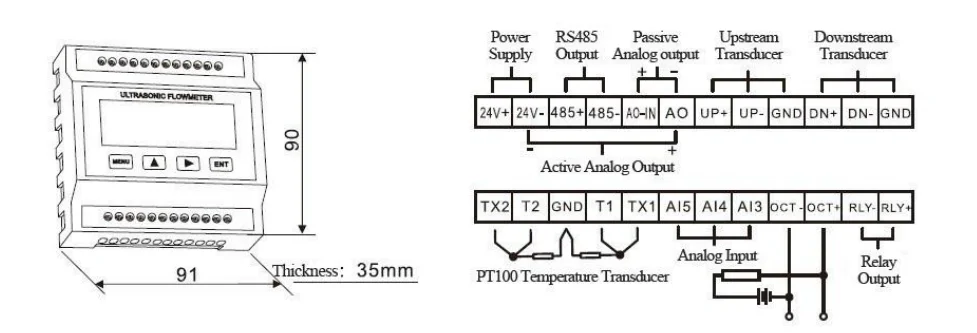

TUF-2000M Wiring Diagram:

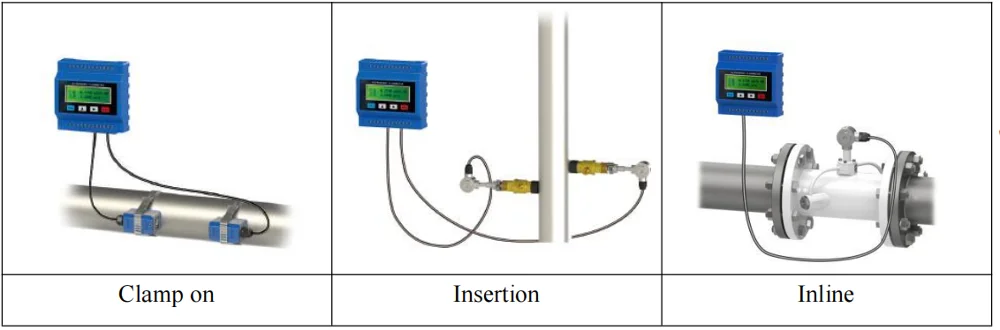

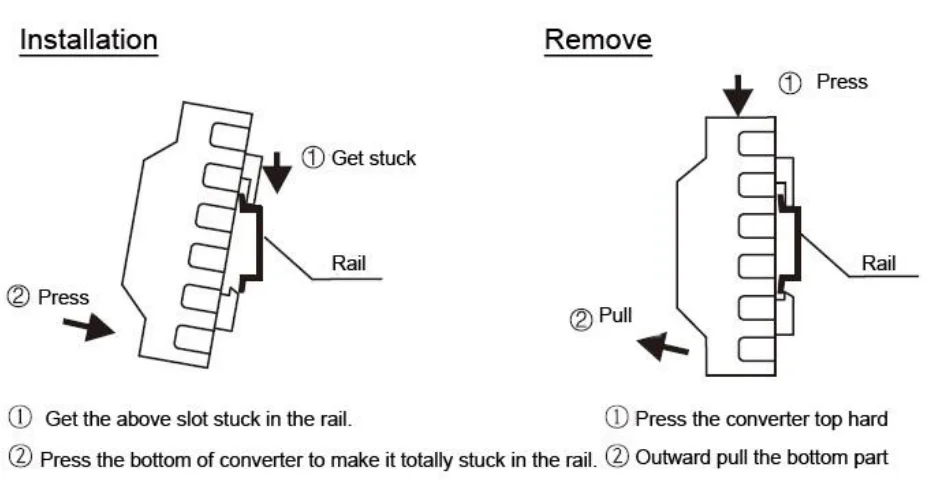

TUF-2000M Installation:

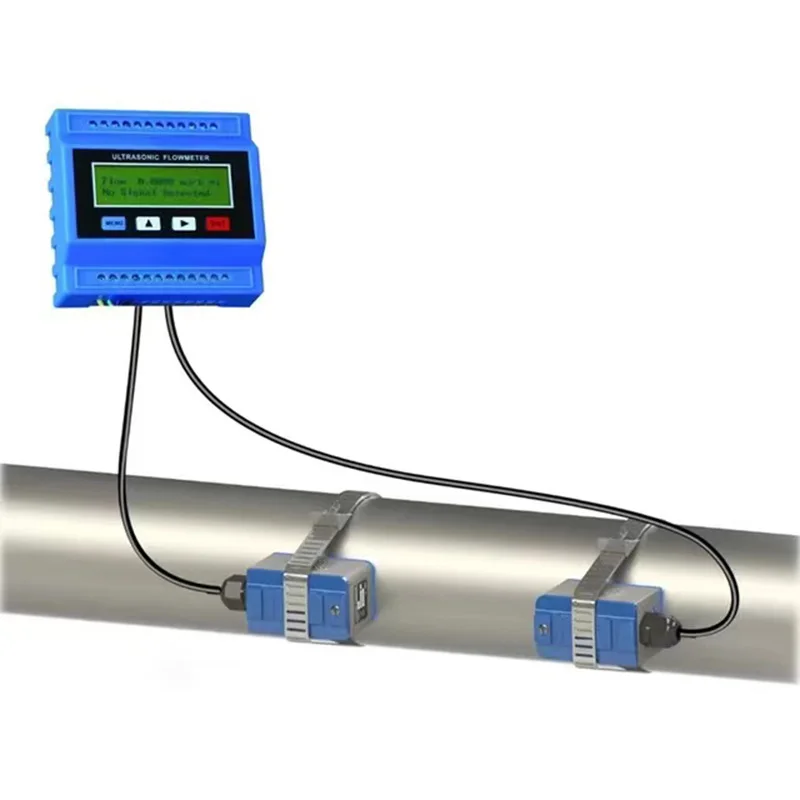

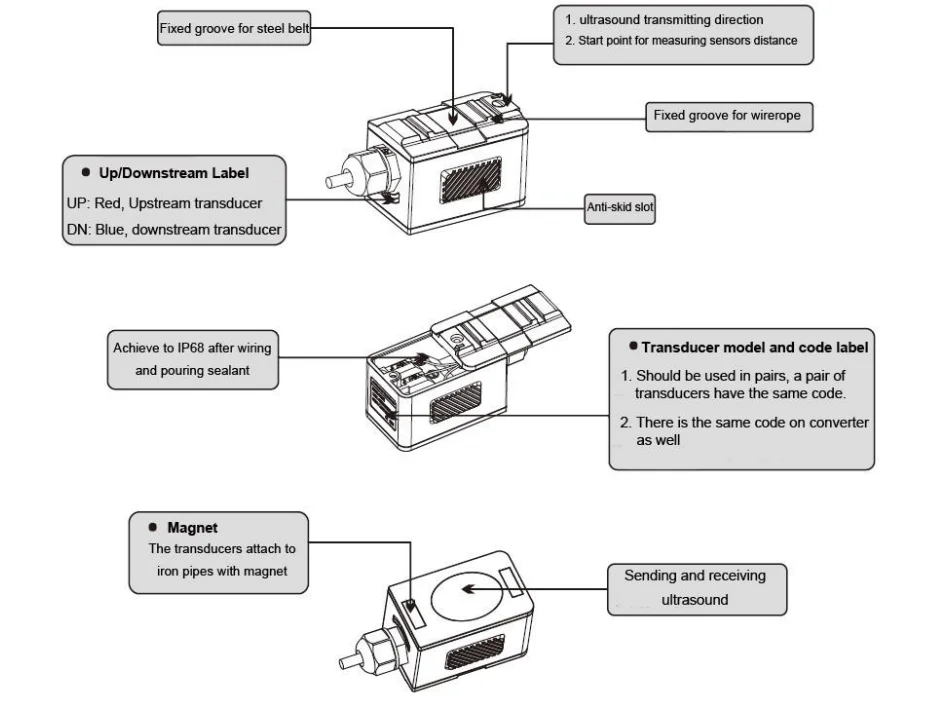

Clamp on Transducer:
Note: because of flight control , we can not ship the ultrasonic gel. The buyer can buy it locally.
