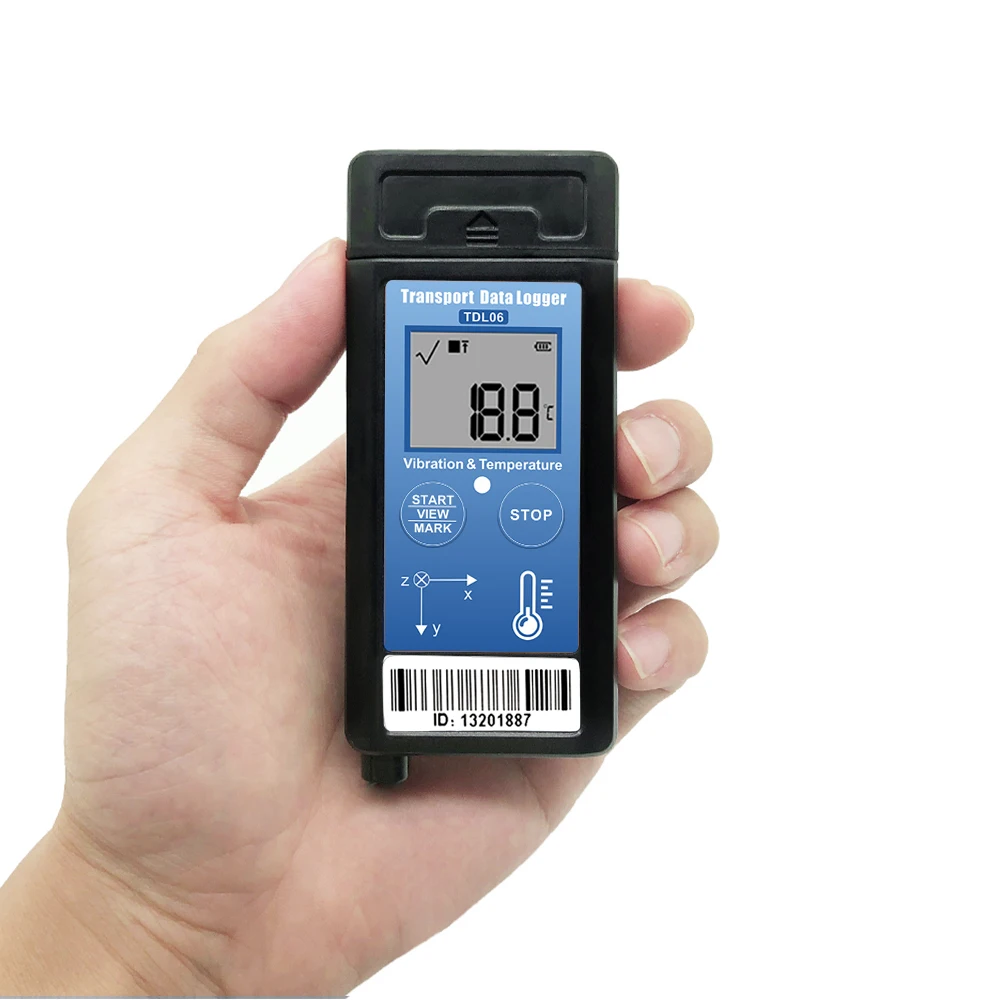

Three Axis Vibration Sensor Display With Temperature Data Logger For Vibration Monitoring System Vibration Meter

$345.00

SKU: 3256806786722765 Category:

Product Description


Product Parameters
Product Name

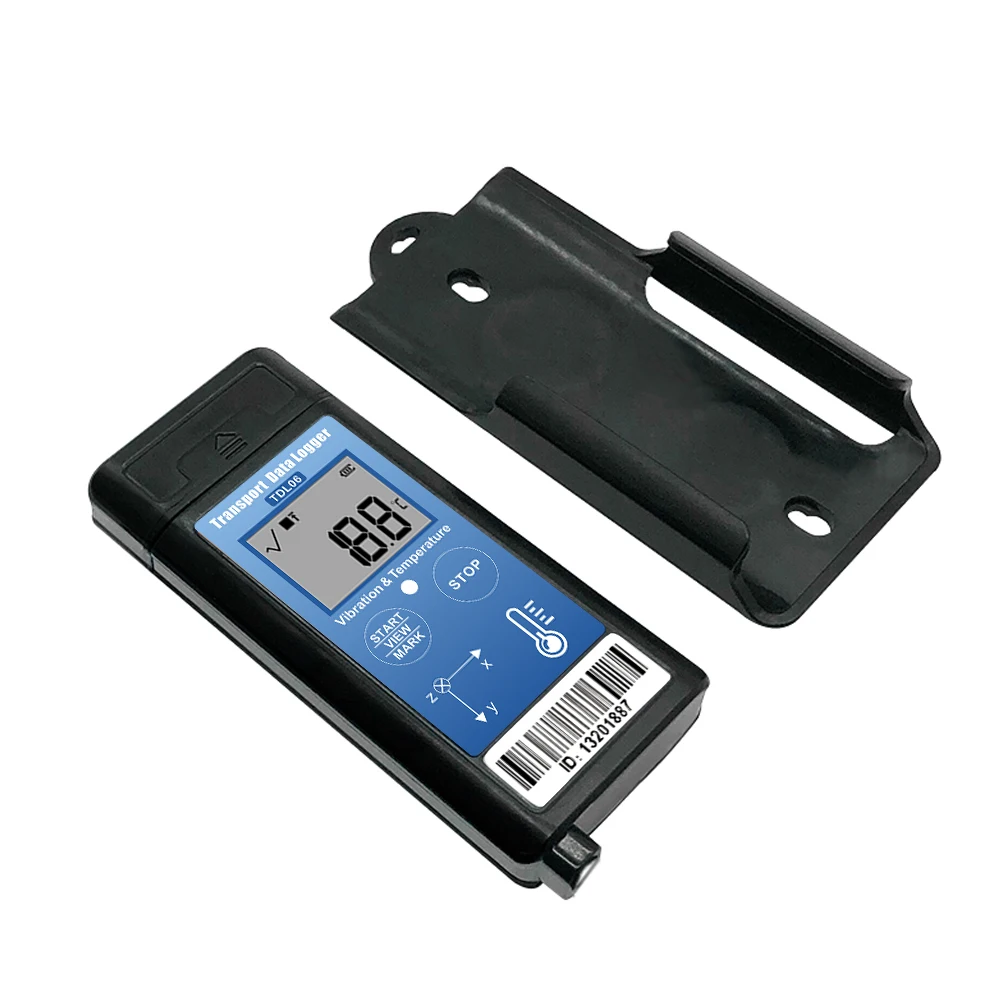

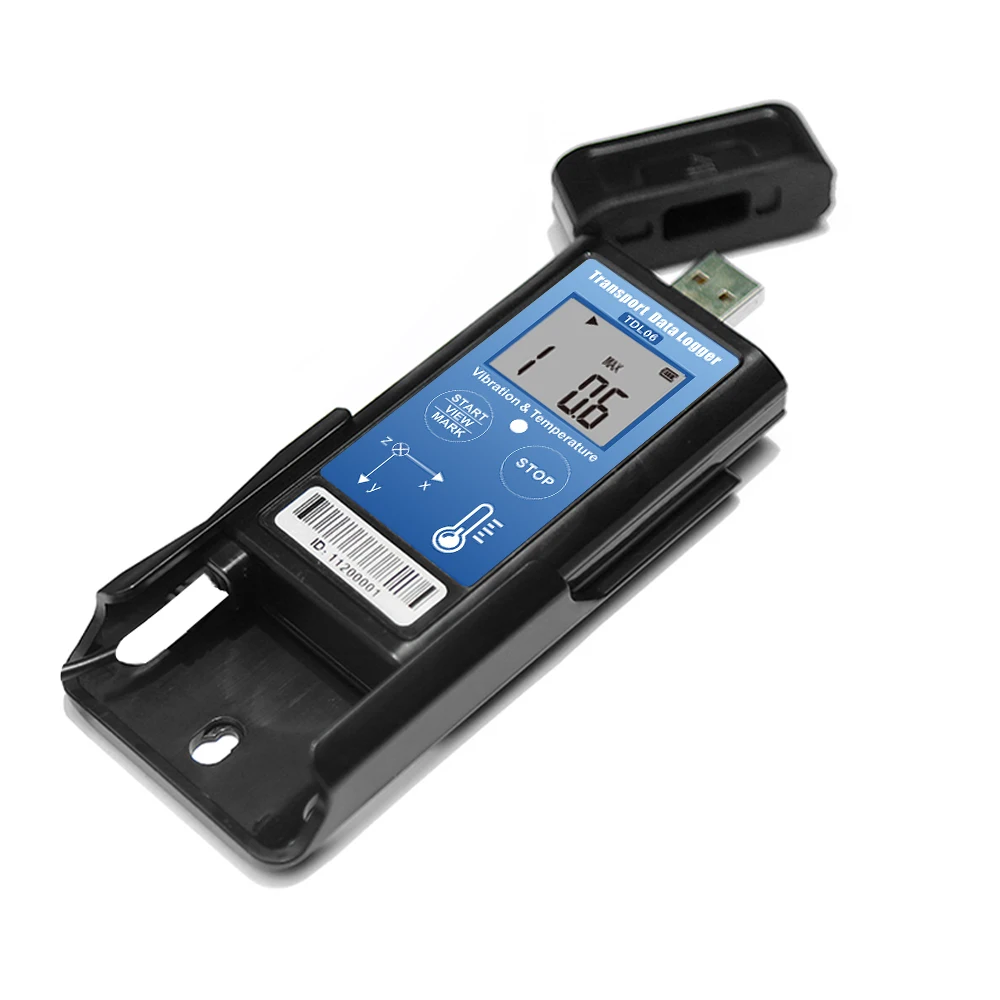

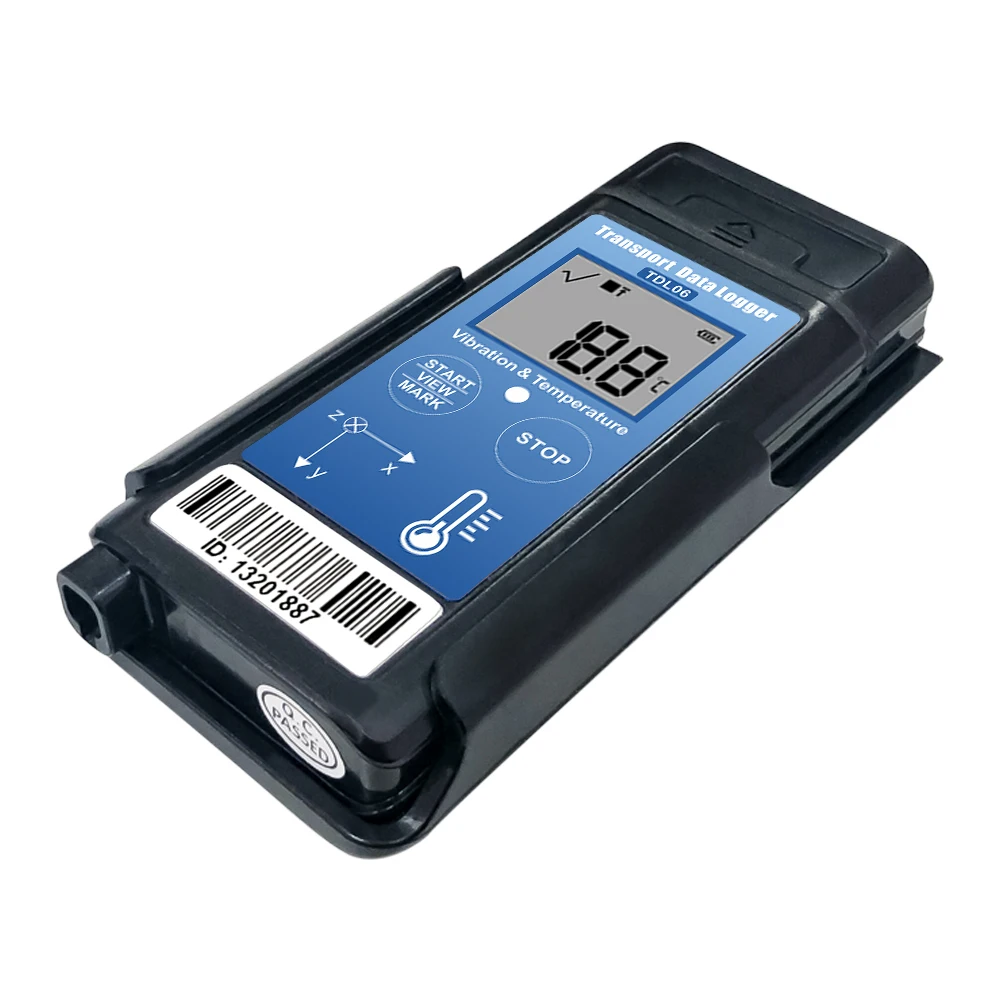

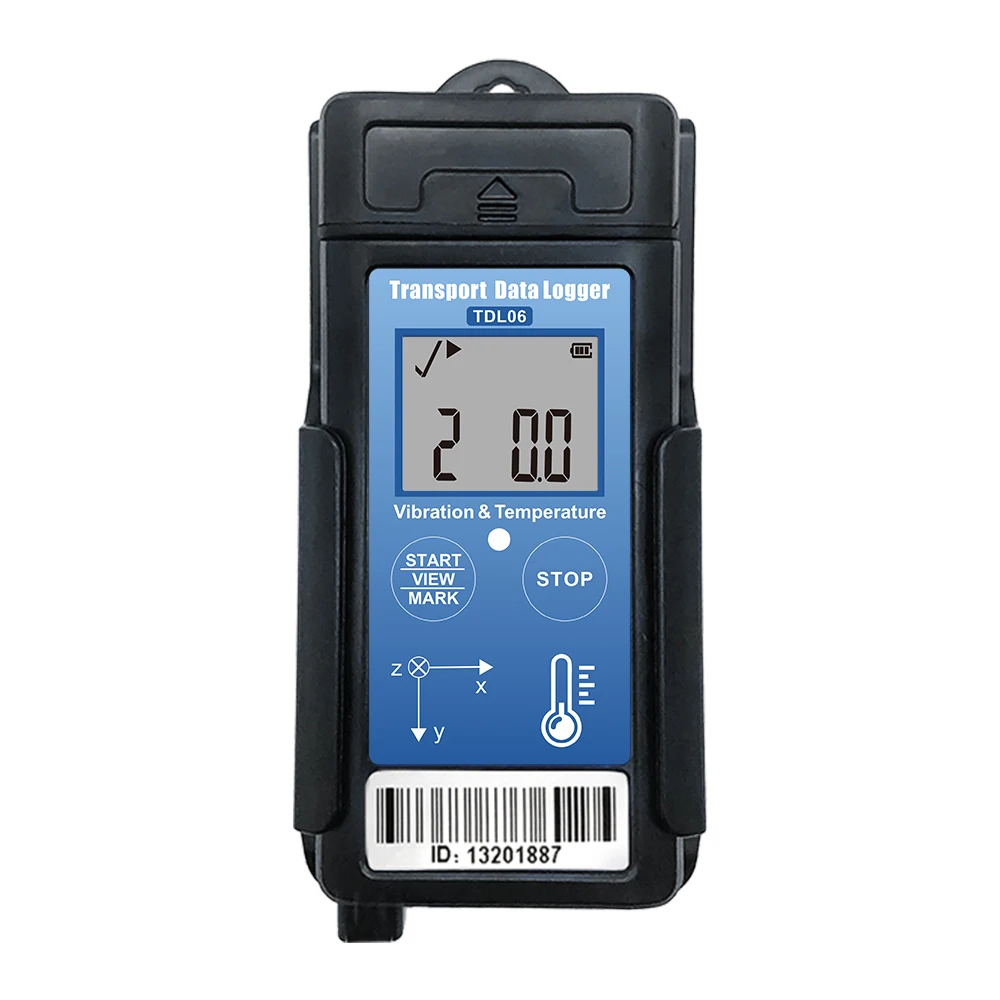

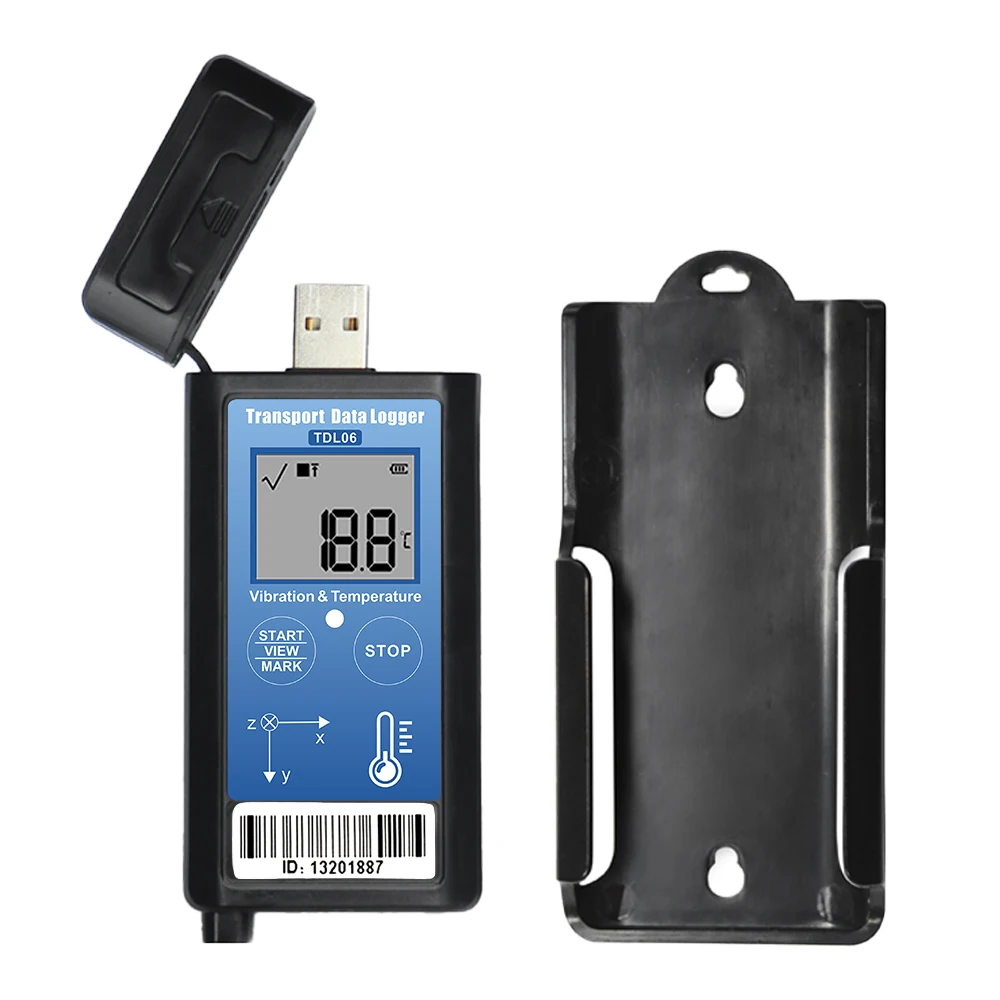

Vibration Testing Equipment Shock Data Logger
Sensor types
Built-in NTC temperature sensor, built-in three-axis acceleration sensor.
Brand
TZONE
Acceleration sampling rate
Unit: HZ 50, 100, 200, 400, 1344HZ (Optional)
Acceleration sampling mode
Timing collection, trigger threshold collection
Measuring range
Acceleration: ±27g (three-axis vector sum); ±16g (Single axle) Temperature: -30℃ ~70℃
Measurement accuracy
Acceleration: ±0.1g + 5% measurement value Temperature: ±0.5℃ (-20℃~40℃);±1℃ (Other)
Data capacity
34560 measurement values
Report format
PDF and CSV format data report
Waterproof
IP65
Battery type
ER14250 (Replaceable)

Vibration Testing Equipment Shock Data Logger

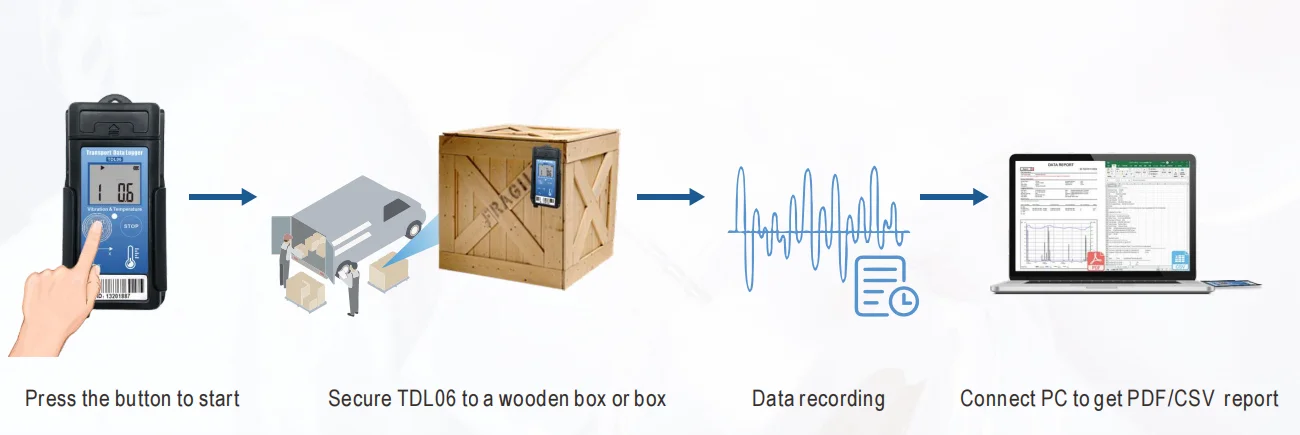

Item Feature: Built-in three-axis acceleration sensor and NTC temperature sensor. Suitable for the transportation of sensitive goods such as food, chemicals, precision machinery, artwork, electronic products, film materials, and glass 34560 measurement values data capacity. No need any software to get the PDF and CSV report. 5. Battery life: 7 months (at 25℃ ambient temperature, and with the default configuration). Waterproof: IP65
