Product Description

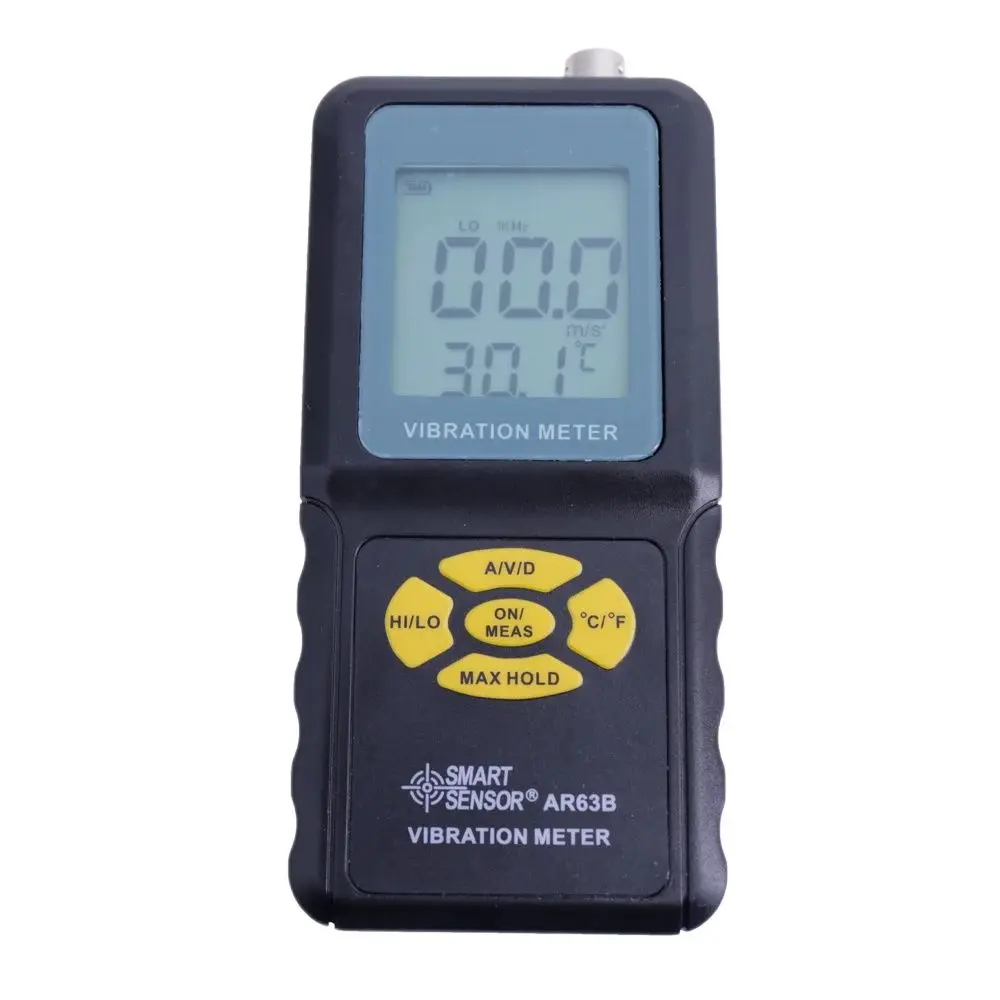

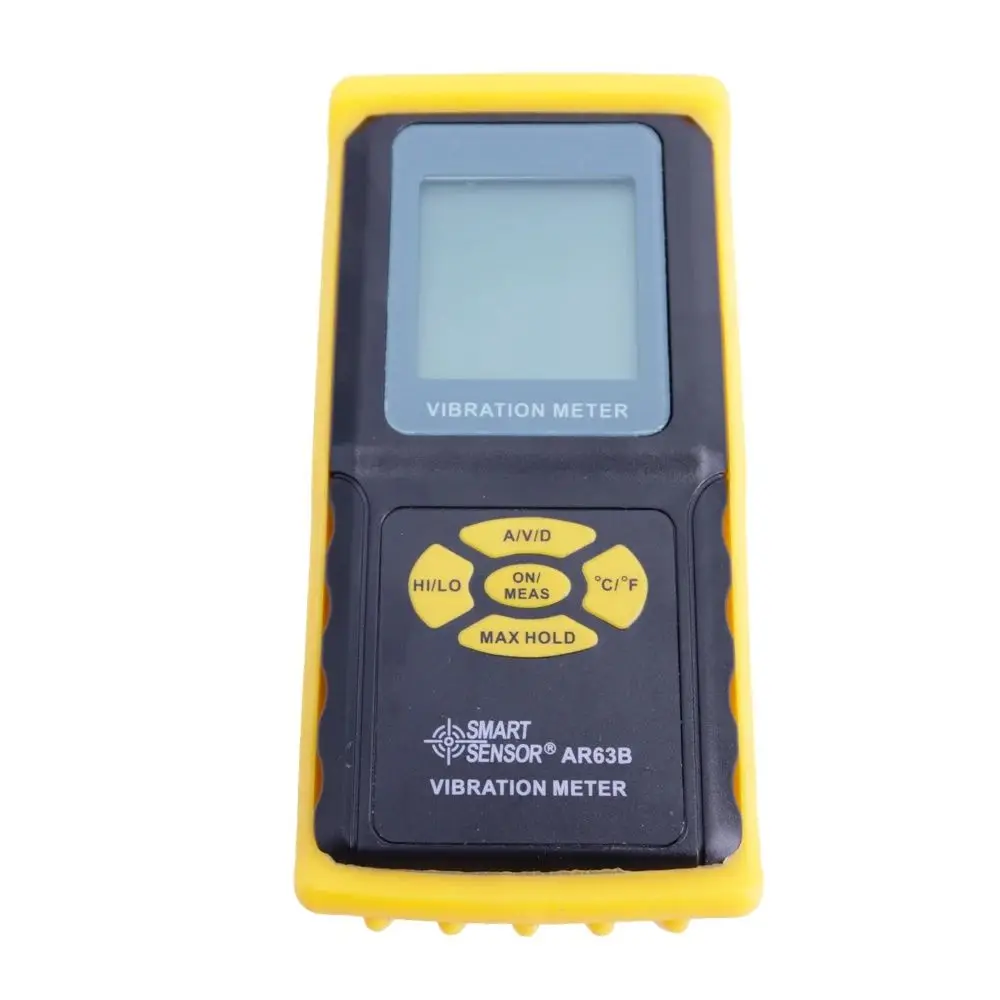

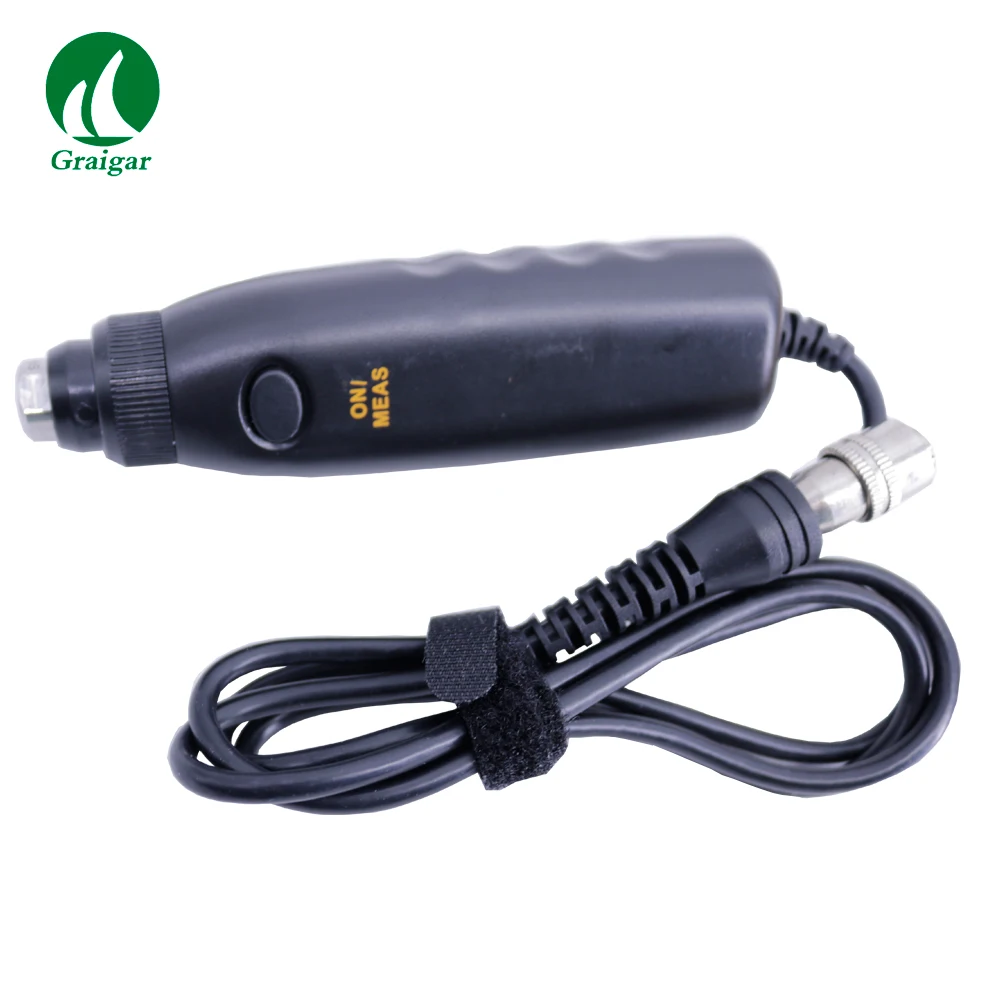

Smart Sensor AR63B Vibrometer Vibration Tester used for Measuring Periodic Motion

I.Introduction:

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.  Is specifically designed for measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment up-keep.  It has the function of testing axle bearing situation.

II.Parameter:

Measuring Range	Acceleration:0.1-199.m/S2peak(rms*v2) Velosity:0.1-1999.9mms rms Displacement:0.001-1.999mm p-p(rms*2v2)
Accuracy	±5%±2digits
Frequency Response	Acceleration:10Hz-1KHz(LO) 1KHz-15KHz(HI) Velosity/Displacement:10Hz-1KHz
Data Output	AC Output 2V Peak,Load
Test Mode	Acceleration/Velocity/Displacement
Sampling Rate	1S
Low Battery Indication	√
Auto Shut Off	√

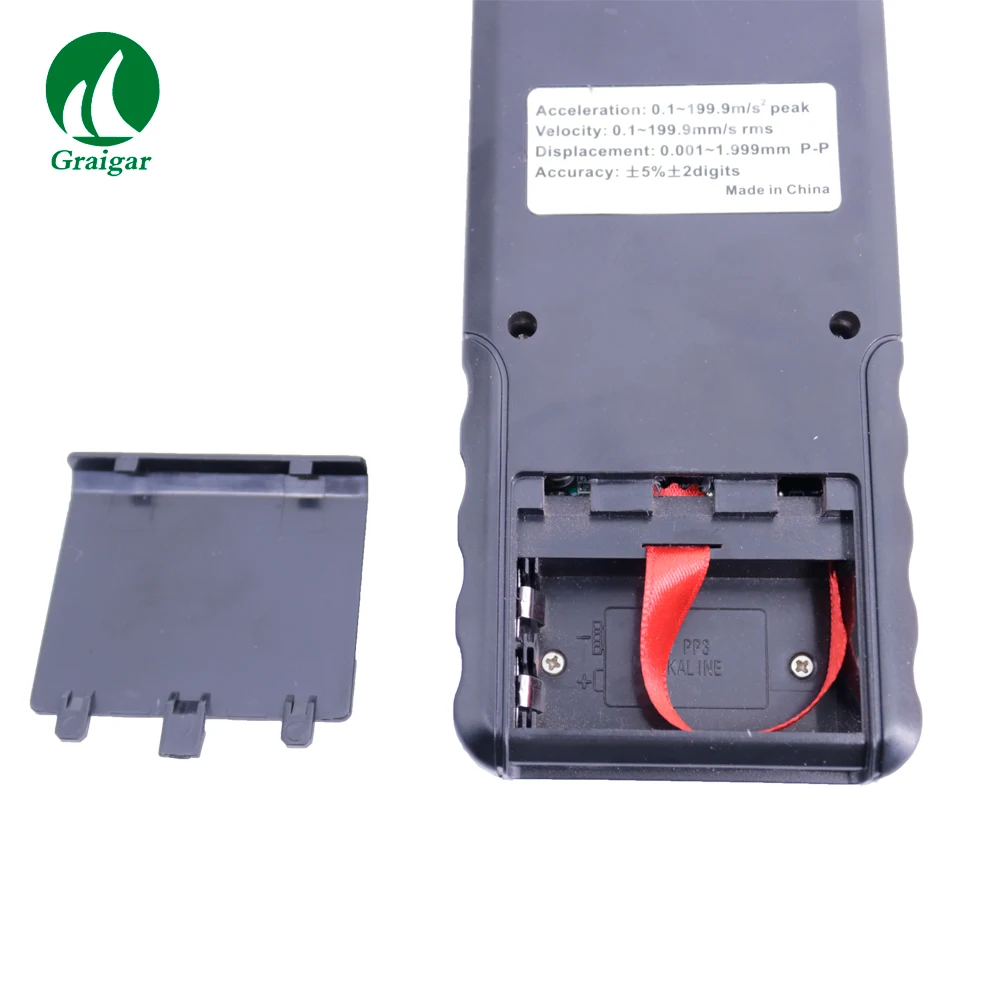

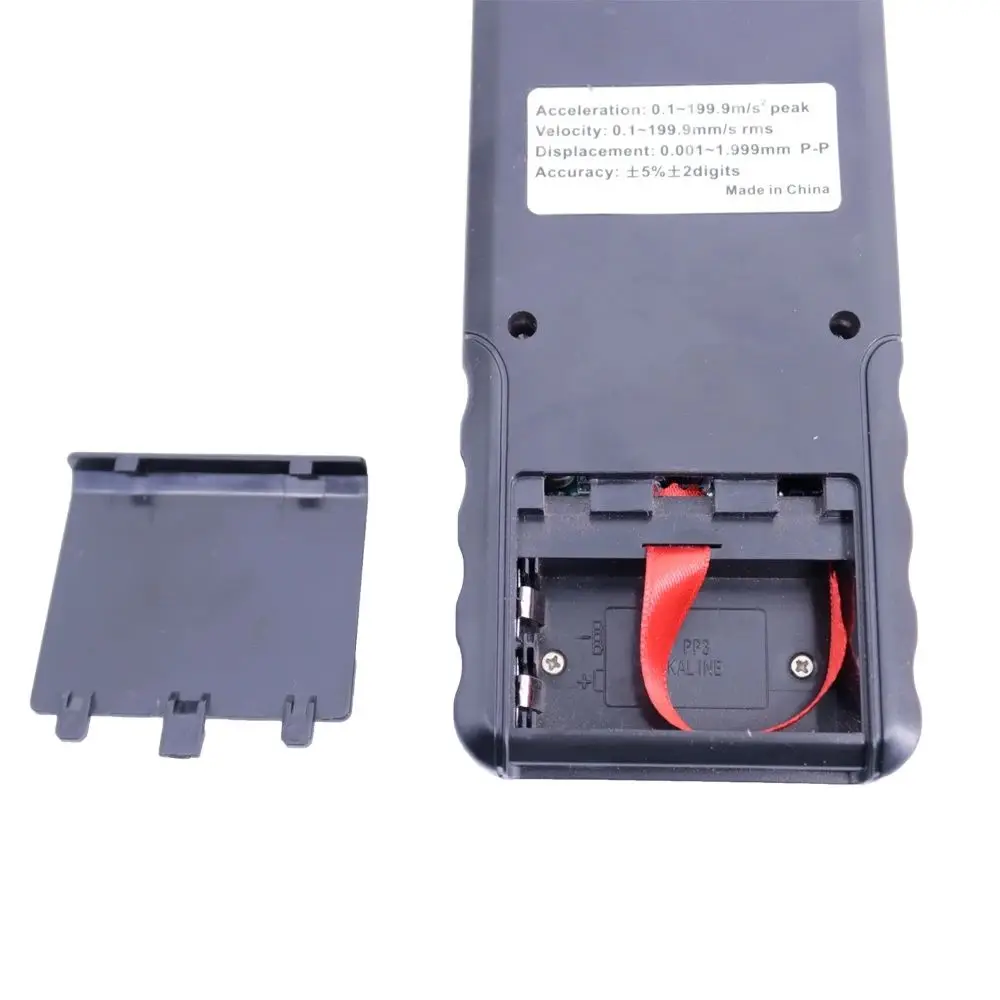

Power	9V Battery(6F22)
Battery Life	25 hours Continuous Operation

The package has no battery.
