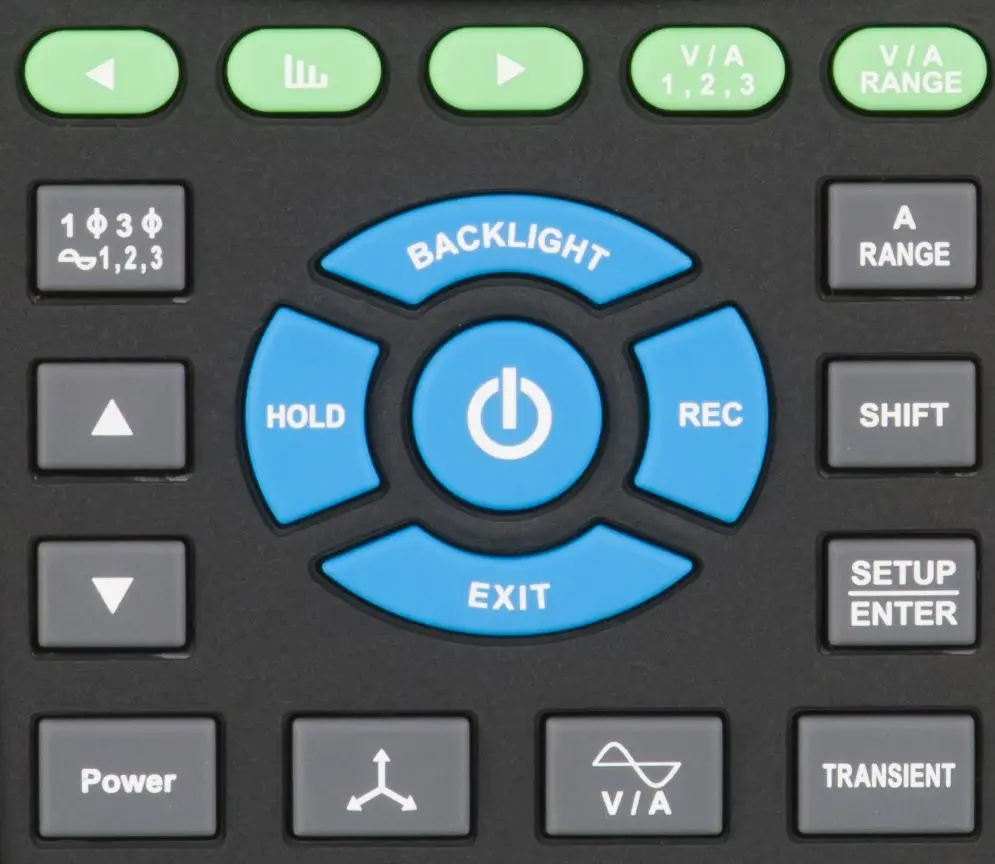

• – Voltage measurement range of 10 V … 600 V AC
• – Current measurement range of 20 A … 1200 A AC (Set 1)
• – Performance measurement range of 0 kW … 9.999 MW (VA/VAR)
• – Simultaneous display of harmonics and waveform
• – Graphic Phasor diagram
• – Captures transients including dip, swell, and outage
• – SD card memory
• – LCD graphic display
• – Durable enclosure
• – Compatibility with various manufacturers’ power clamps
• – Adjustable back-up interval, allowing for long-term data collection
• – Auto-setting of measurement range (AC V)
• – Power efficiency, delay angle, and frequency measurement
• – Apparent, effective, and reactive power measurement
• – Harmonic spectrum measurement up to the 50th order

Electrical specifications
Voltage Measurement (AC V)
Measurement Range Resolution Accuracy
10 V … 600 V (phase to neutral) 0.1 V ±(0.5 % + 0.5 V)
10 V … 600 V (phase to phase 0.1 V ±(0.5 % + 0.5 V)
Current Measurement (AC A) Set 1
Measurement Range Resolution Accuracy
20 A 0.001 A (< 10 A) 0.01 A (≥ 10 A) ± (0.5 % + 0.1 A) 200 A 0.01 A (< 100 A) 0.1 A (≥ 100 A) ± (0.5 % + 0.5 A) 1200 A 0.1 A (< 1000 A) 1 A (≥ 1000 A) ± (0.5 A + 5 A) Effective power
Measurement range Resolution Accuracy
0 KW … 9.999 KW 0.001 KW ±(1 % + 0.008 KW)
10 KW … 99.99 KW 0.01 KW ±(1 % + 0.08 KW)
100 KW … 999.9 KW 0.1 KW ±(1 % + 0.8 KW)
1 MW … 9.999 MW 0.001 MW ±(1 % + 0.008 MW)
Apparent Power
Measurement range Resolution Accuracy
0 KVA … 9.999 KVA 0.001 KVA ±(1 % + 0.008 KVA)
10 KVA … 99.99 KVA 0.01 KVA ±(1 % + 0.08 KVA)
100 KVA … 999.9 KVA 0.1 KVA ±(1 % + 0.8 KVA)
1 MVA … 9.999 MVA 0.001 MVA ±(1 % + 0.008 MVA)
Reactive Power
Measurement range Resolution Accuracy
0 KVAR … 9.999 KVAR 0.001 KVAR ±(1 % + 0.008 KVAR)
10 KVAR … 99.99 KVAR 0.01 KVAR ±(1 % + 0.08 KVAR)
100 KVAR … 999.9 KVAR 0.1 KVAR ±(1 % + 0.8 KVAR)
1 MVAR … 9.999 MVAR 0.001 MVAR ±(1 % + 0.008 MVAR)
Active Energy
Measurement range Resolution Accuracy
0 KWH … 9.999 KWH 0.001 KWh ±(2 % + 0.008 KWh)
10.00 KWH … 99.99 KWH 0.01 KWh ±(2 % + 0.08 KWh)
100.0 KWH … 999.9 KWH 0.01 KWh ±(2 % + 0.8 KWh)
1 MWH … 9.999 MWH 0.001 MMh ±(2 % + 0.008 MWh)
Apparent Energy
Measurement range Resolution Accuracy
0 KVARH … 9.999 KVARH 0.001 KVARh ± (2 % + 0.008 KVARh)
10.00 KVARH … 99.99 KVARH 0.01 KVARh ± (2 % + 0.08 KVARh)
100.0 KVARH … 999.9 KVARH 0.01 KVARh ± (2 % + 0.8 KVARh)
1 MVARH … 9.999 MVARH 0.001 MVARh ± (2 % + 0.008 MVARh)
Power Factor
Measurement range Resolution Accuracy
0 … 1 0.01 ± 0.04
Delay Angle
Measurement range Resolution Accuracy
-180° … +180° 0.1° ±1°
Frequency
Measurement range Resolution Accuracy
45 Hz … 65 Hz 0.1 Hz ± 0.1 Hz
Harmonic of AC Voltage at 50 / 60 Hz
Measurement range Resolution Accuracy
1 … 20th order 0.001 … 1 A
0.1 % ± (2 % + 0.5 A)
± (2 % + 10 Digit)
21 … 30th order 0.001 … 1 A
0.1 % ± (2 % + 0.5 A)
± (2 % + 10 Digit)
21 … 50th order 0.001 … 1 A
0.1 % not specified
General specifications
Display 3.7 in / 94.0 mm point-matrix LCD (320 * 240 pixel) with LED background lights
Safety standards IEC1010CAT III 600V
Input resistance AC V 10 MOhm
Operating frequency of current clamp 40 Hz … 1 kHz
Tested operating frequency of current clamp 45 Hz … 65 Hz
Overload protection AC V
AC A 720 V RMS
1300 A with current clamp
Data Storage SD memory card
Refresh interval 1 second
Data logging function logging with real-time speed on SD memory card
Record interval 2 … 7200 seconds
Data output (only for live display on computer) per USB or RS232, depending on connection cable
Operating temperature 0° C … +50° C / 32° F … 122° F
Surrounding humidity < 80 % RH 8 x 1.5 V AA batteries Voltage Supply 9 V adapter Current Drain Measurement Device: 300 mA DC current clamp: 34 mA DC Maximum Wire Diameter 50 mm / 1.9 in Weight Measurement Device: 948 g / 33.4 oz (incl. battery) Current clamp: 467 g / 16.4 oz (incl. cable) Dimensions Device: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in Current clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in Clamp jaw: 86 mm / 3.3 in (exterior)

• 1 x PCE-PA 8300 Three Phase Power Data Logger
• 3 x Current clamps (Set 1)
• 4 x Insulated alligator clips
• 4 x Safety test lines
• 6 x 1.5 V AA batteries
• 1 x 9 V mains adapter
• 1 x SD memory card
• 1 x Carrying case
• 1 x User manual
