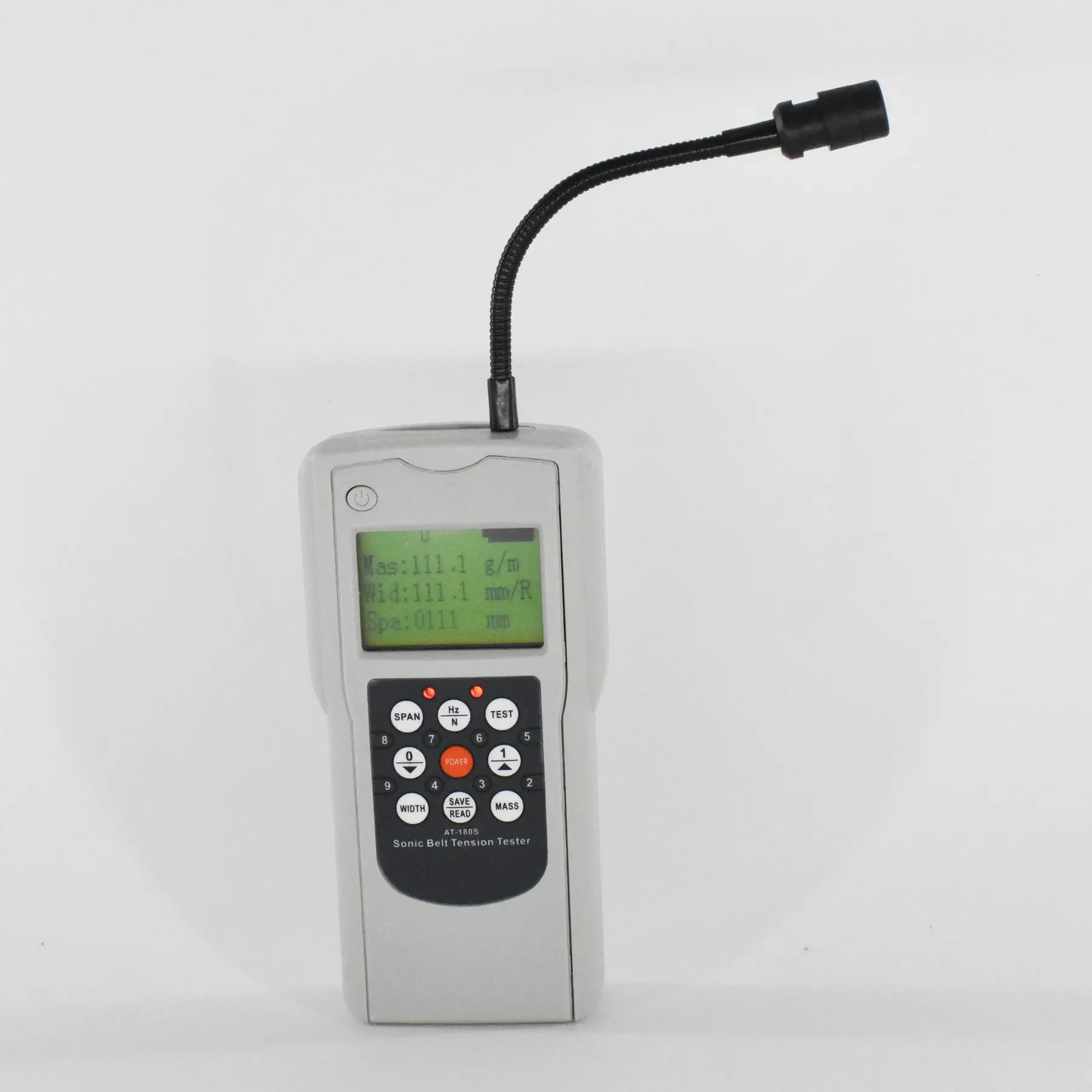

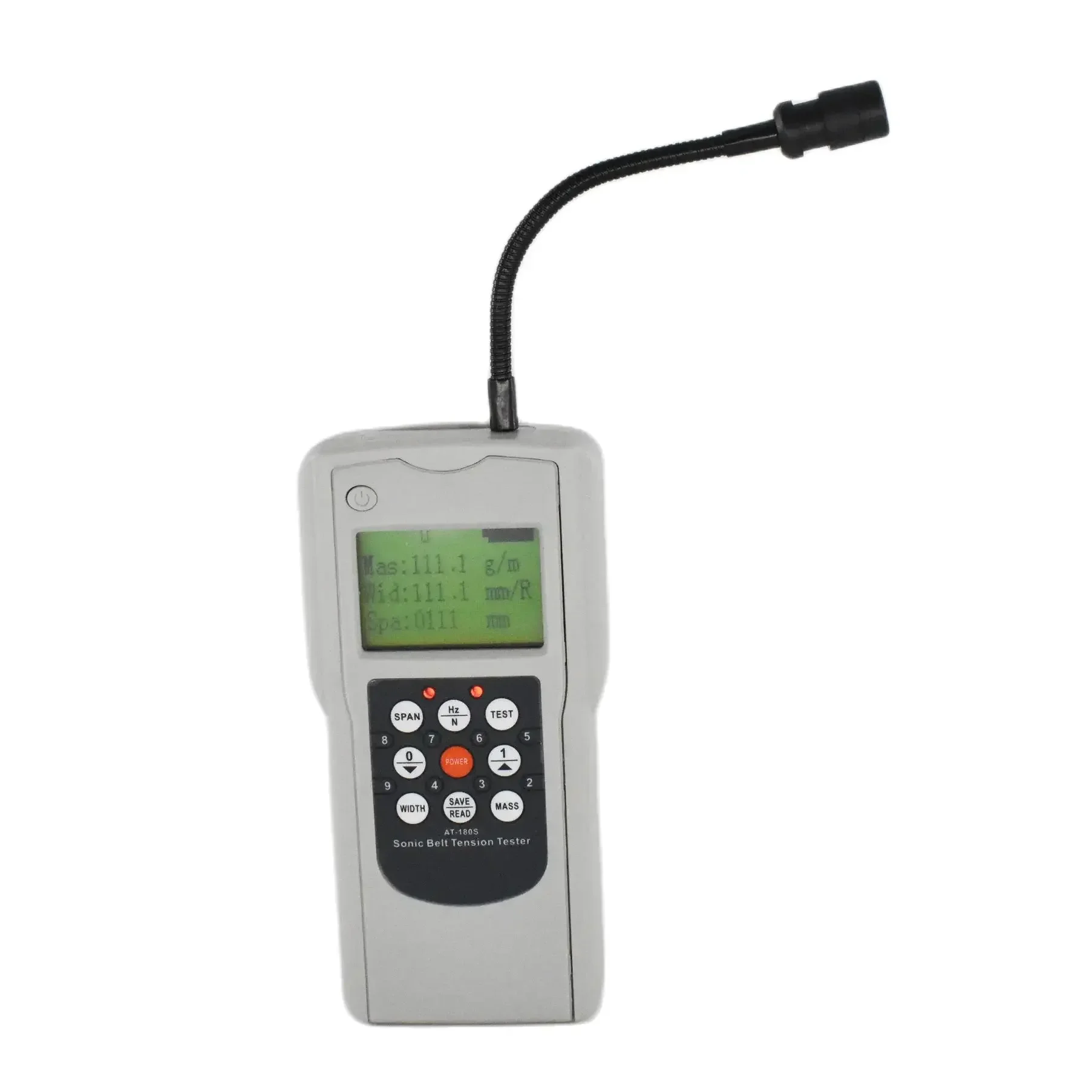

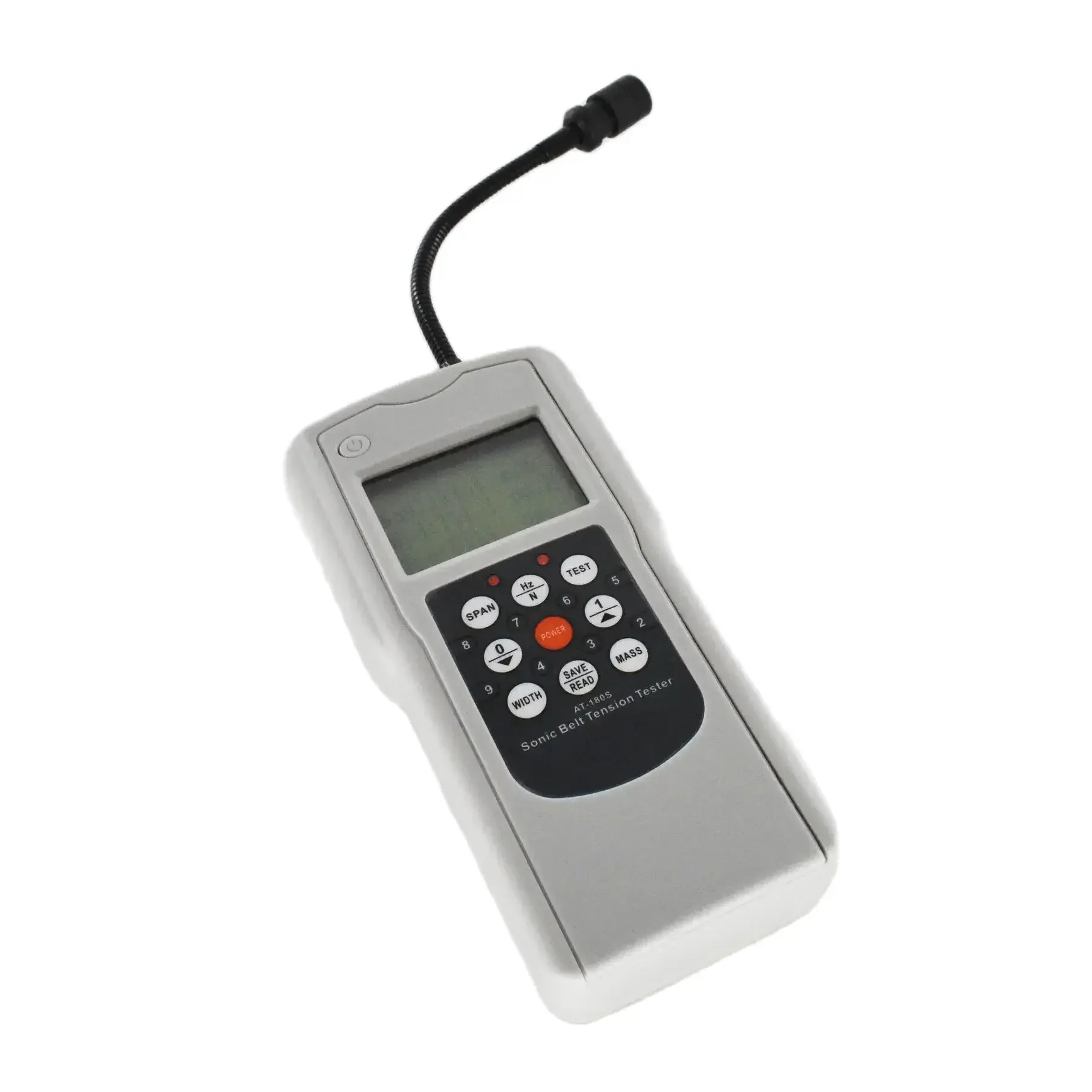

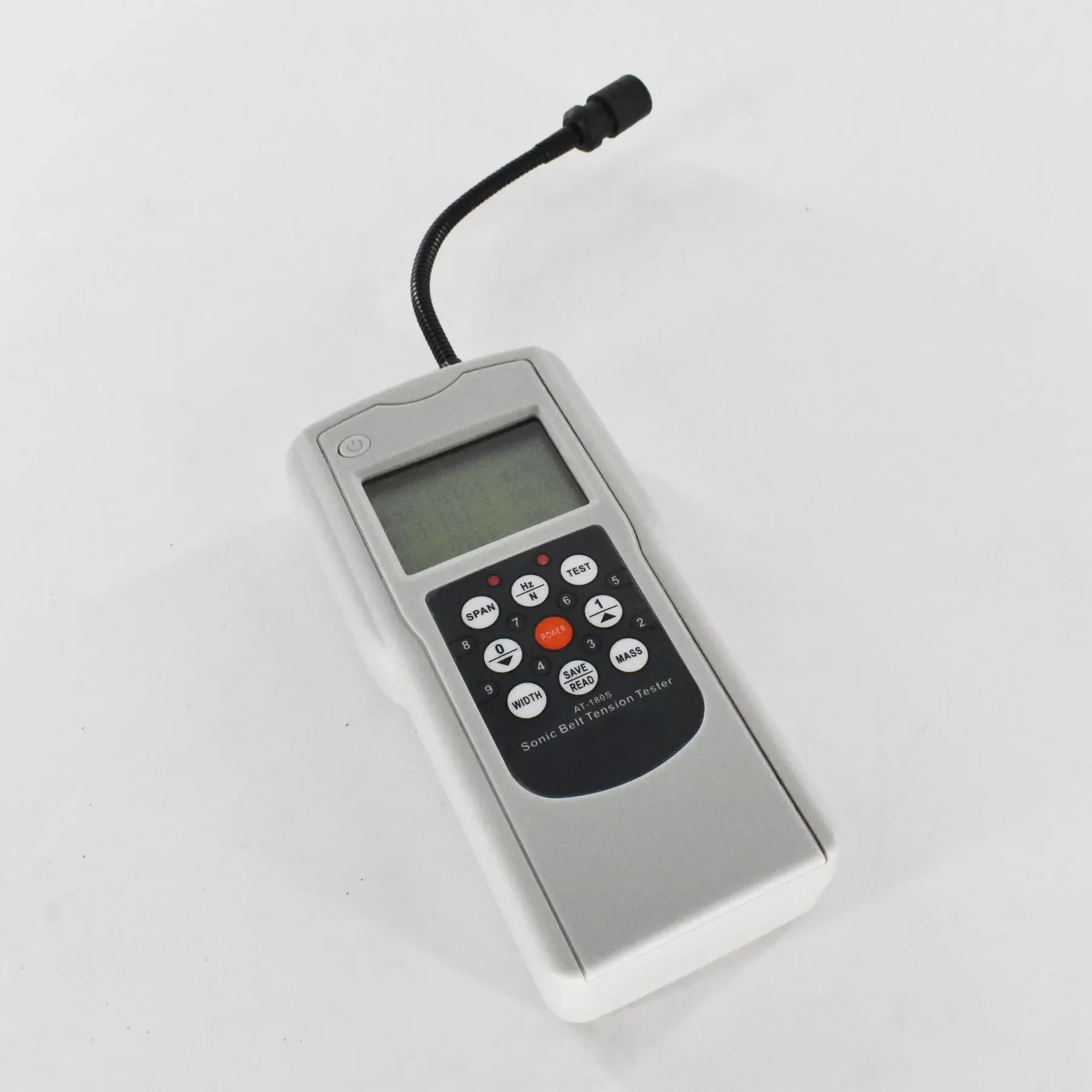

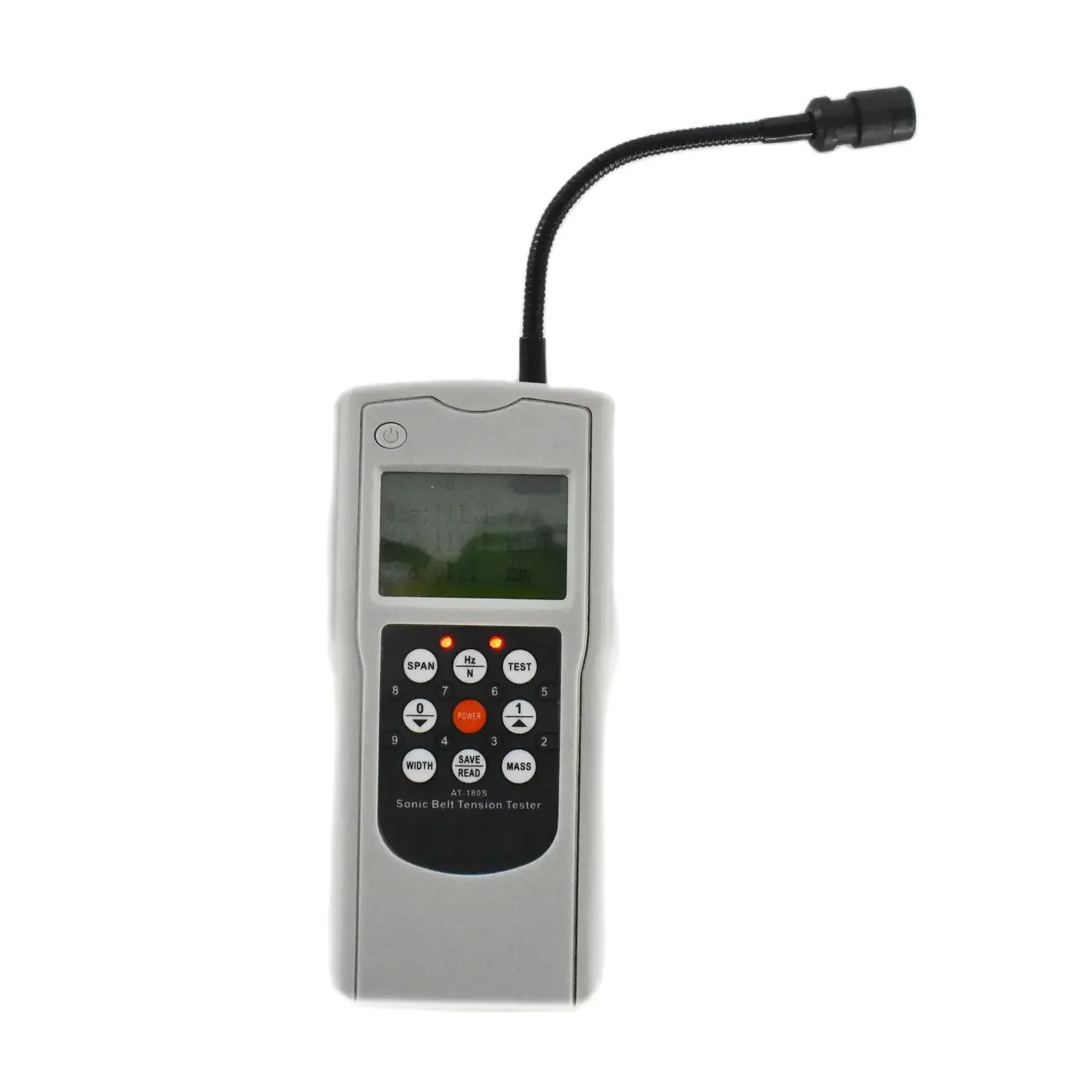

Portable AT-180S Sonic belt tension tester Digital Belt tension meter for vibration frequency transmission belt 10-680HZ

$675.00

983 in stock

SKU: 3256807704516241 Category:

Product Description



Portable AT-180S Sonic belt tension tester Digital Belt tension meter for vibration frequency transmission belt 10-680HZ





Description:

It can be used to measure the vibration

frequency (unit: Hertz) of the transmission belt

when it is hit or moving fast

Characteristics:

* The probe can be adjusted.

* Can store 20 set belt parameters.

* Maximum frequency: 680 Hz.

* Automatic shutdown, etc.

parameter






Measuring Range

10-680Hz

Belt free strand length

Up to 999.9 mm

Belt width

Up to 999.9 mm/R

Belt mass

Up to 999.9 g/m

Precision

±1HZ100HZ

Digital sampling accuracy

< 1%

Display accuracy

土1Hz

Overall accuracy

< 5%

Operating temperature

+10° to +50° C

Transport temperature

-5 to +70° C

Display

LCD

Measurement unit

Hz/N

Power supply

4×1.5V AAA

Housing

Plastic(ABS)

Dimensions

140x72x34mm

Package size

248x206x52mm

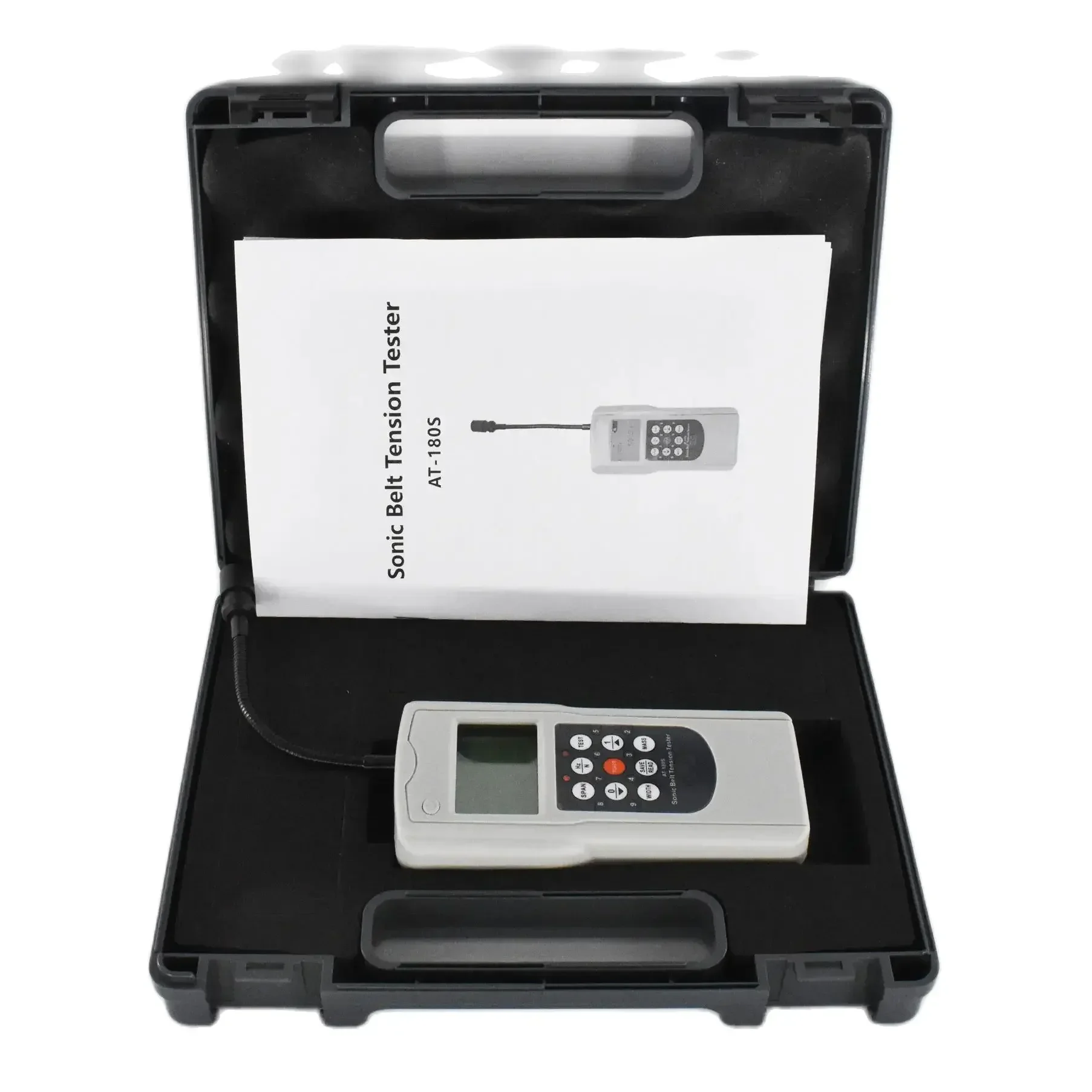

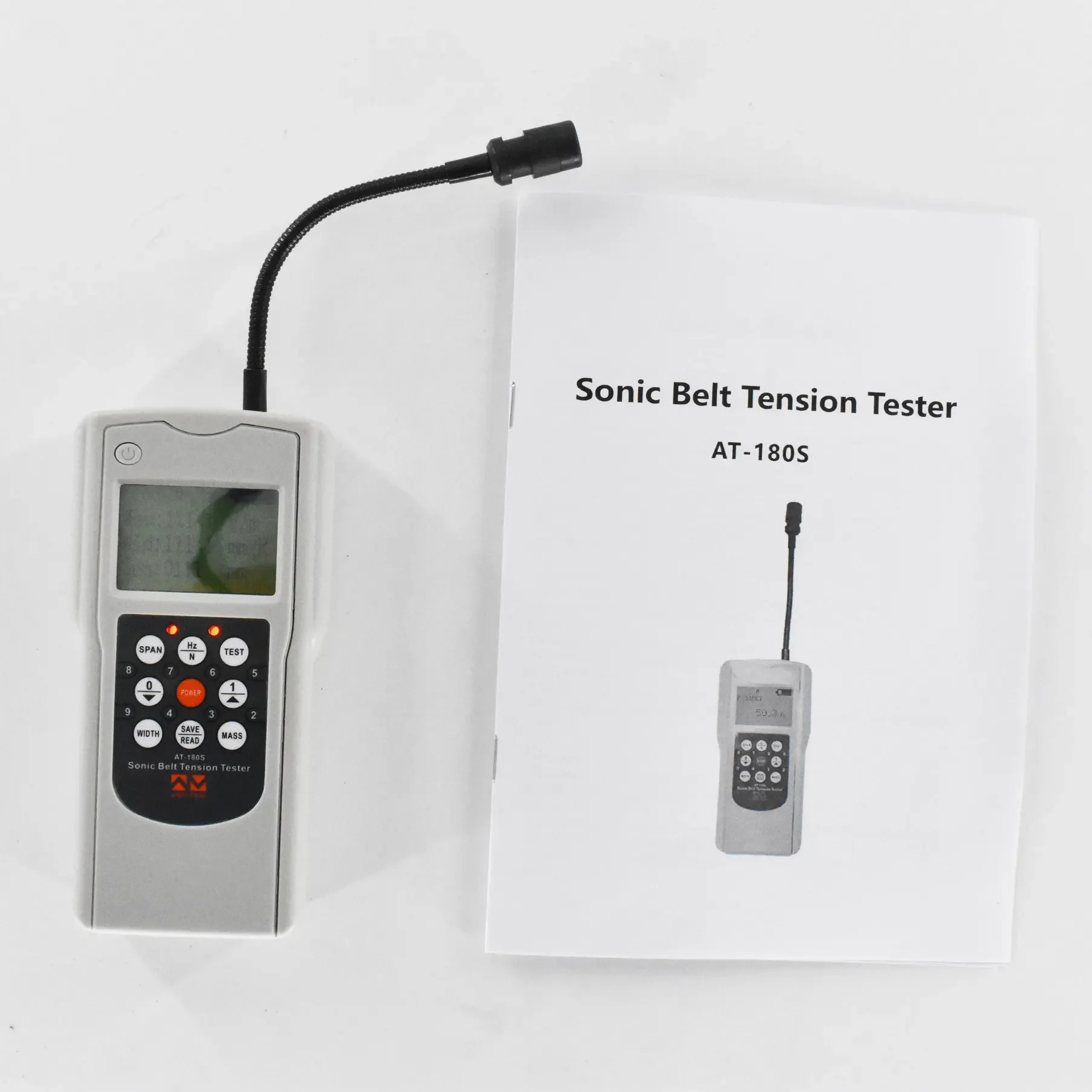

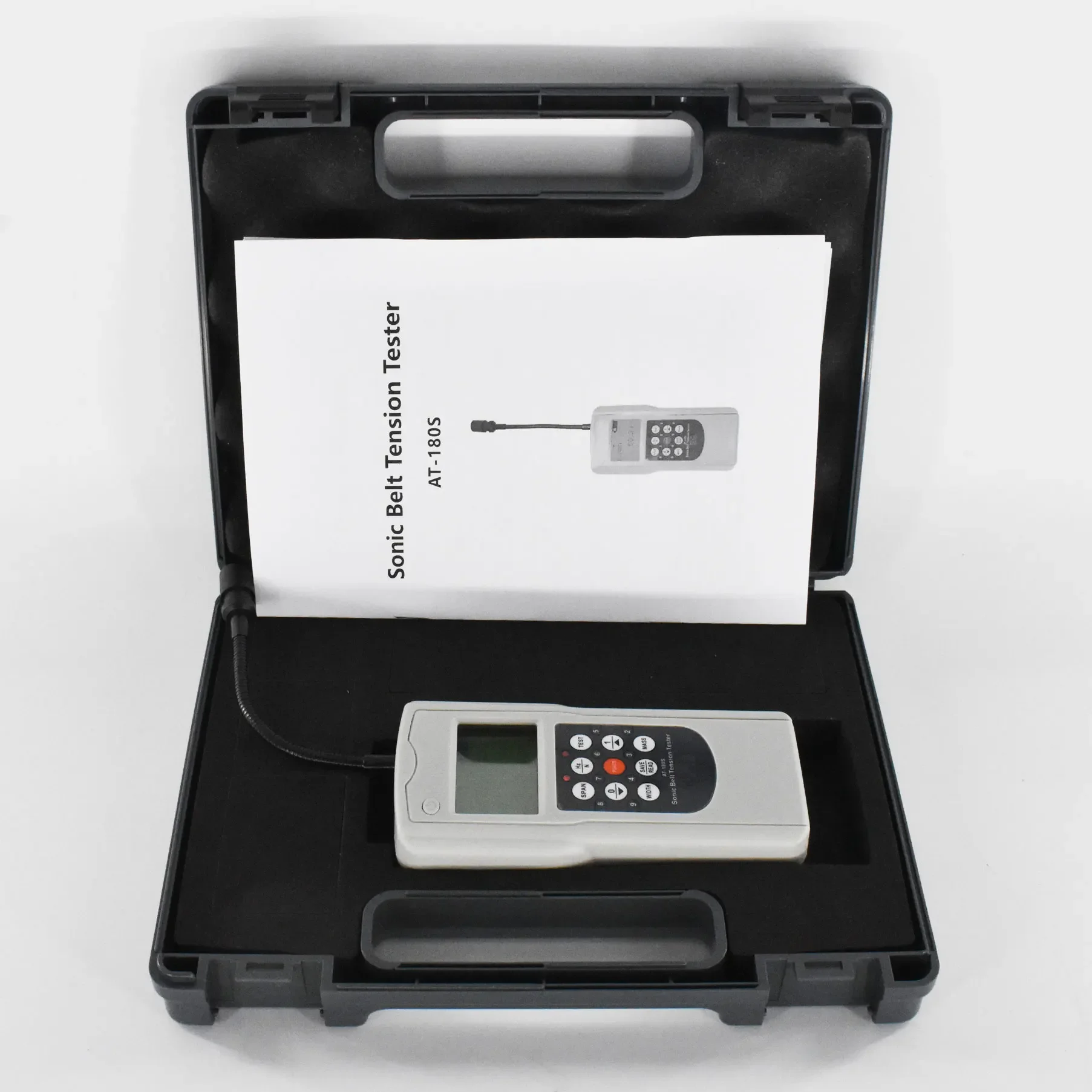

Standard Accessories

Main Unit (one)

Operating Instructions (one copy)

Portable suitcase(one)
