P1 Series Endoscope

$528.00 – $795.00

SKU: N/A Category:

Product Description

This video borescope is a useful tool for professionals who need to inspect inaccessible areas for defects without harming them. The applications can be in the precision instrument inspect, automotive repair, plumbing, construction, restoration and HVAC



INDUSTRIAL ENDOSCOPE SPEC.

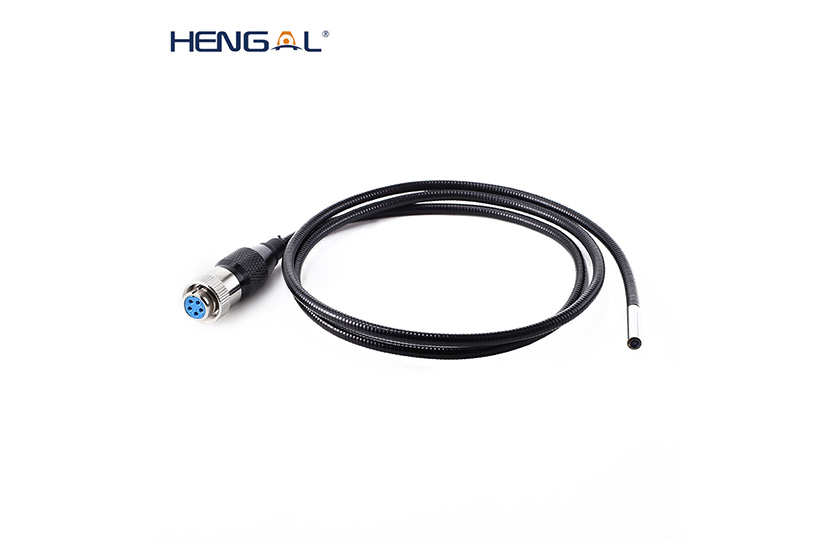

Insertion Probe
Model No. HB37S HB45S HB60D （ dual-lens） HB90D （ dual-lens）
Diameter 3.7mm 4.5mm 6mm 9mm
Direction of view front ( 0 °ï¼‰ front ( 0 °ï¼‰ front+side view
( 0 ° & 90 °ï¼‰		 front+side view
( 0 ° & 90 °ï¼‰
Cable length 1M, 1.5M， 3M, 6M 　
Probe Type Flexible semi flexible/
Flex- and stay		 semi flexible/
Flex- and stay		 semi flexible/
Flex- and stay
Articulation  NO NO NO NO
Image sensor CMOS 1/13” chip CMOS 1/9” chip CMOS 1/7”chip CMOS 1/7” chip
Resolution 640 x480 pixel,  300000 pixel
Camera Lighting

Micro LED with intensity adjustment  6

White LED

 Front：4 pcs LED
side：1 pcs		 Front：4 pcs LED
side：1 pcs
Brightness adjustment Yes
Field of Viewing 80° 90° 90° 90°
Depth of field 15-100mm   15-100mm   15-100mm  (F)
3-90mm( S)		 15-100mm  (F)
3-90mm( S)
waterproof IP67
Probe working temperature  -10°C to 50°C

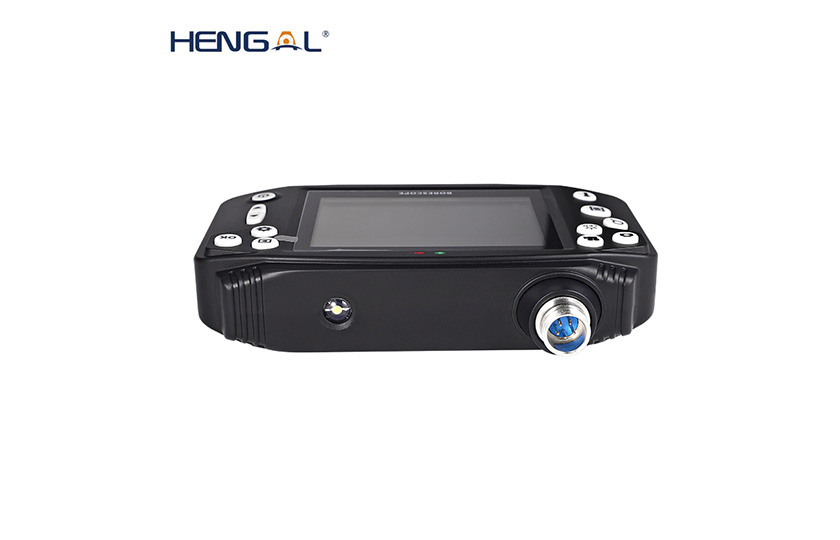

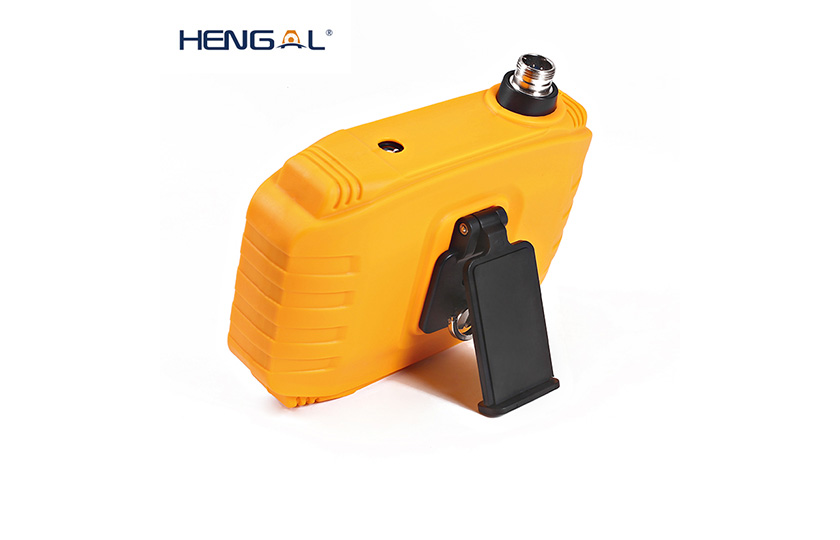

Monitor
• Display Size  3.5”TFT LCD Monitor
• Video resolution & storage format AVI (640×480)
• Photo resolution & storage format JPEG (640*480)
• Frame Rotation 180° Rotation & Mirror image
• freeze frame YES
• Zoom 4x Variable Digital Zoom
• Menu language Traditional Chinese, Simplified Chinese,English，French,
German, Spanish，Japanese， Russian
• Interface micro USB 2.0/ TV out/ TF card slot
• TV out PAL& NTSC
• internal memory NO
• external memory TF Memory Card (Up to 32GB )
• Power source DC 5V
Battery Rechargeable Li- Battery (3.7V) 2600MAH
• Battery Life (typical) 5 hours

Additional information

Model

HB37S-1, HB37S-1.5, HB37S-3, HB37S-6, HB45S-1, HB45S-1.5, HB45S-3, HB45S-6, HB60D-1, HB60D-1.5, HB60D-3, HB60D-6, HB90D-1, HB90D-1.5, HB90D-3, HB90D-6
