$595.15
26 in stock
Applications:
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features:
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
|
Sensor |
Piezoelectric Transducer |
|
Measuring Parameters & Range |
Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak
|
|
Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS |
|
|
Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak |
|
|
Frequency: 5 Hz ~ 1k Hz |
|
|
Frequency Range |
Acceleration: 10 Hz ~ 10k Hz |
|
Velocity: 10 Hz ~ 1k Hz |
|
|
Displacement: 10 Hz ~ 1k Hz |
|
|
Accuracy |
5 % of Reading + 2 digits |
|
Metric / Imperial Conversion |
|
|
Analogue Output |
AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) |
|
Max. Value Hold |
|
|
Power Off |
Manual Power Off or Auto Power Off |
|
Battery Indicator |
Low Battery Indicator |
|
Data Output |
USB, RS-232 |
|
Operating Conditions |
Temperature: 0~50 °C Humidity: <90 %RH |
|
Power Supply |
2 x 1.5V AA size (UM-3) Battery |
|
Dimensions |
130 x 76 x 32 mm |
|
Weight |
340 g (Not Including Batteries) |

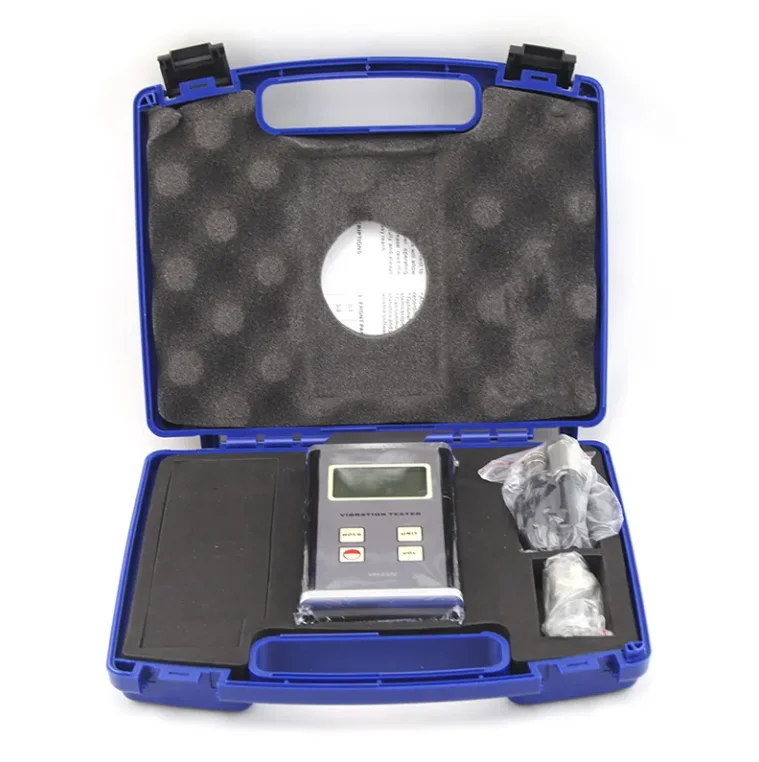

Standard Accessories:
1. Main Unit
2. Magnetic Suction Seat
3. Piezoelectric Transducer
4. Probe (Cone)
5. Probe (Spherical)
6. Carrying Case
7. Manual Book
Optional Accessories:
1. Headset
2. USB, RS-232 data cable with software
