Factory price Solar power line quality and energy analyzer multifunctional ac meter data logger
$495.00
99 in stock
SKU: 3256807934882536
Category: Power Quality Analyzer
Product Description

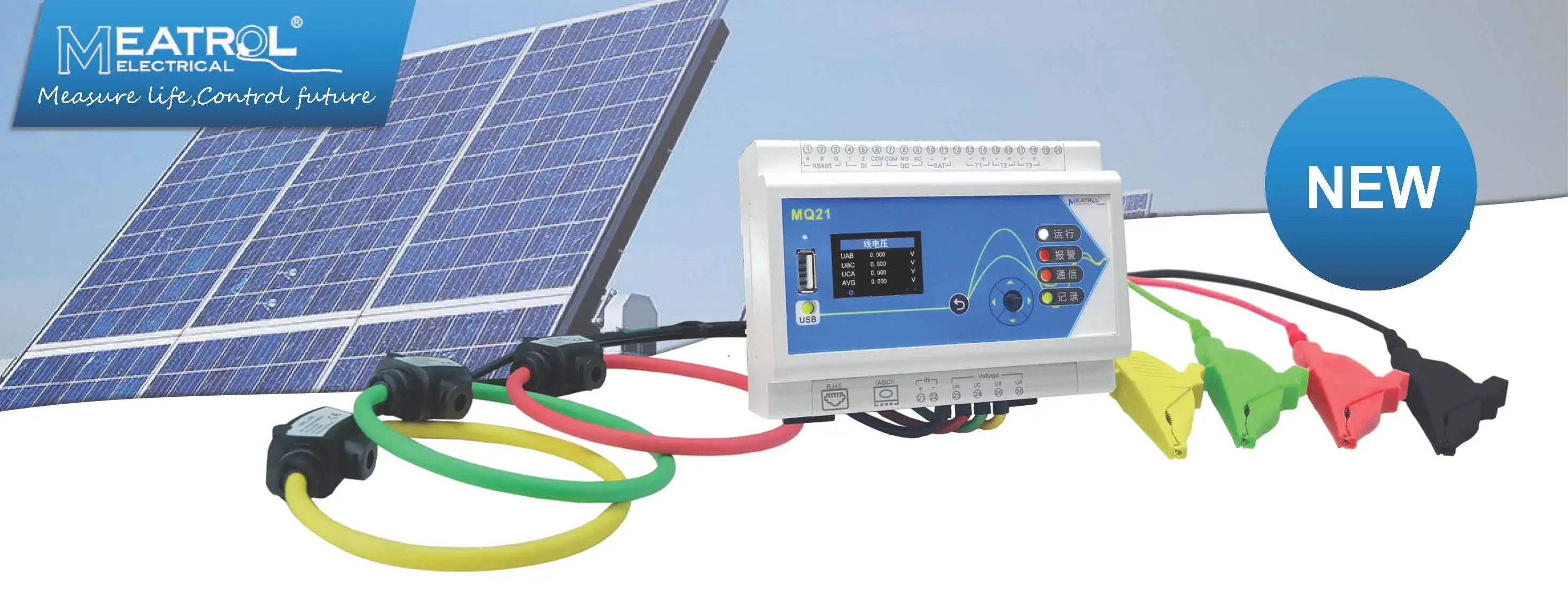

MQ21 Solar PV System Power data logger
Please Click here for more detailed information.

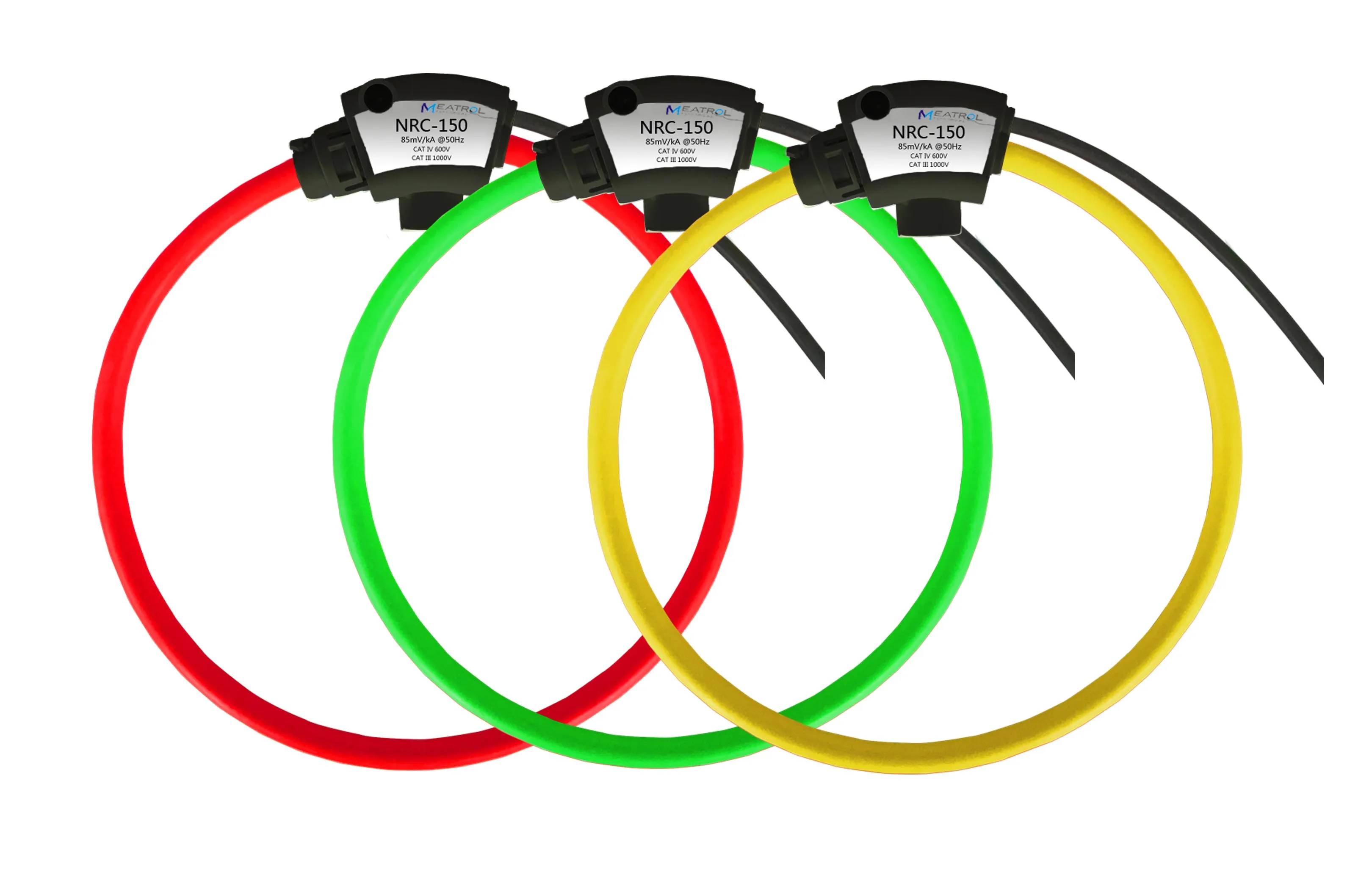

NRC series Rogowski Coil
Please Click here for more detailed information.
Product Description

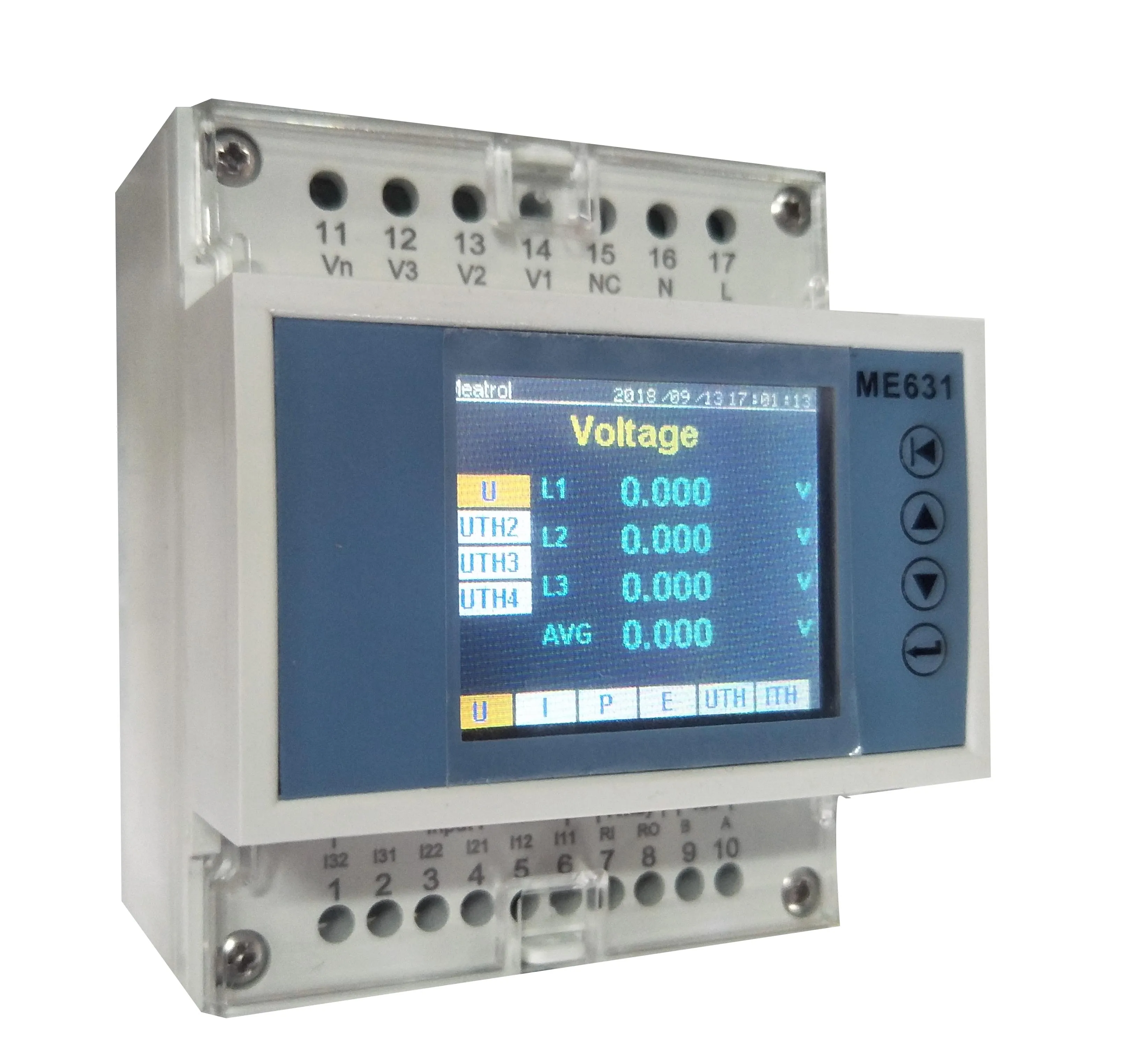

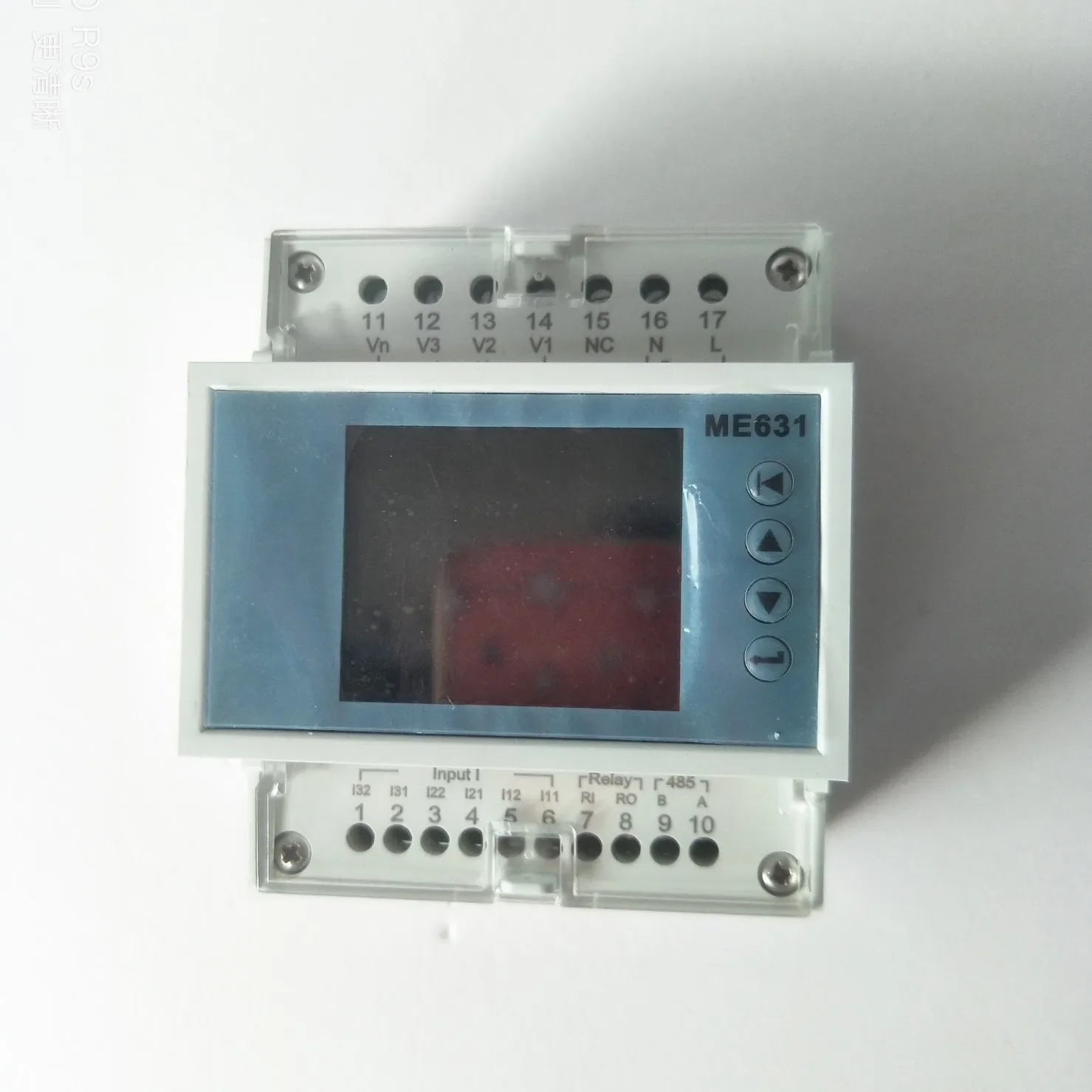

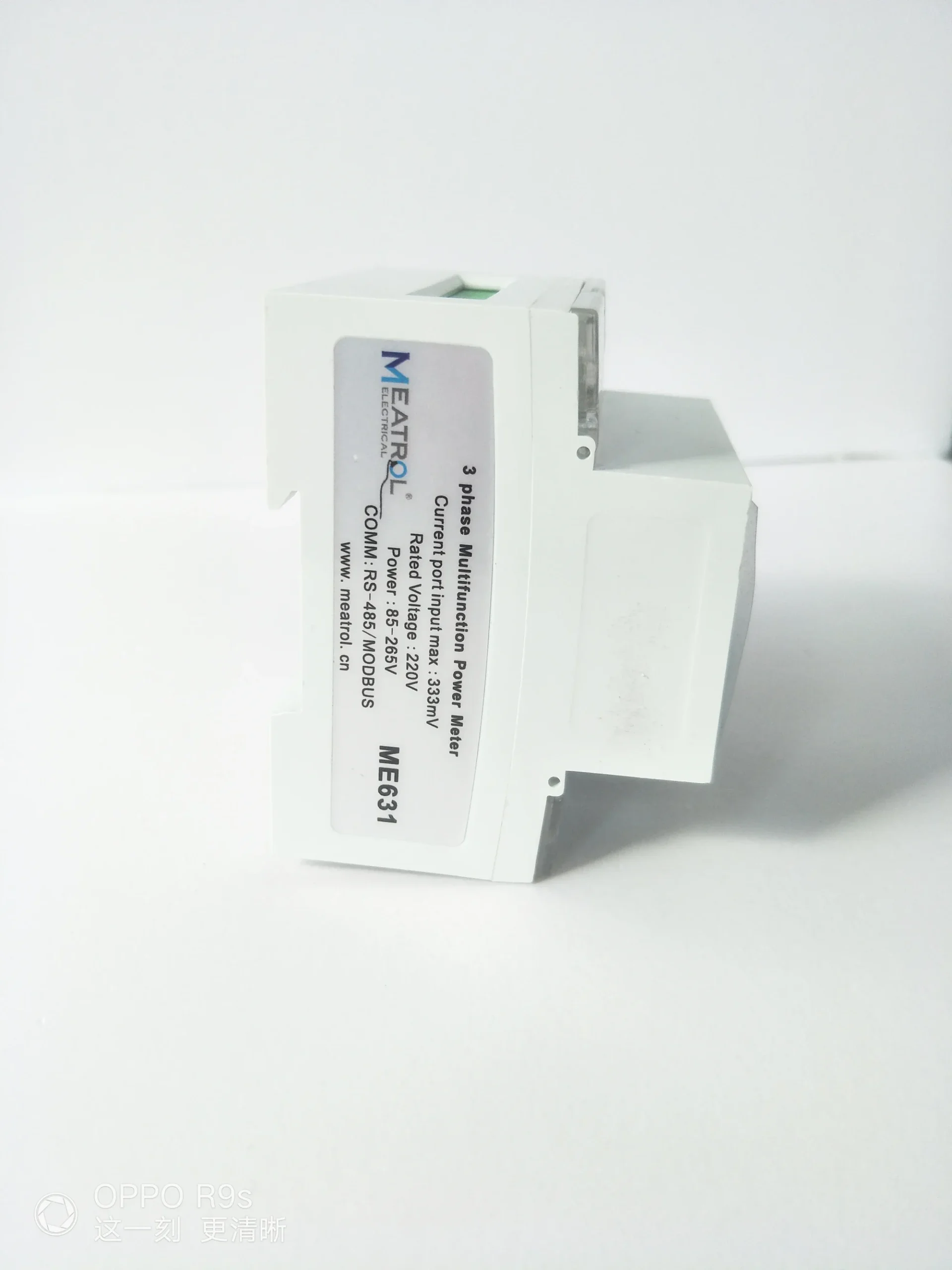

ME631 Three phase Power data logger
|
Connectivity advantages
|
|
|
|
MODEL
|
ME631
|
|
|
Support Extra sensor
|
333mV CT
Rogowski coil |
|
|
Programmable digital output
|
Alarm
3 Tariff |
|
|
I/O function
|
1*relay output
|
|
|
Power
|
85~265V AC/DC
|
|
|
Rogwoski coil specification
|
85mV/kA@50Hz±0.5%
|
|
|
Specification
|
|
|
|
Model
|
ME631
|
|
|
Product component type
|
Multifunction power meter
|
|
|
Poles description
|
3P4W 3P3W
1P2W (L-N) 1P2W(L-L) 1P3W(L-L-N) |
|
|
Device application
|
Power analysis
Tariff meter |
|
|
Input type
|
External CT(333mV only)
External Rogowski coil |
|
|
Display
|
2.0 inch TFT screen display
|
|
|
Sampling rate
|
8k samples per second
|
|
|
Mounting mode
|
Clip-on
|
|
|
Mounting support
|
DIN rail
|
|
|
Harmonic
|
52th Max
|
|
|
Display characteristics
|
|
|
|
Dimensions (VA)
|
39mm x 32mm
|
|
|
Display resolution
|
220 x 170 dots
|
|
|
Mechanical characteristics
|
|
|
|
Weight
|
212g
|
|
|
Dimension
|
L*W*D:76*95*71mm
|
|
|
Measurement accuracy
|
|
|
|
Current
|
0.5% from 1% to 120%(don’t ensure accuracy when <10A)
|
|
|
Rated current
|
500A(0.5% from 10A to 600A)
3000A(0.5% from 30A to 3600A) 10kA(0.5% from 100A to 12kA) |
|
|
Rogwoski coil specification
|
85mV/kA@50Hz±0.5%
|
|
|
Voltage
|
0.2% from 100V to 500V(L-L and L-N)
|
|
|
Power factor
|
±0.005 from 10% to 120%
|
|
|
Active/Apparent Power
|
IEC62053-22 Class 0.5
|
|
|
Reactive power
|
IEC62053-21 Class 2
|
|
|
Frequency
|
0.01% from 45 to 65Hz
|
|
|
Active energy
|
IEC62053-22 Class 0.5s
|
|
|
Reactive energy
|
IEC62053-21 Class 2
|
|
|
Measurement arrange
|
|
|
|
Measured voltage
|
100V to 500V AC
|
|
|
Frequency range
|
50/60Hz
|
|
Packing&Shipping
Packaging:
current transformer,1 pc of /pp bag, 100 pcs/cartoon.
Shipping:
Express, Sea, Land, Air , as customers’ needs
current transformer,1 pc of /pp bag, 100 pcs/cartoon.
Shipping:
Express, Sea, Land, Air , as customers’ needs
