Ethernet Network Analyzer Mi550 Remote energy power consumption monitoring energy analysis Power quality analyzer

$425.00 – $2,275.00

SKU: 3256807157707712 Category:

Product Description

Product Description

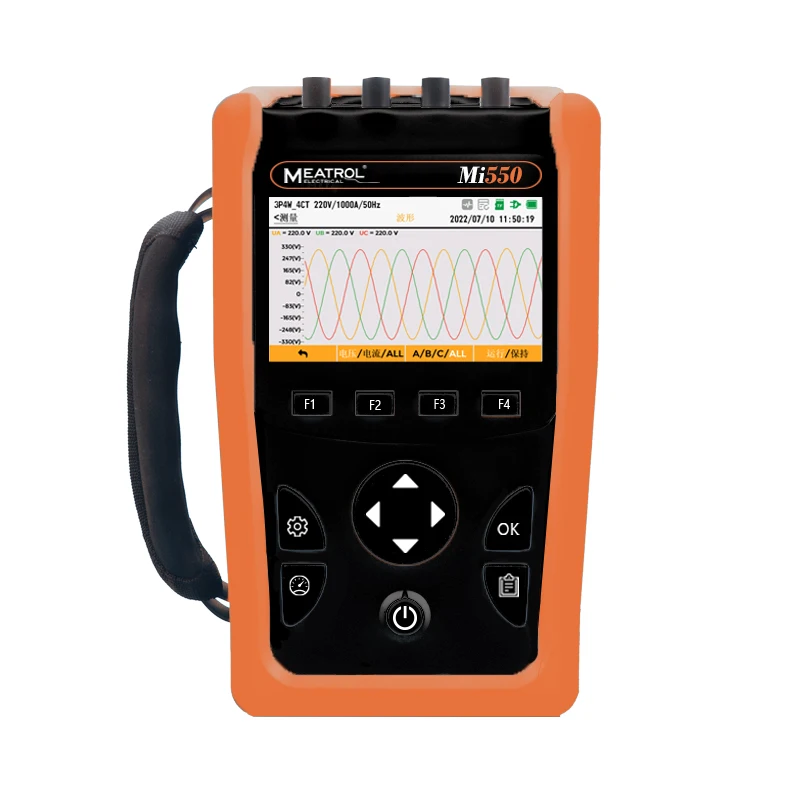

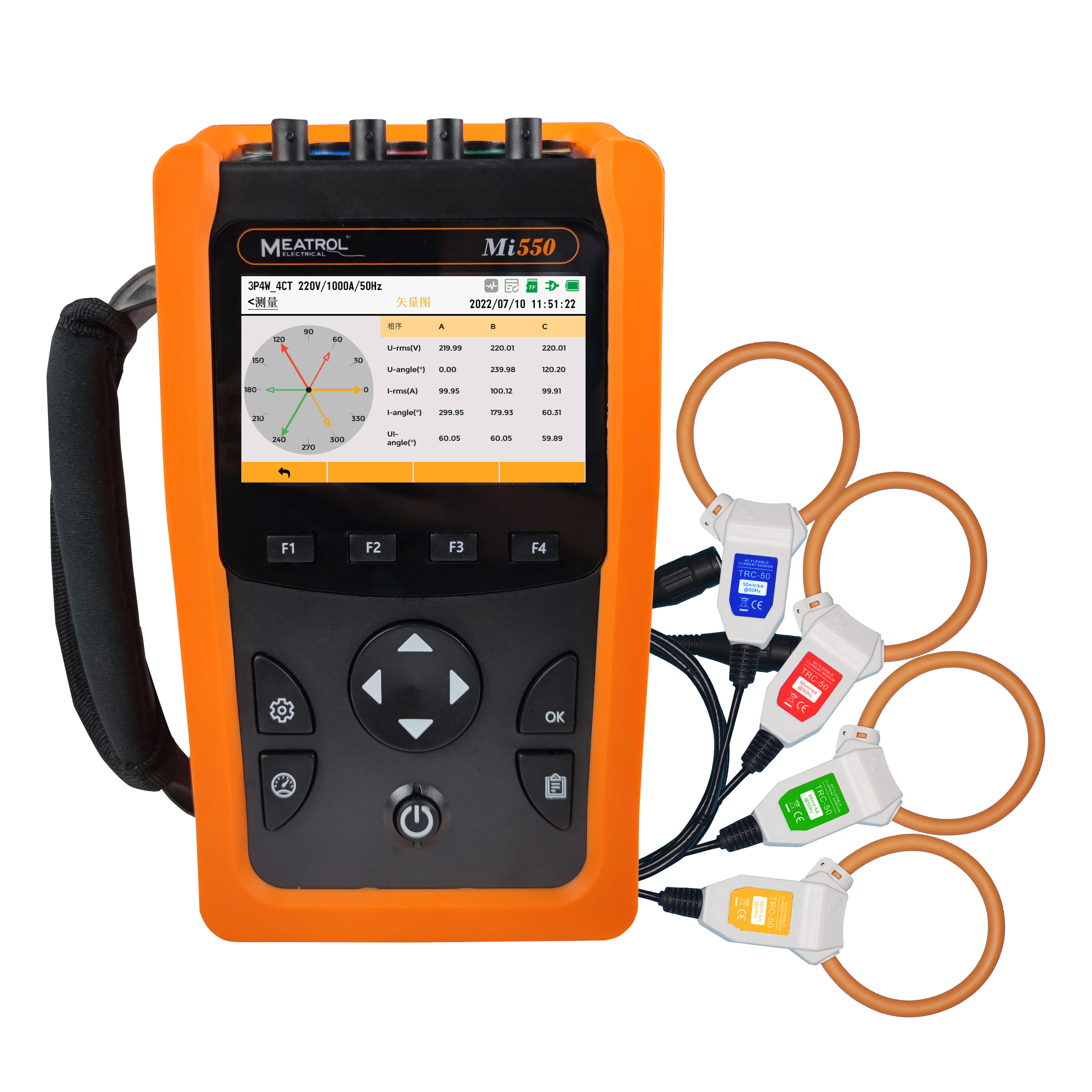

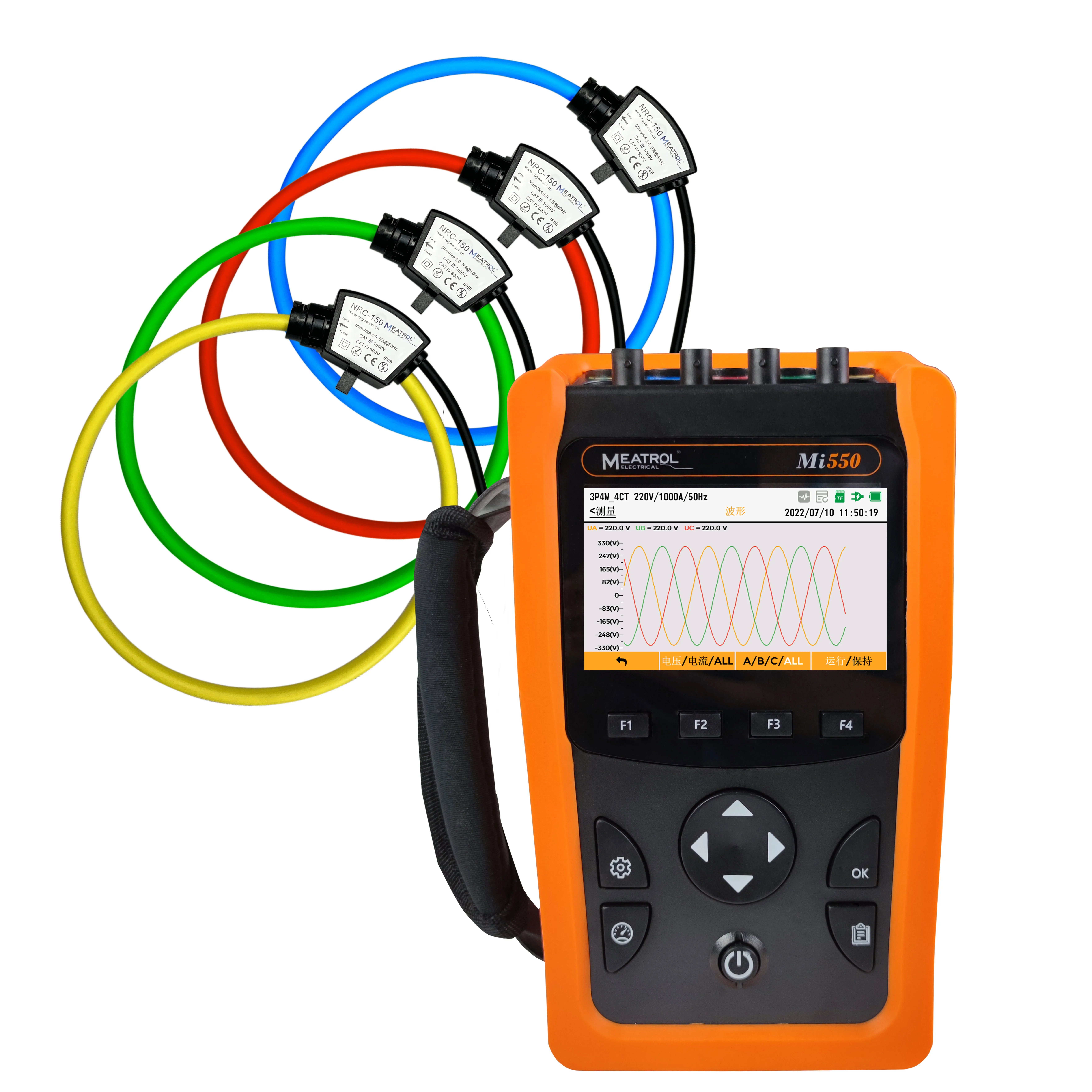

Handheld Three phase Power quality analyzer

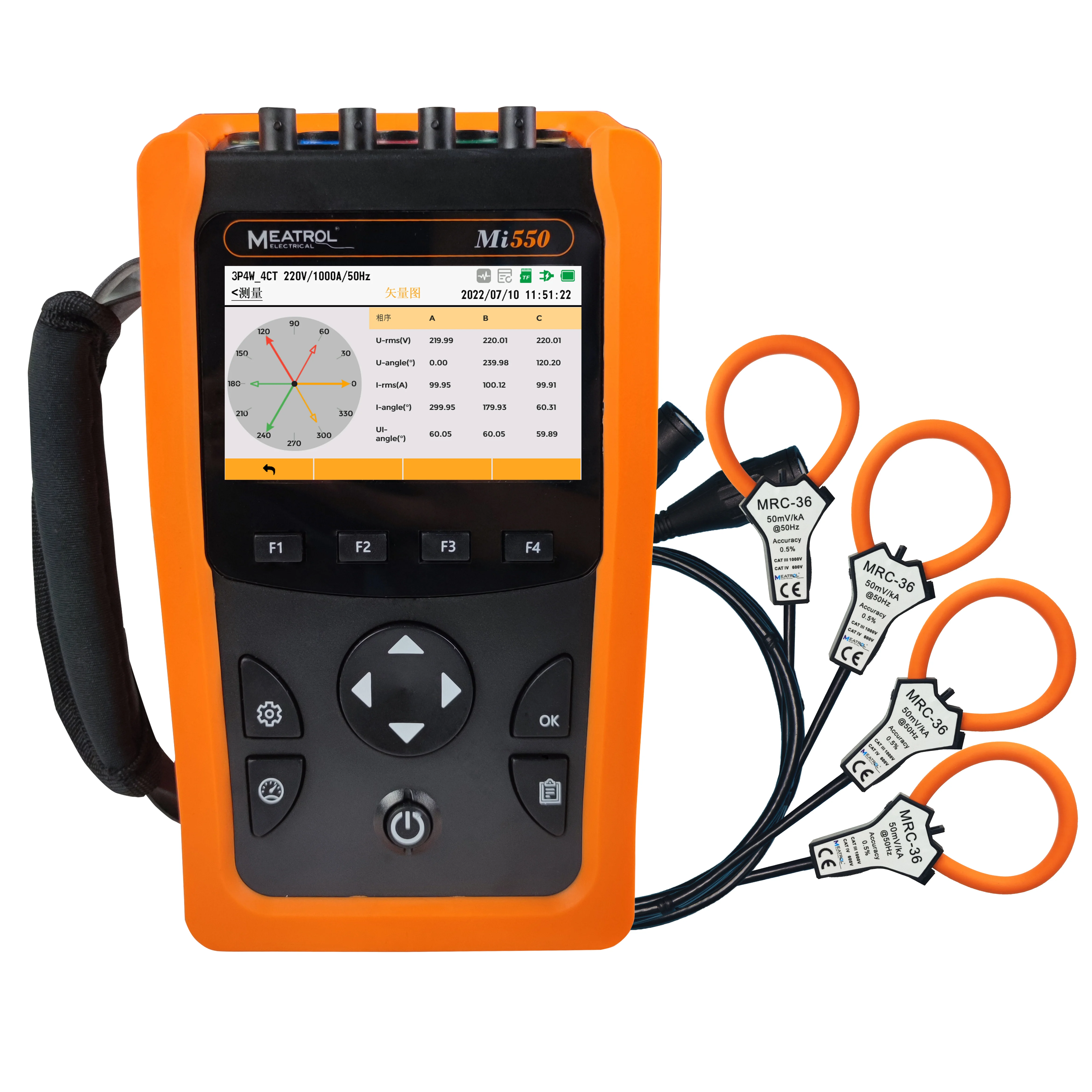

Mi550 handheld three phase power quality analyzer, externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system.
* Support systems of single-phase and three-phase. It can measure multiple electrical parameters such as current,
voltage, power factor, power, energy, and power quality parameters including harmonic, unbalance degree, voltage swell
and voltage dip, etc.



* In addition to the measurement function, Mi550 is equipped with various records, such as waveform records and
programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory
card.



* With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is
compatible with various configuration systems and could transmit the electrical parameters collected by the front end
to the system data center in real time.

Rogowski coil Data logger Power quality analyzer

Model No.
Mi550
Type
Handheld Three phase power quality analyzer
Application field
Power analysis, Power measurement, Power quality analysis
Wiring system
3P4W_4CT
3P4W_3CT
3P3W_3CT
3P3W_2CT
1P2w
Current sensor
Rogowski coil
Voltage-output current clamp, 333mV CTs
Voltage access
Direct access
Connected through voltage transformer
Storage Type
TF card
Storage Capacity
32GB
Data export
U disk export (U disk file is FAT32 system)
Communication Interface
RJ45- Ethernet
Communication Protocol
Modbus-TCP
Power Supply

Power Supply
5VDC, 2A Adapter
Battery
Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000mAh
Battery purely working time
≥6h
Battery charging time (off state)
≤5h
Real-time measurement data

Voltage
Phase voltage: Phase ABC
N phase to ground voltage
Line voltage: UAB, UBC, UCA
Voltage peak coefficient: Phase ABC
Voltage peak: Phase ABC
Current
Phase current: Phase ABCN
Current peak coefficient: Phase ABC
K Factor: Phase ABC
Frequency
Line frequency
Power
Active power: Phase ABC and total
Reactive power: Phase ABC and total
Apparent power: Phase ABC and total
Power factor
Phase ABC and total
Fundamental harmonic power factor
Phase ABC and total
Electrical energy
Active Energy: Phase ABC and total (import / export)
Reactive energy: Phase ABC and total (import / export)
Apparent Energy: Phase ABC and total
CO2 emissions
Harmonic measurement data

Voltage harmonics
THD (Total harmonic percentage), TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase ABC 1-50th
harmonic percentage, phase ABC 1-50th harmonic voltage value
Current harmonics
THD （Total harmonic percentage）, TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase ABC 1- 50th
harmonic percentage, phase ABC 1-50th harmonic current value
Voltage and current Waveform

Phase angle
Phase ABC
Unbalance
Voltage unbalance, current unbalance
Power demand and peak demand
Phase ABC active power and total power, phase ABC reactive power and total power, phase ABC apparent power and total power
Current demand and peak demand
Phase ABC
Voltage and Current harmonic data record
Voltage and current harmonics (Total harmonic distortion THD, Odd total harmonic TOHD, Even total harmonic TEHD, 1-50th Harmonic percentage
and voltage/current value)
Event recorded data
Event type
Start time
Duration
Amplitude value
Waveform recording
 Phase ABC voltage waveform and current waveform
Data storage format
CSV
Energy efficiency and Environment protection
CO2 emission factor, Super light Rogowski coil, Portable power quality analyzer

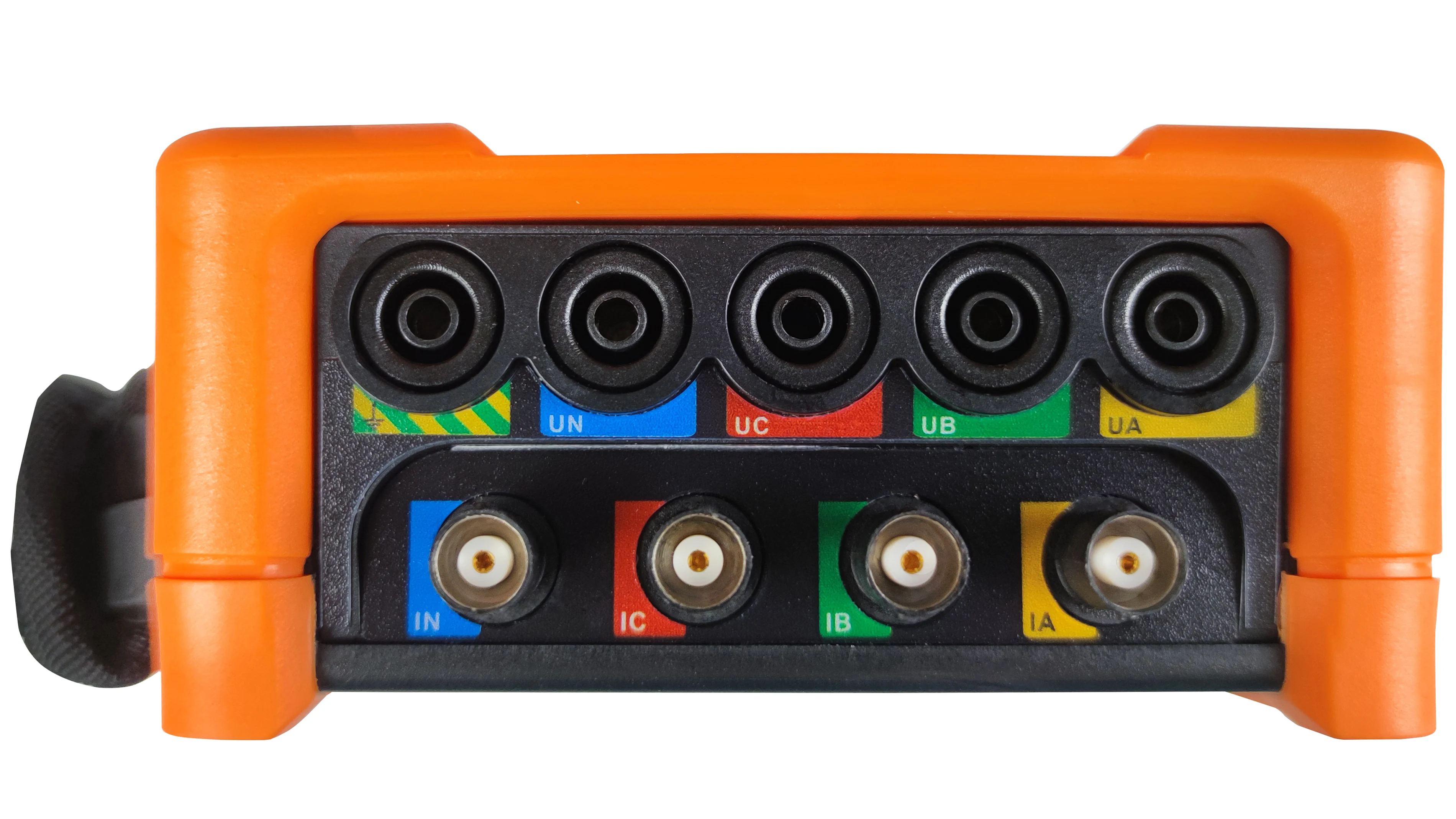

Detailed Images




Export data from a USB

Support Chinese, English,
Multilingual display

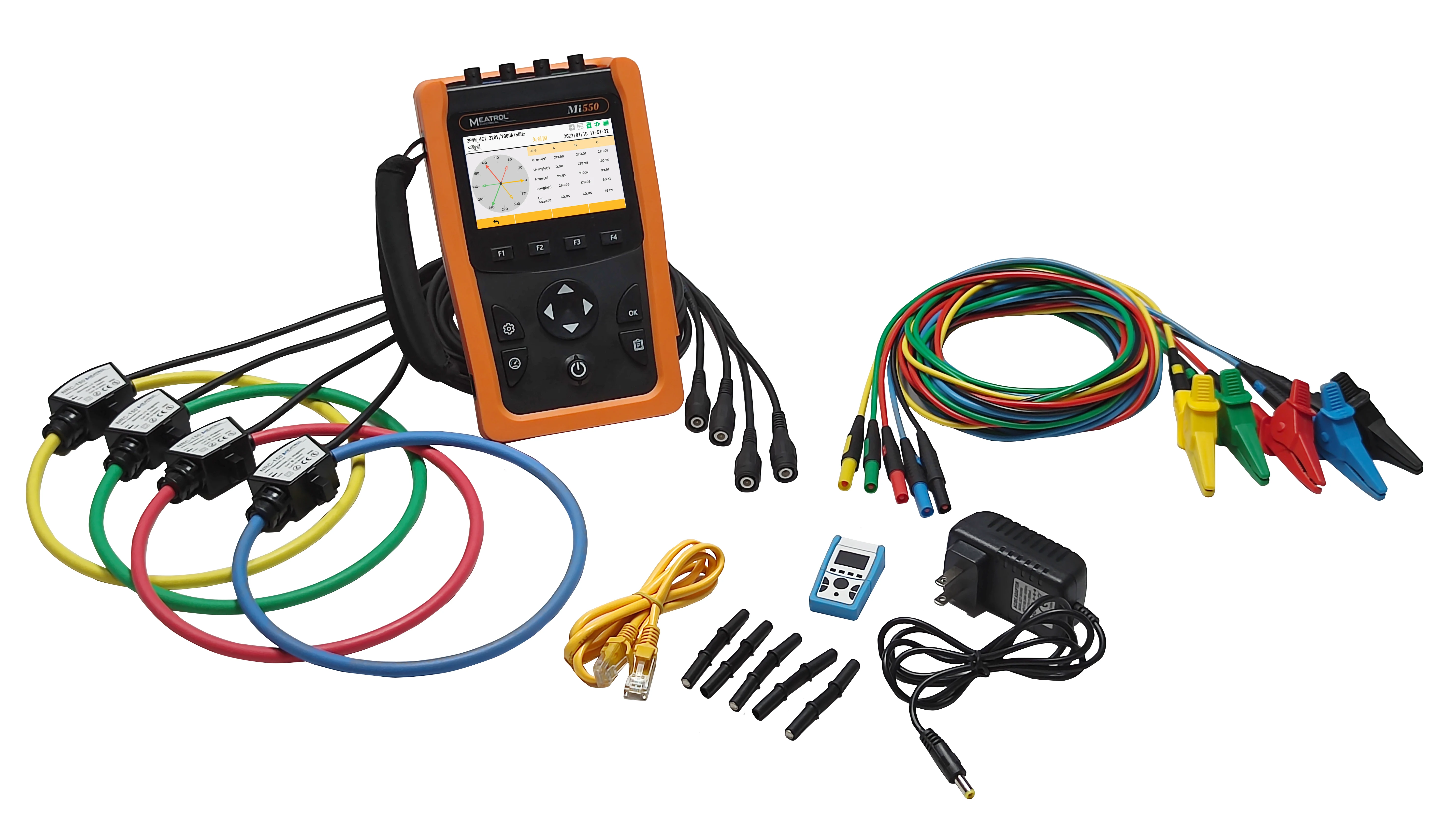

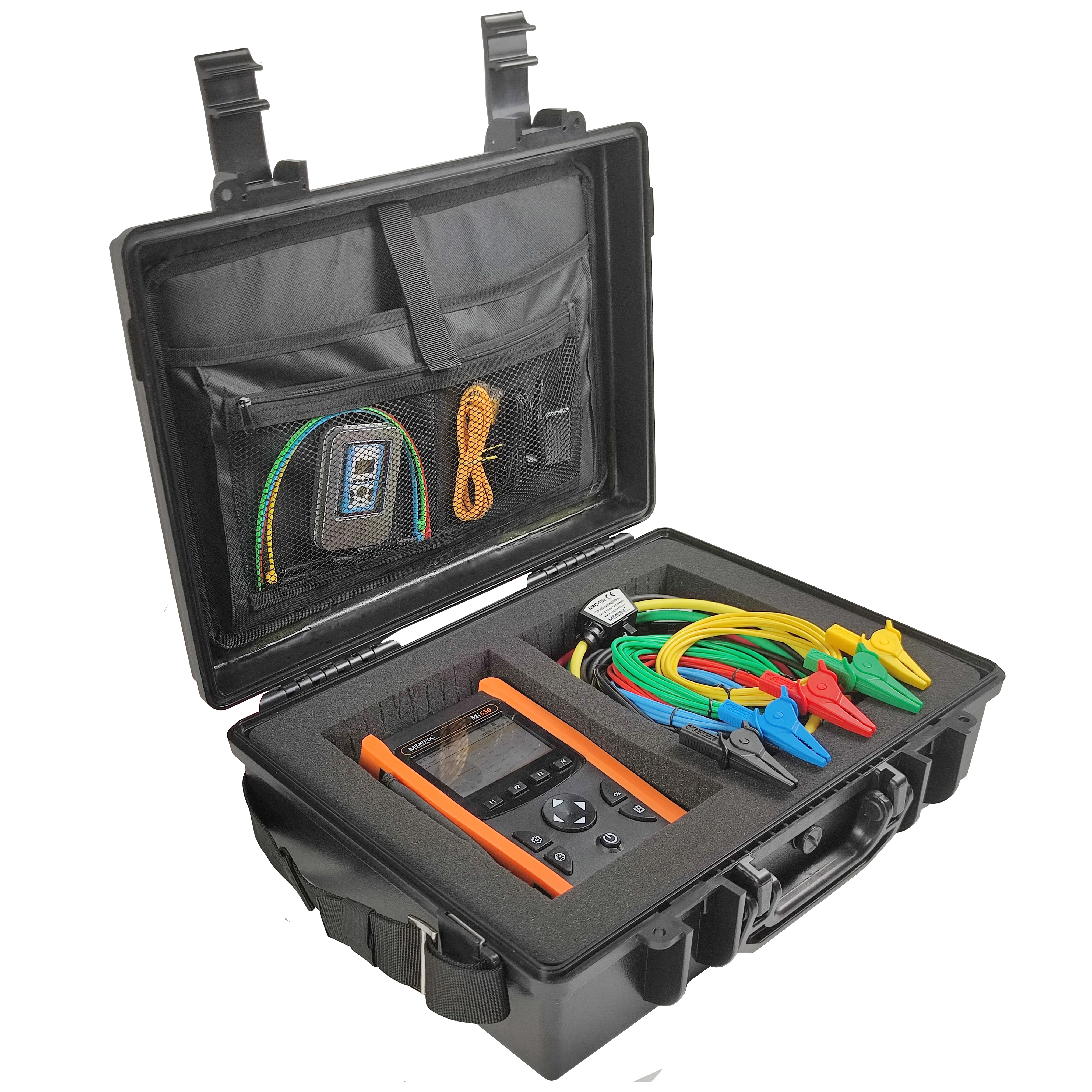

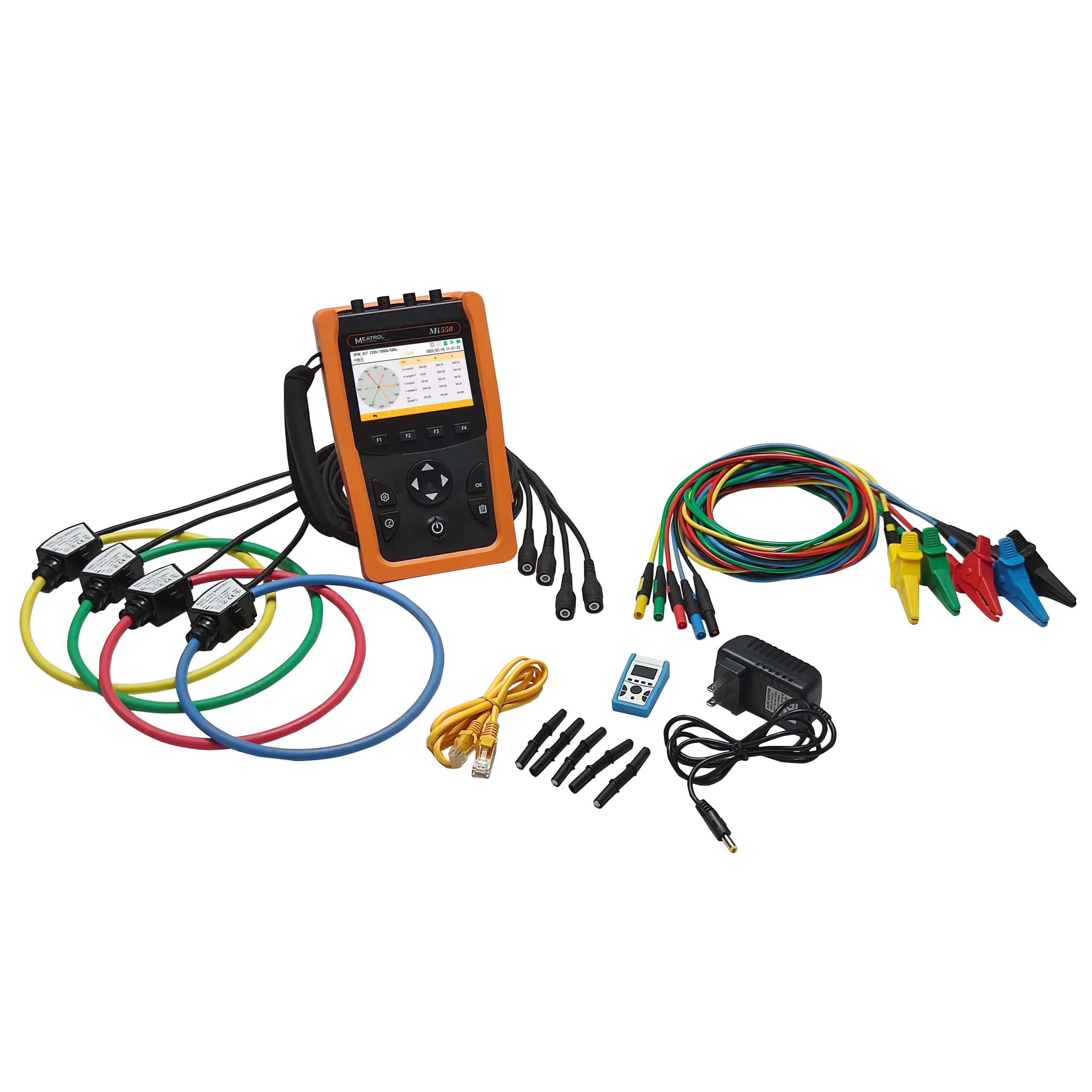

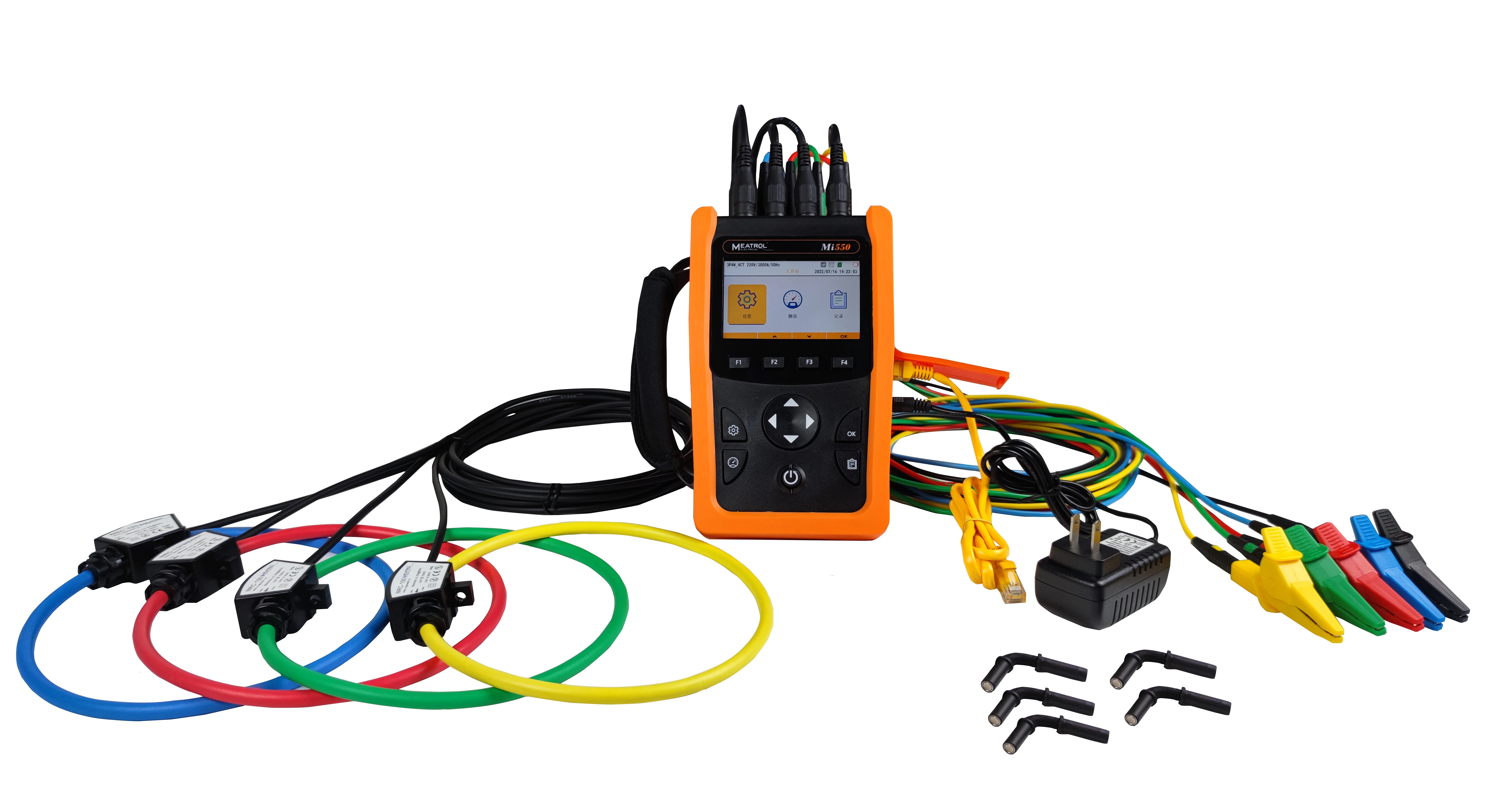

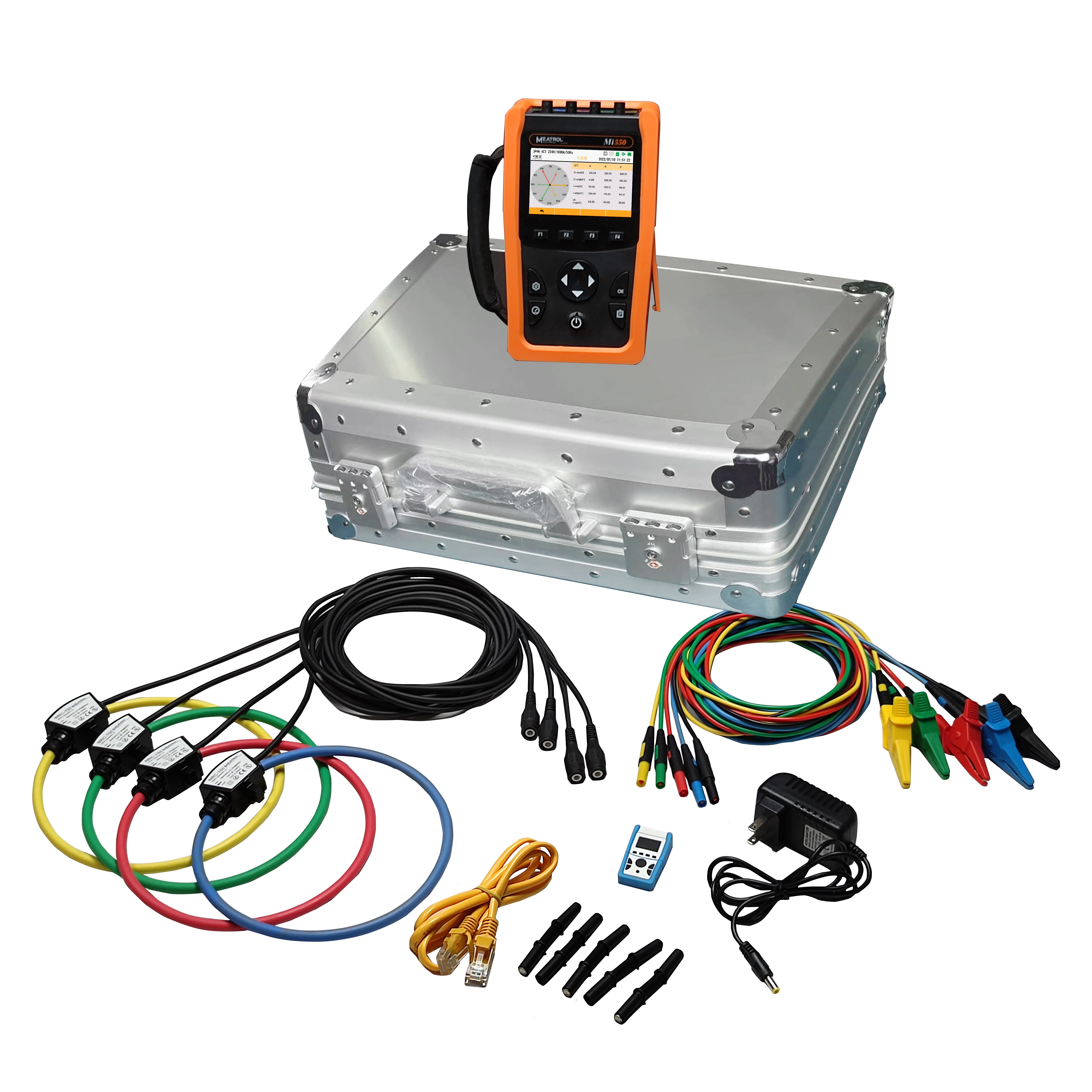

Accessories: 5pcs voltage clamp, adaptor, 5pcs magnetic probe

The internal electric energy chip: the world’s top ADE9000 chip







* Built-in lithium batteries
* Built-in 32GB memory
* HD 4 inch IPS display
* CO2 emission factor
* Communication: RJ45-Ethernet, Modbus-TCP/IP
* Data, event, 1-50 harmonic values and waveform record.
* Graphs : waveform, vector diagram and histogram display
* Power quality：



1) Voltage swell and dip
(Record time, amplitude value, voltage RMS 1/2 value of each phase and voltage waveform of each phase)
2)
Waveform display Ua,Ub,Uc,Ia,Ib,Ic
Waveform reading (UDP protocol)



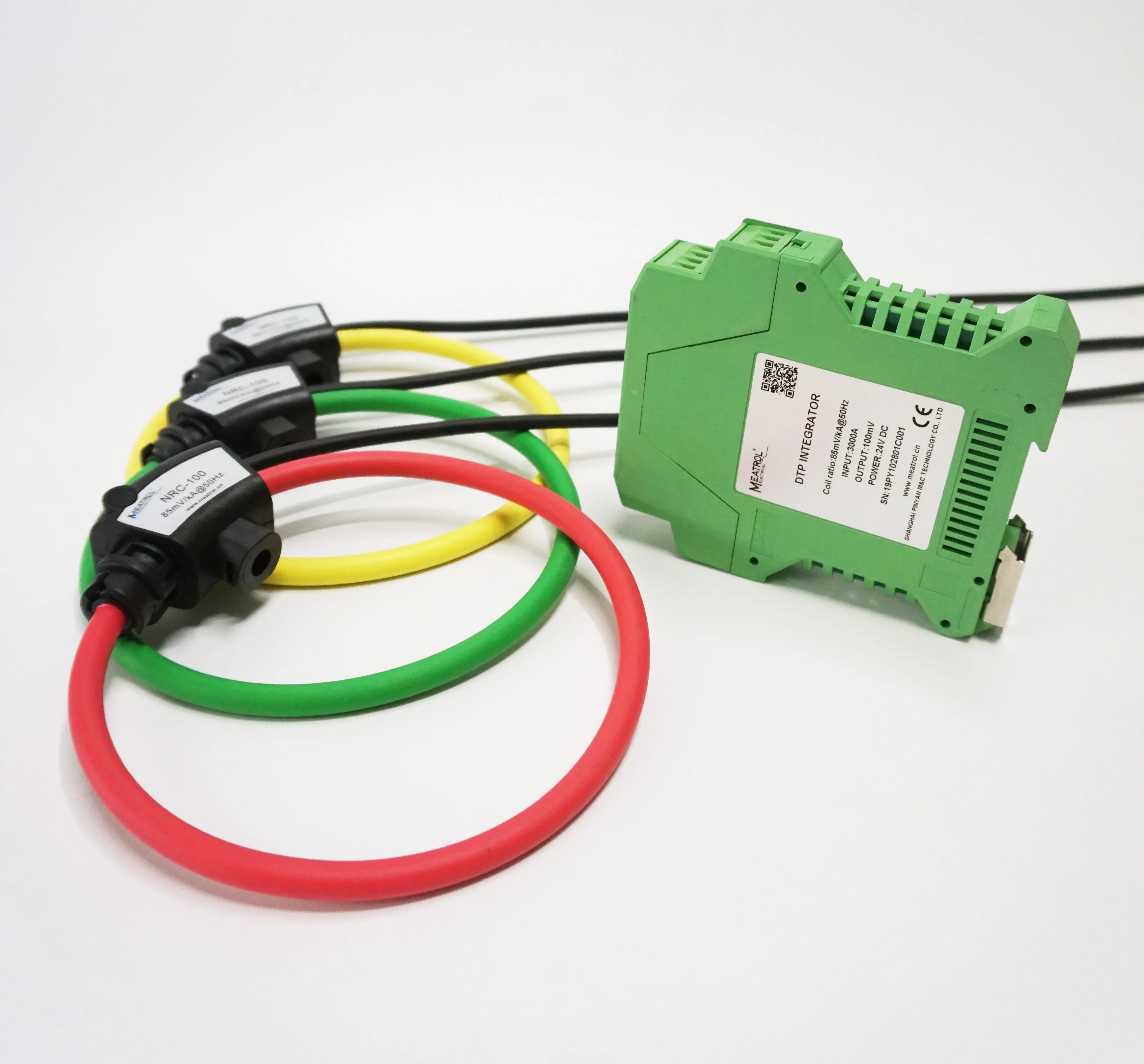

Current sensor

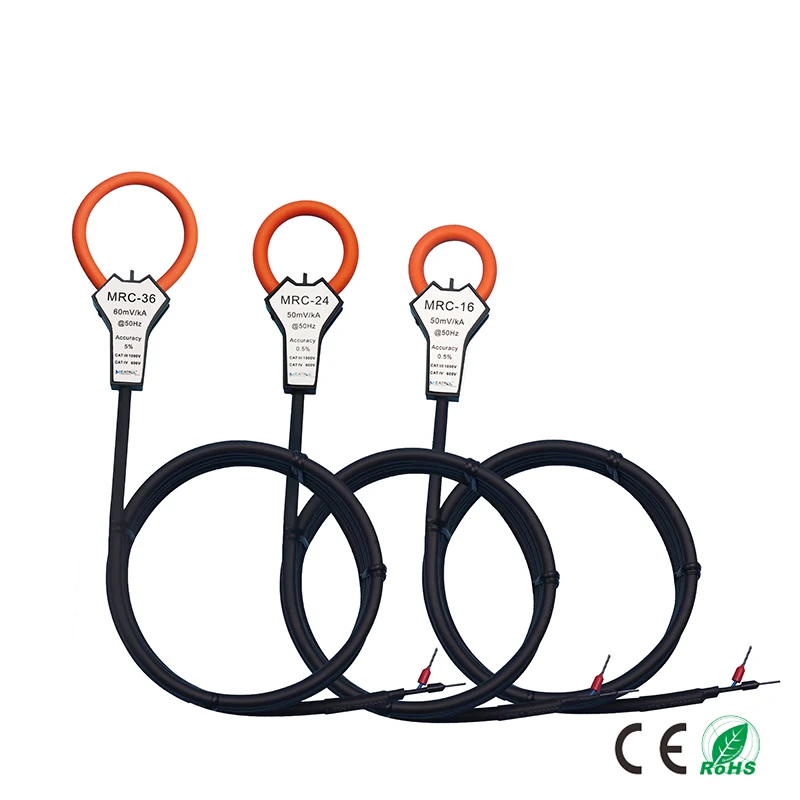

Optional Rogowski coil sensor: 600A     TRC-36 1000A NRC-100 3000A NRC-150 6000A NRC-200



10A(100mA～10A): ST08 Current clamp
