Digital Sound Level Meter Compact Instrument 30dB-130dB with Backlit Display High Accuracy

$75.00

SKU: 2251832599314218 Category:

Product Description

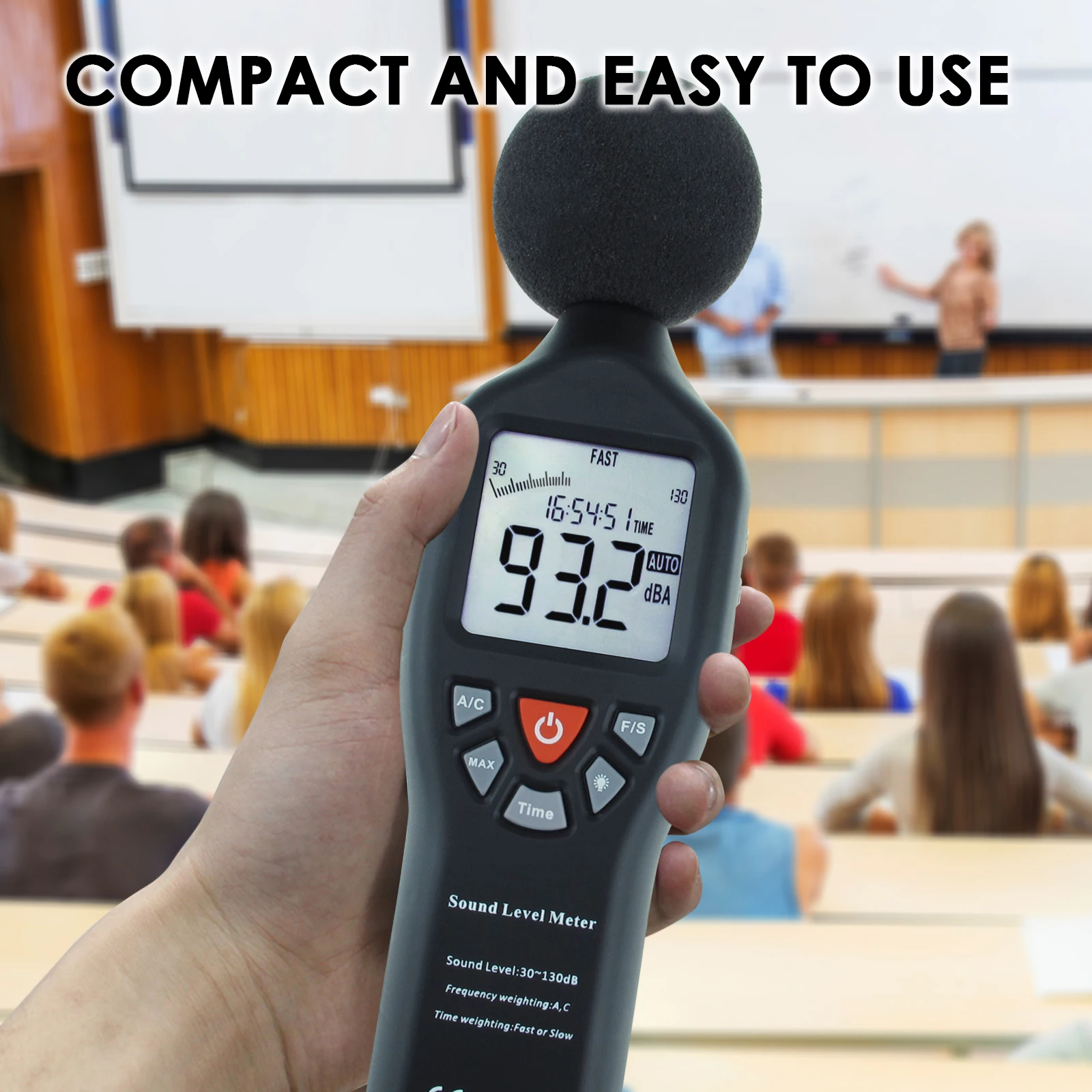

This Decibel Meter is compact and easy to use while providing you accurate readings in a greater range than similar inexpensive sound meters on the market.



Can read between 30dB~130dB, while reducing the effects of wind noise to produce more accurate readings.

Specifications

Standard applied: IEC651 type 2, ANSI S1.4 type 2
Calibration sound source: 94dB @ 1kHz
Measurement range: 30~130dBA
Accuracy: ±1.5dB(reference sound pressure standard, 94dB@1KHz)
Frequency response: 31.5~8.5KHz
Resolution: 0.1dB
Measurement weighting: A/C
Analogy bar graph: 2dB/1 Bar graph increment
Display update time: 2 times/second (FAST), 1 time/second (SLOW)

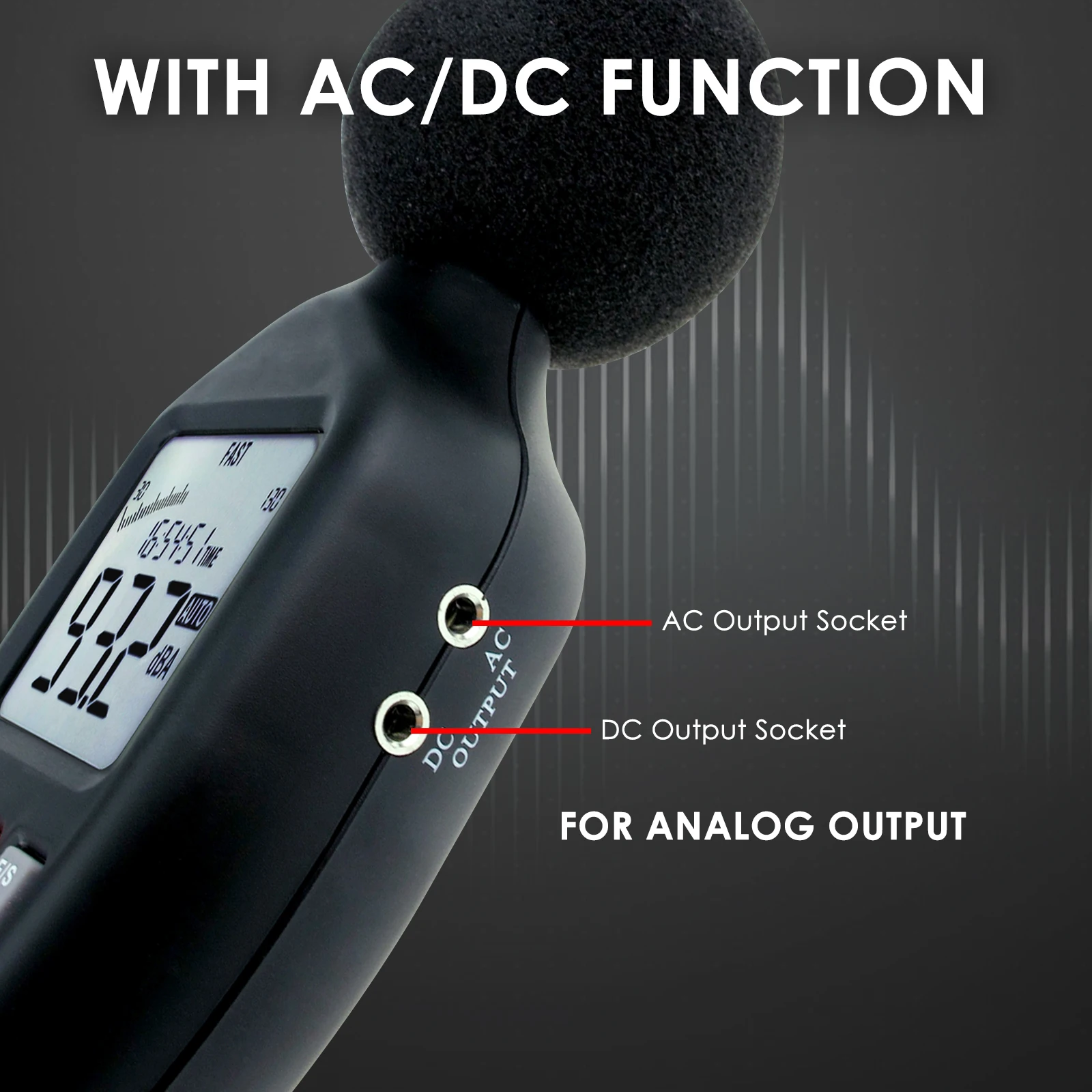

AC signal output: 4Vrms/ full barograph, output impedance is approx. 600 ohm
DC signal output: 33mV/dB
Sampling rate: FAST (125ms) / SLOW (1s)
Dynamic characteristic: FAST (high speed) / SLOW (low speed)
Power supply: 4 x AA Size 1.5V battery or USB Power Cable

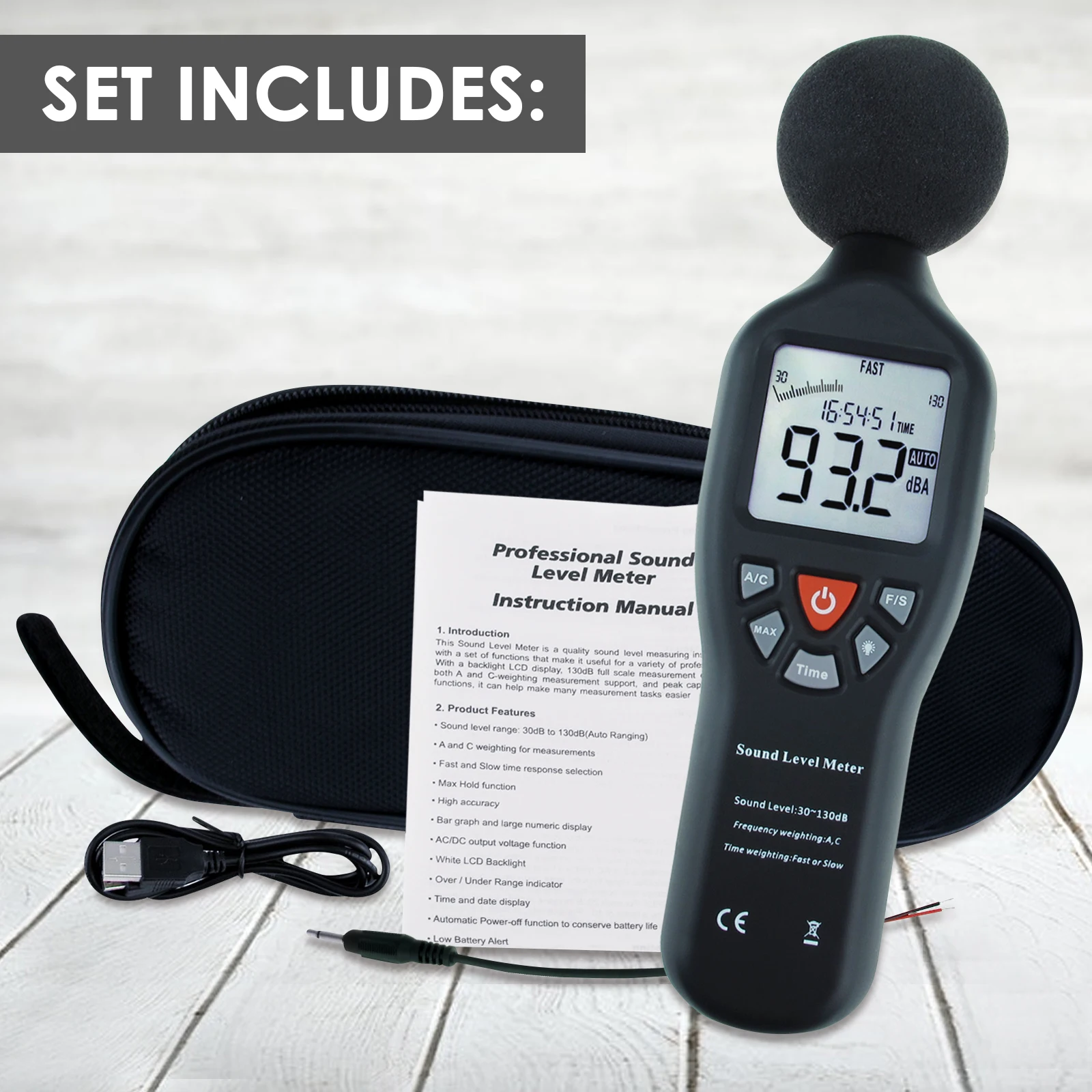

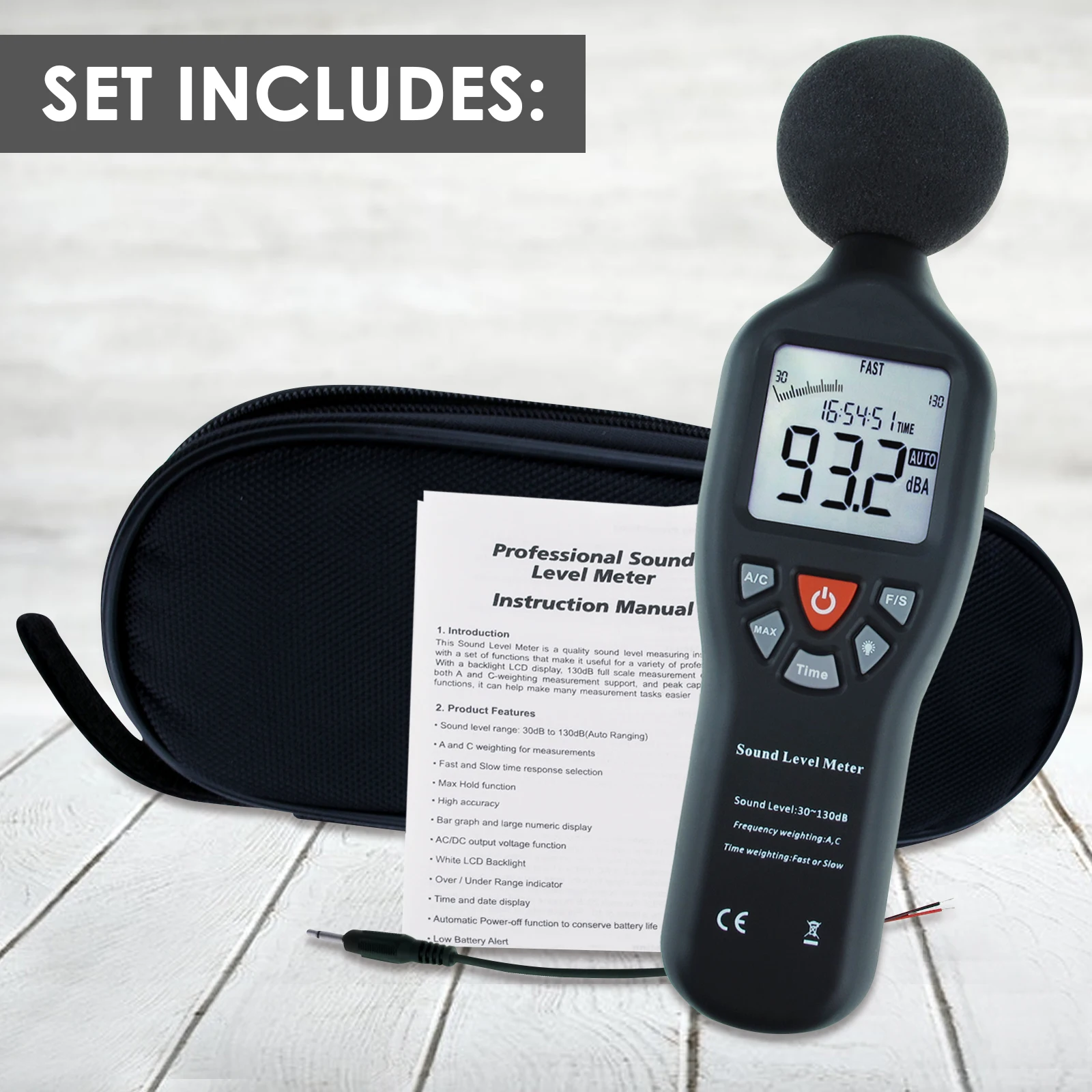

Set Includes

1 x Sound Level Meter
1 x English User Manual
1 x AC/DC line
1 x USB Power cable
4 x AA Battery
1 x Carrying Pouch

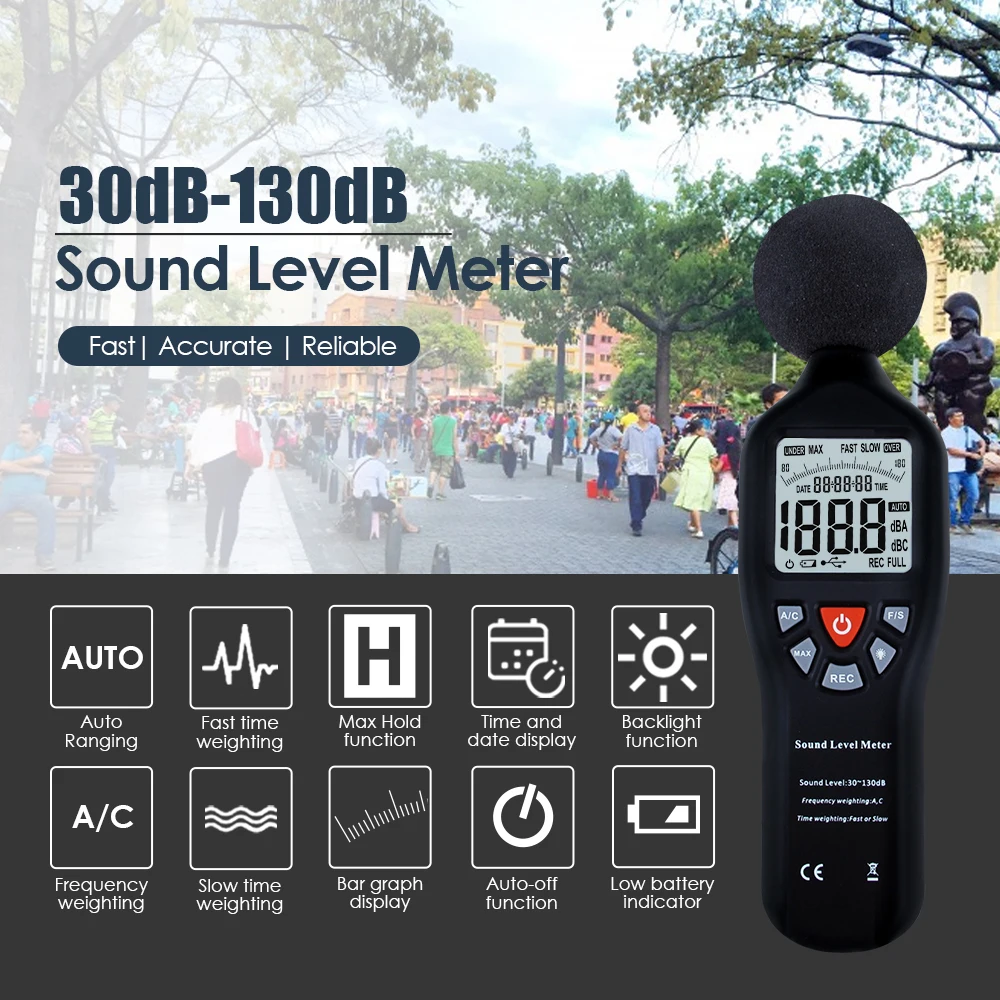

Attributes

1. Auto ranging
2. Fast Time Weighting
3. Max Hold Function
4. Time and date display

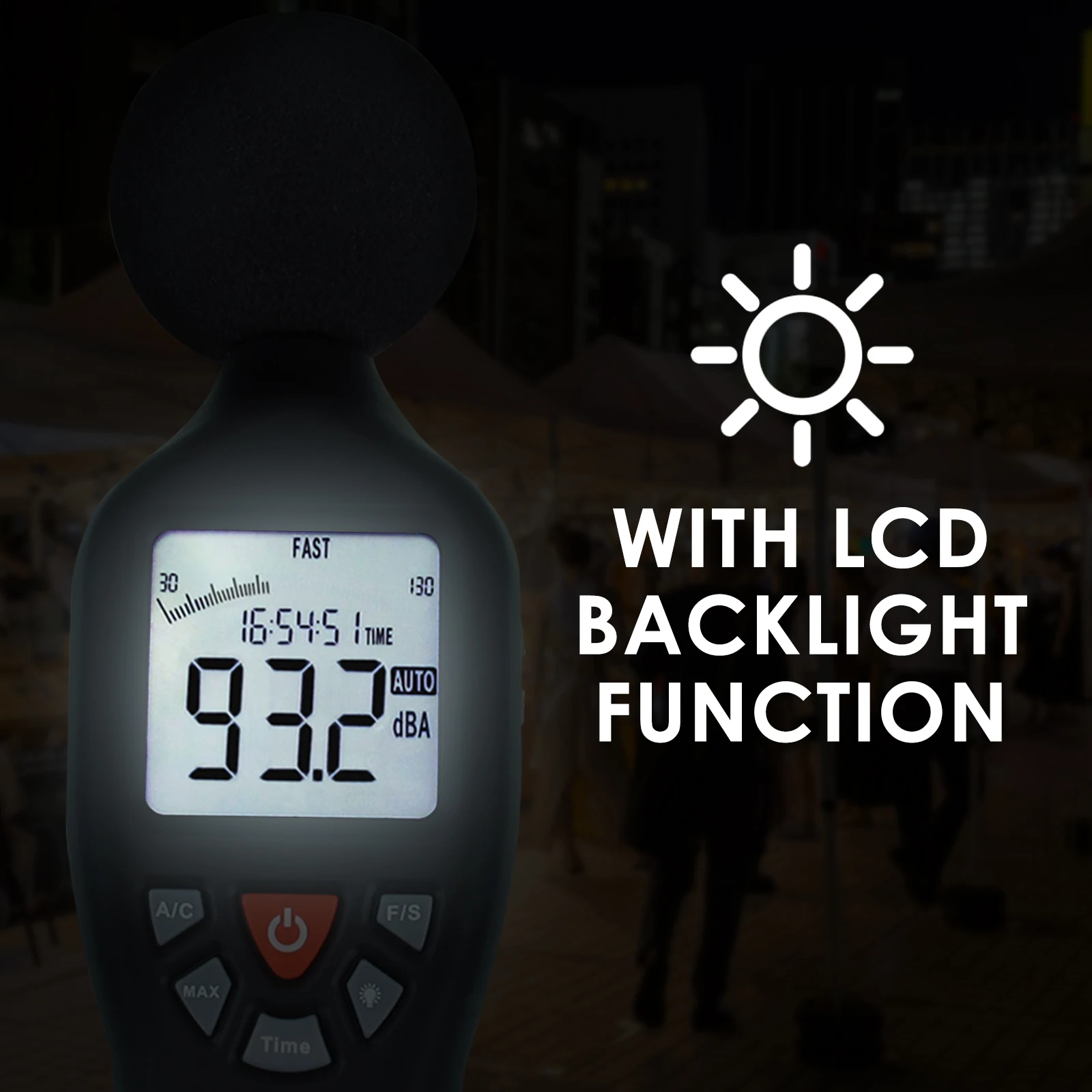

5. Backlight function
6. Frequency weighting
7. Slow time weighting
8. Bar graph display
9. Auto off function
10. Low battery indicator

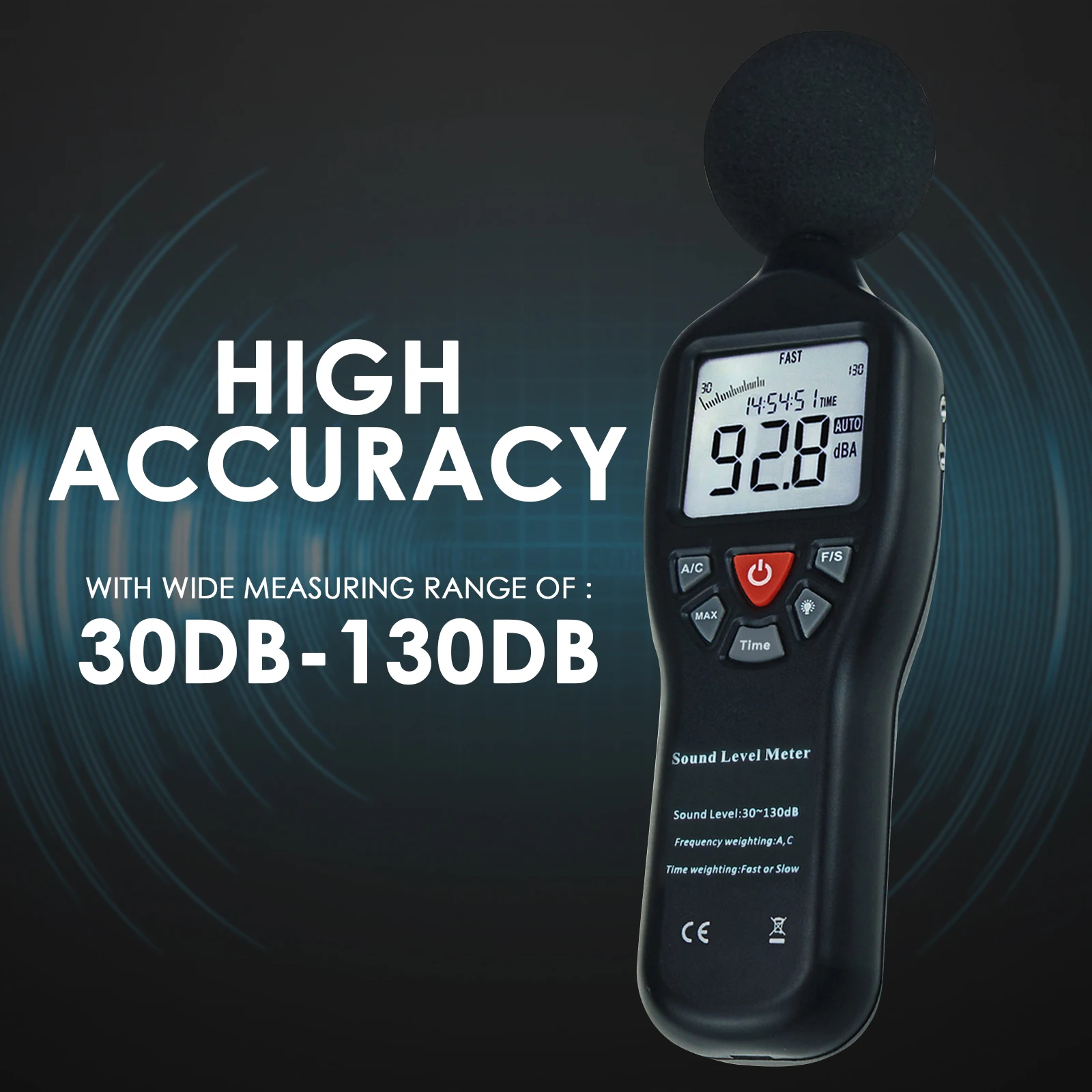

11. High Accuracy
12. AC/DC function
13. Over / Under indicator
14. Tripod Mount (Tripod not included)
15. With USB cable for power supply
16. CE Certified & RoHS Compliant

Scope of Applications

Environmental measurement, law enforcement, workplace design, sound level analysis of machinery and engines.

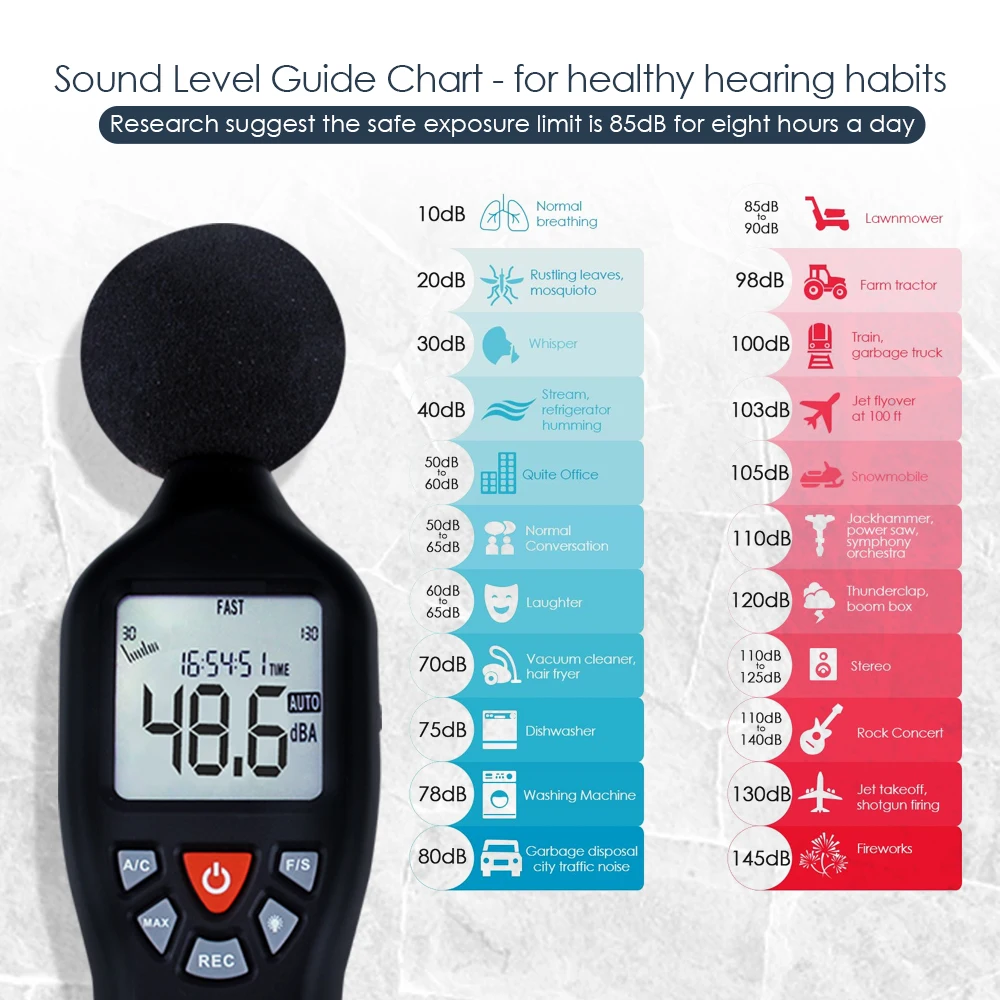

How much noise is considered too much?

Check the chart below for references.

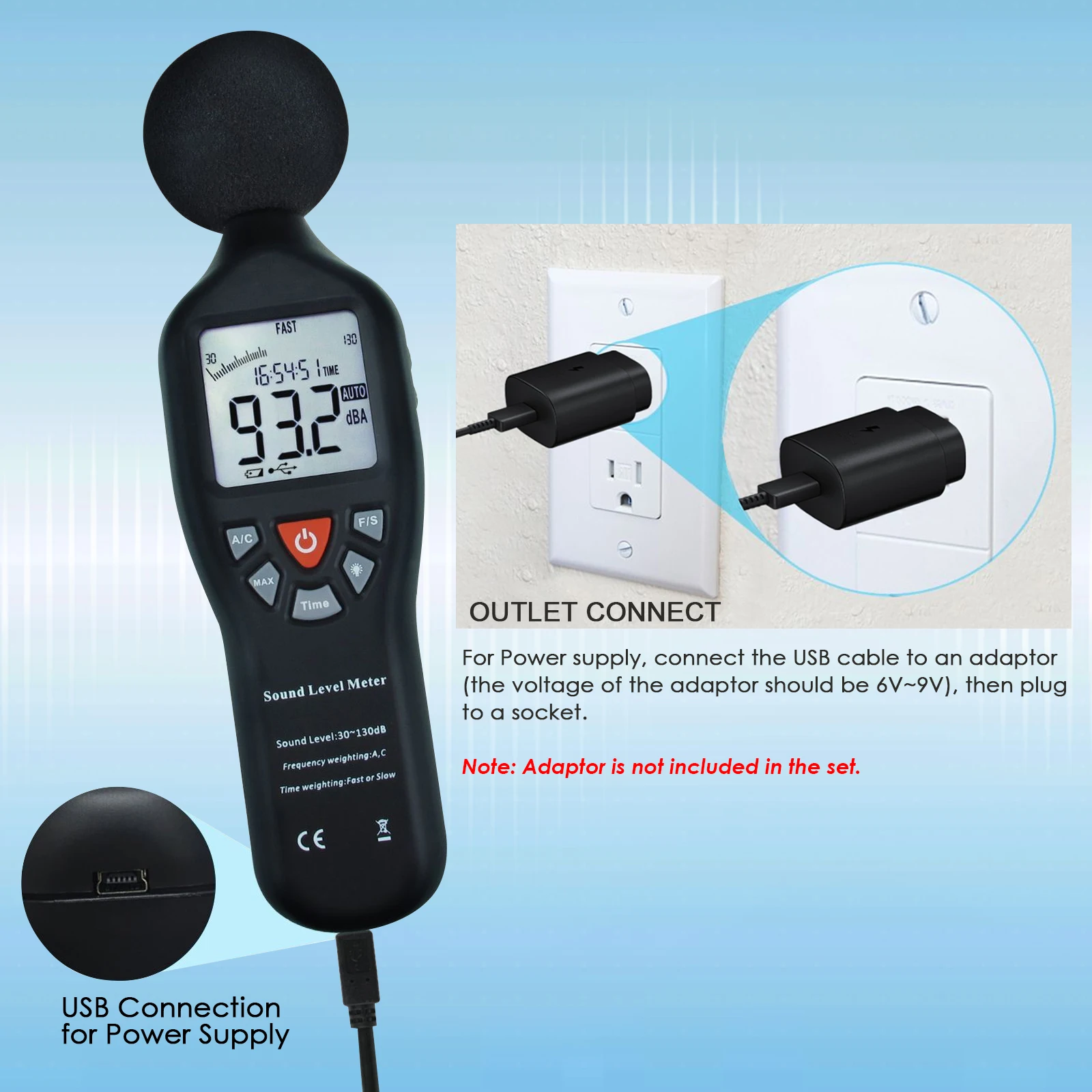

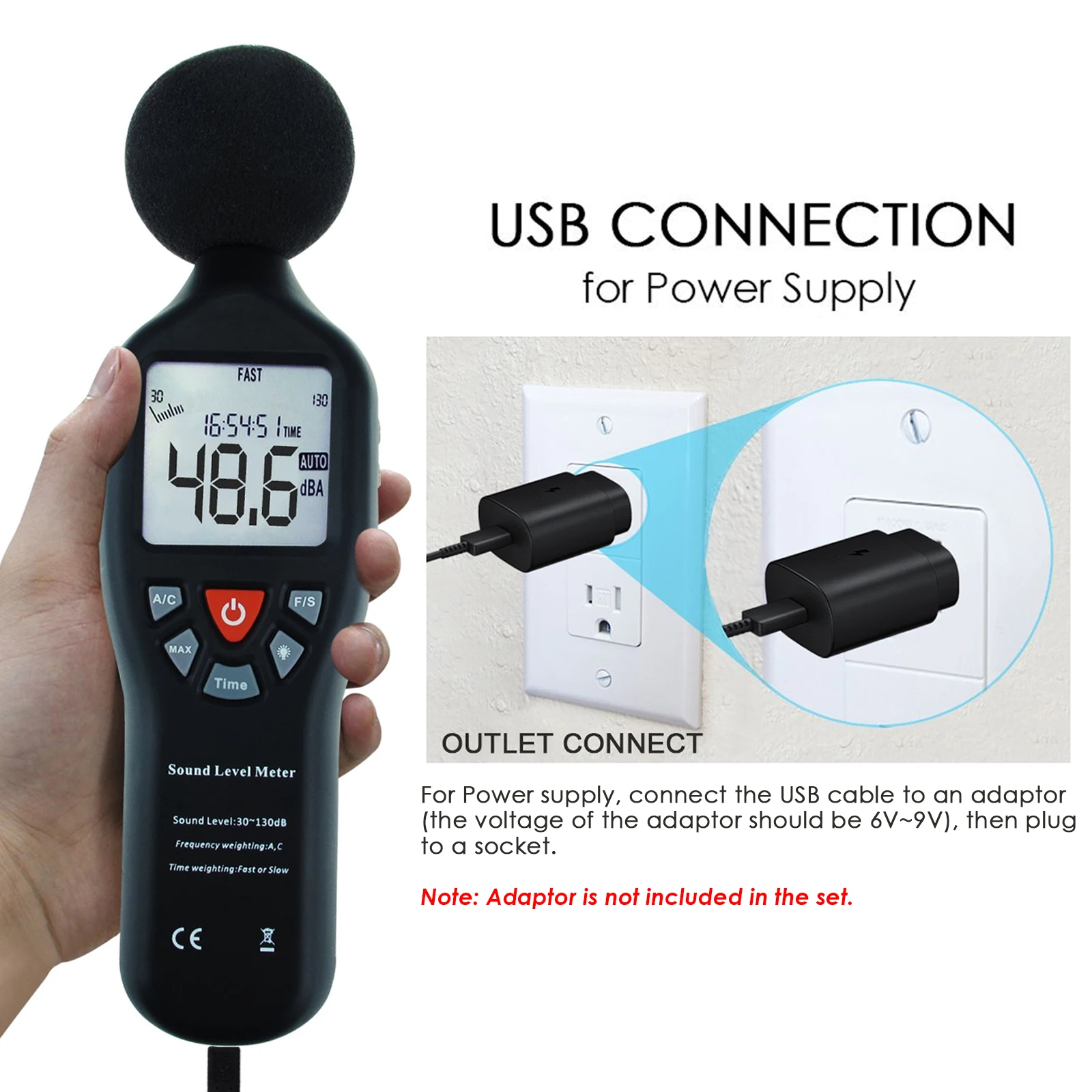

Power supply: 4 x AA Size 1.5V battery or USB Power Cable

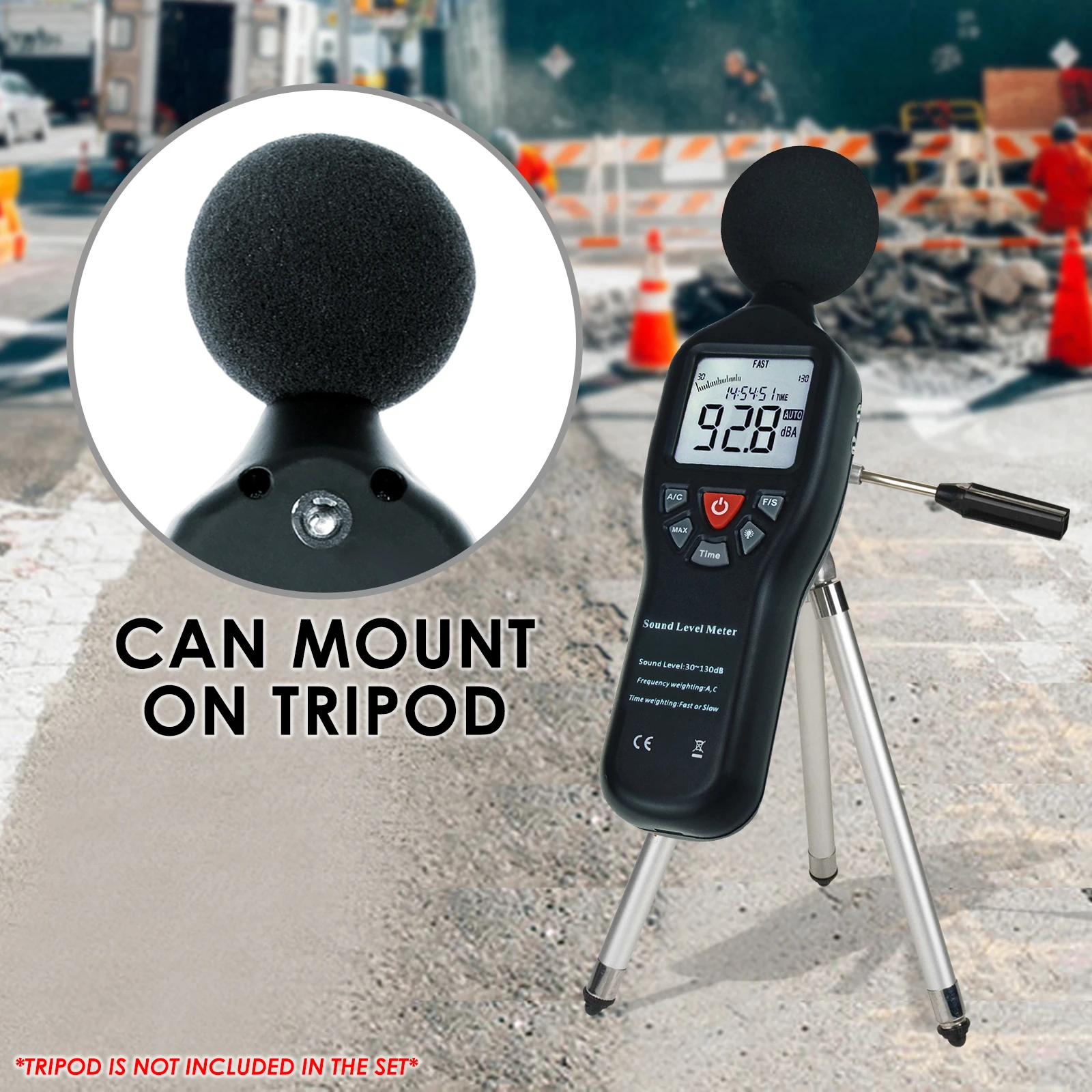

This sound level meter features a dedicated tripod mount, allowing you to easily secure the device on a standard tripod (not included). The mount provides stability during sound measurement, reducing hand movement or interference for precise and reliable readings.
