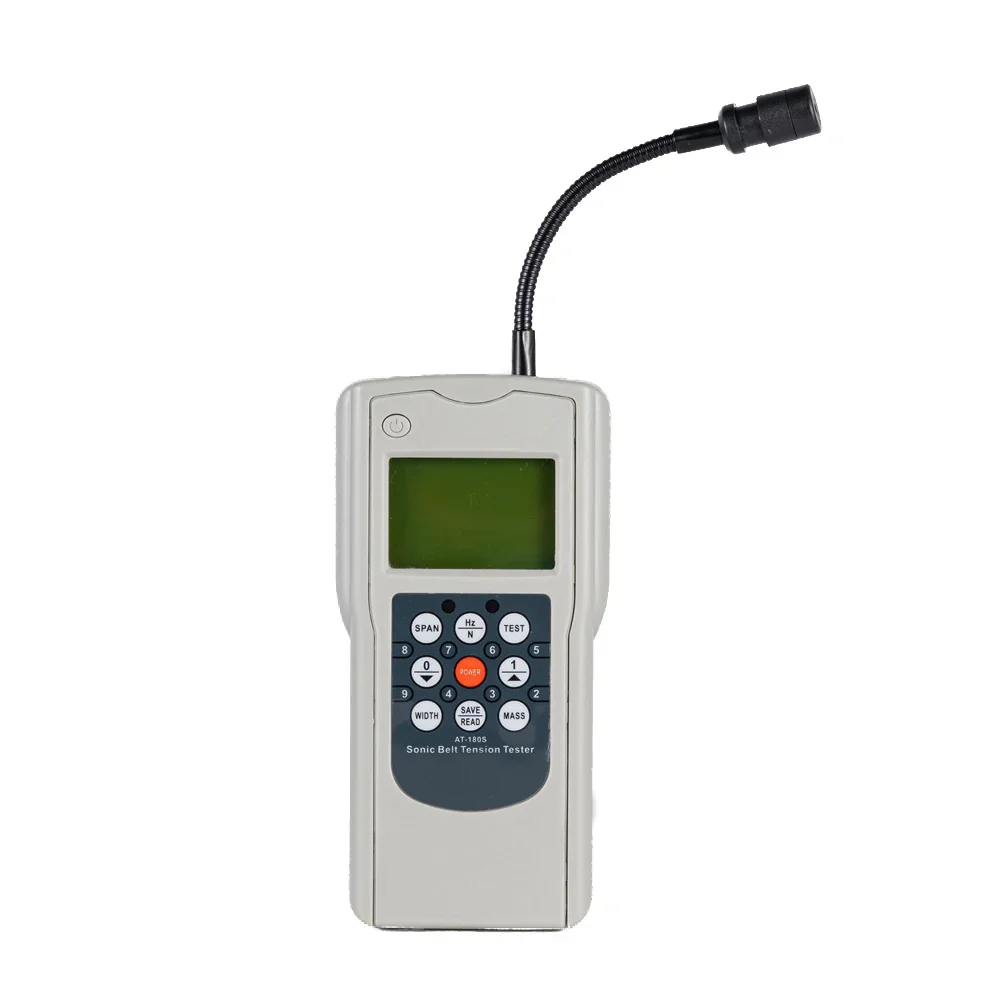

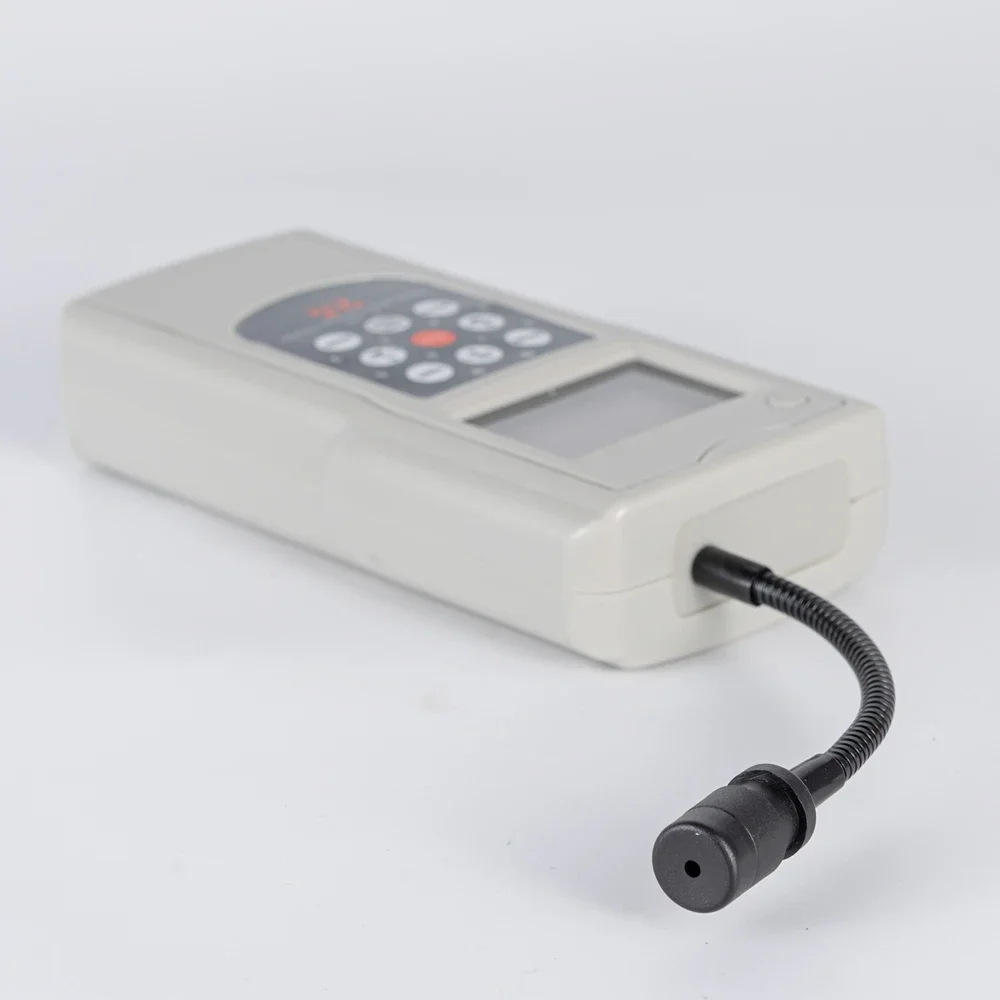

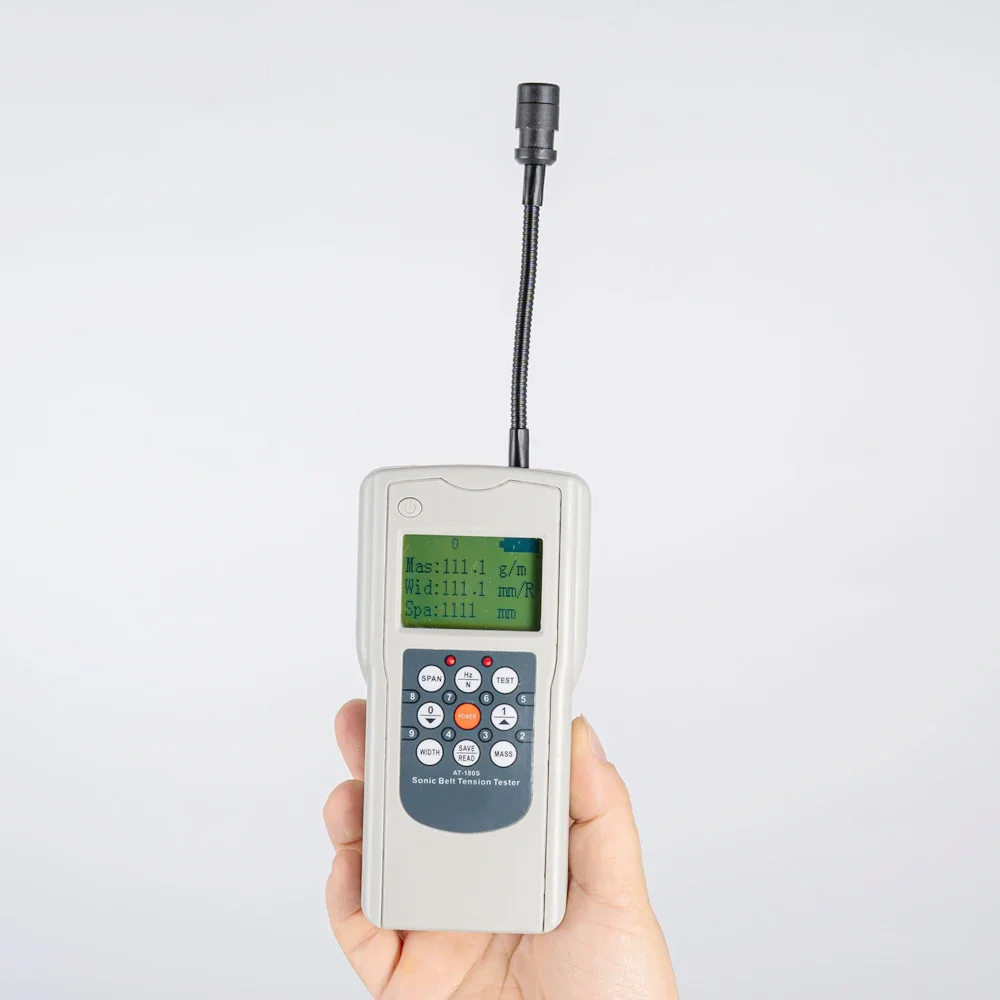

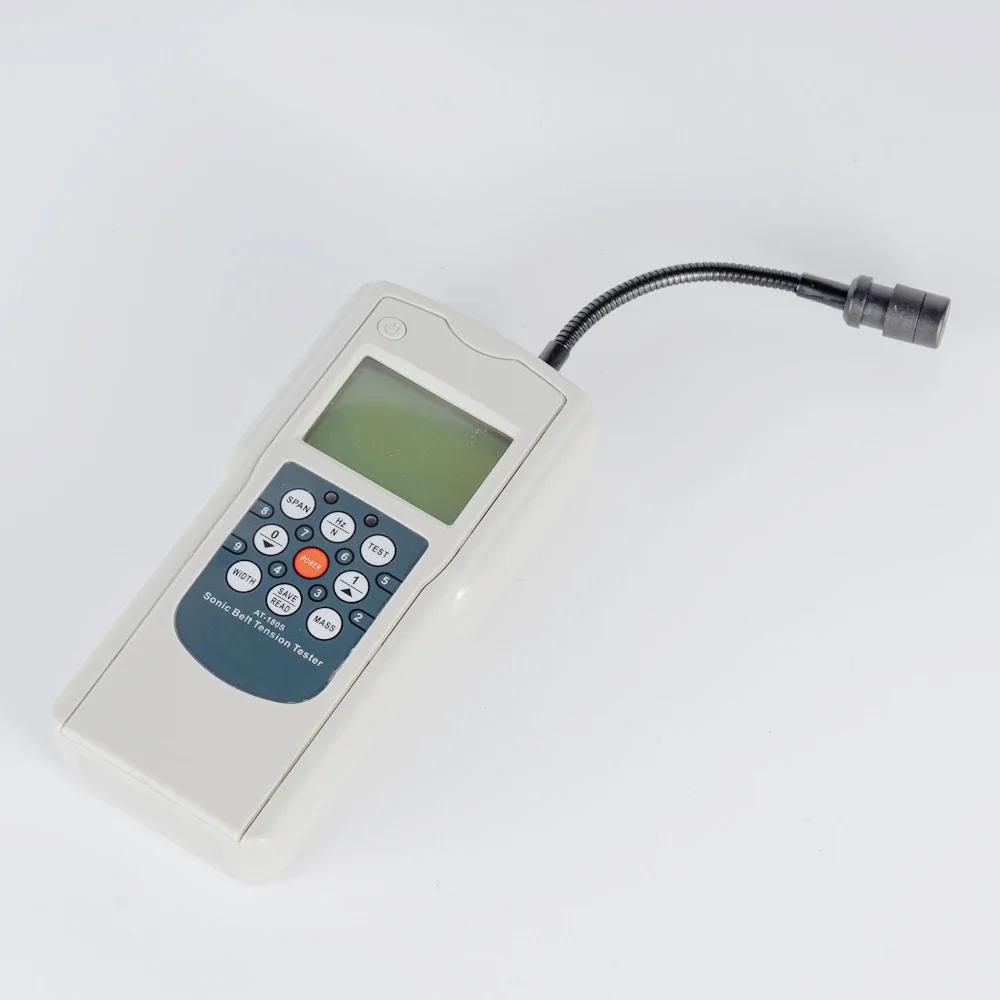

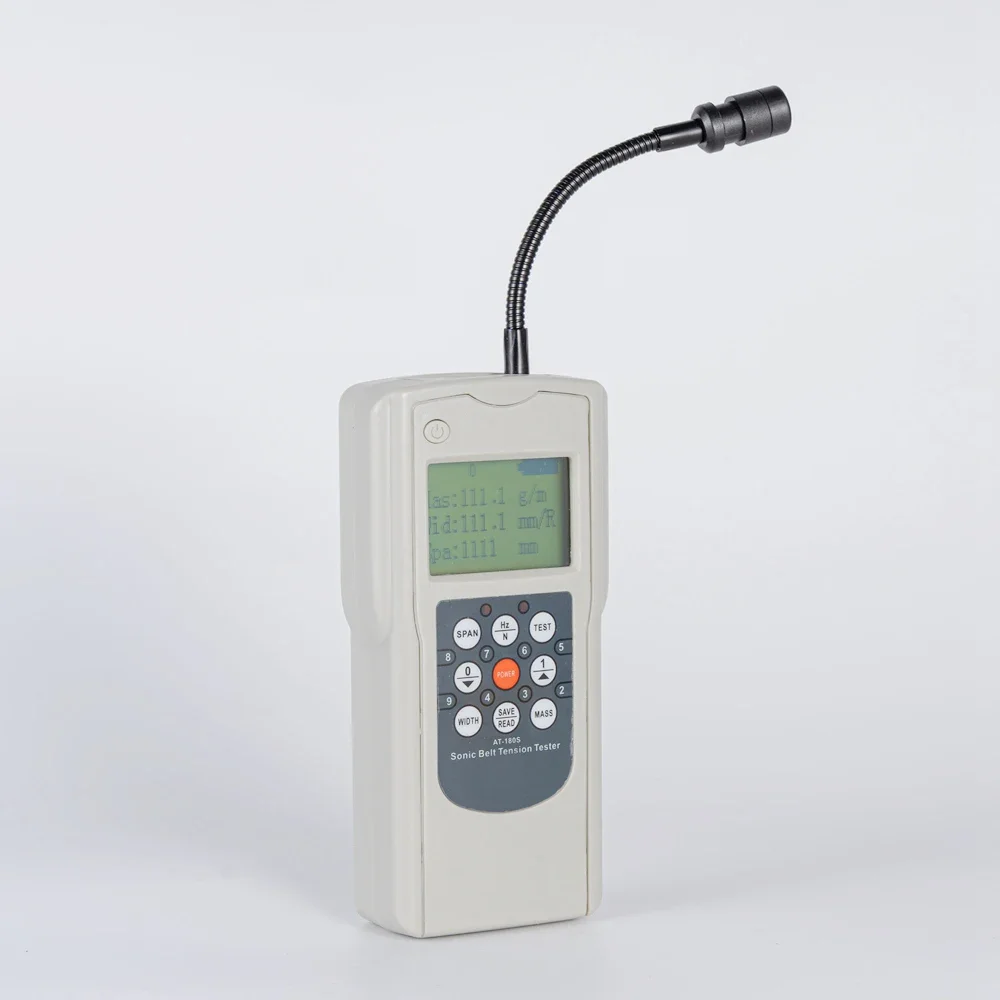

Digital Sonic belt tension tester AT-180S Measuring range 10HZ-680Hz handheld Sonic belt tension meter

$475.00

976 in stock

SKU: 3256807102579813 Category:

Product Description



Digital Sonic belt tension tester AT-180S Measuring range 10HZ-680Hz handheld Sonic belt tension meter



Product Description

It can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.

Product Feature



* The probe can be adjusted.

* Can store 20 set belt parameters.

* Maximum frequency: 680 Hz.

* Automatic shutdown, etc.

Product Parameters



Measuring range

10HZ-680Hz

Belt free strand length

Up to 9999 mm
Belt width

Up to 999.9 mm/R
Belt mass

Up to 999.9 g/m
Precision

±1HZ<100HZ AND ±1%>100HZ
Digital sampling accuracy

< 1%
Display accuracy 土1Hz
Overall accuracy


< 5%

Operating temperature

+10°C to +50° C
Transport temperature

-5° C to +70° C
Display LCD
Measurement unit Hz/N
Power supply 4×1.5V AAA
Housing Plastic(ABS)
Dimensions 140x72x34mm
Package size 248x206x52mm

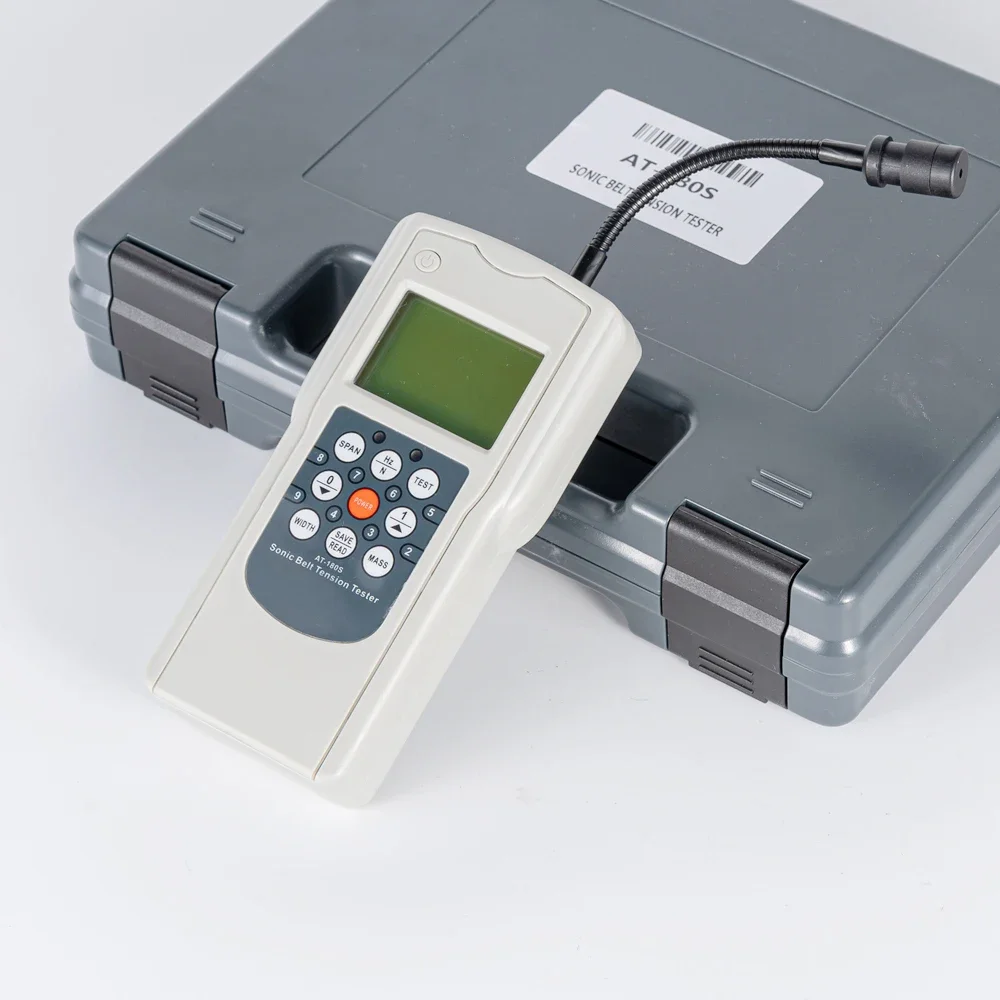

Standard Accessories Main Unit (one)
  Portable suitcase(one)


Operating Instructions (one copy)
