Digital EMF Meter 3000mT Electromagnetic Magnetic Field Detector AC DC Gaussmeter Strength Meter w/ Data Recording

$475.00

10 in stock

SKU: 3256806851950740 Category:

Product Description

AC / DC Gaussmeter with Data Logging – Precision Magnetic Field Tester up to 30000mT

Discover the power and accuracy of our AC / DC Gaussmeter with built-in data logging capabilities, designed to meet the rigorous demands of professionals in research, electronics, industrial testing, and educational labs. This advanced magnetic field tester offers seamless measurements of both AC and DC magnetic fields up to 30,000 milliTesla (mT), along with efficient data storage to enhance your workflow.

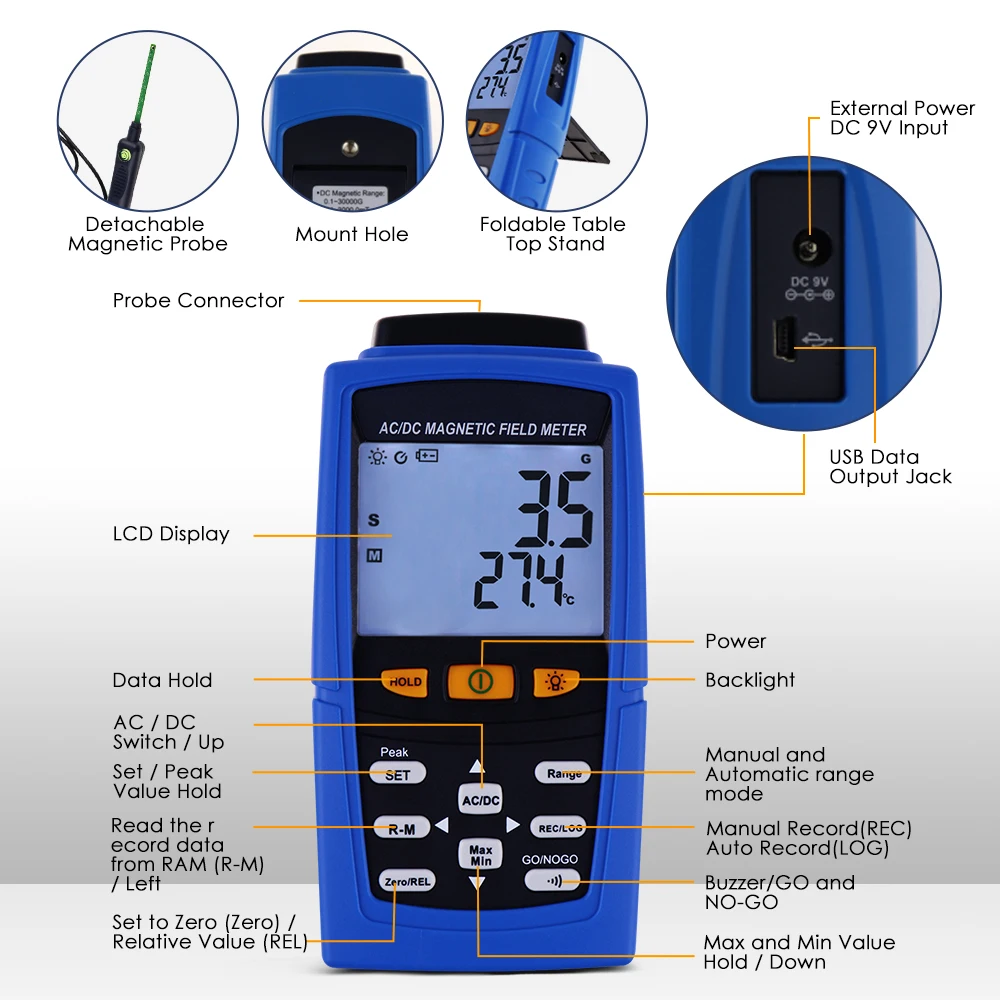

Features

ata HOLD and backlight function
Automatic and manual range function
Relative / Peak Hold / Real-time Zeroing function
Manual / Auto Record
ON/OFF Buzzer
MAX/MIN value display

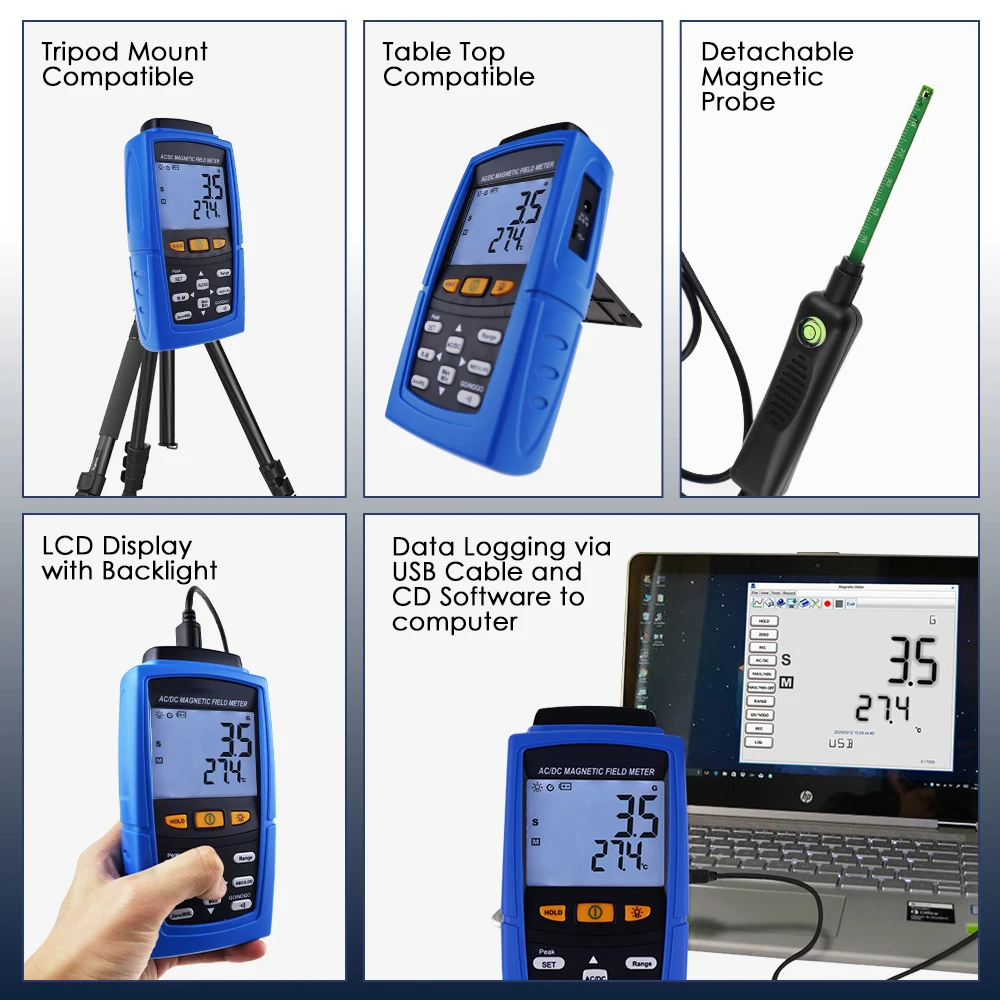

Data transfer via USB cable and CD software
Selectable Unit of measurement (G / mT, °C / °F)
Calendar (year/month/date) and time (hour/minute) setting
Auto / Manual power-off function
Battery low indicator
Compatible with Windows 7 / 10 operating system
Quality Product Made in Taiwan

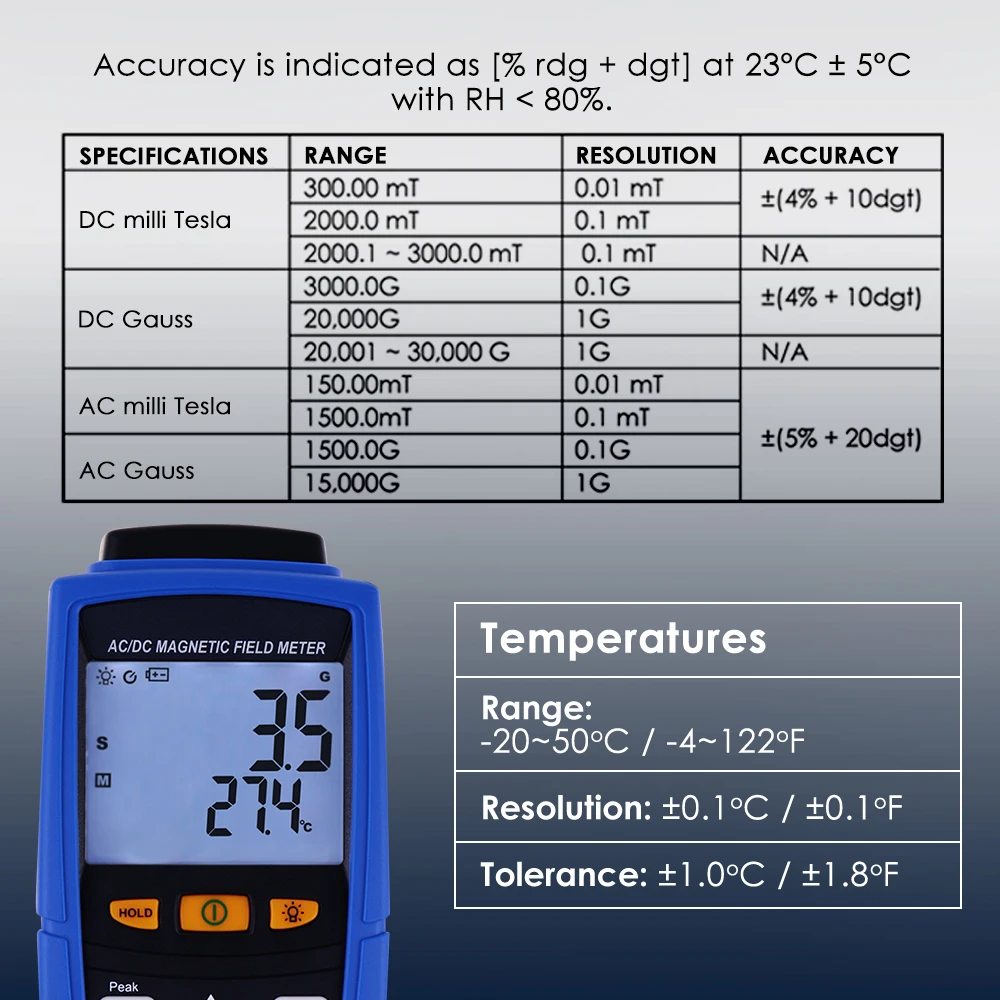

Specifications

Screen: 5 digit LCD screen displaying up to 30000 value
Measurement range: 0~3000mT(milli Tesla)/0~30000G(Gauss)
Conversion of units: 1mT(milli Tesla) = 10G (Gauss)
Recording:
Manual: up to 200 logs
Automatic: up to 7000 logs (record interval shall be setup in PC)

Operating Environment: 5~40°C (41~104°F), <80% RH
Storage Environment: 0~50°C (32~122°F), <70% RH
Weight: approx. 320gms (including battery)
Dimension: 156 x 73 x 35mm

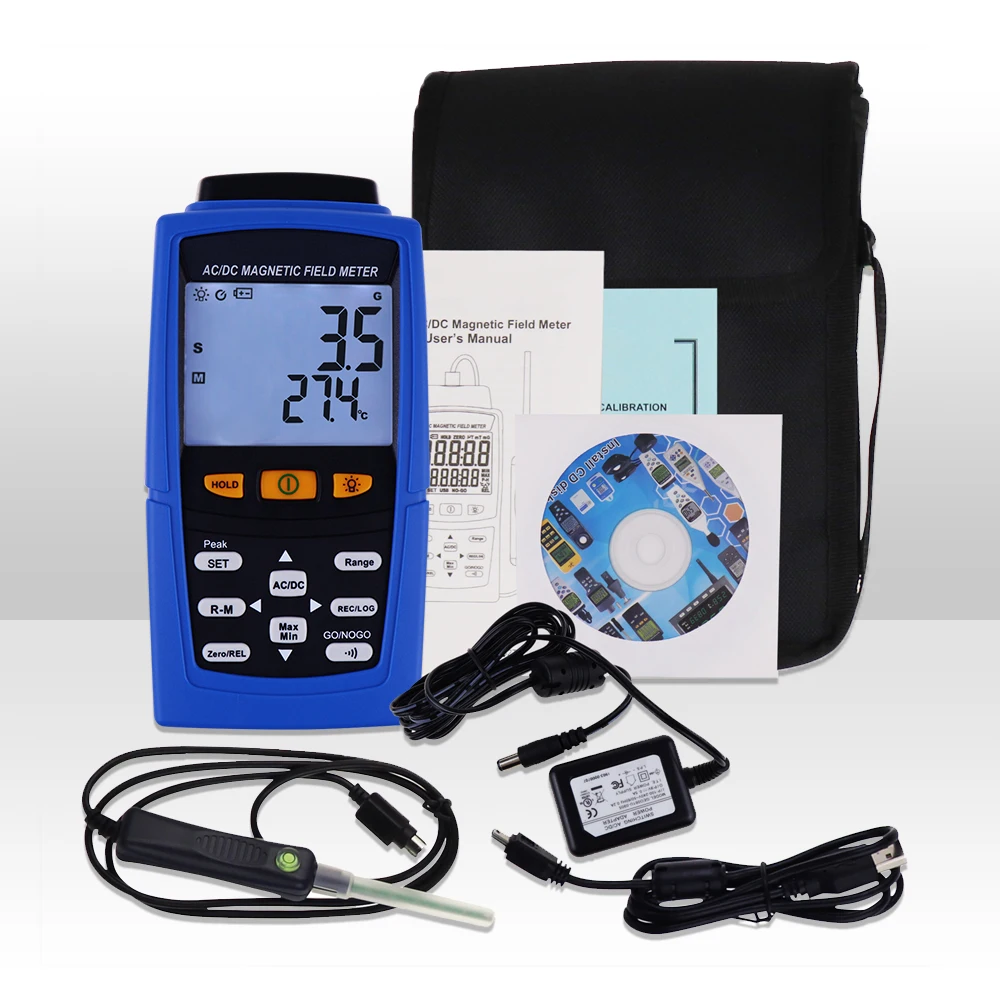

Set Includes

1 x Magnetic Field Meter
1 x AC/DC Magnetic Probe
6 x 1.5V (UM4/AAA) Battery
1 x Power adapter DC 9V
1 x USB Cable and installation disc
English Intruction Manual
Standard factory packaging

Attributes



1.High Measurement Range: Accurately detects magnetic fields up to 30,000mT, ideal for high-strength magnets and industrial testing applications.

2. AC/DC Dual Mode: Easily switch between AC and DC modes, providing versatility for testing dynamic or static magnetic fields.

3. Built-in Data Logging: Automatically record up to 7000 logs (record interval shall be setup in PC) and save measurement data, allowing you to track changes over time and review data for analysis. Perfect for ongoing testing and long-term monitoring.

Applications



1. Measure the magnetic field generated from Direct Current (DC, with display by N/S Magnetic polarity) or Alternating Current (AC in 40~500Hz)
2. Measurement of the residual magnetic after processing of mechanical parts
3. Measure the residual magnetic generated from the stress after processing of stainless material
4. Measurement of the magnetic force of magnetic materials
5. Measure various steel materials with natural magnetism
6. Measure the magnetic field strength of motors in various electrical appliances
7. Measure the magnetic field strength of permanent magnets
8. Detect the magnetic field leakage generated from superconductive magnets

Measurement of AC/DC Magnetic Field Meter

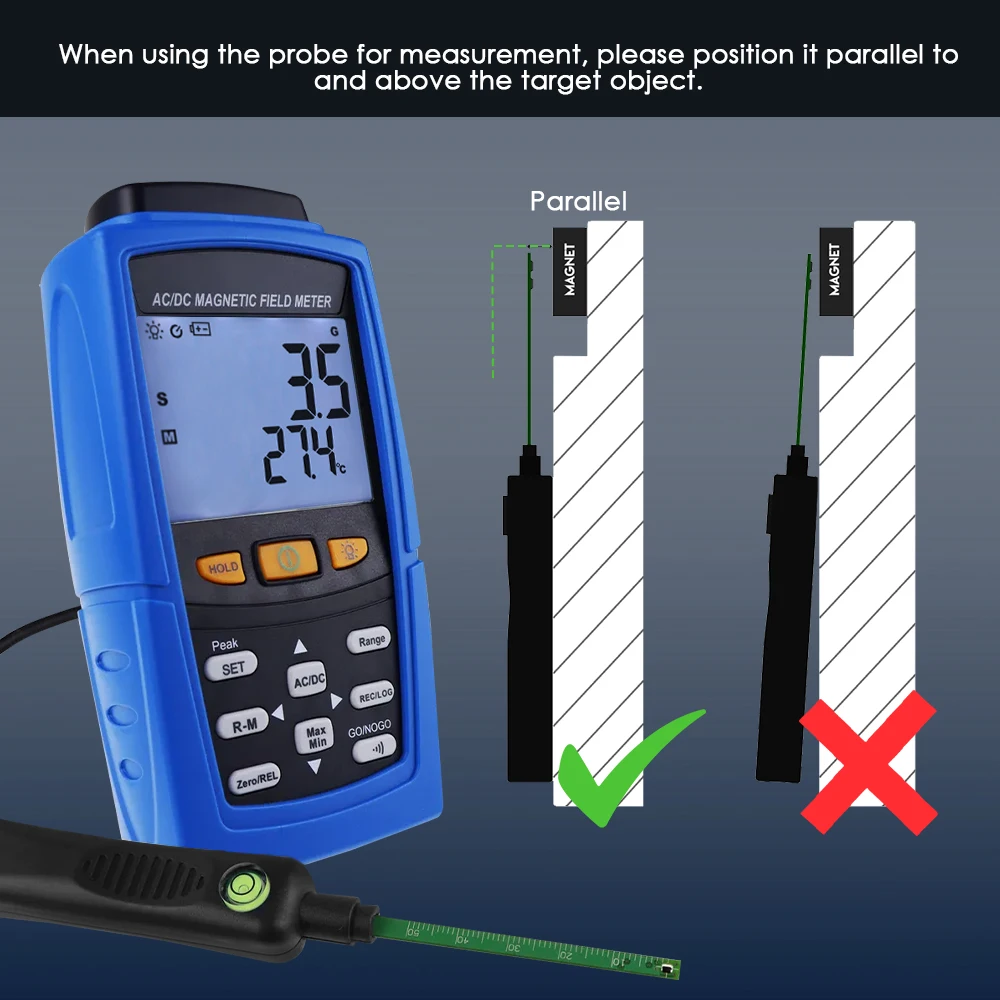

To ensure optimal accuracy, the probe should be positioned parallel and directly above the target object.
