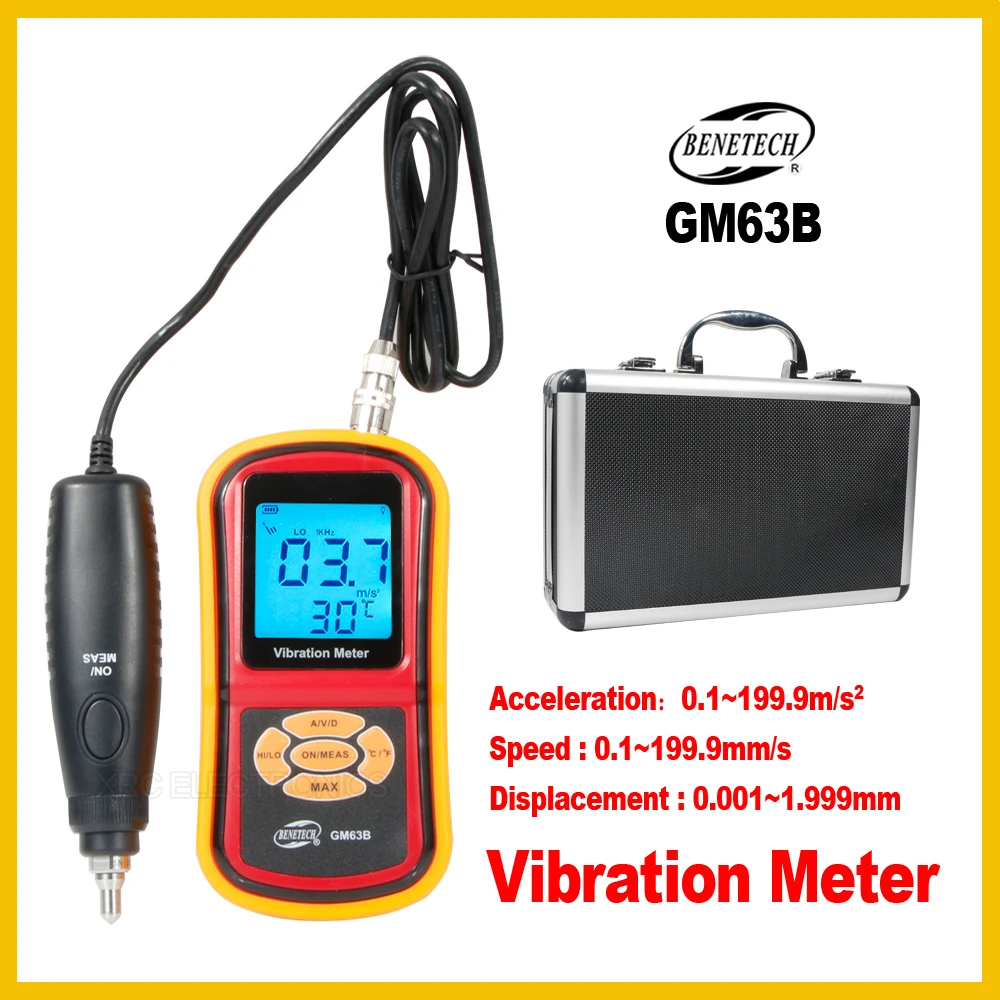

BENETECH Digital Vibration Meter hand held vibration monitoring equipment Visually display measurement value GM63B-BENETECH

$375.00

SKU: 2251832746711627 Category:

Product Description

BENETECH  Digital Vibration Meter  hand held vibration monitoring equipment Visually display measurement value  GM63B-BENETECH



The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.



-Model: GM63B

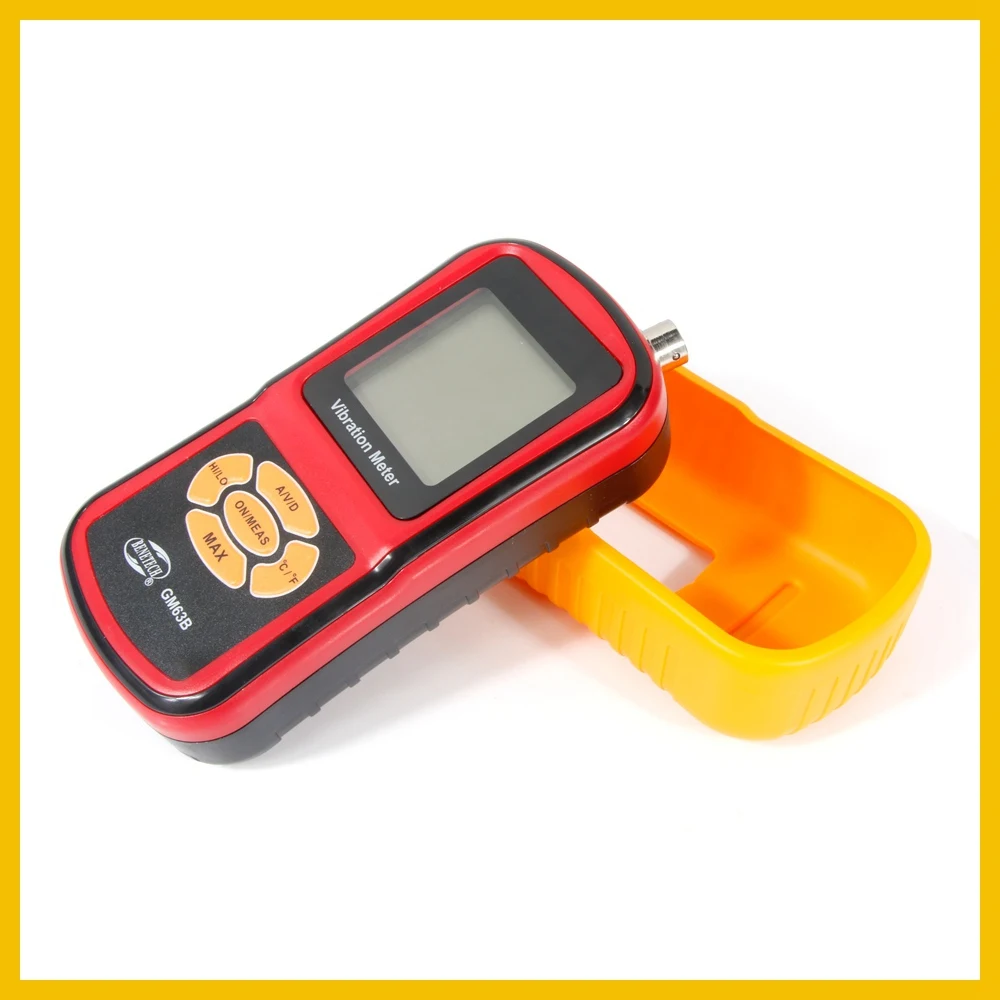

-Color: Black & Red (Equipped with yellow rubber pouch)

-Professional Split type Vibration meter

-100% brand new

-Simple to use, the structure is compact, portable for carrying along with measurement.

-Visually display measurement value and status

-Acceleration, velocity and displacement measurement

-Different vibration frequency selection

-High sensitivity probe for accurate measurement Provides

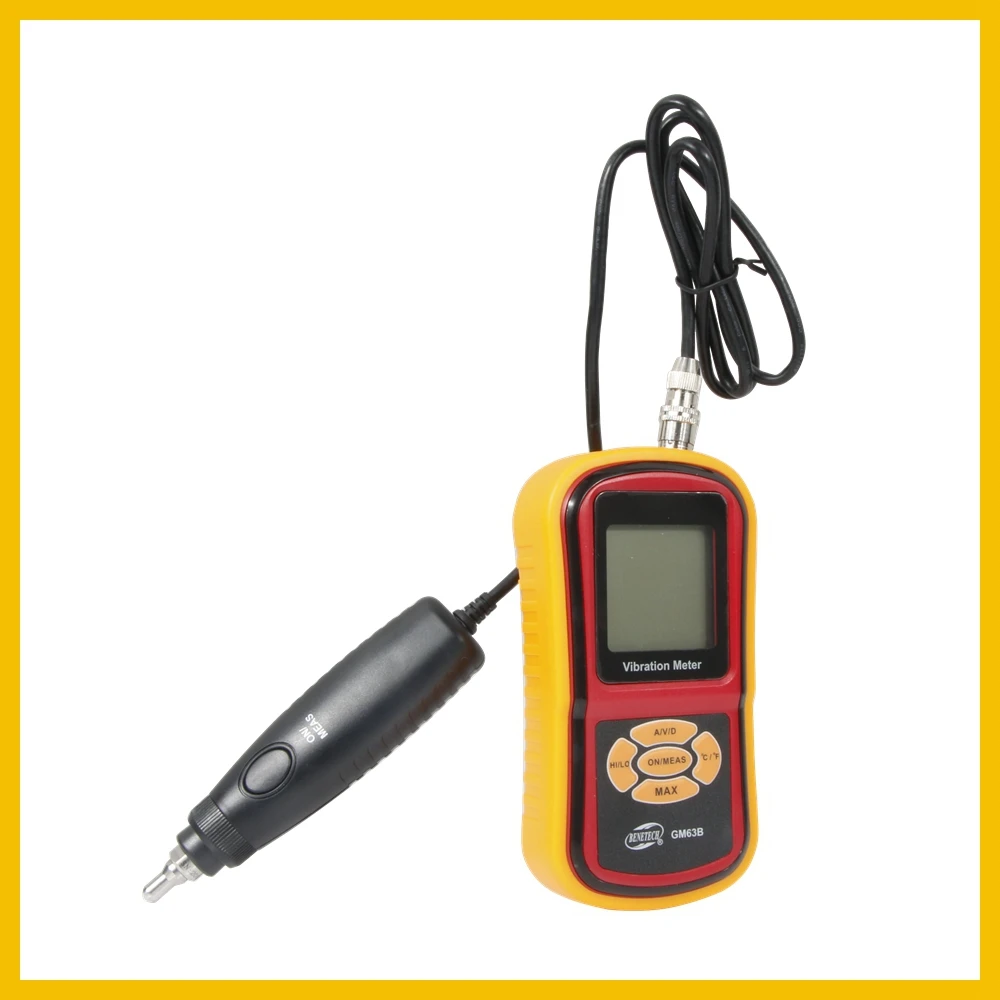

-Equipped with Long / Short probe for different situation measurement, and provides a magnetic probe to fit the condition uneasy hold on by hand

-Equipped with AC signal output interface

-Low power indication

-Auto power-off

-LCD backlight

-Maximum value hold function

-Temperature unit C/F selection

Measurement range of acceleration

0.1~199.9m/s2

Measurement range of velocity

0.1~199.9mm/s rms

Measurement accuracy

+/-5%+/-2digits

Measuring frequency range of Velocity

10Hz1KHz (LO); 1KHz15KHz (HI)

Display update cycle

1 second

LCD display

3 1/2 digits display

Power supply

9V alkaline battery (not included)

Autp power-off

Turns off automatically in 60 seconds

Dimensions

180x66x30mm

Weight

146g

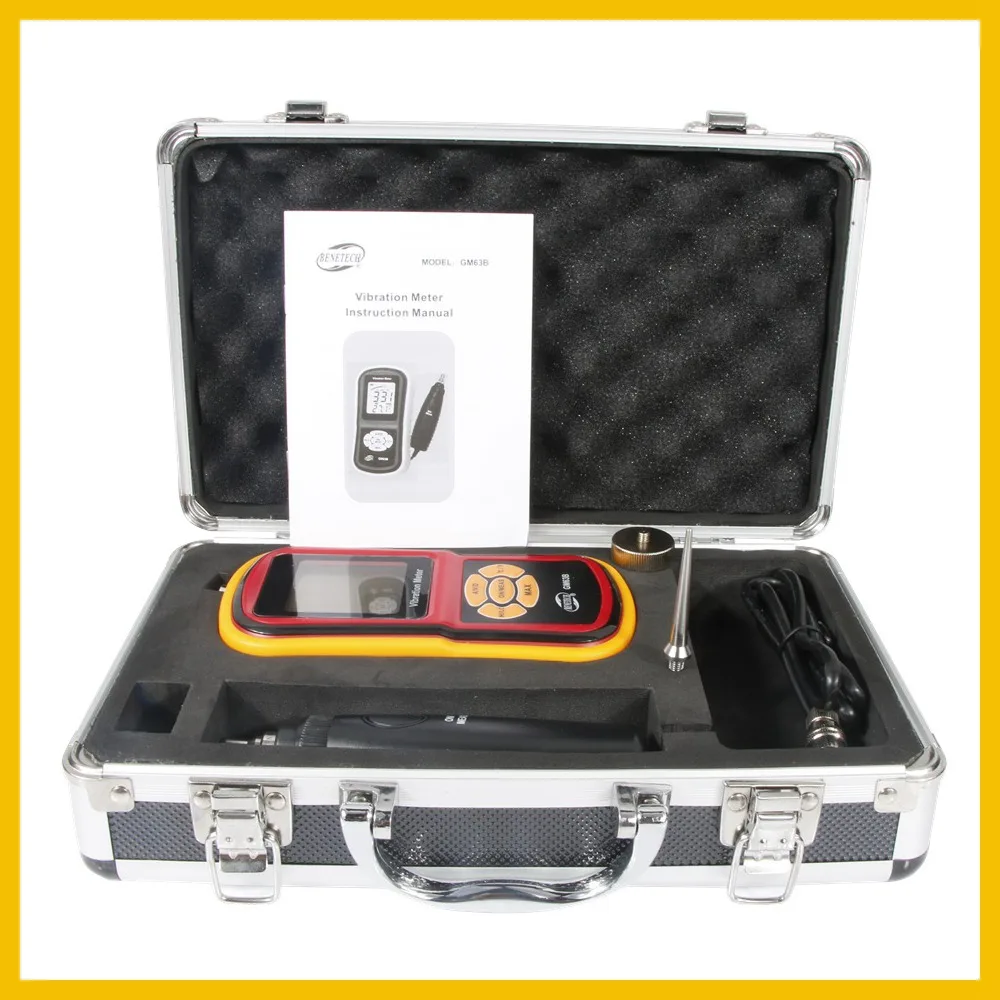

1 x Vibration Meter

1 x English User Manual

1 x Long probe (Short probe has been equipped on the product)

1 x Magnetic probe
