Belt Tension Meter AT-180B 0N-750N Automotive Belt Tension Meter Textile Chemical Fiber Cable Metal Wire Film Tension Meter
$575.00
SKU: 3256807102686467
Category: Belt Tension Meter
Product Description

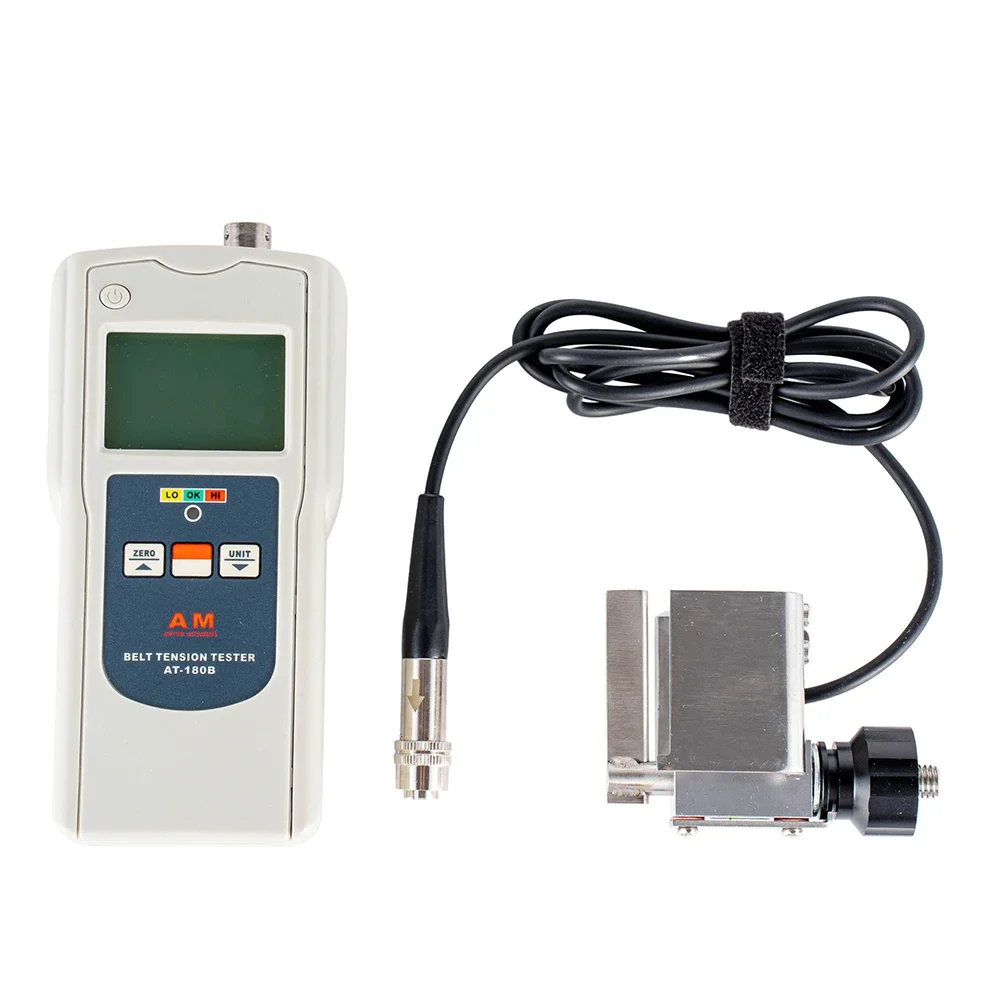

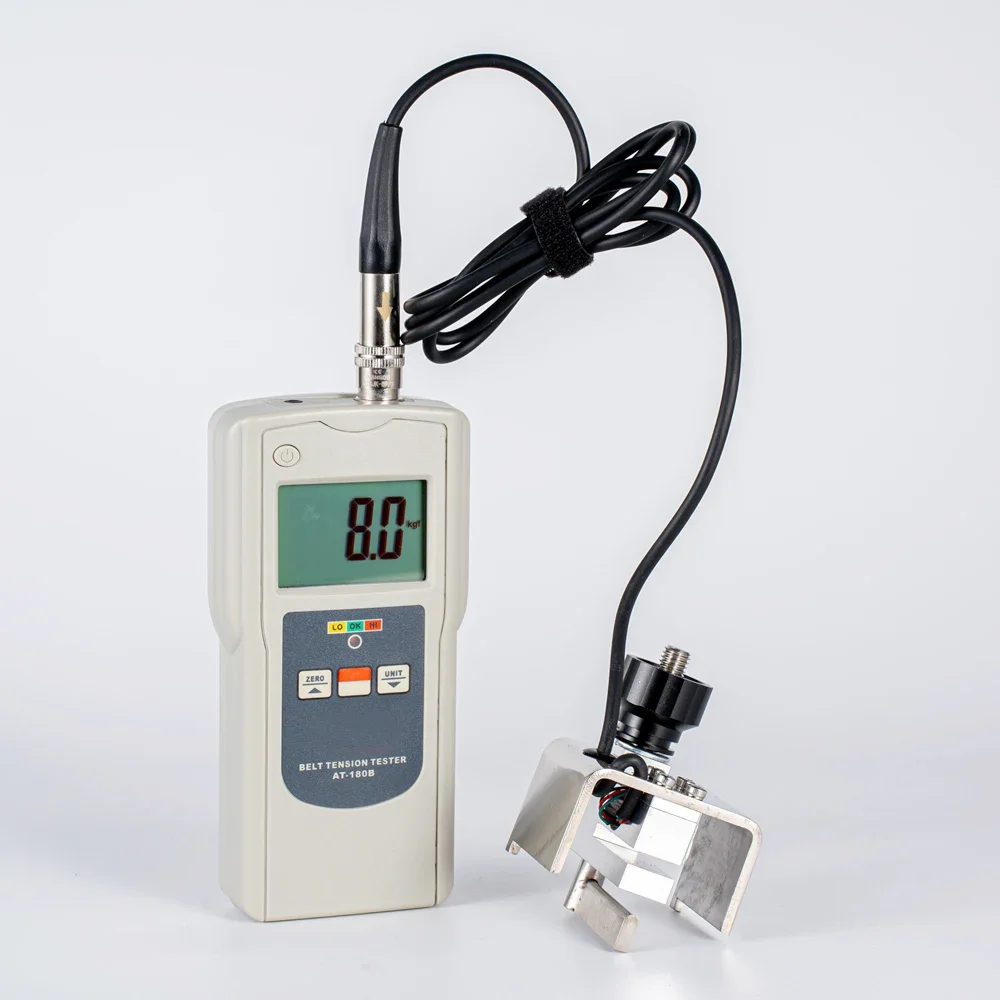

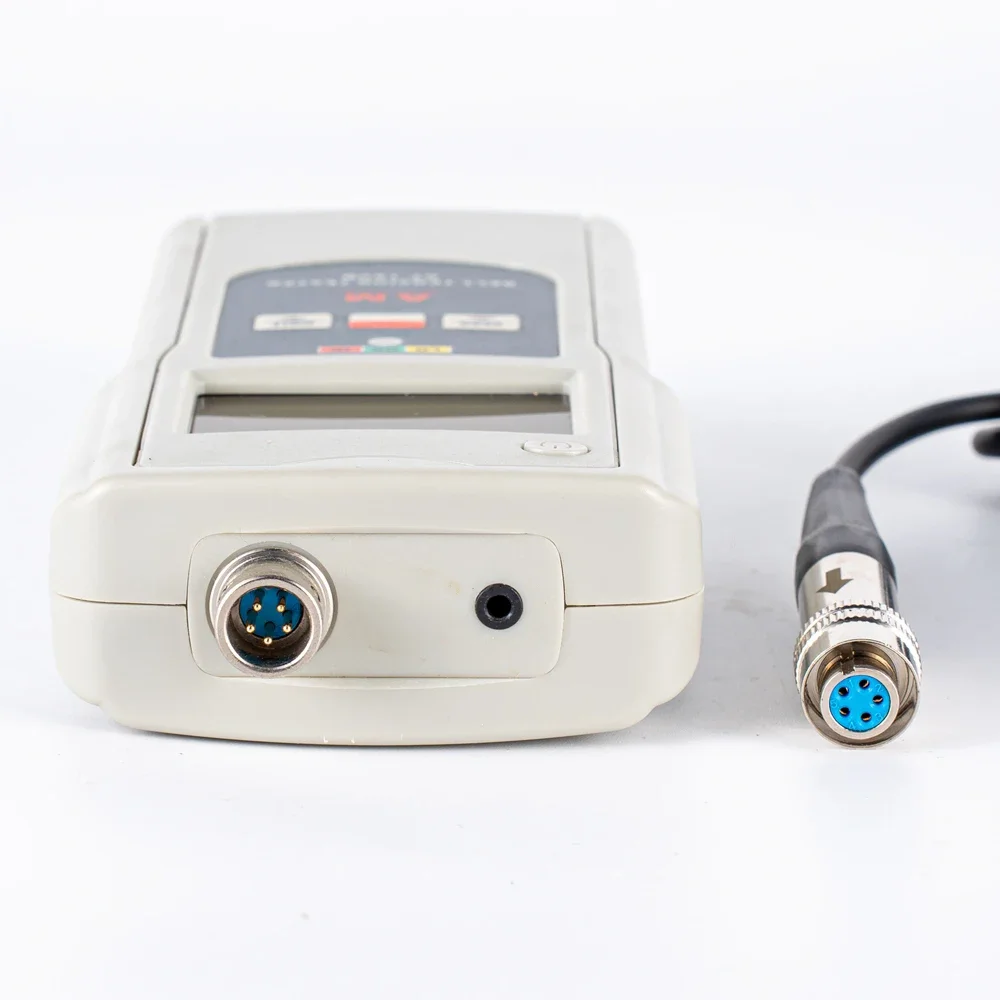

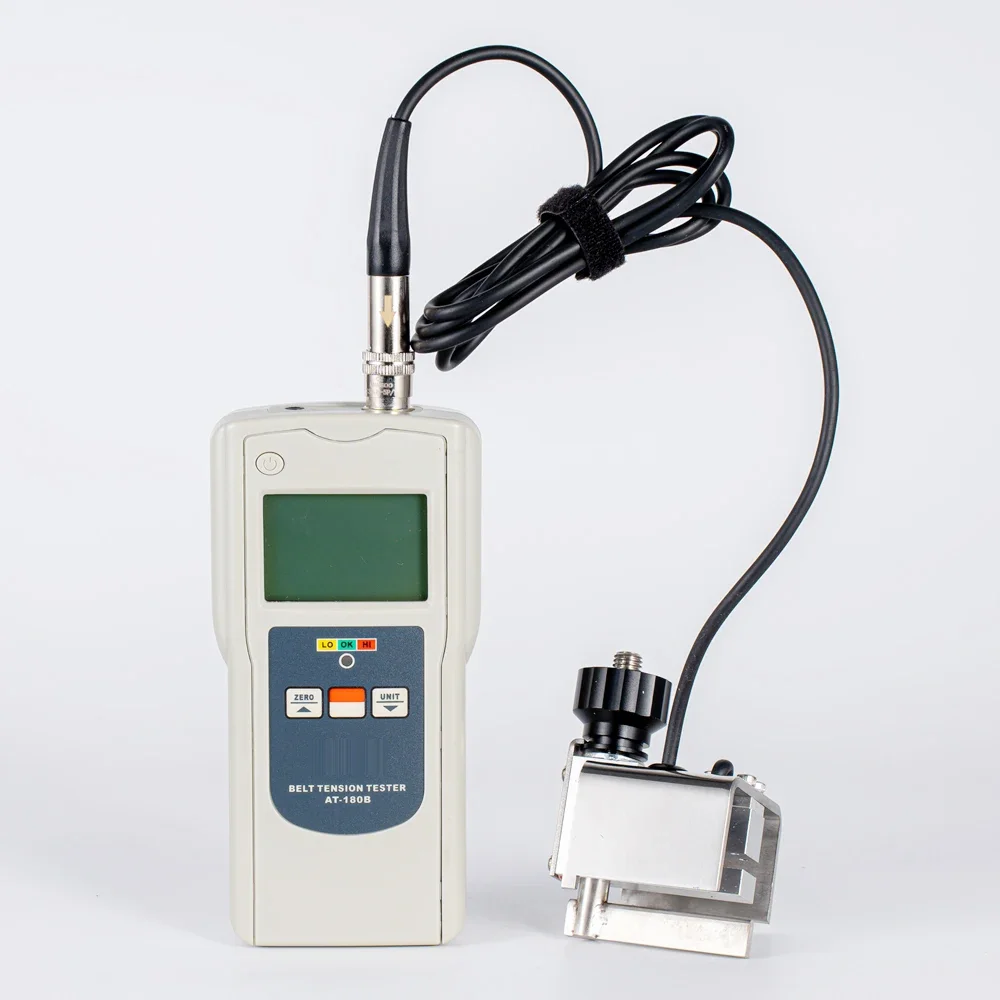

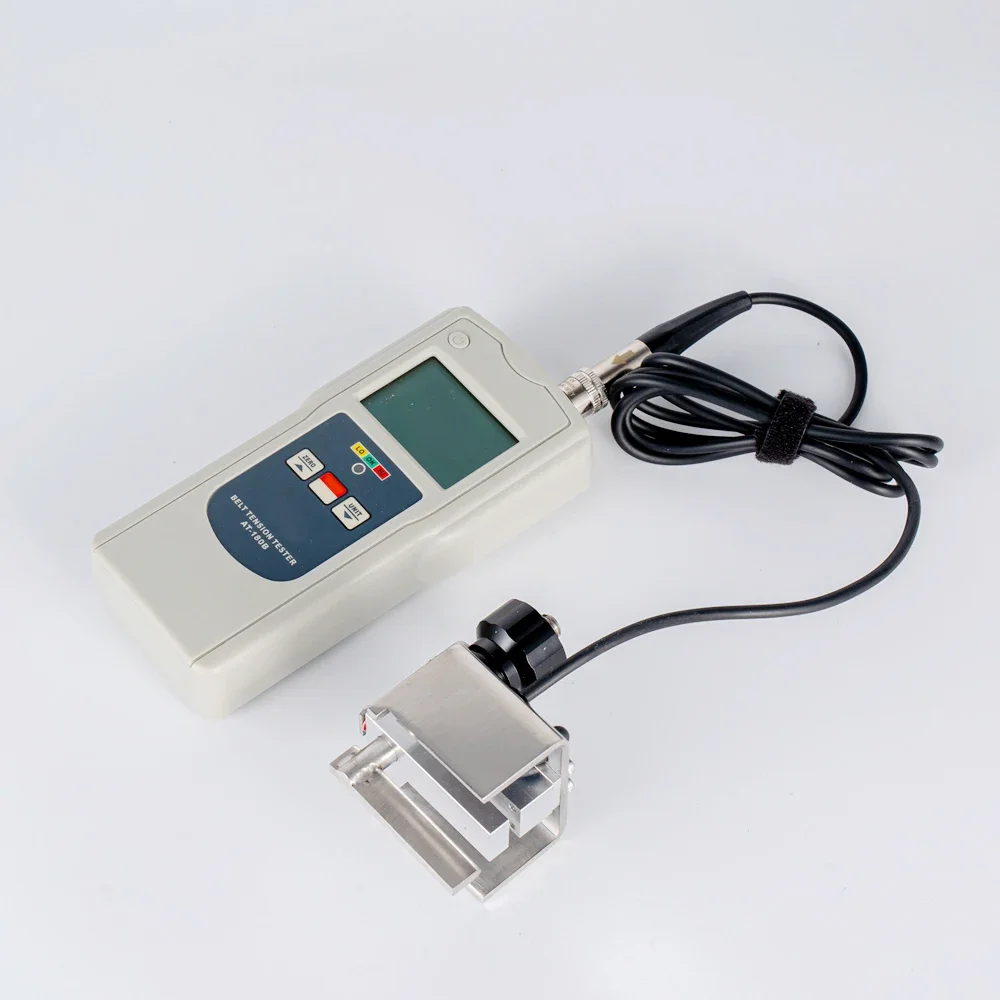

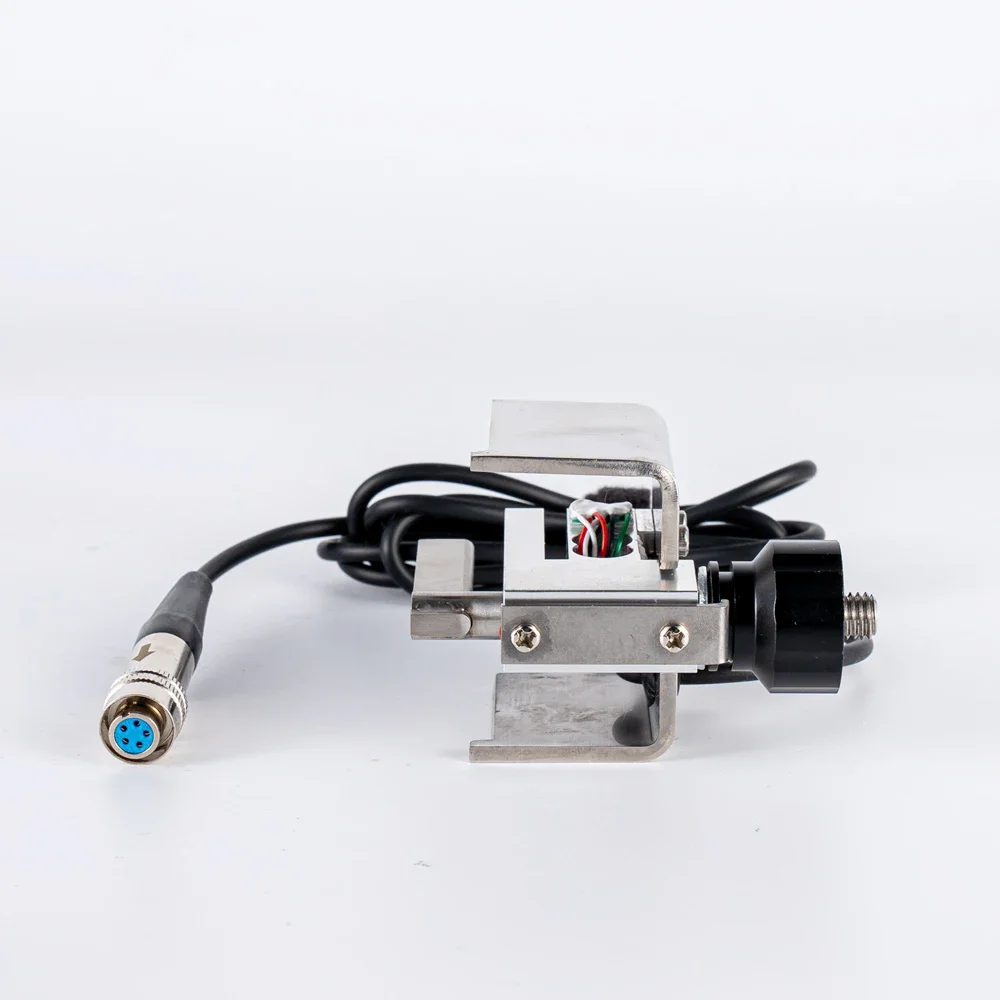

Belt Tension Meter AT-180B
Product Description
The Belt Tension Meter Mainly use for automotive belt tension measurement, also can measure and adjust ribbon, filamentous, linear, reticular and other wide objects tension. Applicable to the automotive, textiles, wire and cable, metal wire, plastic film, paper, printing, film industries etc.
Product Feature
* With metric and imperial conversion.
* Auto switch off and manual shutdown.
* With average value calculation function.
* With low battery alarm indicator & With maximum value stored.
* Provide “Bluetooth data output” choice.
Product Parameters
|
Measuring Range |
0~750N, 0~120lb, 0~77Kg, 0~114Seems |
|
Accuracy |
≤ ±5% |
|
Belt State Indication |
Low, OK, High |
|
Resolution |
± 1N (or other units) |
|
Overload Alarm |
750N (Newton) |
|
Maximum Load |
850N (Newton) |
|
Working Environment |
Temperature 0°C ~ 50°C |
|
Humidity <85% RH |
|
|
Size |
140×70×30 mm |
|
Power Supply |
4×1.5v AAA (UM-4) battery |
|
Host Weight |
130g (Not including Batteries) |
|
Probe Weight |
230 g |
|

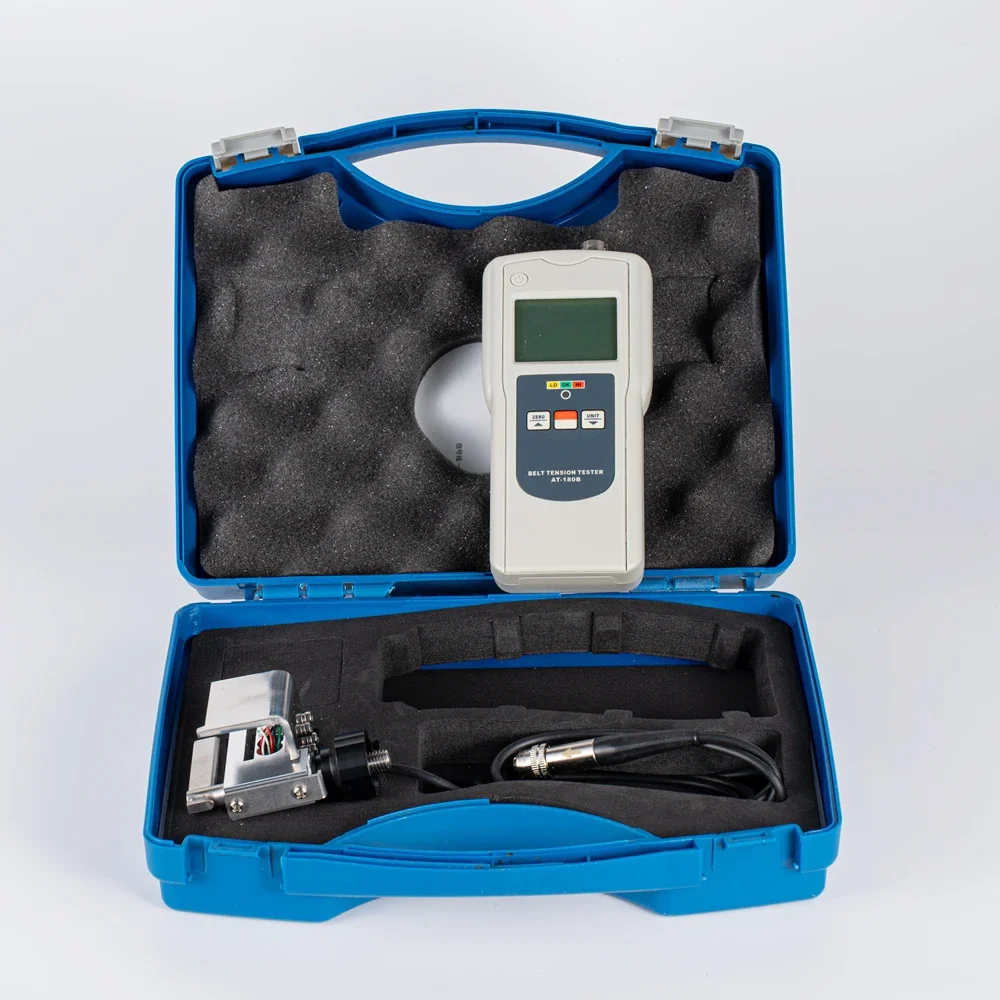

Standard Accessories |
Main Unit |
|
Test Block |
|
|
Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories |
USB data output、Bluetooth |
