AT-180H5 Infrared Belt Tension Tester 10~500Hz split sensor Infrared Belt Tension meter

$675.00

SKU: 3256807785168943 Category:

Product Description

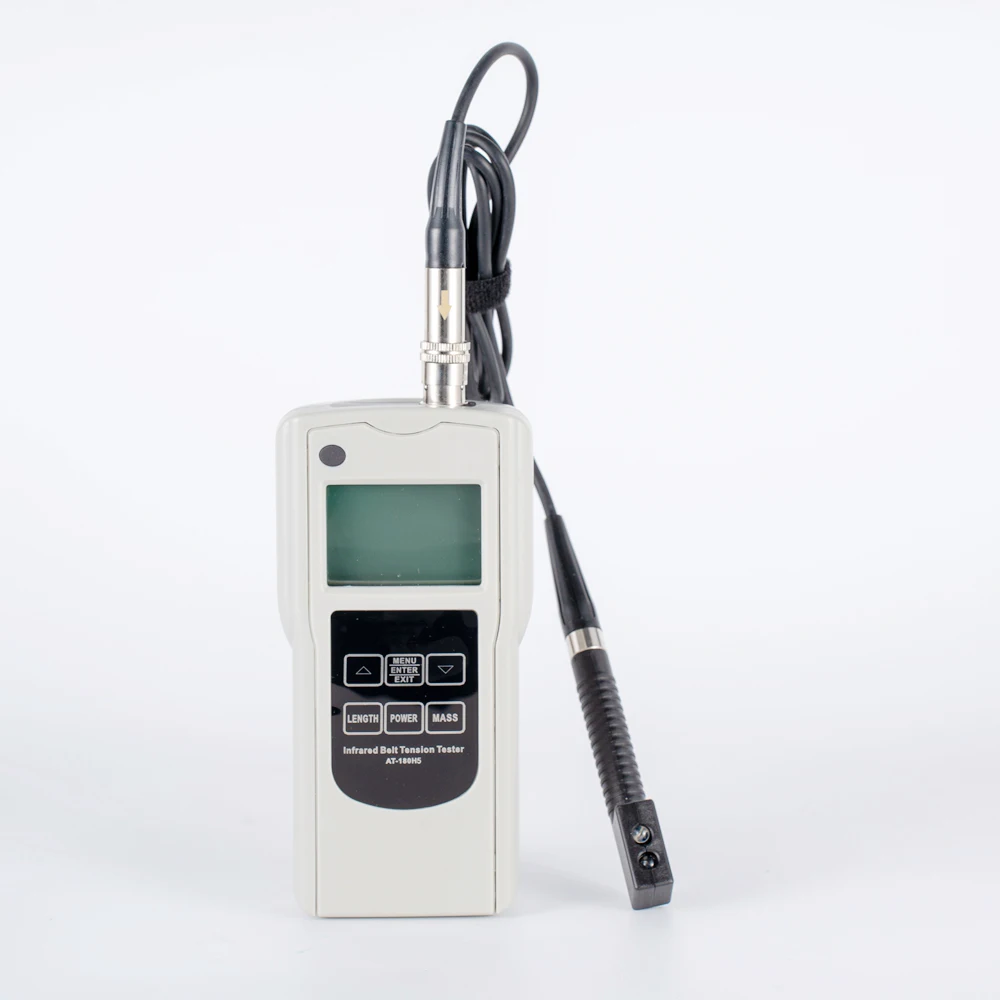

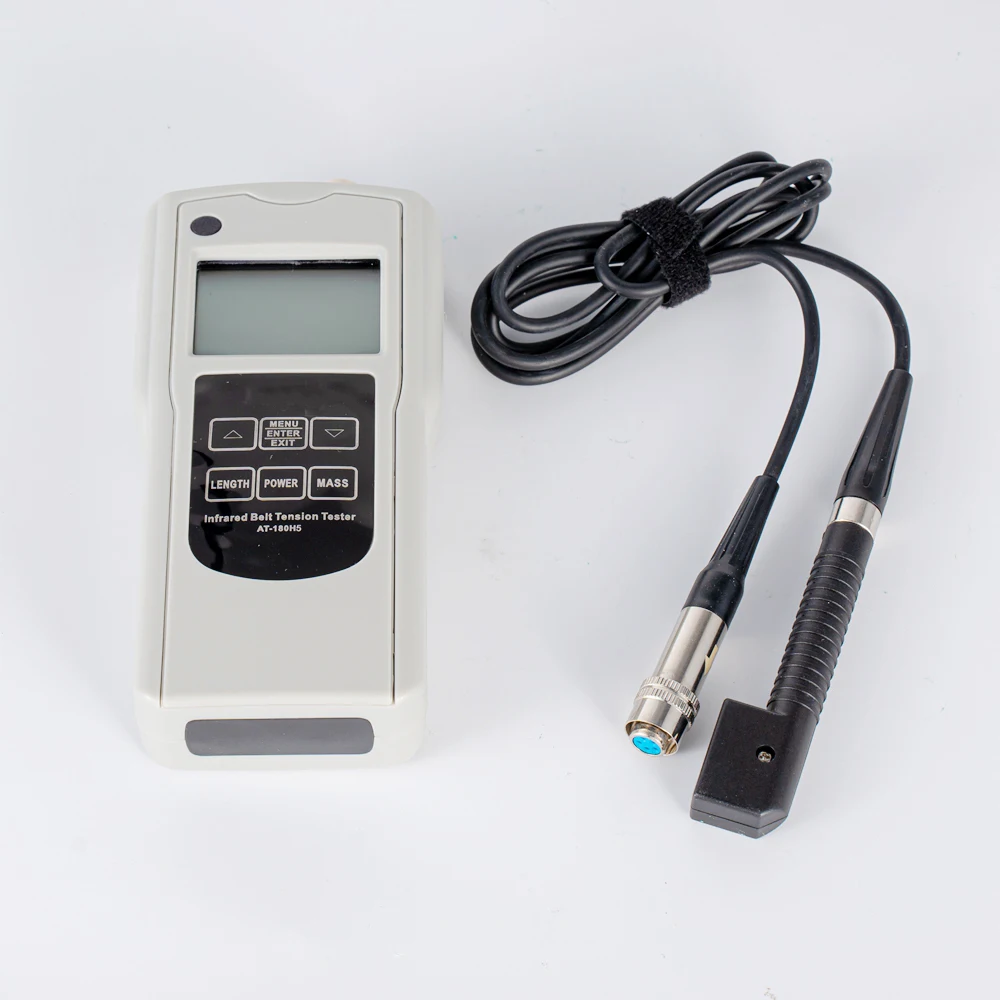

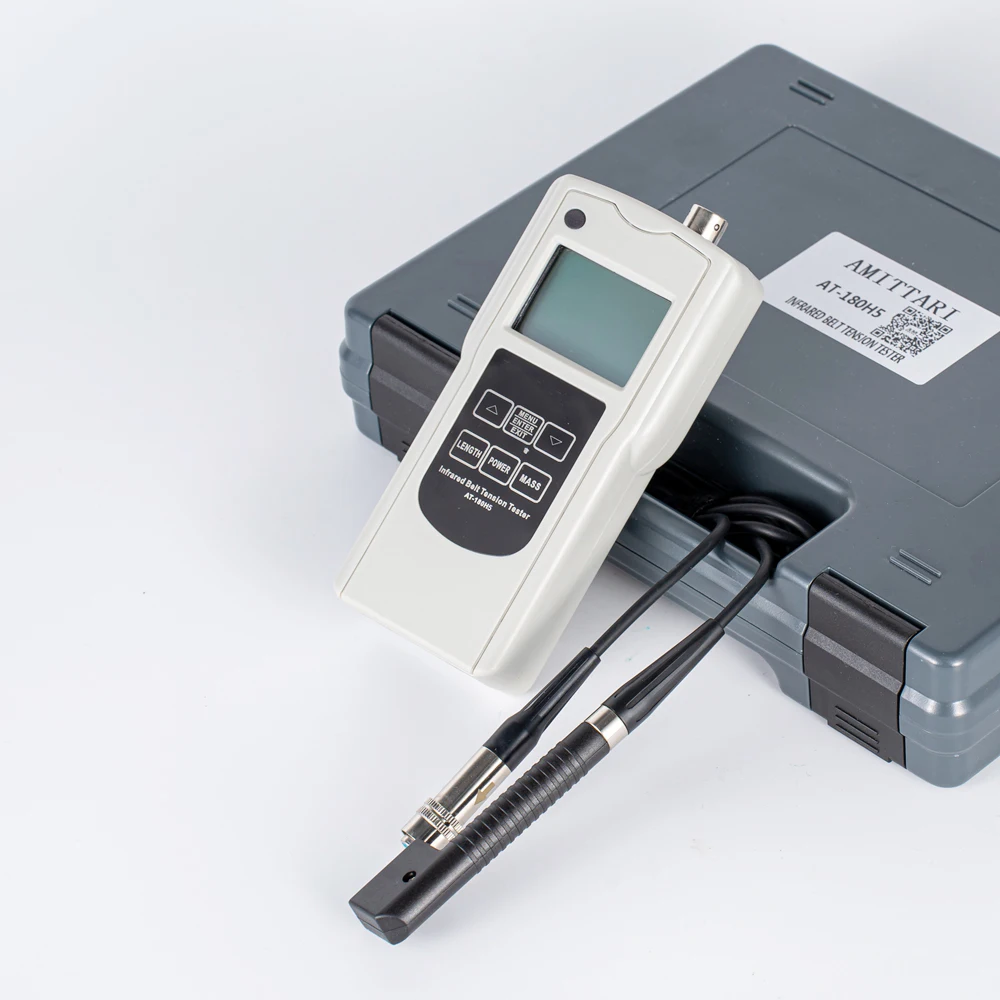

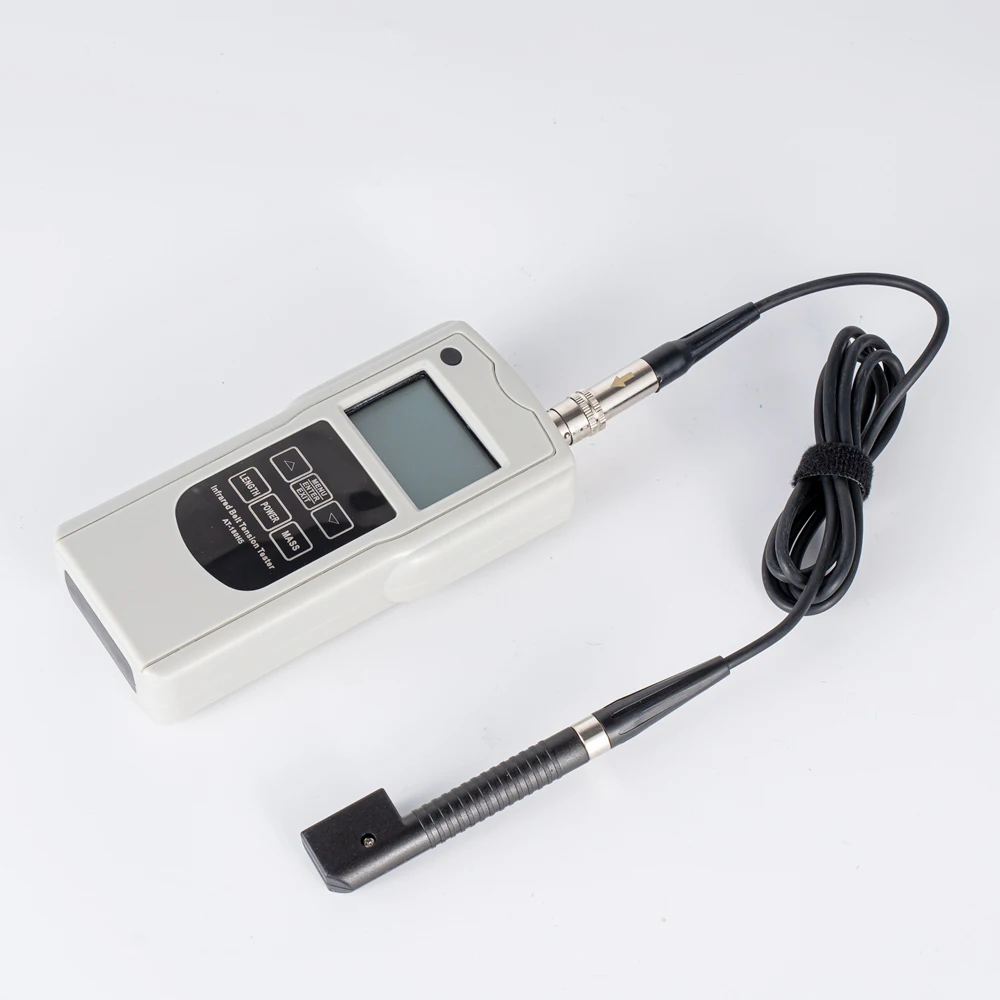

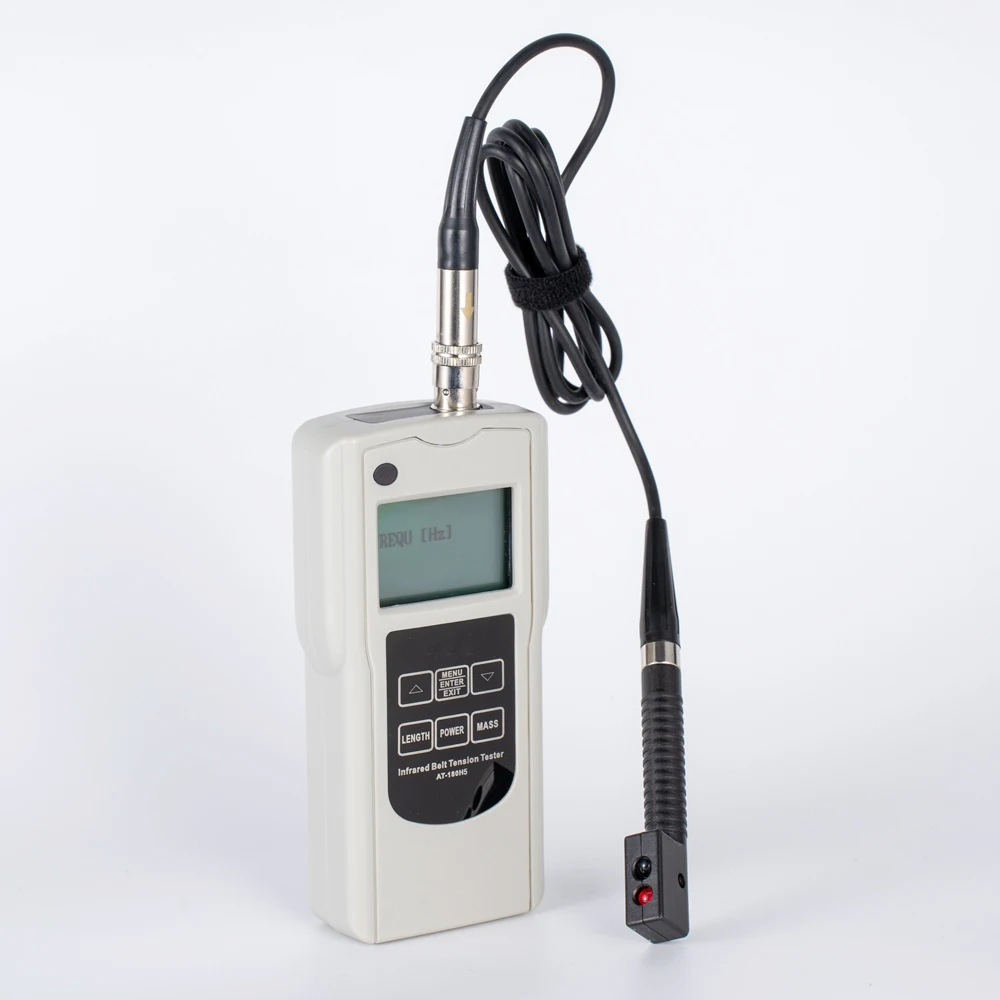

AT-180H5 Infrared Belt Tension Tester

Product Description

The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly. This tensiometer can measure the natural vibration frequency of the belt through   the   emission   and   reception   of   the   laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.

Product Feature

* Using laser sensor, direct measurement, more convenient than mechanical sensor.

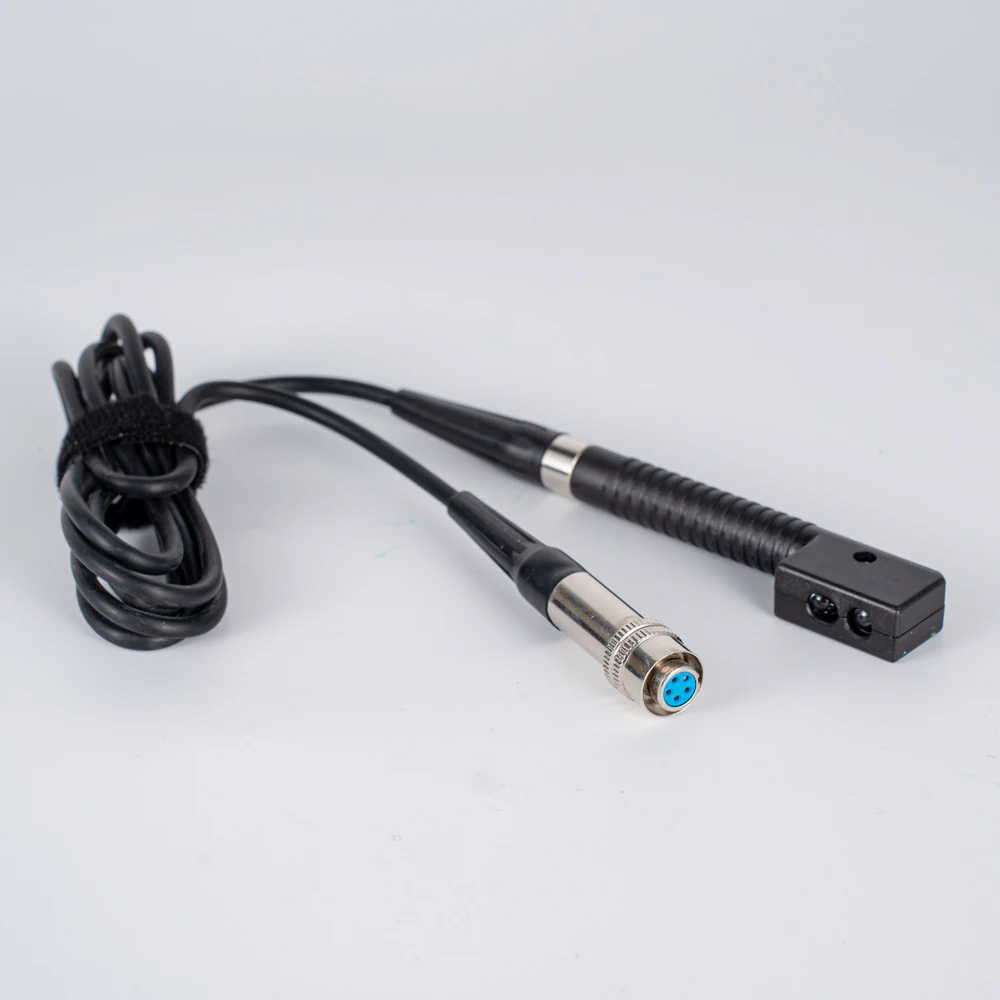

* The size of the split sensor is small, which is suitable for measuring in a narrow space.
* Metric or imperial units can be used to display readings.
* With automatic power off function.

Product Parameters

Measuring Range

10~500Hz
Input Range
 Free Belt Length Max 99.99m
Belt Mass Max 9.999kg/m
Digital Sampling Error <1%
Display Error ±1Hz
Total Error
 <5%
Operating Temperature +10~50°C
Transportation Temperature -5~70°C
Display LCD
Unit of Measurement

Metric: m, kg/m, N
Imperial: Inch, lbs/foot, lbf
Optical Path Distance 3~20mm
Depth of Split Sensor About 66mm
Size Main Unit: 140x70x31mm   5.5×2.8×1.2inch
Sensor: 124x21x12mm   4.9×0.8×0.5inch
Weight
 130g (including batteries)   4 . 59oz

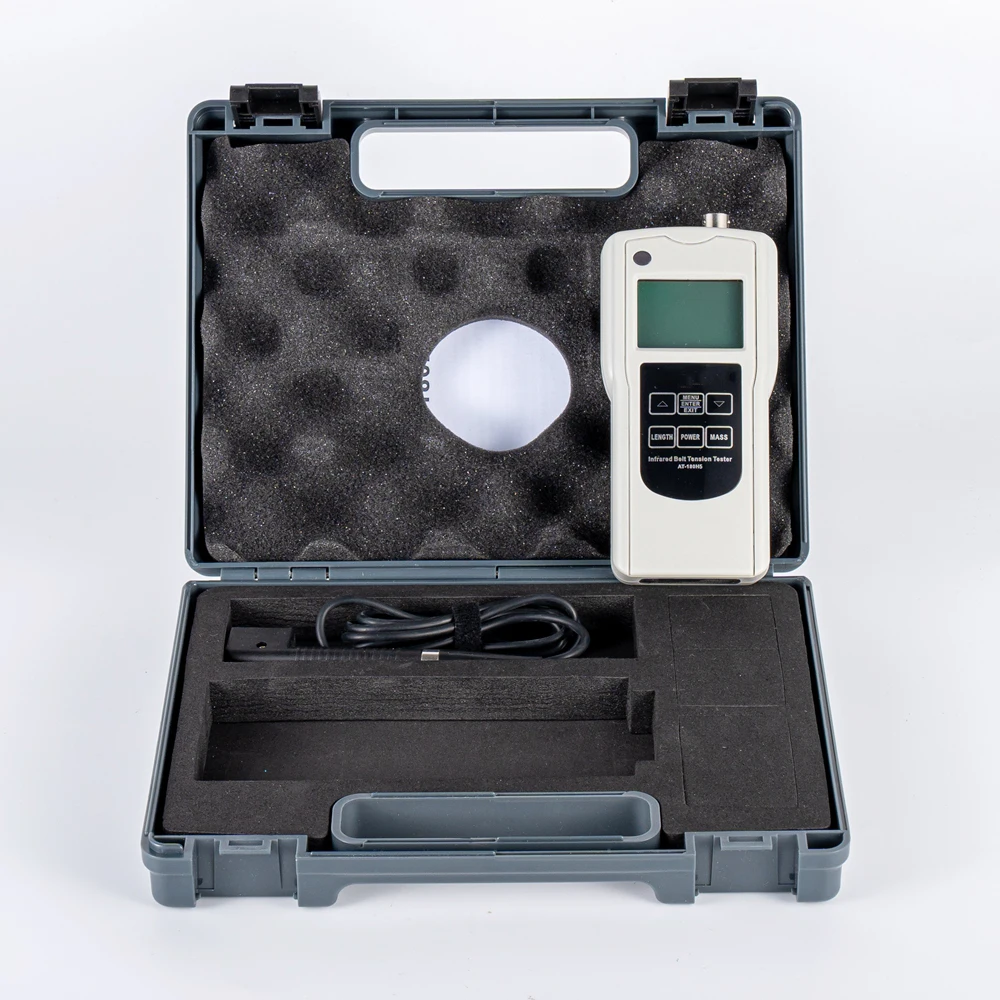

Standard Accessories

 Main Unit

Split Sensor
Carrying Case
Operation Manual
