Price range: $445.00 through $855.00

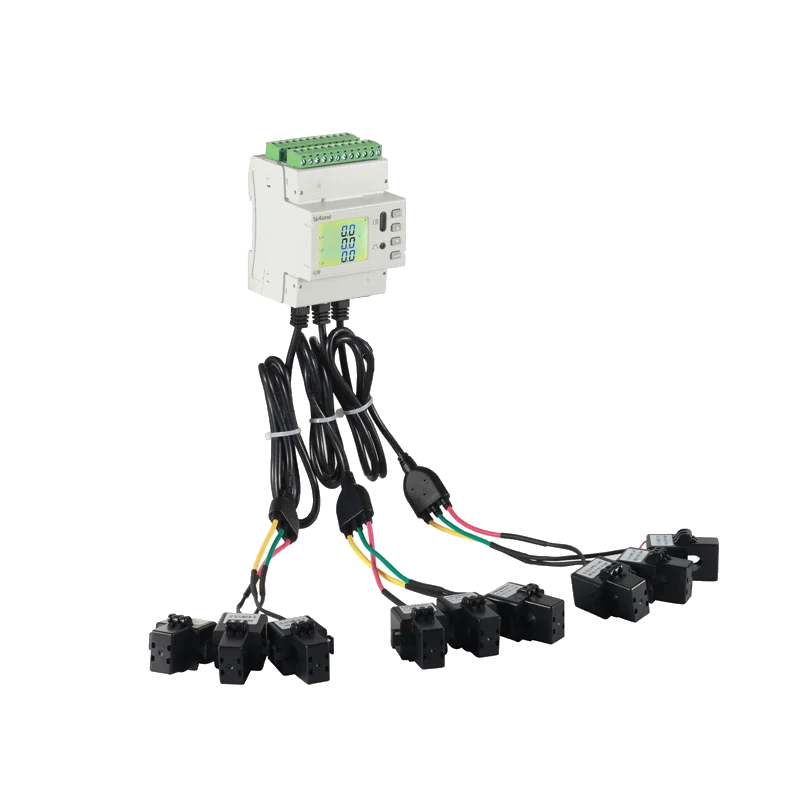

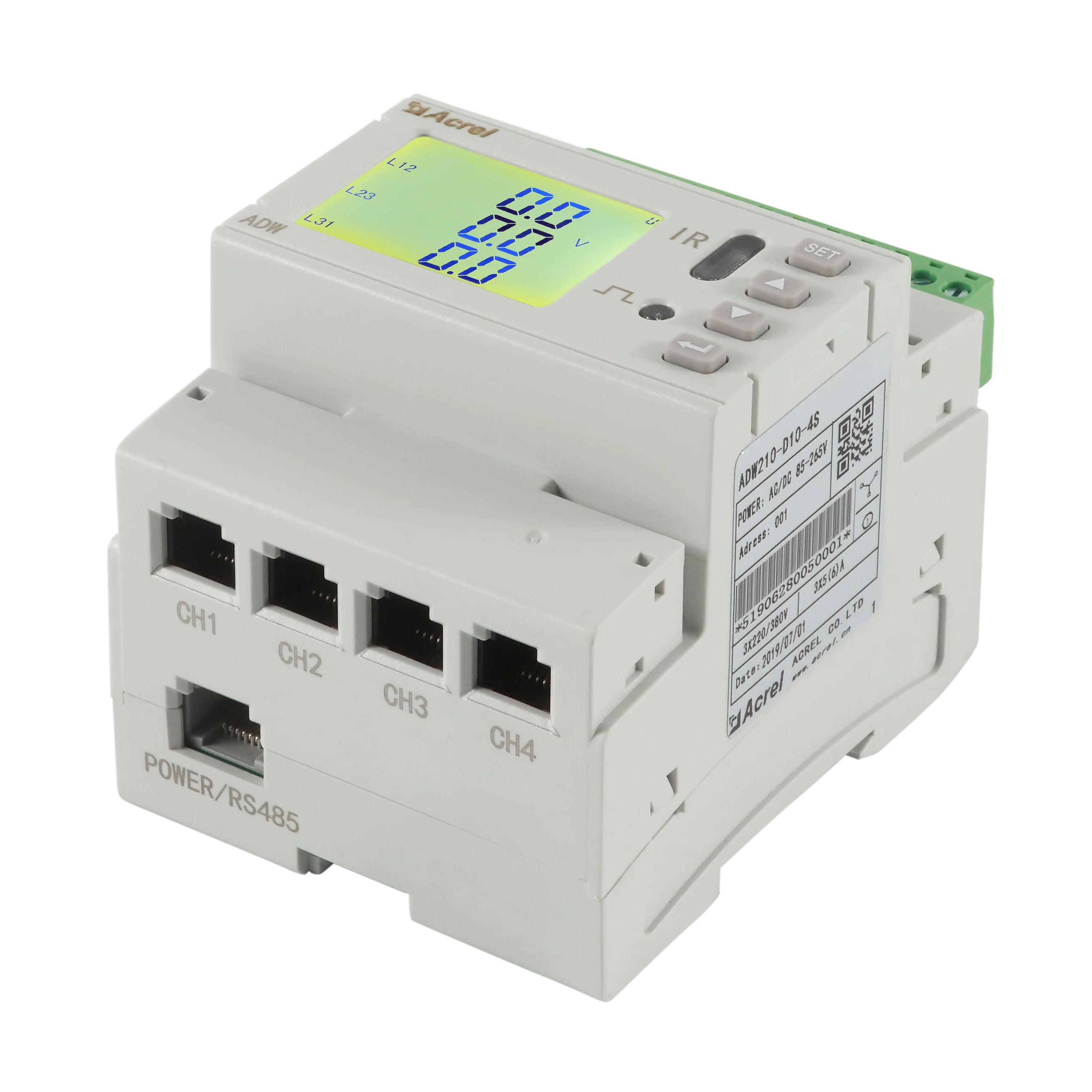

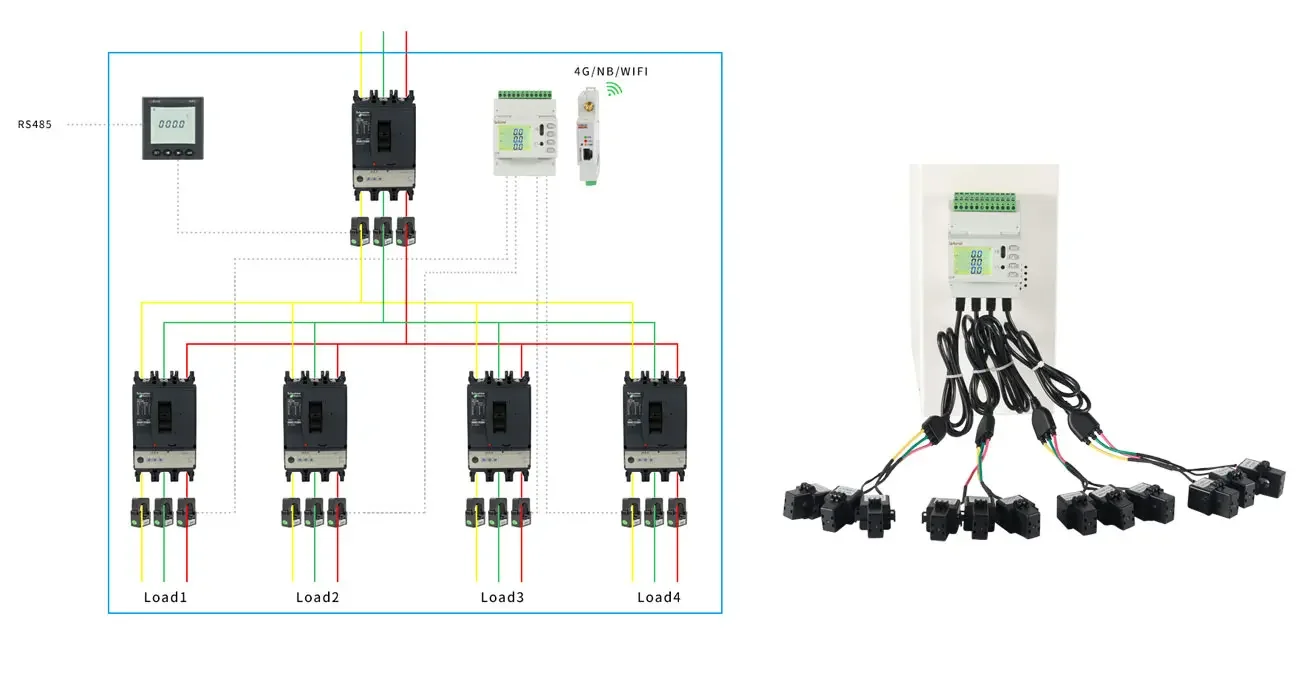

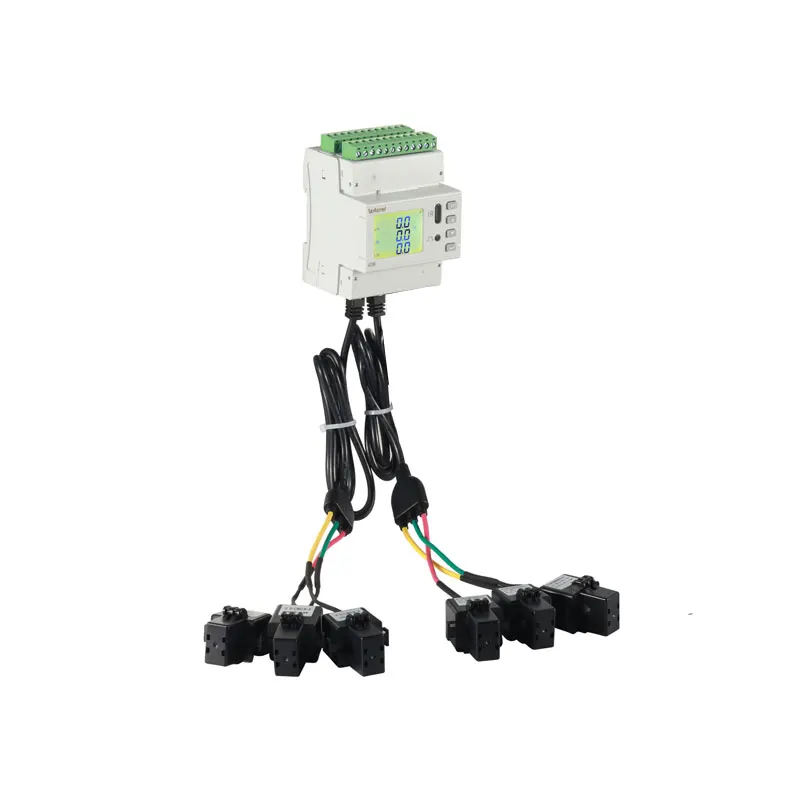

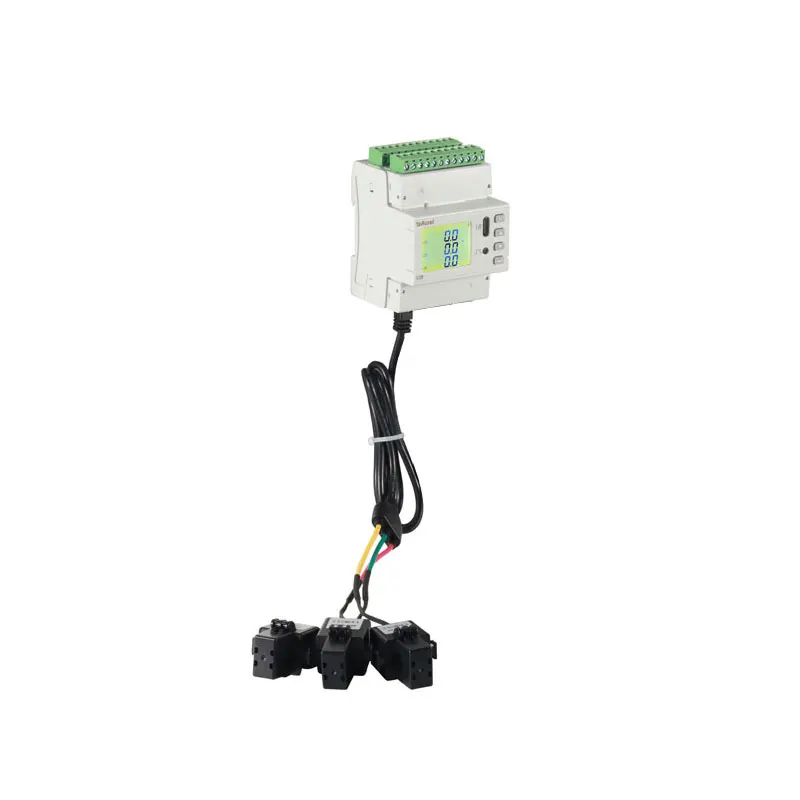

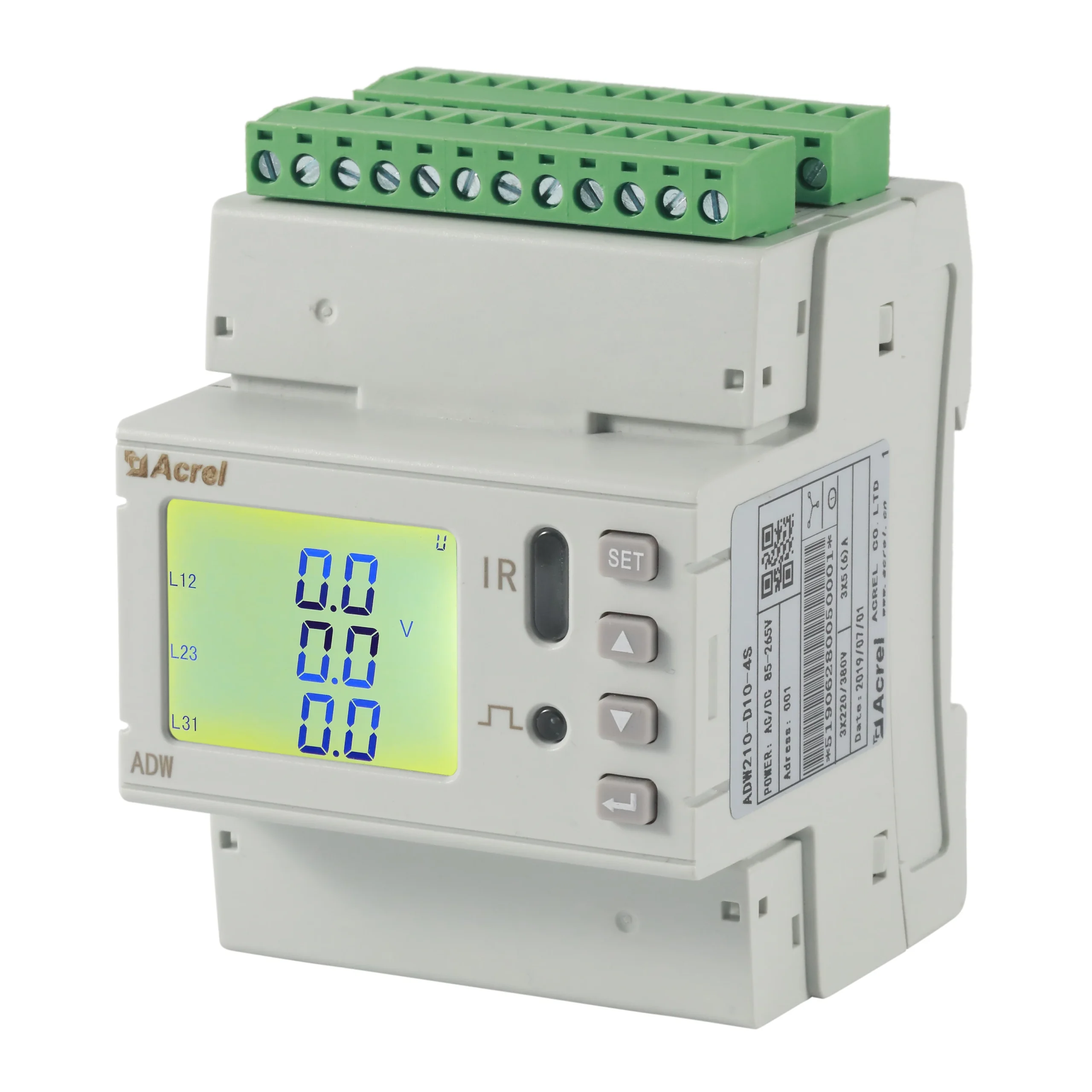

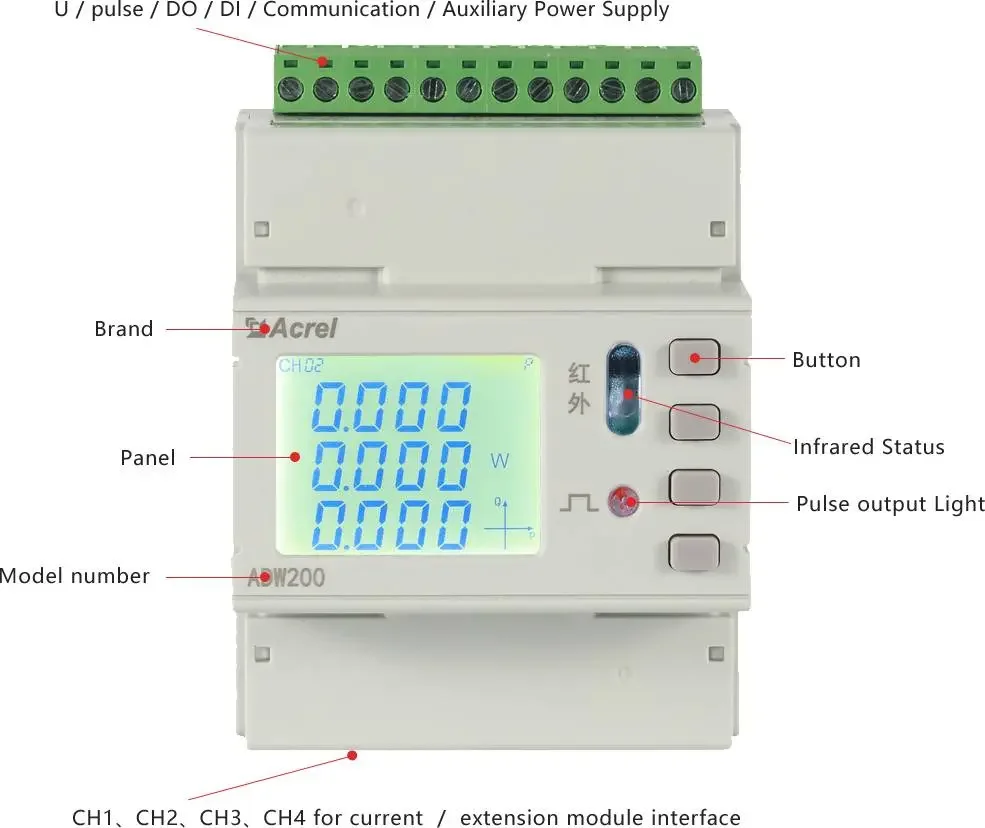

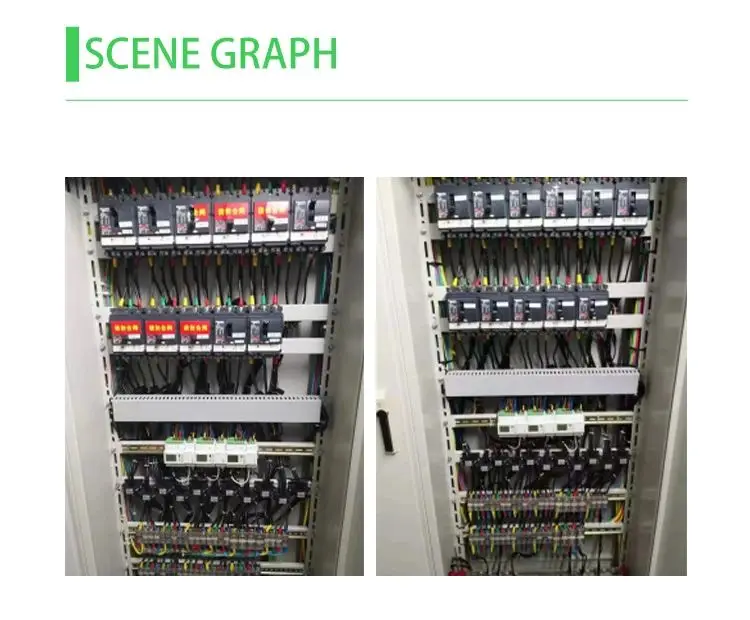

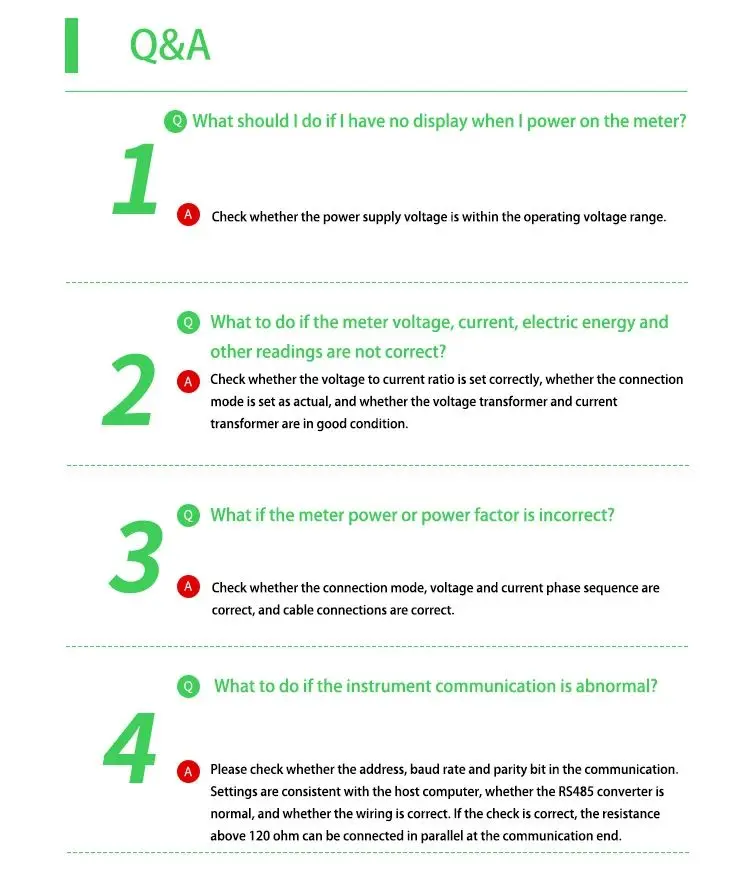

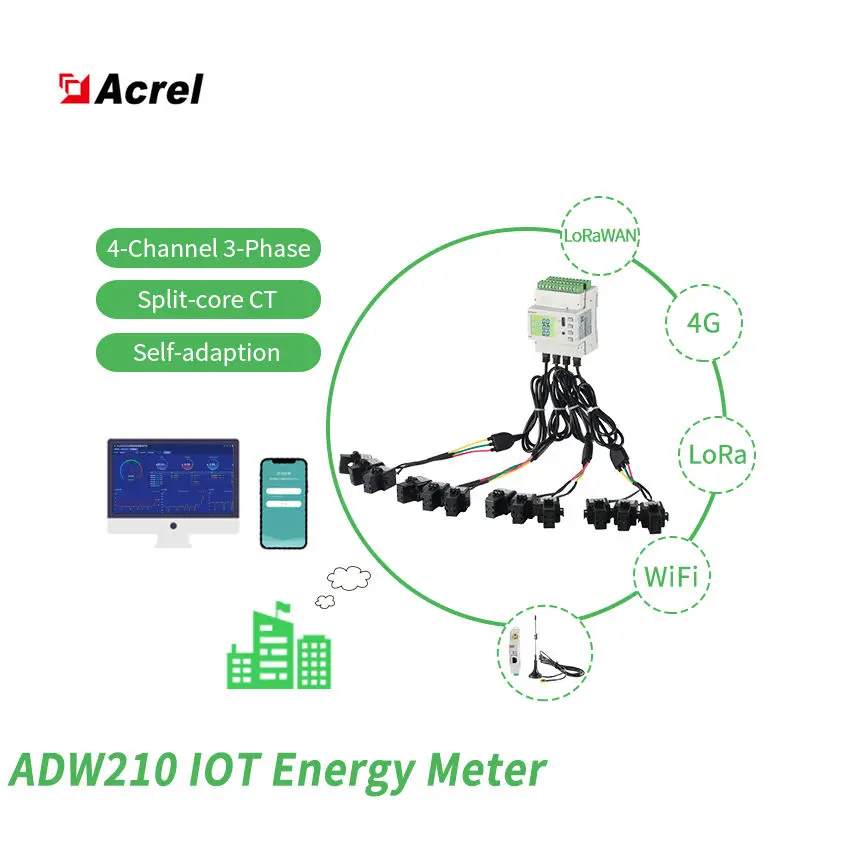

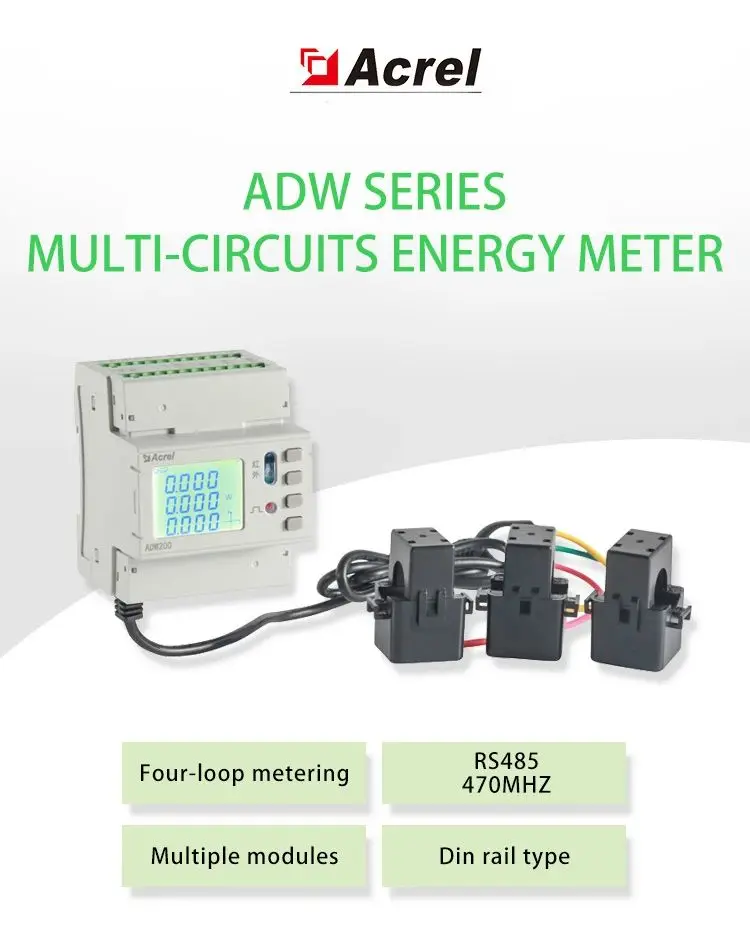

ADW210 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit.Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.
|
Picture |
Specification |
Optional |
|
|
● Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31st Harmonic and etc
● Voltage Rating: 3x220V/380V AC (3P4W)
● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)
● Frequency: 45~65Hz
● Communication: RS485 (MODBUS-RTU)
●Switching: 2DI/2DO
● Display: LCD

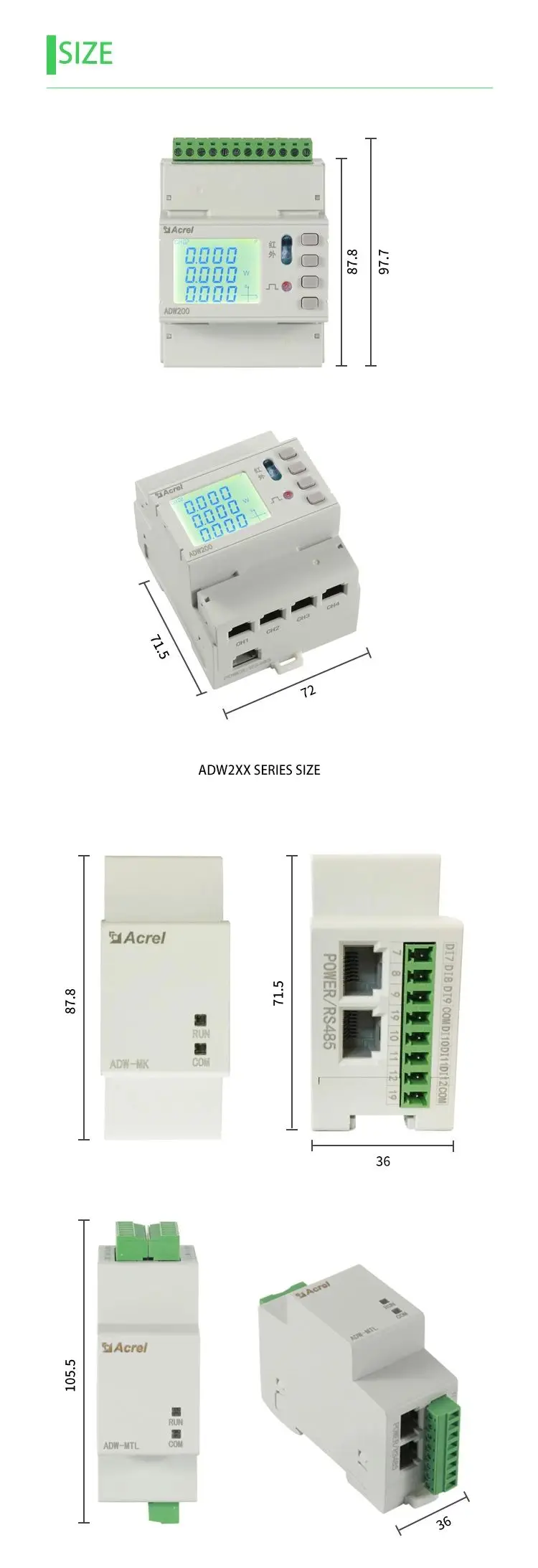

● Dimension: 87.8*72*97.7mm（L*W*H) — Main Body

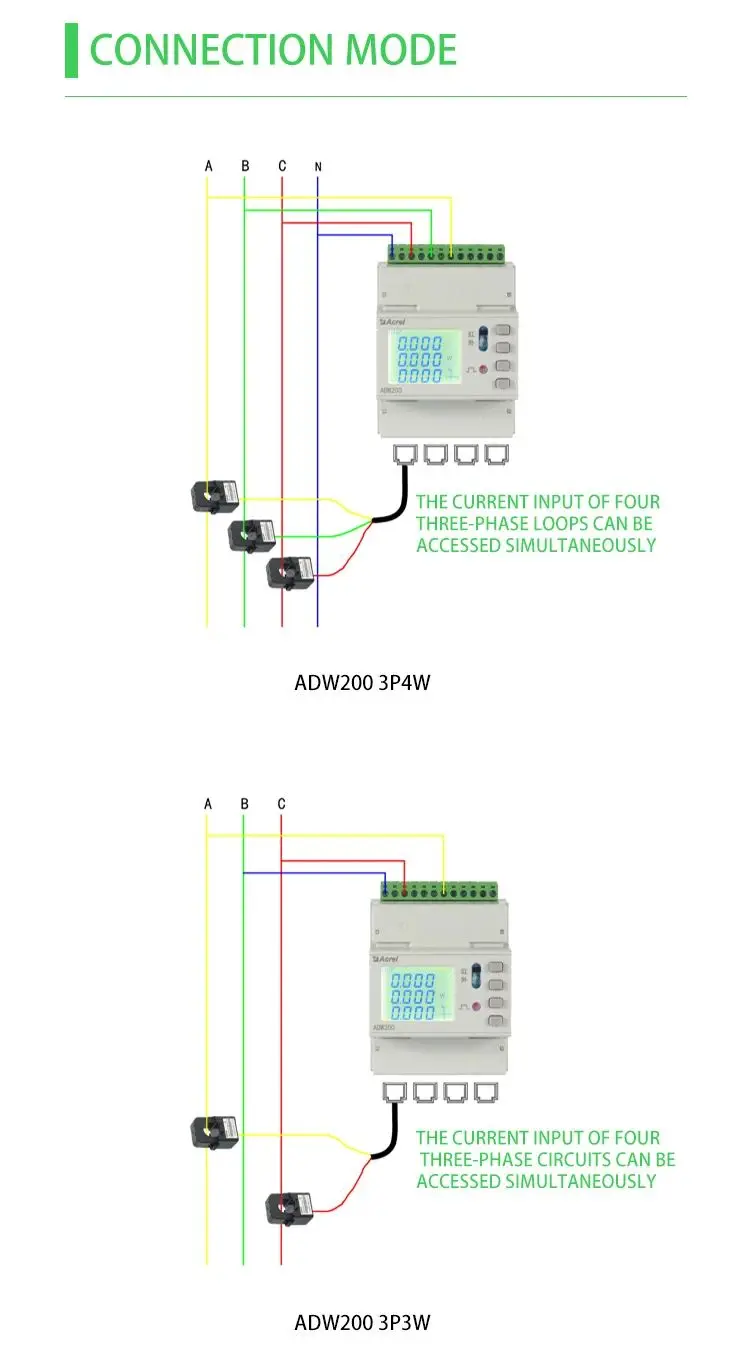

● Wiring: 3-phase 4-wire Connection

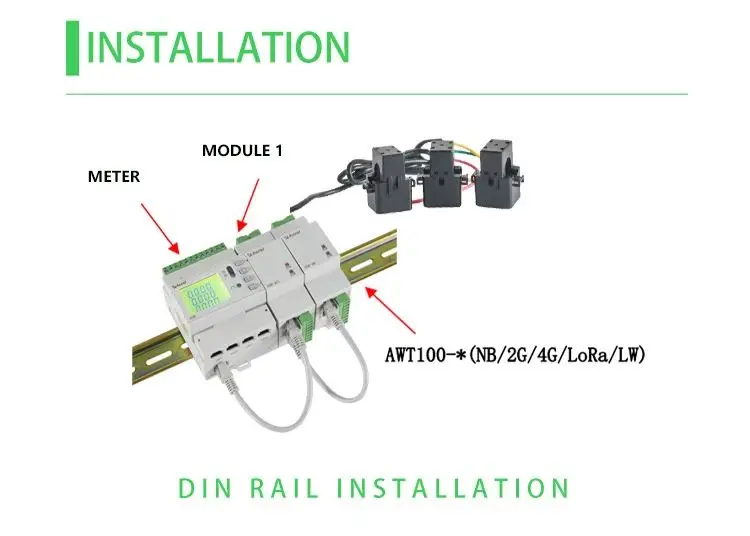

● Installation: 35mm DIN Rail
● Standard&Certificate: CE; LVD
|

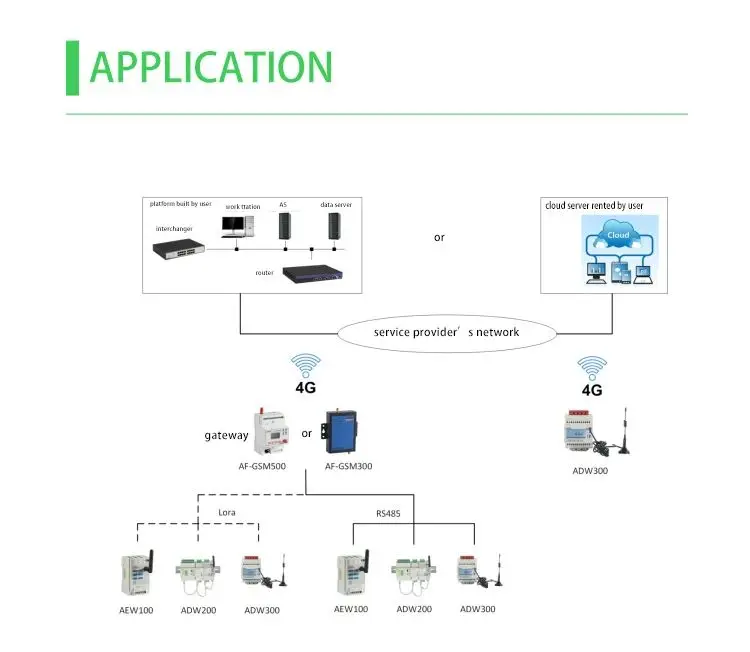

● Expanded Communication: AWT100 Gateway Wireless Communication. (Downlink: RS485; Uplink: WiFi, 4G, 2G, NB, Lora, LoraWAN, Ethernet, GPS, Profibus) ●MTL:Cable Temperature&Residual Current Measurement ●MK:DO/DI Switch Extra Function Module |
Function
|
Function
|
Description
|
|||
|
Energy
Measurement
|
kWh (positive and negative)
|
|||
|
kvarh (positive and negative)
|
||||
|
A,B,C three-phase positive kWh
|
||||
|
Electric Parameter
|
U, I, P, Q, S, PF, Hz
|
|||
|
Harmonic
|
2-31st voltage and current harmonic
|
|||
|
Communication
|
RS485 (MODBUS-RTU); baud rate 1200~38400
|
|||
|
Key Programming
|
4 keypads to set communication and parameters
|
|||
|
Display
|
LCD display, 8 digits
|
|||
|
LED Alarm
|
Over-voltage, over-current, interruption phase
|
|||
|
Data Log
|
Maximum demanded kWh and the time it happened.
|
|||
|
SOE
|
up to 200 pcs, record on-off status of DO/DI
|
|||
|
Pulse Output
|
Active optocoupler pulse output with open collector
|
|||
|
Multi-rate/Tariff
|
4 time zones & 12 time periods
|
|||
Technical Parameters (Main body)
|
Parameters
|
Description
|
|||
|
Input
|
Voltage
|
AC 3×220V/380V
|
||
|
Overload: 1.2 times of rated value (continuous); 2 times of rated
value / 1s |
||||
|
Power consumption:≤ 0.5VA
|
||||
|
Current
|
AC 5A,100A,400A,600A;(external open-type CT)
|
|||
|
Overload: 1.2 times of rated value (continuous); 10 times
of rated value / 1s |
||||
|
Power consumption:≤ 0.5VA
|
||||
|
Frequency
|
45~65Hz
|
|||
|
Measuring
Accuracy
|
Voltage&Current
|
Class 0.5
|
||
|
Active Power
|
Class 1
|
|||
|
Reactive Power
|
Class 2
|
|||
|
Frequency
|
0.05Hz
|
|||
|
2~31st harmonic
|
± 1%
|
|||
|
Auxiliary Power
|
AC/DC 85~265V;consumption≤10VA;
|
|||
|
EMC
|
Better than grade 3
|
|||
|
Safety
|
Withstand Voltage
|
>AC 2000V/1min
|
||
|
Insulation Resistance
|
>100MΩ
|
|||
|
Environment
|
Working Temperature
|
-20℃~+60℃
|
||
|
Storage Temperature
|
-40℃~+70℃
|
|||
|
Humidity
|
≤95% (No condensation)
|
|||
|
Altitude
|
≤2500m
|
|||

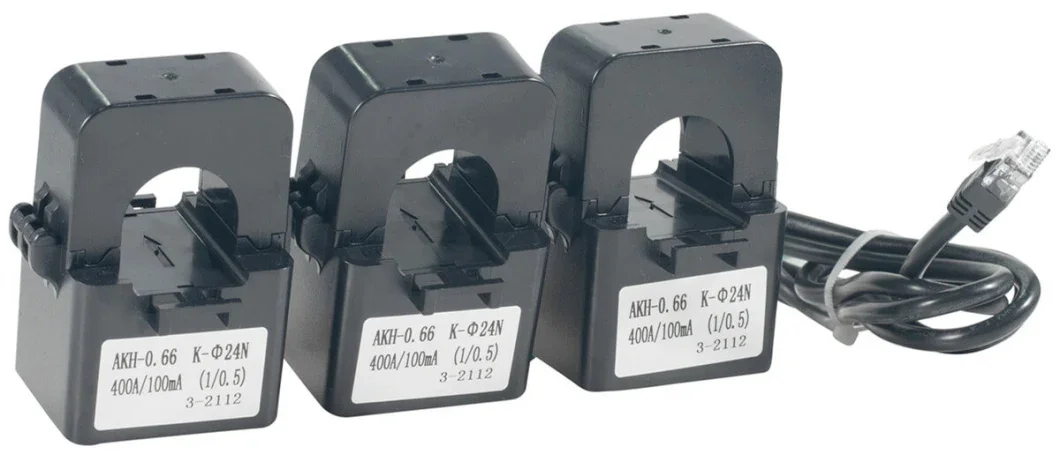

Technical Parameters (paired Current Transformer)
|
Paired CT
|
Primary Current
|
Secondary Current
|
Aperture(Hole size)
|
Accuracy Class
|
|
AKH-0.66/K-φ10N
|
5A
|
1.25mA
|
10mm
|
Class 0.5
|
|
AKH-0.66/K-φ16N
|
100A
|
20mA
|
16mm
|
Class 0.5
|
|
AKH-0.66/K-φ24N
|
400A
|
100mA
|
24mm
|
Class 0.5
|
|
AKH-0.66/K-φ36N
|
600A
|
100mA
|
36mm
|
Class 0.5
|
