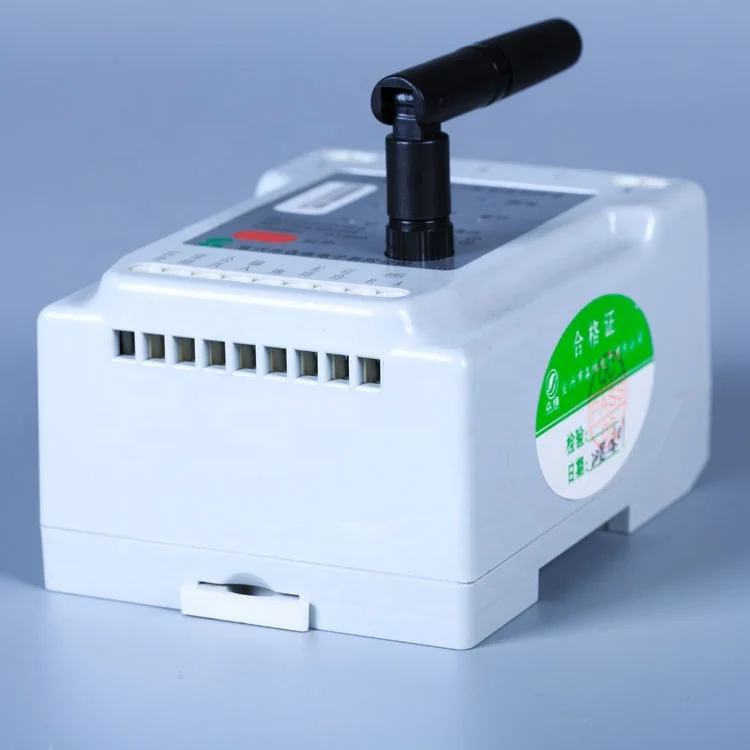

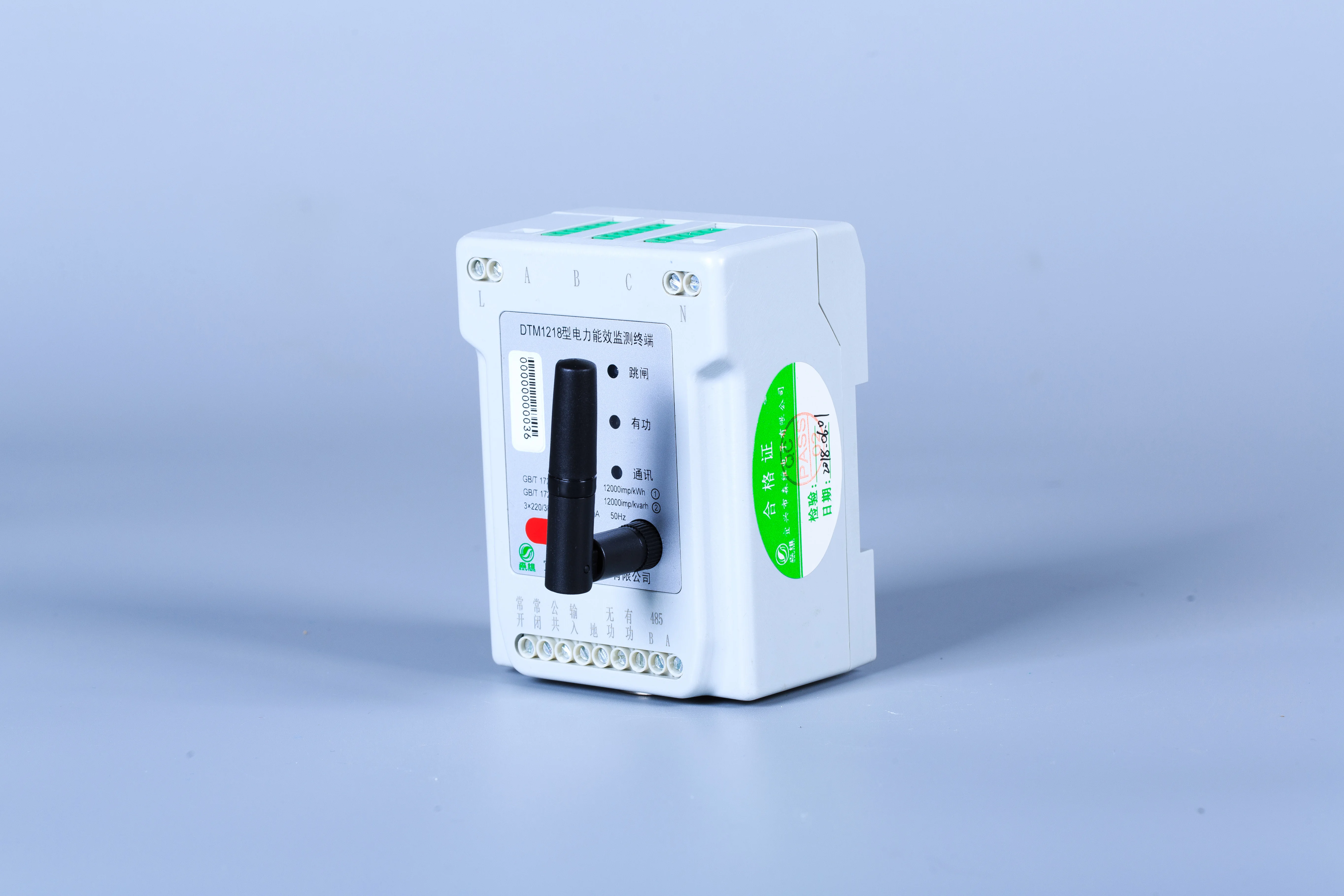

4G Three-phase Energy Analyzer Power Quality Analyser 400A Efficiency Monitoring Terminal with CT Sensor

$475.00

88 in stock

SKU: 3256805783586741 Category:

Product Description

Product Specifications
Voltage Input
Rated Voltage
3×220/380 V , 3×100 V
Reference Frequency
50Hz
Voltage Line Power Consumption
≤ 1 W and 3 VA (Static)
Current input
Input Current
5A,100A,200A,400A,600A
Starting Current
0.004In (Level 1)
Current Line Power Consumption
＜1 VA
Measurement Accuracy
Meritorious
Level 1
Reactive Power
Level 2
Measurement Performance
Power
±1%
Valid value
±0.5%
Clock accuracy
0.5 S / Day
Signal Communication
Communication
RS485:2400 bps
Micro Power Wireless: 470 MHz
GPRS: 900/1800 MHz
Communication Protocol
DL/T645–2007 or MODEBUS
Pulse
Pulse Constant
6400 imp/kWh,400 imp/kWh
Product Parameter
Product Functions

1. Special metering chip with high precision, high sensitivity, high stability, wide range and low power consumption

2.It can measure 4 channels of positive and negative active electric energy of phase a, B and C, current positive and negative active electric energy of phase a, B and C, combined active electric energy, etc
3.Power energy efficiency monitoring terminal (4 channels) can measure 4 channels of current, voltage, active power, reactive power, instantaneous power, power factor, etc
4.The main components are high-quality components designed for electronic energy meters.
5.Communication function: Standard 1-channel RS485 communication interface
6.The electric energy efficiency monitoring terminal (4 channels) has two sets of tariff time tables, which can be automatically converted at the agreed time; Each set of time period table supports 4 rates and 8 time periods
Product Features

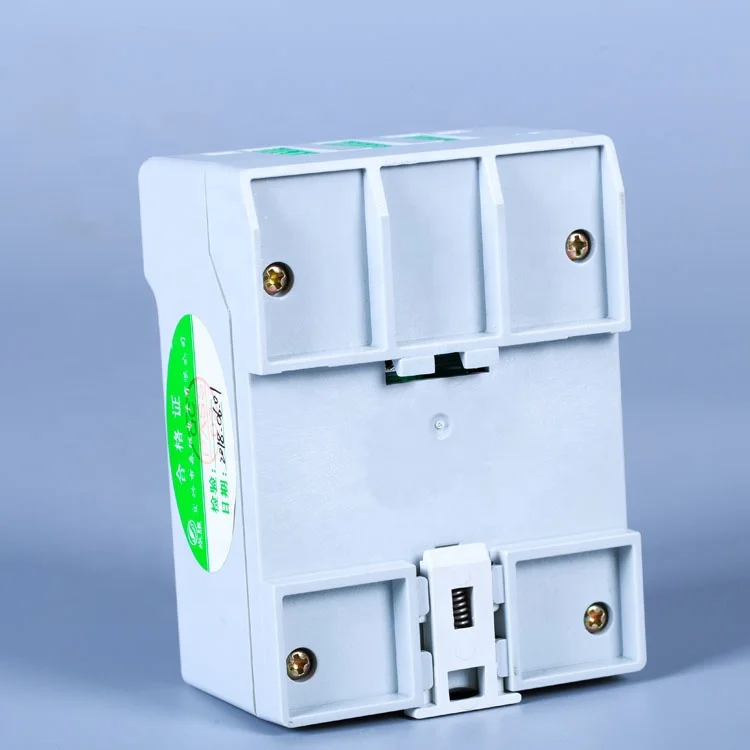

1. Guide rail installation, ultra small volume (72 * 95 * 60MM).

2. The open type transformer can be installed without power cut.
3. It has all the metering and measuring functions of 4-way three-phase multi-function electric energy meter, saving cost and space.
4. Wireless communication, simple networking and stable operation.
5. 4-way ABC three-phase 12 phase circuit power monitoring function, real-time monitoring equipment power status.
6. Support remote software upgrade.
Application
