2.Display and control of electrical parameters in mid-low voltage distribution System.
3.Collect energy consumption data that cost center analysis needs.
4.Green building or DC.
3 Phase RS485 Programmable Power Quality Analyzer Digital Monitoring Electric Energy Power Meter
$465.00
99 in stock
SKU: 3256807854199843
Category: Power Quality Analyzer
Product Description
Product Overview

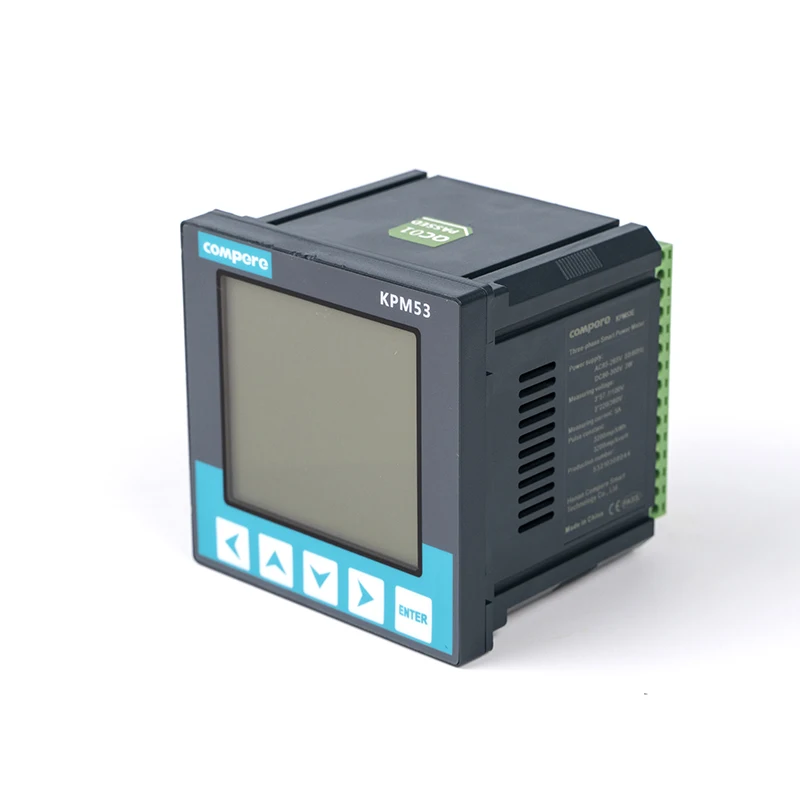

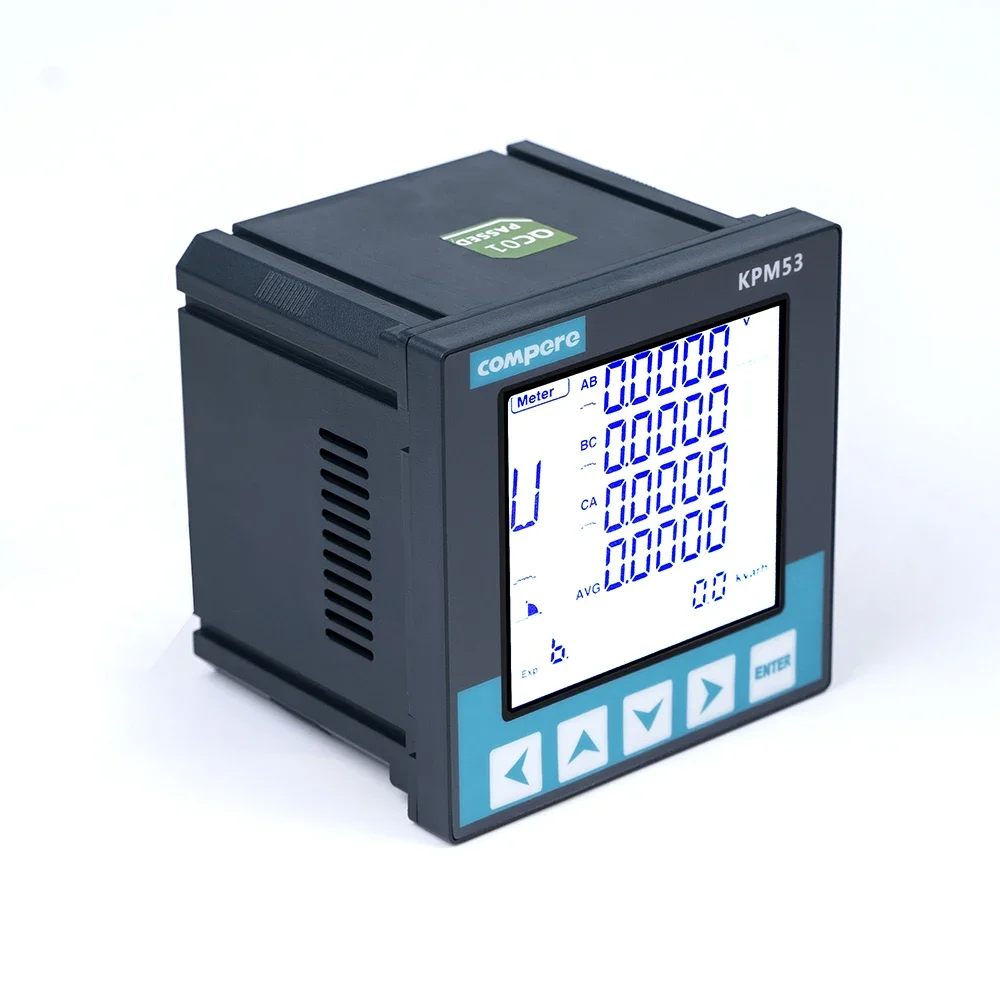

3 phase RS485 programmable power quality analyzer digital monitoring electric energy power meter

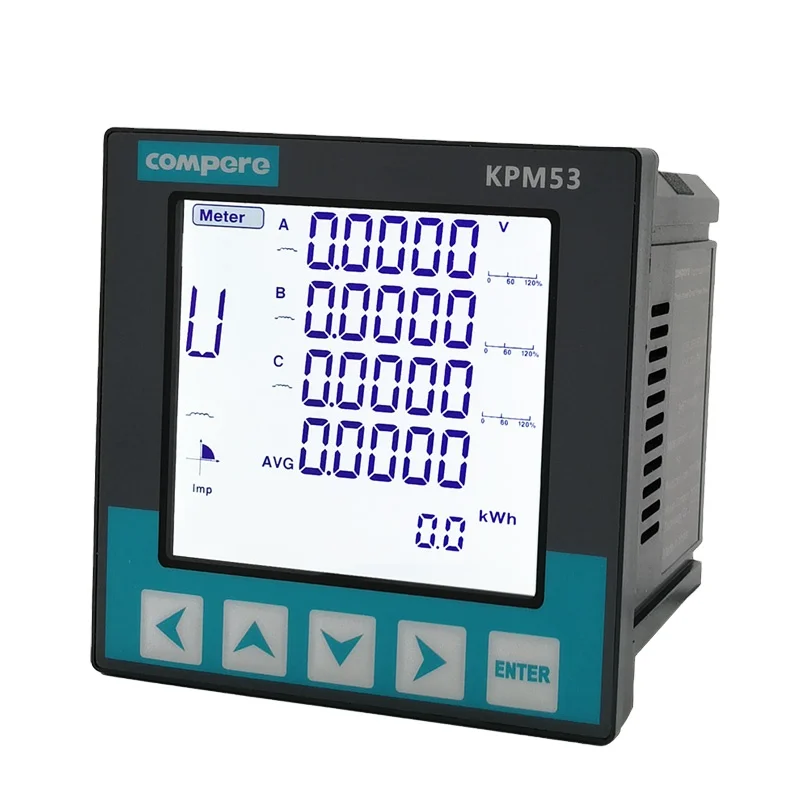

KPM53 series 3 phase RS485 programmable power quality analyzer digital monitoring electric energy power meter is used to monitoring three-phase voltage, current, power, power factor, frequency, etc. electrical parameters with LCD display, power statistics, power quality analysis, digital input/Output and network communications in one.

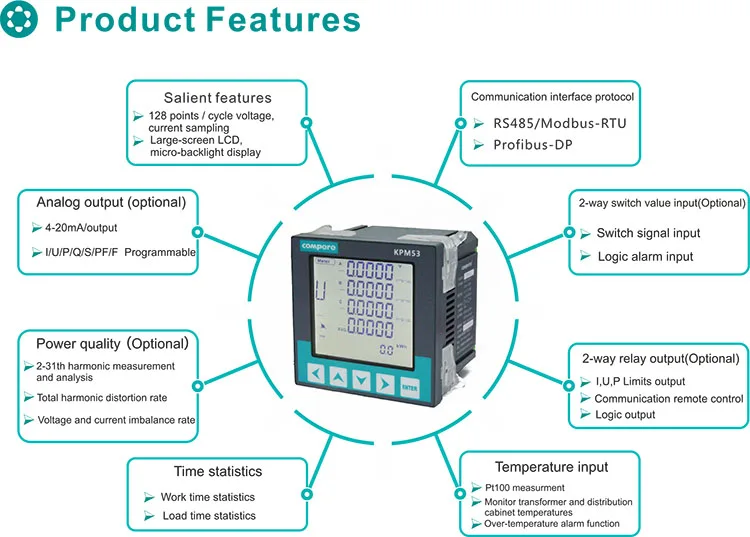

FEATURES AT A GLANCE
1.Alternative analog pointer table.

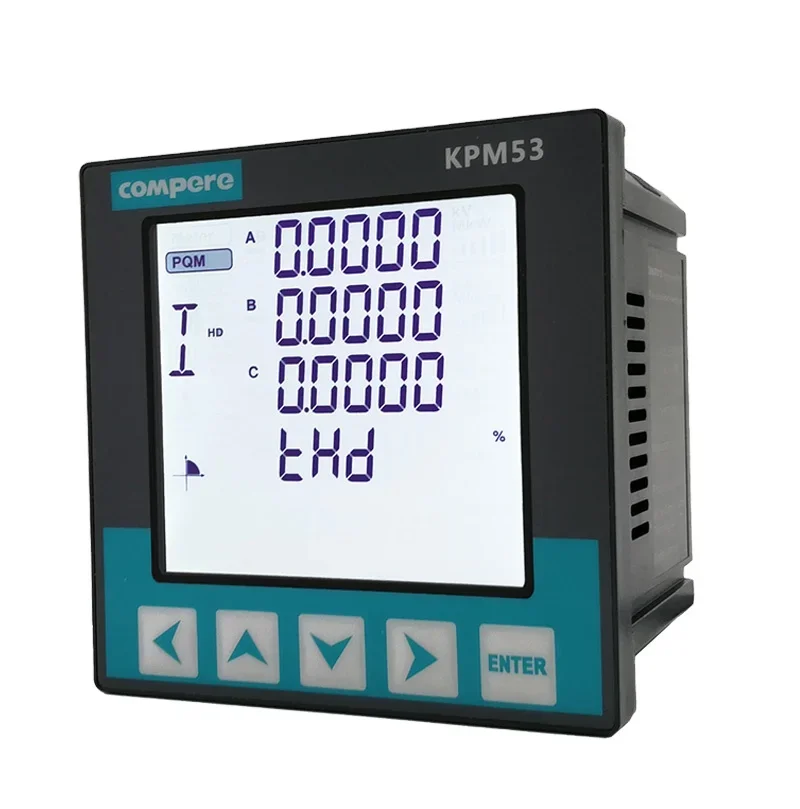

Details Images
Product Paramenters
|
Technical Parameters
|
|
|
|
|
||||
|

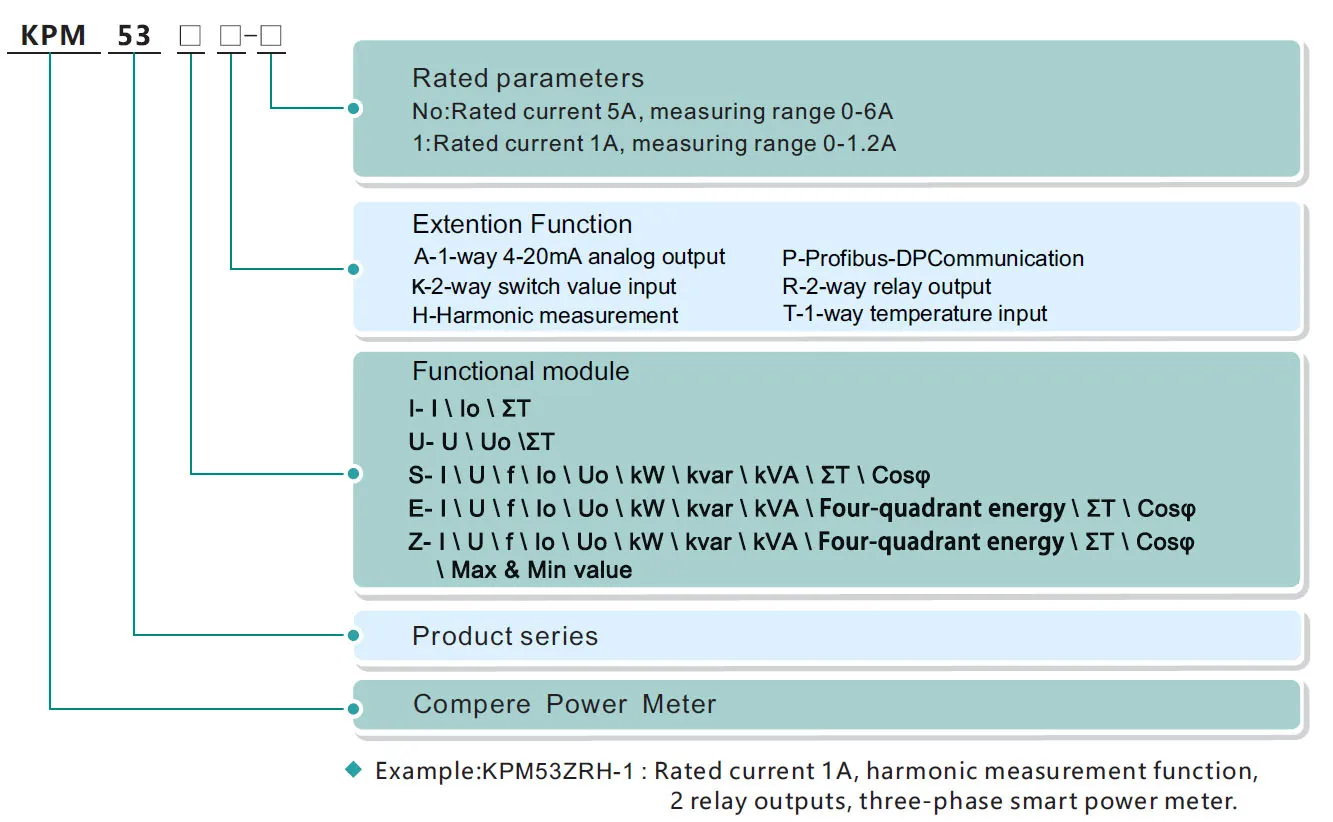

KPM 53 3 phase RS485 programmable power quality analyzer digital monitoring electric energy power meter
|
|
|
|
|
||||
|
Accuracy Class
|
|
Voltage: 0.2; Current: 0.2; Frequency: 0.02 Hz; Power Factor: 0.5
|
|
|
||||
|
|
|
Active Power: 0.5S; Reactive Power: 2.0
|
|
|
||||
|
|
|
Active Energy: 0.5S; Reactive Energy: 2.0
|
|
|
||||
|
Input
|
Rated Value
|
Voltage: 57.7/100V, 220/380V,380/660V
Current: 1A(0~1.2A), 5A (0~6A)
|
|
|
||||
|
|
|
|
|
|
||||
|
|
Overload
|
Voltage: Sustained Overload: 1.2 times of the rated value
|
|
|
||||
|
|
|
Momentary Overload: 2 times of the rated value, allows 1s
|
|
|
||||
|
|
|
Current: Sustained Overload: 1.2 times of the rated value
|
|
|
||||
|
|
|
Momentary Overload: 20 times of the rated value, allows 1s
|
|
|
||||
|
|
Frequency
|
45-60Hz
|
|
|
||||
|
Functional Module
|
Pulse Output
|
1
|
|
|
||||
|
|
Interface
|
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps
|
|
|
||||
|
Power Supply
|
Working Range
|
AC: 85-265V; DC: 80-300V
|
|
|
||||
|
|
Consumption
|
< 3VA
|
|
|
||||
|
Working Condition
|
Temperature
|
Operating: -25°C~+70°C. Storage: -30°C~ +75°C
|
|
|
||||
|
|
Humidity
|
5%~95% No condensation
|
|
|
||||
|
|
Altitude
|
<4000m
|
|
|
||||
|
Dimensions:
|
|
96×96×88mm
|
|
|
||||
Product packaging
Certifications
R&D Dept.
More than 40 R&D engineer, including software team, hardware team.

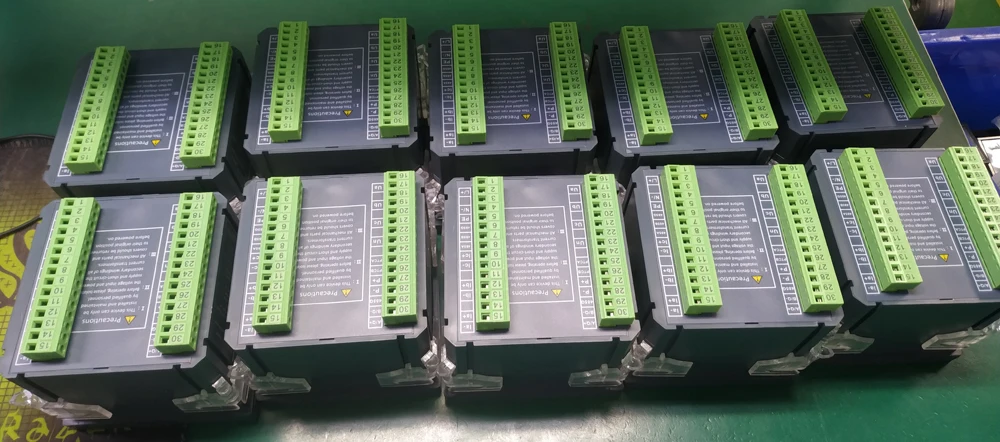

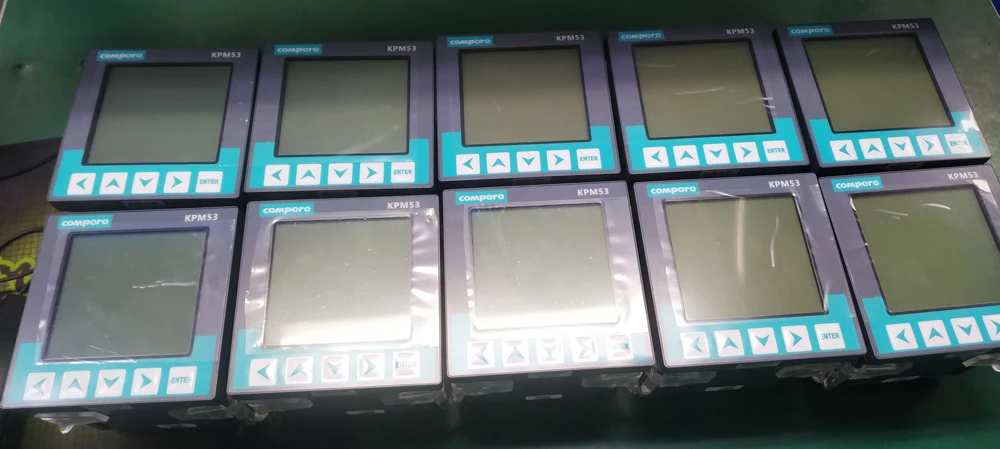

Production shop
Lean production management, guarantee product delivery and quality.
