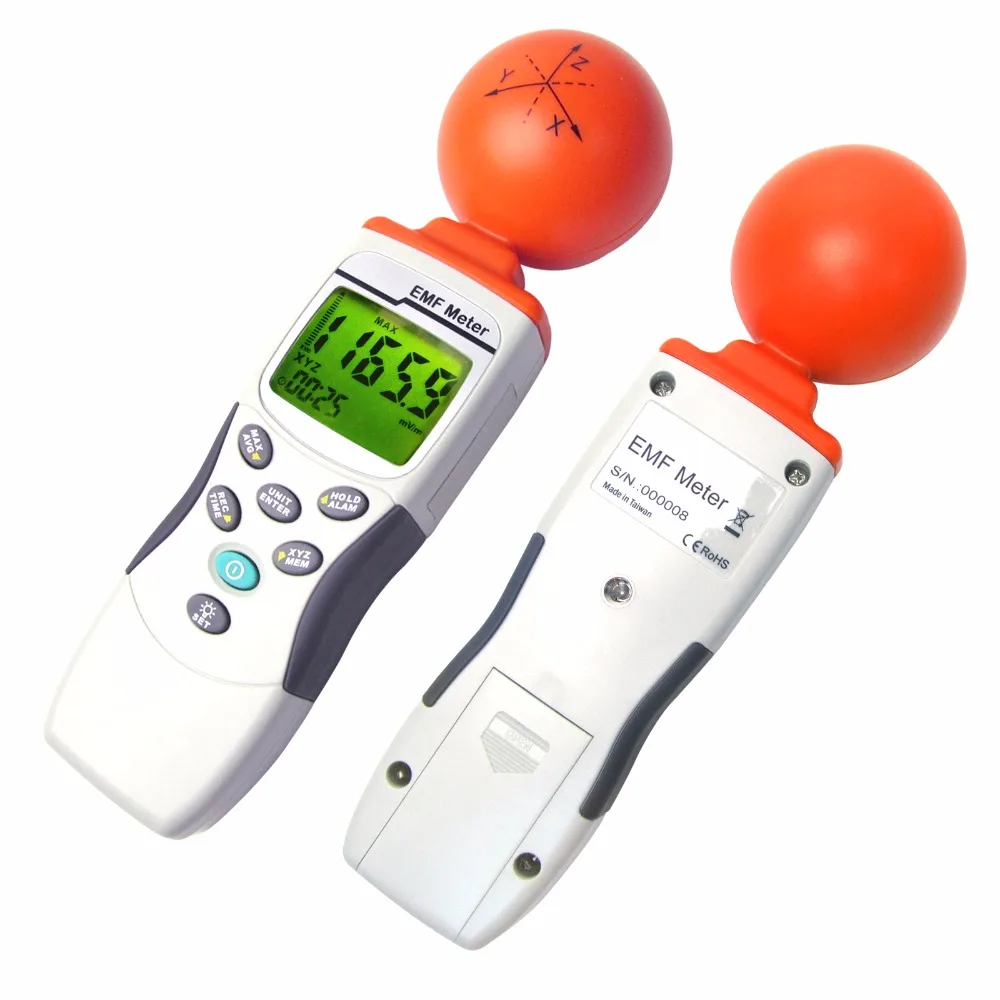

This broadband EMF/RF Field Strength Meter for monitoring high frequency radiation with 50MHz to 3.50GHz measuring range is designed to measure the electromagnetic field value of the Radio -Frequency. The It can do a non-directional (isotropic) measurement with three-channel measurement sensor. The non-directional electric field and high sensitivity also allow measurements of electric field in TEM cell and absorber rooms. Its highly dynamic with its three-channel digital results processing. It is calibrated precisely on 50MHz to 3.50GHz frequency value.

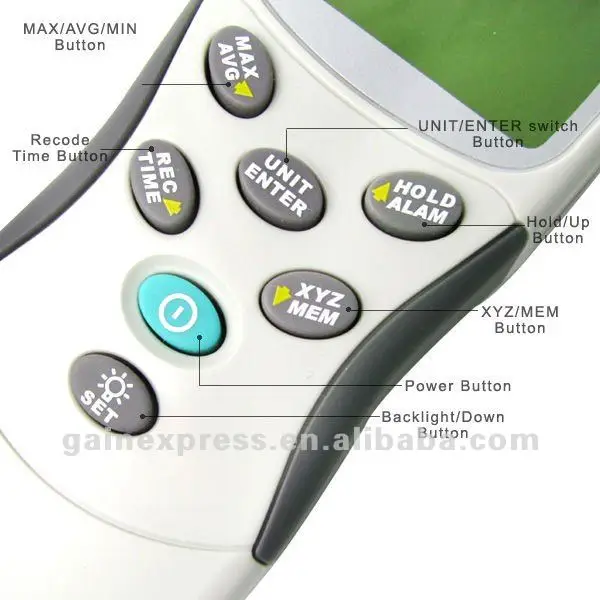

It has configurable alarm threshold, memory function, overload & low battery indication and an adjustable auto power off and memory recall functions. With User-friendly interface that makes it easy and safe to operate. Instantaneous value, maximum value measured or average value can also be set to show on screen.





The meter can be used to indicate the electromagnetic pollution generated artificially and can be used for all types of radio broadcasting and TV transmitters produce electromagnetic fields, and also can be used in industry, business and home where they affect us even if our senses perceive nothing.

• High frequency (RF) electromagnetic wave field strength measurement
• Mobile phone base station antenna radiation power density measurement
• Wireless communication application (CW, TDWA, GSM, DECT)
• RF power measurement for transmitters
• Wireless LAN (Wi-Fi) detection and installation
• Spy camera, wireless bug finder
• Cellular/Cordless phone radiation safety level
• Bluetooth
• Microwave oven leakage
• Personal living environment EMF safety

• High dynamic range due to three-channel digital results processing



• 50MHz to 3.50GHz frequency range
• For isotropic measurements of electromagnetic fields

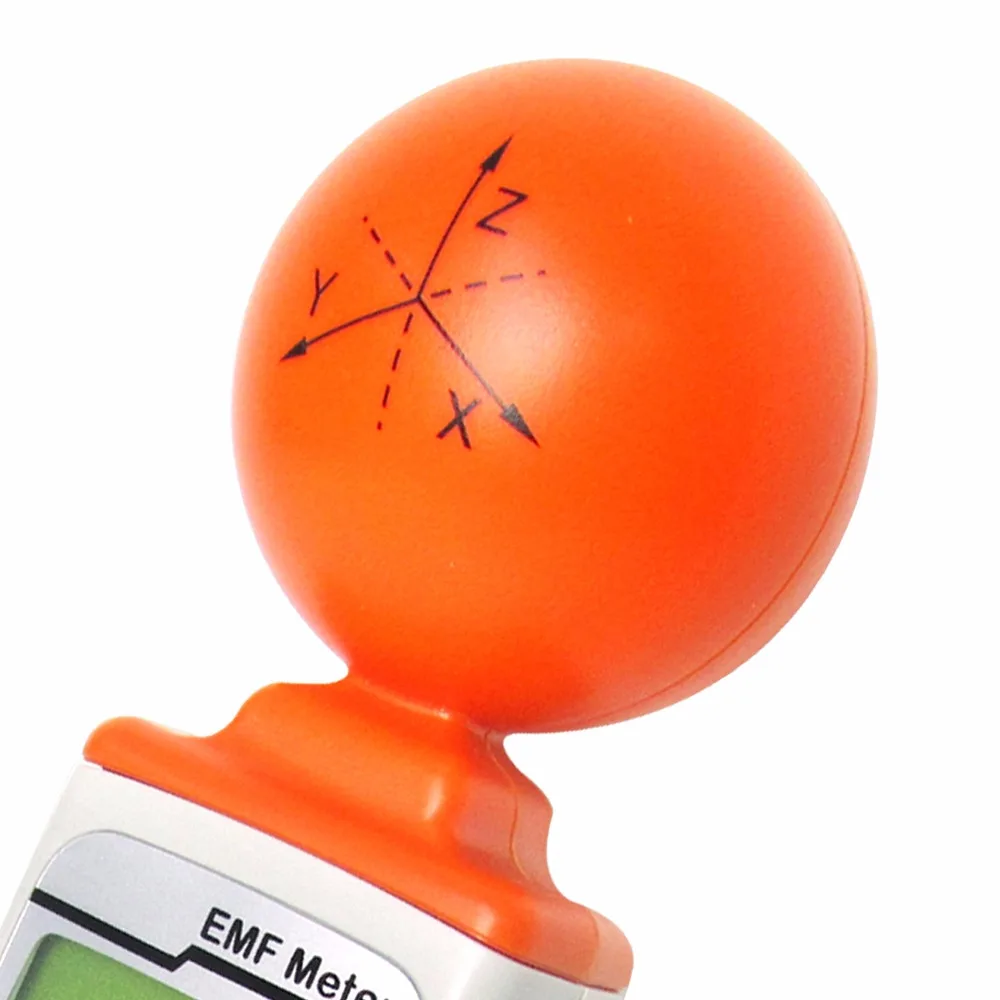

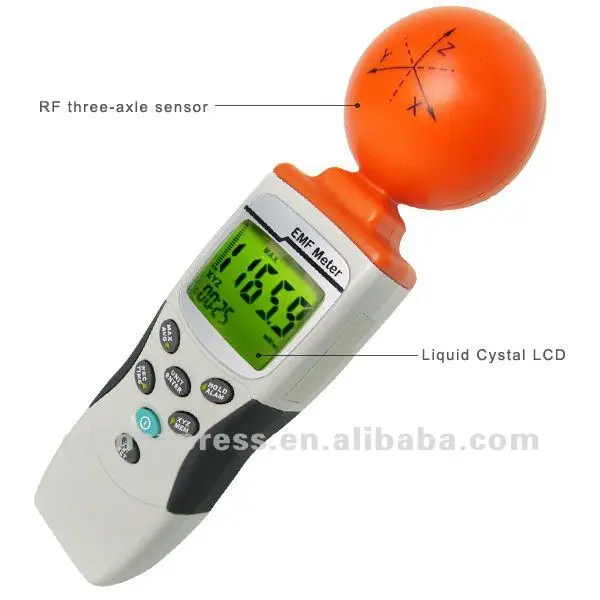

• Non-directional (isotropic) measurement with three-chnnels measurement sensor
• High dynamic range due to three-channels digital results processing
• Configurable alarm threshold and memory function
• Easy & safe to use
• Low battery indicator
• Overload indication



• Measurement Range: 38mV to 11V/m

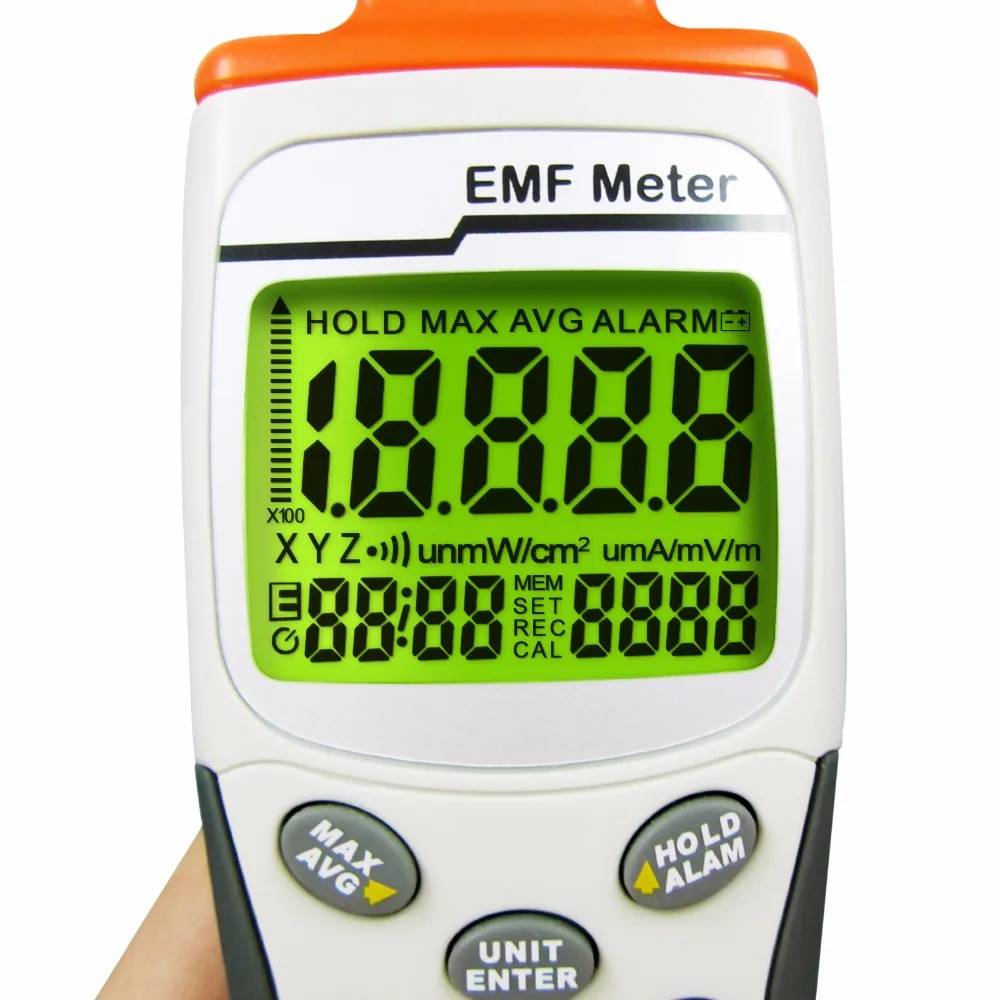

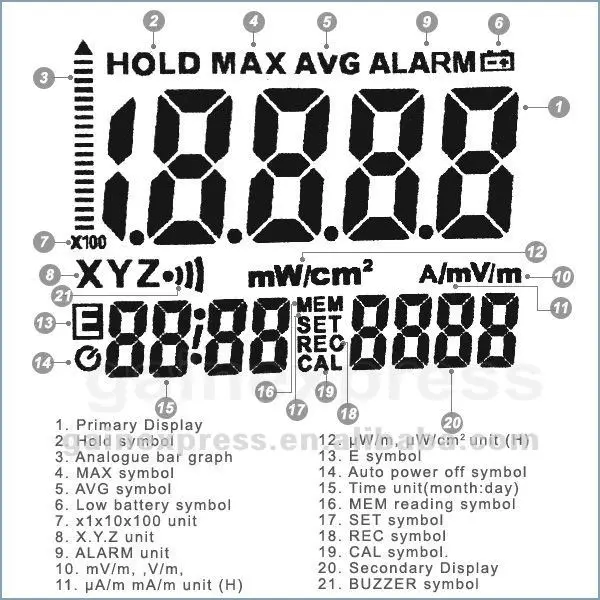

• Display: 3-3/4 digits LCD maximum reading 3999
• Frequency Range: 50MHz~3.5GHz
• Measurement Units: mV/m, V/m, µA/m, mA/m, µW/m², mW/m², µW/cm²
• Display Resolution: 0.1mV/m, 0.1µA/m, 0.001µW/m², 0.001µW/cm²
• Directional Characteristic: Isotropic, Triaxial
• Setting Time: Typically 2 (0-90% measurement value)
• Measurement range Selection: one continuous range
• Manual Date Memory: Records maximum & AVG
• Display Value: Instantaneous measured value, maximum value, average value or maximum average value
• Instant Alarm Function: Adjustable threshold with ON/OFF
• Calibration factor CAL: adjustable
• Manual data memory and read storage: 200 data sets
• Memory Recall: Adjustable
• Audible Alarm: Buzzer
• Auto Power off: Decide the time 15 minutes, adjustable threshold 0~99 minutes
• Sampling Time: 1.5 times per second
• Operating Environment
  • Temperature: 0 ~ 50°C (32 ~ 122°F)
  • RH: Max. 80%RH
• Operating Storage

  • Temperature: 0 ~ 50°C (32 ~ 122°F)

  • RH: Max. 80%RH

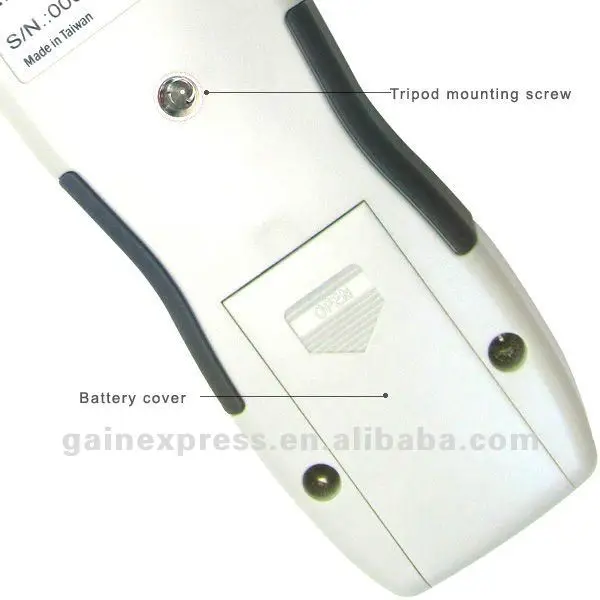

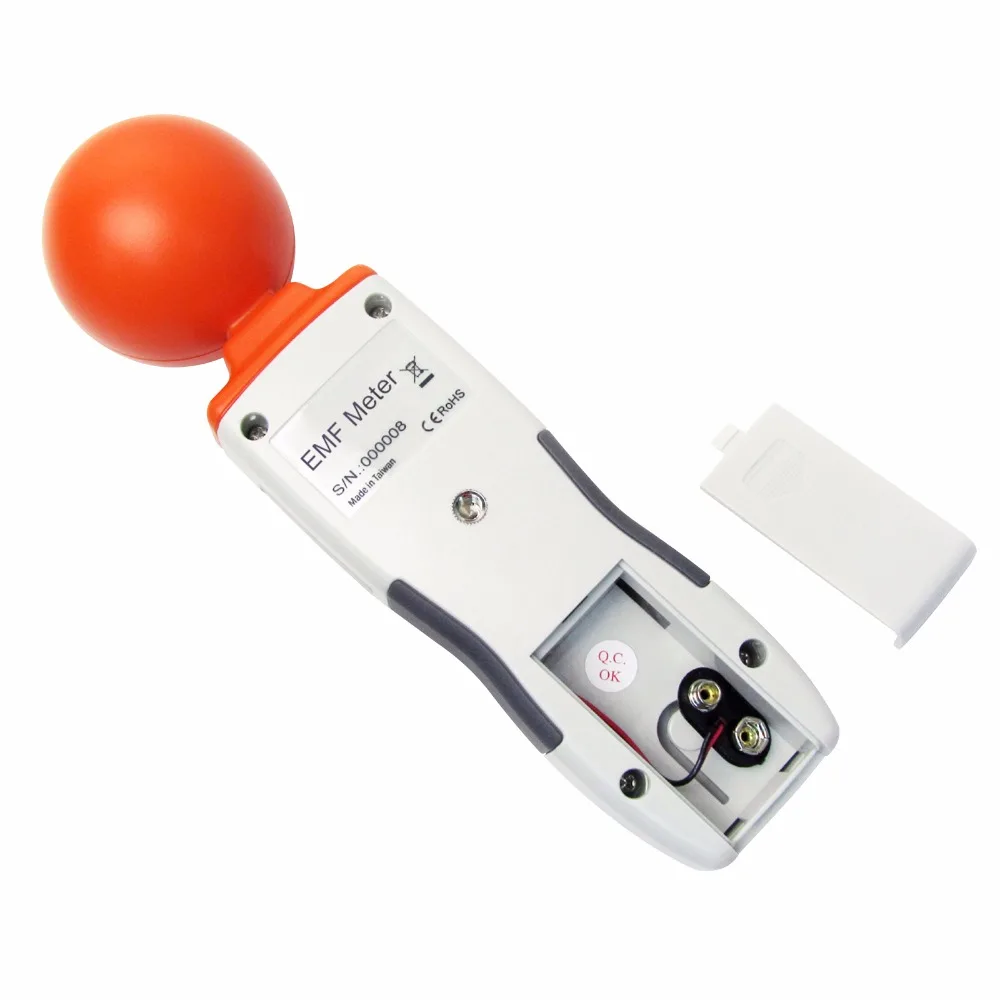

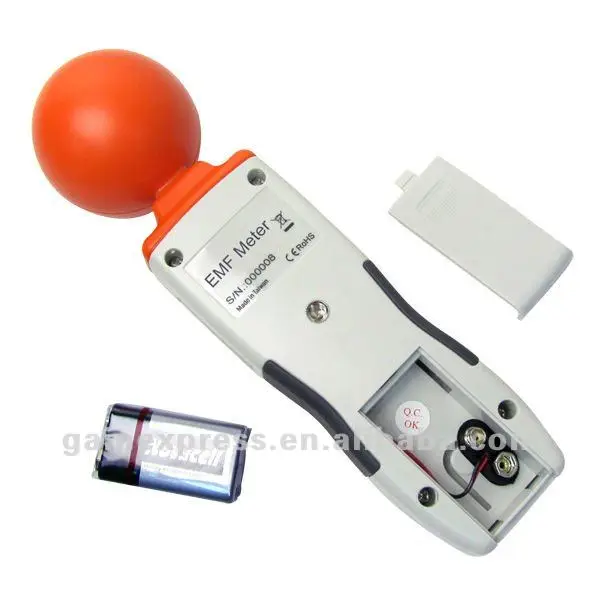

• Power Supply: 1 x 9V battery
• Battery: approx. 50hr
• Weight: approx. 180g
• Dimension: 220 x 60 x 60mm (including round ball diameter)

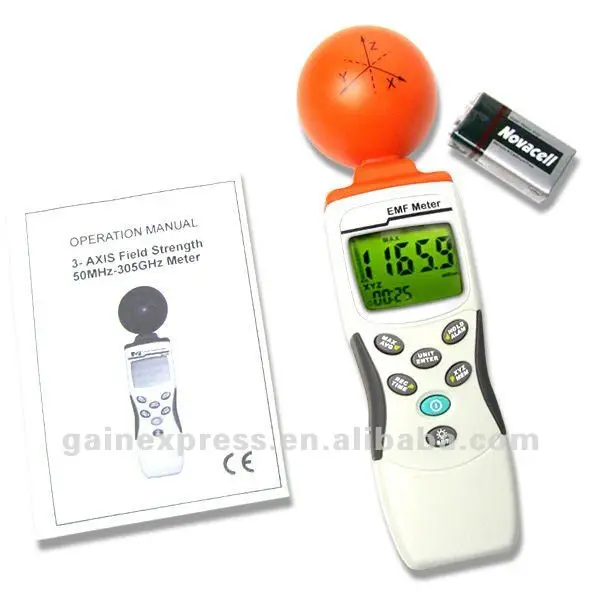

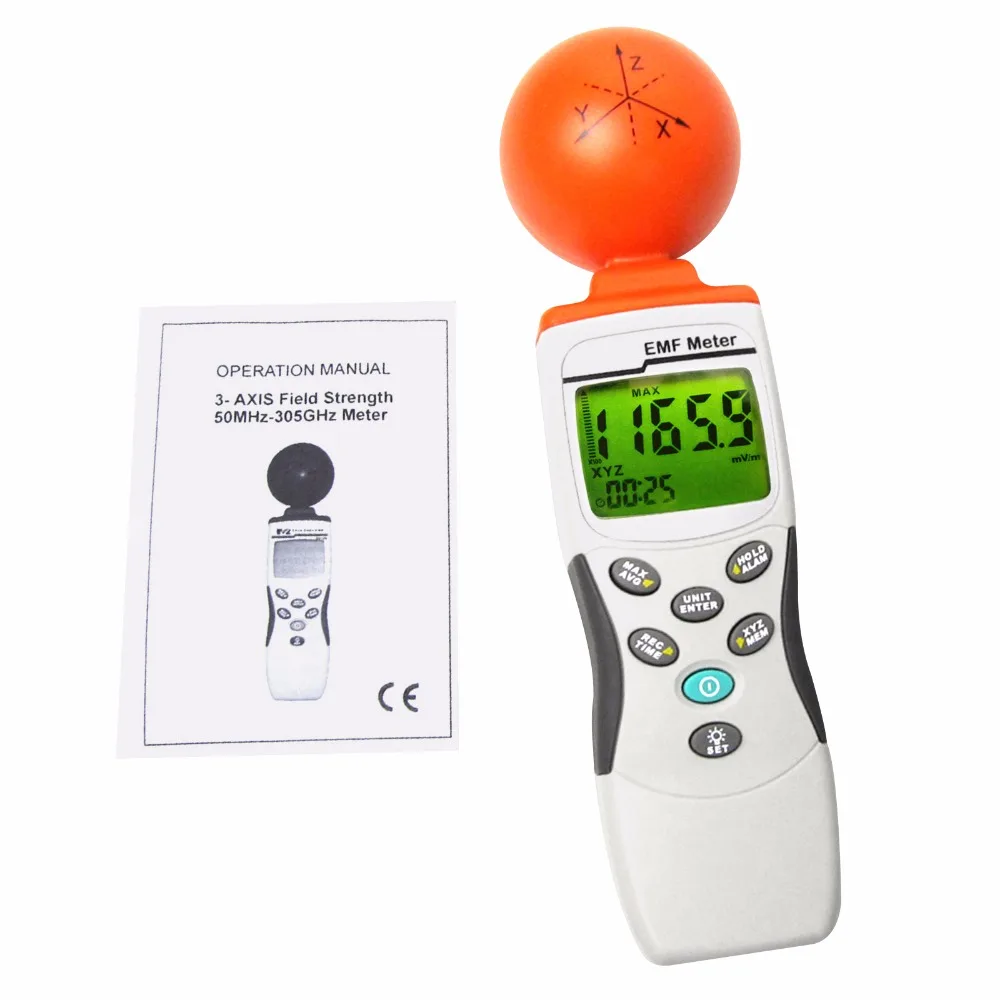

• 1 x 3-Axis EMF/RF Field Strength Meter
• 1 x 9V Battery ( FREE )
• 1 x English Instruction manual
• Standard Factory Package
