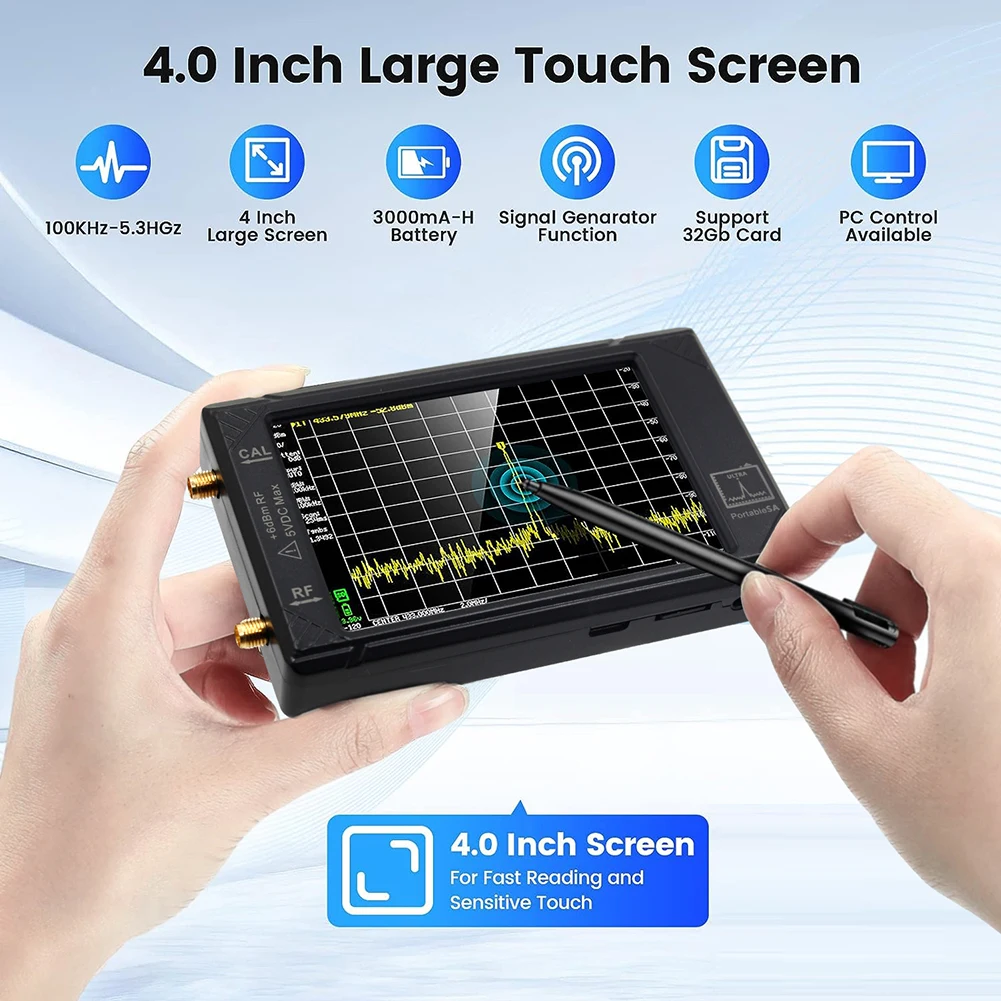

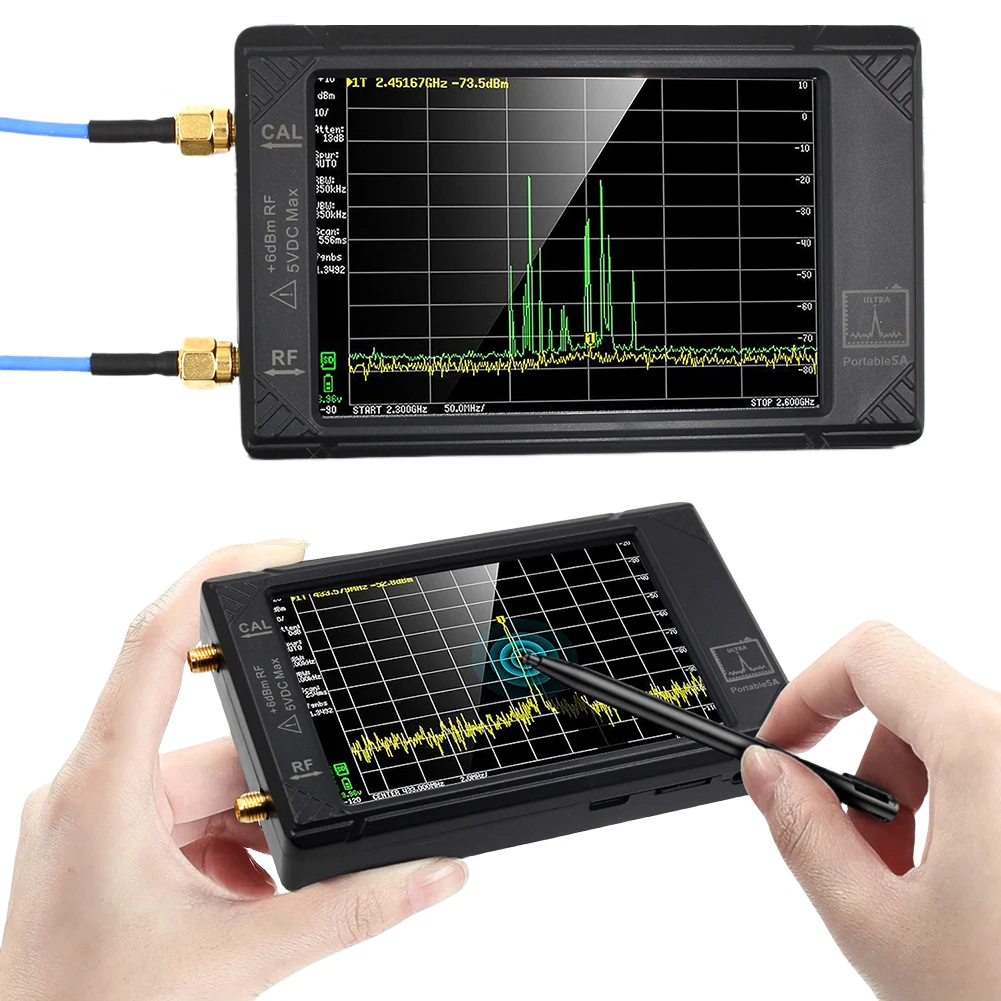

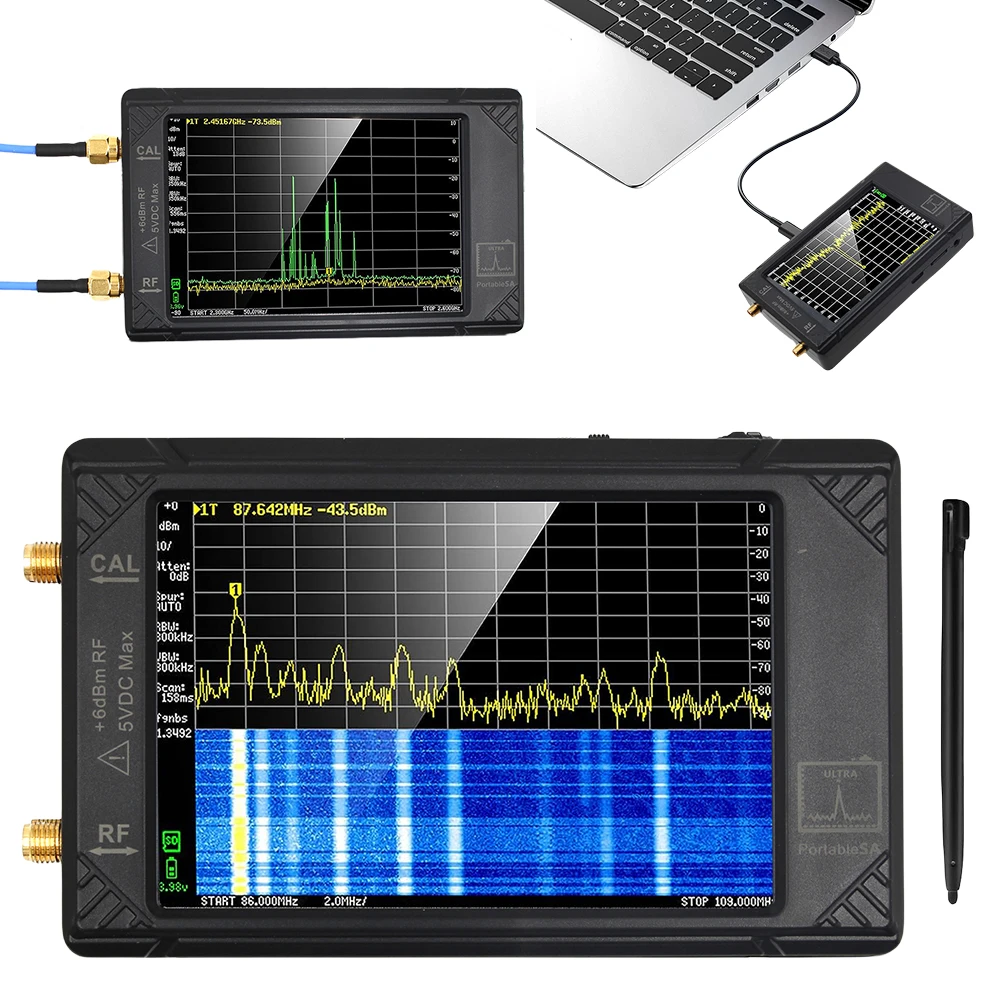

Handheld Tiny Spectrum Analyzer 100KHZ-5.3GHZ 4inch Display Portable Spectrum Analyzer RF Generator Ulrta Mode 32GB Card with Battery
Feature:
1.Versatile Spectrum Analyzer: This 4-inch screen handheld tiny spectrum analyzer operates in the 0.1-800MHz range, or in ultra mode from 0.1MHz-6GHz. When not used as a spectrum analyzer, it can function as a signal generator with a sine wave output between 0.1-800MHz, and a square or dual-tone output up to 4.4GHz.

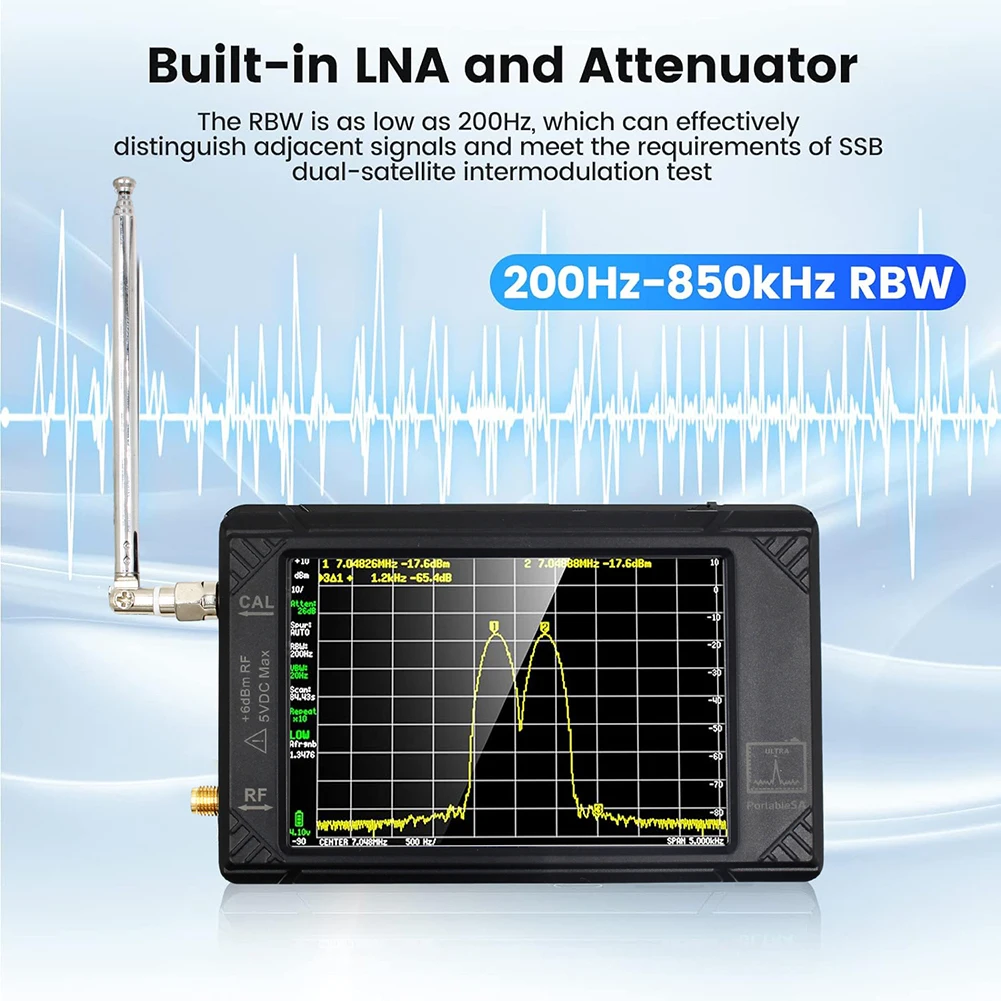

2.Adjustable Resolution Bandpass Filter: Our TinySA spectrum analyzer features a switchable resolution bandpass filter that fits two ranges between 200Hz and 850kHz, making it adaptable to meet various analytical needs.
3.Color Display and Comprehensive Scans: The vibrant color display of portable spectrum analyzer shows 450 scanning points covering the full frequency range, providing you with a comprehensive and clear view of the spectrum.
4.Built-in Calibrator and Stepped Attenuator: This spectrum analyzer is equipped with a built-in calibration signal generator for self-check and (low) input calibration. It also features an input stepped attenuator ranging from 0dB to 31dB (not used in combination with LNA), providing accurate and reliable measurements.

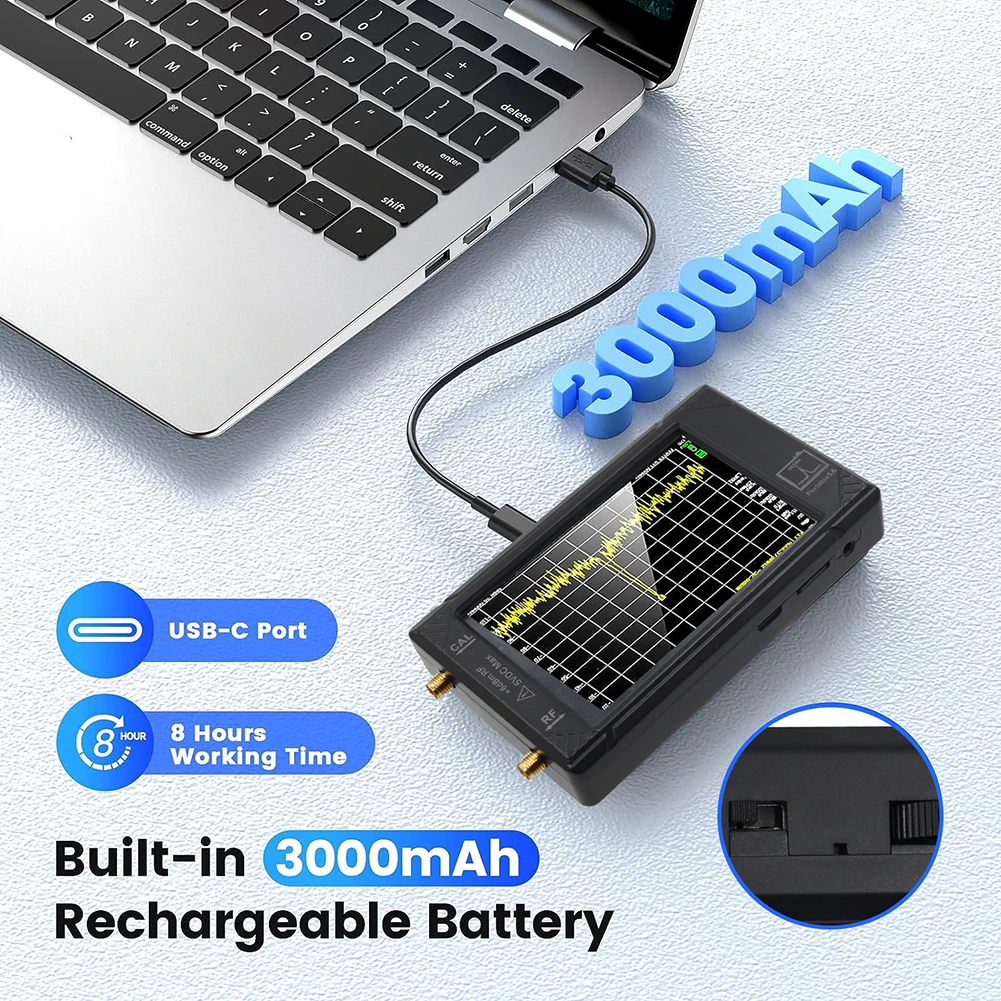

5.Portable and Computer-Controlled: With its rechargeable battery offering at least 2 hours of portable use and the ability to connect to a computer via USB, frequency analyzer can serve as a computer-controlled spectrum analyzer or signal generator. Despite its small size and low cost, remember not to exceed its maximum input level of +10dBm to avoid damaging your tinySA. Note there are specific limitations related to the tinySA and tinySA Ultra due to their low-cost and small form factor.

Specification:
Certification: CE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Size: 3.0 – 4.9 Inches
Display size: 4-inch TFT-LCD (480×320)

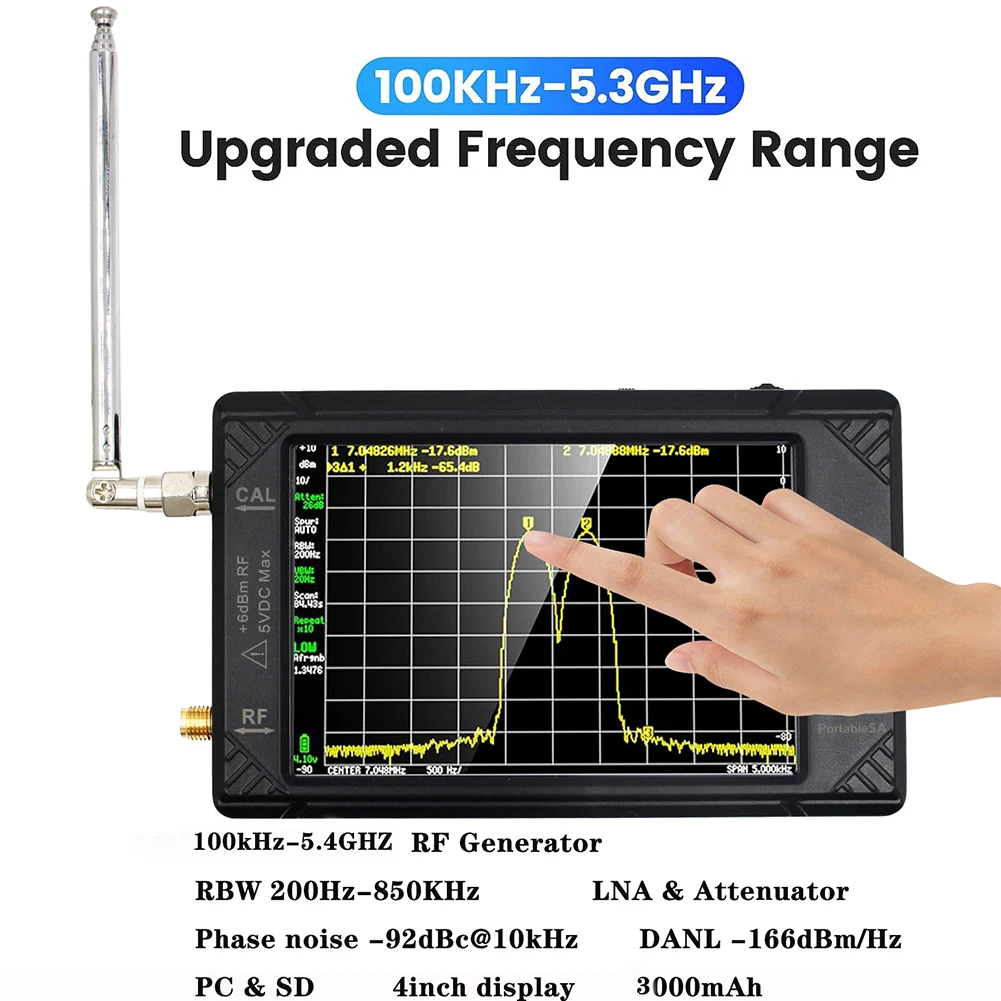

Maximum low input frequency: 800MHz, 6GHz super mode
Resolution filter in steps 1, 3, 10: from 200Hz to 850kHz
Maximum output frequency: sine up to 800MHz, square wave up to 4.4GHz
Output level: -104dBm to -16dBm
Ultra mode: Level calibration up to 5.3GHz
Internal LNA gain: 20dB to 4GHz
Points displayed per scan: 450 maximum
0-350MHz scan time: 165 milliseconds
Minimum zero span time: 17 milliseconds
DANL at 100MHz: -153dBm/Hz (LNA off) / -169dBm/Hz
DANL degrades in super mode: 10dB above 2.5GHz, 25dB above 5.3GHz
Phase noise at 10kHz offset: -92dBc/Hz
Phase noise at 100kHz offset: -110dBc/Hz
Input 1dB compression level: +0.5dBm (low noise amplifier off)/26.5dBm (high noise amplifier on)
IIP3 without LNA: +18dBm (at least 2MHz apart)/0dBm (500Hz apart)
IIP3 with LNA: -8dBm (at least 2MHz apart)
Frequency stability: SD card slot

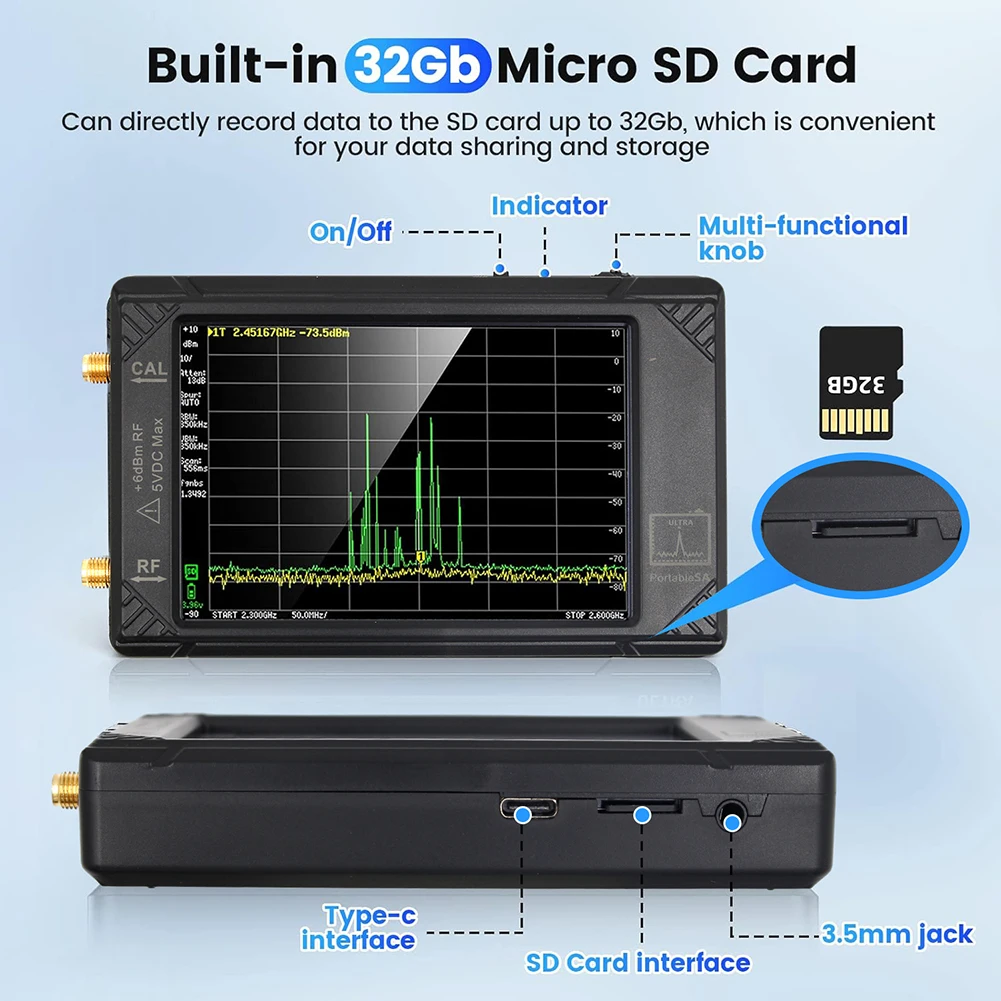

micro-SD card
Audio output: 3.5mm headphone plug
Firmware update mode activation: press the jog button in front of the machine
Shell material: ABS
Product size: about 115.00×73.00×23.00mm
Product size: 4.53×2.87×0.91inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

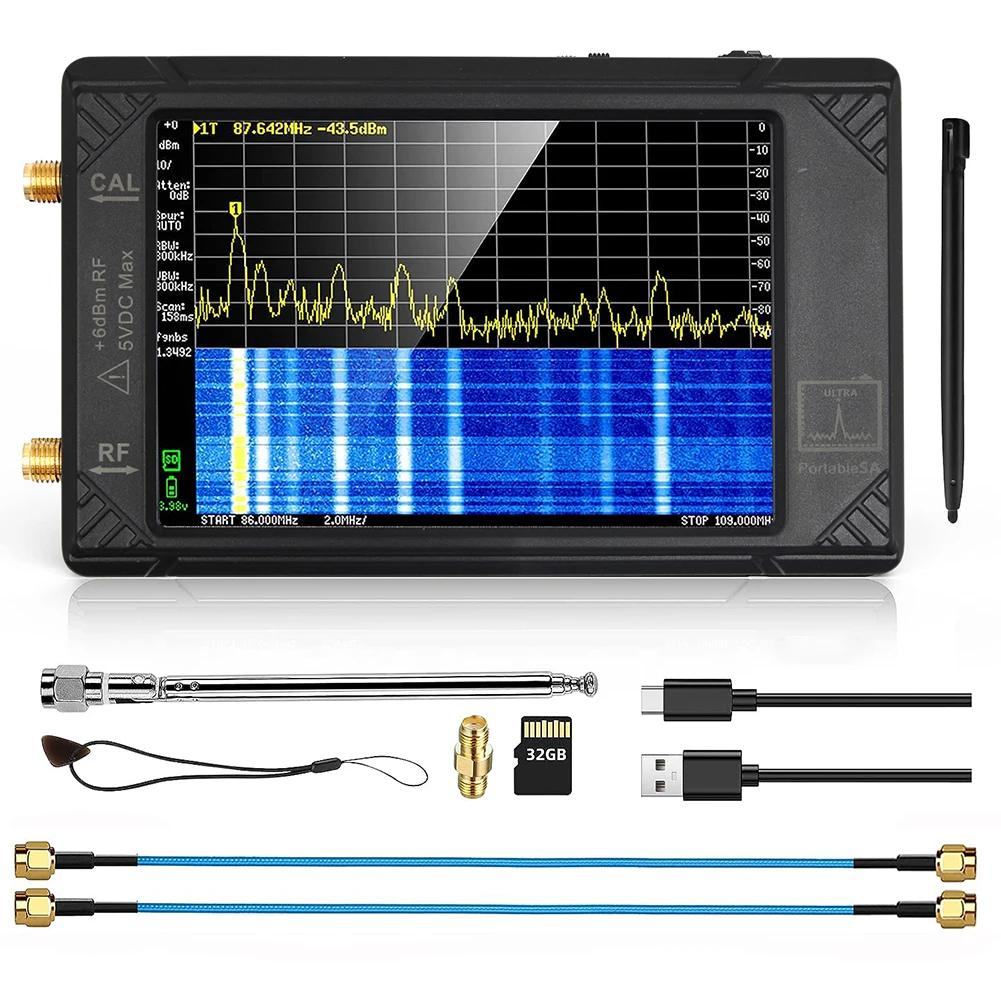

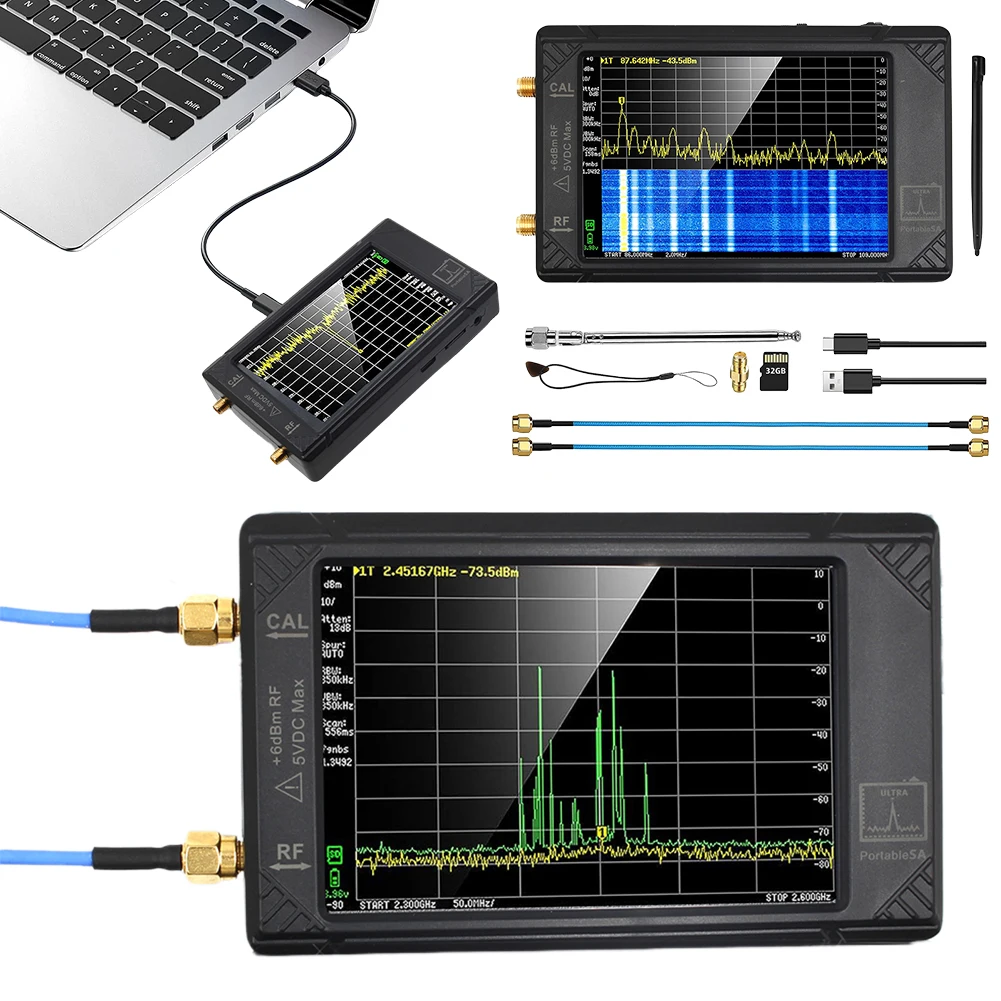

1 X Handheld Tiny Spectrum Analyzer  (With 30000mah Battery, 4-Inch Display) X 1
1 X Usb Type-C Data Cable
2 X 30cm Rg405 Smajb2/Smajb2 Rf Cable
1 X Sma-Sma Barrel Connector
1 X Antenna With Sma Connector
1 X Lanyard Touch Sheet
1 X Touch Pen
1 X 32gb Microsd Card (Insert Into Console)
